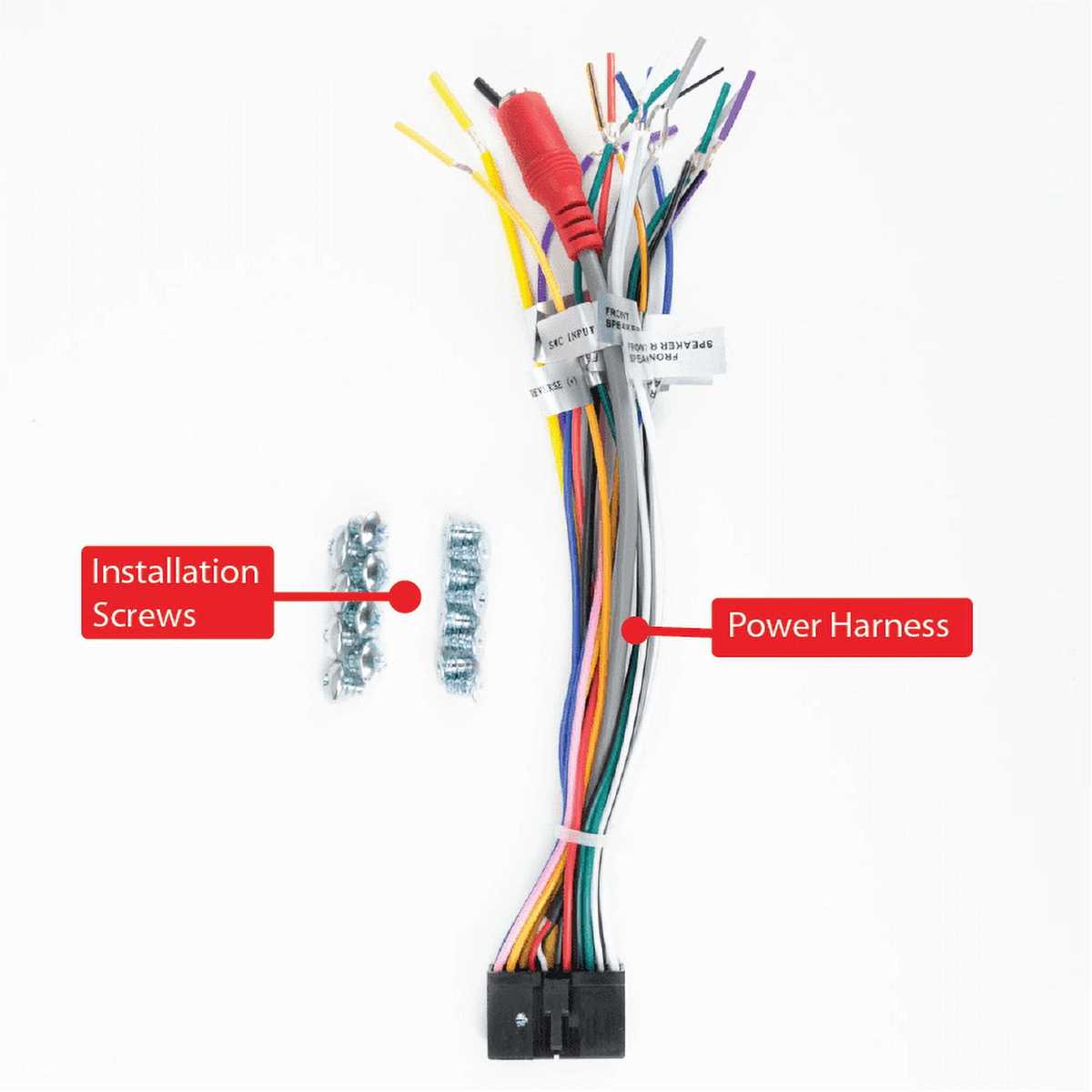

Start by locating the harness connector at the back of the head unit–typically a 16-pin plug with color-coded wires. For power, the yellow line (constant 12V) connects directly to the battery via a 10A fuse, while the red (switched 12V) ties to ignition. Ground the black wire securely to the chassis, ensuring no paint or corrosion interferes. The orange illumination wire splices to the vehicle’s dash light circuit for automatic dimming.
Speaker outputs follow this scheme: front left positive (gray) and negative (gray/black), front right positive (white) and negative (white/black). Rear channels use violet (positive) and violet/black (negative) for left, green (positive) and green/black (negative) for right. Verify polarity with a multimeter before securing connections–reversed wires degrade audio quality.
For auxiliary inputs, the blue/white (remote turn-on) connects to the amplifier trigger, while the pink (reverse signal) integrates with the vehicle’s backup light circuit if rear camera support is needed. USB and AUX inputs require separate harness adapters–match the device’s pinout to the brown (AUX-L), brown/white (AUX-R), and purple (USB data) wires. Insulate all splices with heat-shrink tubing to prevent shorts.
Double-check each connection against the vehicle’s manual before powering on. Incorrect wiring risks damaging the unit or blowing fuses. For steering wheel controls, use a compatible interface module–OEM buttons rarely connect directly to aftermarket systems without an adapter.
Connecting the Mobile Video Head Unit: Key Schematics

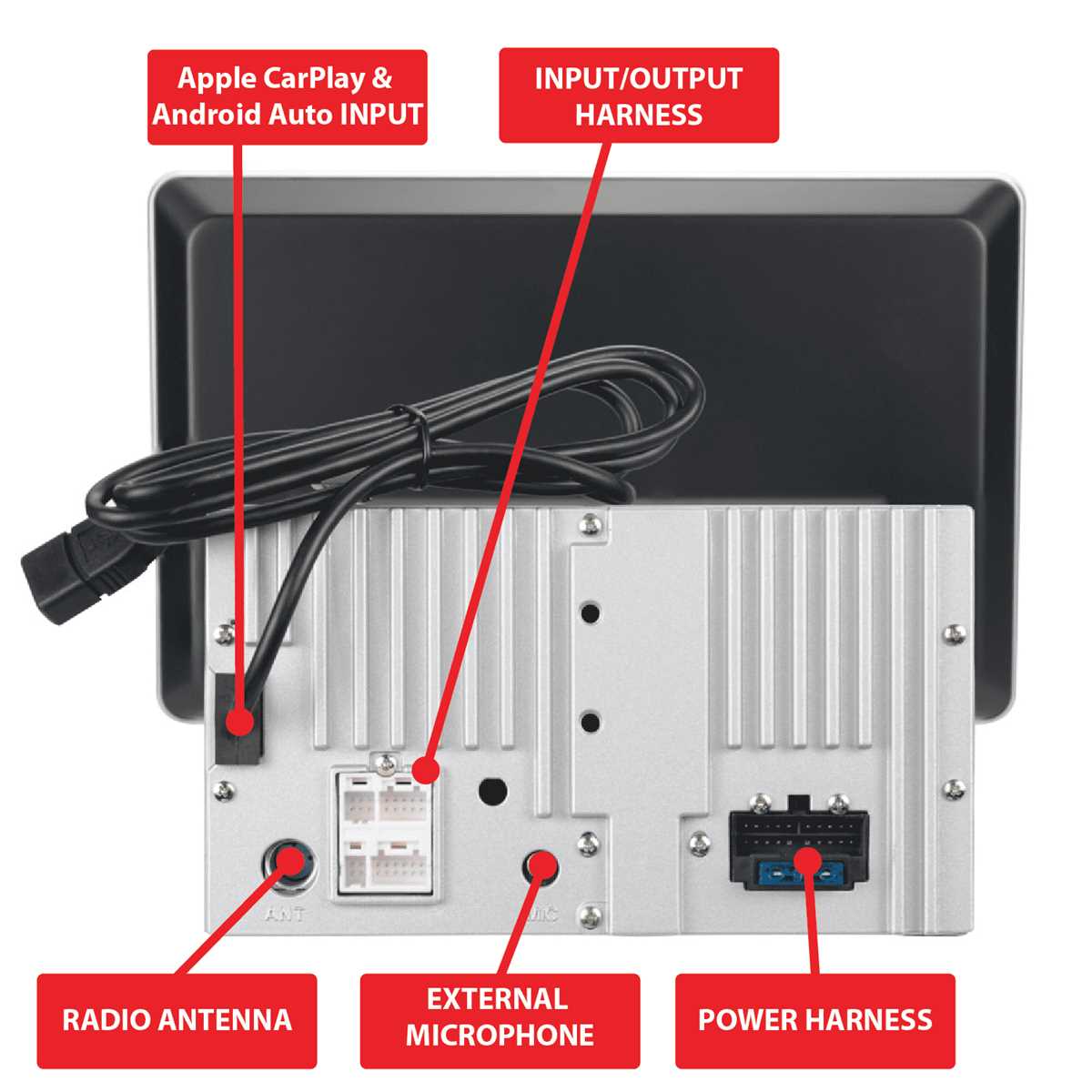

Begin by locating the main harness connector at the rear of the unit–it’s the 16-pin port labeled A1. Pinouts follow this sequence: 1-4 carry constant 12V (yellow), ground (black), ignition (red), and dimmer (orange) respectively. 5-8 are reserved for front-right, front-left, rear-right, and rear-left speaker outputs, each marked with corresponding stripe colors (gray/white, gray/black, green/white, green/black). Verify continuity with a multimeter before connecting to avoid short circuits.
For parking brake integration, wire pin 9 (pink) to the brake sensor circuit–this prevents video playback while driving. Pin 10 (light blue) connects to the reverse signal wire from the vehicle’s transmission, enabling automatic rear-view camera activation when shifting into reverse. Use a 2A fuse inline for camera power (pin 11, purple) to protect the circuit from voltage spikes.
The RCA connectors on the back panel require precise pairing: red (rear right), white (front left), yellow (video out), and green (rear left). For amplified systems, bridge the blue/white (pin 12) remote turn-on wire to the amplifier’s trigger input. Ensure all audio grounds (pins 2, 6, 8, 14) share a common chassis point to eliminate ground loops.
Antenna power is handled via pin 15 (blue)–connect this to the vehicle’s antenna lead for FM/AM reception. For GPS, attach the black/green wire (pin 16) to the included antenna module, positioning it near the windshield for optimal satellite lock. Avoid routing signal cables parallel to power wires to minimize interference.
If the unit fails to power on, check pin 3 (red) for ignition-switched 12V–this wire must see voltage only when the key is in the “on” or “accessory” position. For vehicles with CAN bus systems, splice the orange/white (pin 7) into the data line; refer to the car’s OEM wiring manual for exact color coding, as this varies by manufacturer.
Subwoofer outputs (if equipped) use pins 13 and 14 (gray/brown and brown). Adjust the crossover settings in the menu to match the sub’s frequency range (typically 50-120Hz). Always secure connections with solder and heat-shrink tubing–never rely solely on crimp connectors for high-current or signal-critical wires.
Step-by-Step Connection Guide for Power and Ground Cables
Identify the head unit’s power and ground terminals first–these are typically labeled BATT (yellow), ACC (red), and GROUND (black). Locate a sturdy, unpainted metal surface in the vehicle’s chassis for the ground connection. Use a 10-gauge or thicker wire for both power and ground to prevent voltage drop, ensuring the cable length matches the distance between the head unit and the battery/chassis without excess slack.
For the BATT (yellow) cable, connect directly to the car battery’s positive terminal using an inline fuse holder. Install a 10A–20A fuse within 18 inches of the battery to protect the circuit. Route the cable through the vehicle’s firewall using a grommet or existing wiring harness grommet, avoiding sharp edges or moving components like steering columns or pedals.
Key Precautions During Routing
- Keep power and ground cables at least 6 inches apart from signal cables (e.g., RCA, USB) to minimize interference.
- Secure cables with zip ties every 12–18 inches to prevent vibrations or abrasion.
- Test continuity with a multimeter before finalizing connections–resistance should read <0.1 ohms for ground.
ACC (red) should link to a switched ignition source, such as the fuse box or an accessory wire from the vehicle’s harness. Use a fuse tap or splice into an existing circuit fused at 5A–10A. Verify the circuit activates only when the ignition is in the “ACC” or “ON” position by testing with a 12V test light–avoid tapping into uncontrolled power feeds.
For the final ground connection, scrape away paint or corrosion from the chassis point using sandpaper until bare metal is exposed. Attach the ground cable securely with a ring terminal and a stainless-steel bolt, applying dielectric grease to prevent oxidation. Tighten the bolt until fully seated, then tug firmly to confirm stability. Recheck all connections before powering on–loose grounds cause erratic behavior or system failures.
Connecting RCA Cables for Clear Audio and Video Signals
Start by identifying the color-coded ports on the rear panel of your multimedia interface. The yellow RCA connector carries composite video–ensure it plugs into the matching output labeled “VIDEO OUT” or “COMPOSITE VIDEO.” Red and white RCA cables handle stereo audio: the red terminal transmits the right channel, while the white (or black) terminal carries the left channel. Push connectors firmly until fully seated to prevent signal degradation or intermittent connections.
Troubleshooting Signal Issues
If video appears distorted or audio cuts out, verify cable integrity–replace frayed or bent connectors immediately. Check for ground loops by testing with a single RCA cable at a time; if noise persists, use a fiber optic or HDMI adapter for interference-free transmission. Ensure the device’s output settings match the input resolution of your display–480p for most standard RCA setups–via the setup menu to avoid compatibility errors.
Identifying and Connecting Speaker Cables to the Multimedia Receiver
Locate the color-coded cables of the audio system’s harness. Each pair corresponds to a specific speaker: front left (gray), front right (white), rear left (green), rear right (purple), and subwoofer (brown, if equipped). Verify polarity–positive leads are solid-colored or marked with a stripe, negative leads are stripe-free. Cross-reference against the harness label or manual to confirm matches; swapping polarity distorts soundstage. Strip 6–8 mm of insulation from each wire end, twist strands tightly to prevent stray copper from shorting adjacent connections, then crimp with a 4–6 mm spade or bullet connector.
Matching Terminals Securely
| Speaker | Color Pair | Receiver Terminal | Torque/Secure Fit |
|---|---|---|---|
| Front Left | Gray (+), Gray/Black (-) | A | 0.5 Nm |
| Front Right | White (+), White/Black (-) | B | 0.5 Nm |
| Rear Left | Green (+), Green/Black (-) | C | 0.3 Nm |
| Rear Right | Purple (+), Purple/Black (-) | D | 0.3 Nm |
| Subwoofer | Brown (+), Brown/Black (-) | SW | Screw clamp |
Insert each crimped connector into the corresponding slot on the multimedia receiver’s rear panel–ensure connectors fully seat without bending pins. Tighten terminal screws to manufacturer-specified torque (0.3–0.5 Nm) using a calibrated driver; overtightening strips threads. Once all connections are secure, wrap each joint with high-temperature polyimide tape to prevent vibration-induced disconnections. Power on the unit, play a pink-noise track, and verify balanced output across all channels; imbalance signals a loose or reversed connection.
Connecting Parking Brake and Reverse Signal Cables: Exact Installation Guide
Locate the vehicle’s parking brake switch wire–typically a green or yellow/green line in most harnesses–before making any connections. Splice it directly to the corresponding light blue input on the head unit’s harness, ensuring polarity matches factory specs. If the wire is thick (18–22 AWG), use a crimp connector; for thinner wires, solder and heat-shrink tubing prevents corrosion.
For the reverse signal, identify the backup light circuit–usually white/purple or solid white–then strip 6–8 mm of insulation. Connect it to the unit’s orange/white or purple terminal using a butt splice or Scotchlok if the wire gauge exceeds 18 AWG. Avoid twisting wires together; loose strands increase resistance and risk short circuits. Test continuity with a multimeter before securing connections.
Ground both circuits within 30 cm of the main unit’s chassis point. Use an M6 or 1/4-inch bolt on bare metal, free of paint or rust. Apply dielectric grease to the ground terminal to prevent oxidation, especially in high-humidity environments. If the parking brake wire carries voltage only when engaged, add a 1N4007 diode inline to block backfeed that could trigger false signals.
Route all cables away from moving parts–steering columns, pedals, or exhaust components–and secure them with zip ties every 15 cm. Avoid sharp edges; use split-loom tubing if passing near engine bay hot zones. For vehicles with manual transmissions, the reverse signal may require tapping into the clutch safety switch instead of the backup light circuit; verify with a wiring schematic specific to the model year.
After securing connections, perform a functional test: engage the parking brake and shift into reverse while monitoring the display. The unit should disable touch controls when the brake is applied and display the rear camera feed when reversing. If the screen flickers, recheck grounds and ensure the parking brake wire isn’t sharing a fuse with high-draw components like cooling fans.
For OEM integration, some vehicles require a resistor (1k–3.3k ohms) across the parking brake line to simulate a factory signal. Others may need a relay for the reverse circuit if the backup light voltage exceeds 12V. Consult the vehicle’s service manual for exact requirements–generic aftermarket adapters often omit these details, leading to intermittent failures.
Label all connections with heat-shrink labels or colored tape for troubleshooting. Store excess cable length in a spiral wrap behind the dash, avoiding tight coils that can induce noise. Document the color codes and pinout in a vehicle-specific logbook; this simplifies future upgrades or diagnoses.
