For a reliable multi-point activation setup, use two SPDT (single pole, double throw) toggles connected to a shared power source and a single lamp. This arrangement allows independent control from separate locations–ideal for stairwells, hallways, or large rooms where access at both ends is necessary.
Step 1: Wire the common terminal of the first control to the live input. Connect its normally open (NO) terminal to the normally closed (NC) terminal of the second control. The NO terminal of the second control links directly to the fixture. Ground and neutral lines must run continuously to both toggles and the bulb.
Critical note: Ensure the power is off before handling connections. Incorrect wiring risks short circuits or uncontrolled activation. Use color-coded conductors–black for live, white for neutral, green/bare for ground–to avoid confusion.
For 3-way functionality, verify toggles are rated for the load. A 60-watt incandescent requires standard 120V switches, while LED or fluorescent fixtures may need dimmer-compatible models. Calculate total wattage and amperage to prevent overheating; most residential toggles handle 15A, but consult the manufacturer’s specs for high-demand setups.
Test the system by activating one toggle. The fixture should remain off until the second toggle is engaged–this confirms proper cross-connection. If the bulb lights immediately or flickers, recheck the NO/NC connections for errors. For extended runs, consider 14-gauge wire to reduce voltage drop over distances exceeding 30 feet.
Two-Way Control for Illumination Systems
Install a pair of three-way toggles at opposite ends of a hallway to manage a single fixture independently. Use 14-3 gauge cable between the toggles for travelers, ensuring the neutral wire connects directly to the lamp’s terminal without interruption. Label each traveler wire during installation to avoid miswiring, which causes flickering or operational failure.
For stairwells, mount one toggle at the top and another at the base. Run the 14-3 cable through the wall cavity, securing junctions in accessible electrical boxes. Connect the common terminal of the first toggle to the hot source, then link the two travelers to the second toggle’s corresponding terminals. The lamp’s hot wire attaches to the second toggle’s common terminal, while the neutral bypasses both toggles entirely.
Critical Wiring Configuration
- Power source → first toggle’s common terminal (brass screw).
- First traveler (red or black) → second toggle’s matching traveler terminal.
- Second traveler (remaining color) → second toggle’s other traveler terminal.
- Second toggle’s common terminal → lamp’s hot lead.
- Neutral wire → direct to lamp, bypassing toggles.
Test the setup by toggling each control. If the fixture fails to activate from one position, verify the traveler connections at both ends. Use a non-contact voltage tester to confirm power flow through the travelers when switched. Replace any damaged wires or loose connections immediately–arcing at loose terminals creates fire hazards.
Common Pitfalls
- Reversing traveler wires: causes improper function (one toggle works inconsistently).
- Mixing 14-2 cable for travelers: inadequate for carrying return current, leading to dim or flickering output.
- Ignoring box fill limits: overcrowding causes overheating (max 4 wires per 18 cu. in. box).
- Skipping neutral at the lamp: violates code and prevents smart bulb upgrades.
For outdoor applications, use weatherproof toggles and conduit-rated 14-3 cable. Seal entry points with silicone to prevent moisture ingress, which corrodes terminals and degrades insulation. Replace standard junction boxes with outdoor-rated models if exposed to elements. Ground all metal components, including toggles and fixture housings, to a copper rod driven at least 8 feet into soil for safety.
Core Hardware for Two-Way Control Systems
Select two SPST toggles with a current rating exceeding your fixture’s power draw by at least 25 %. For standard 60 W bulbs, 5 A models are sufficient; halogen loads demand 10 A units–verify interrupting capacity matches the breaker’s trip value.
- 14 AWG copper wire–solid core for wall runs, stranded for fixture tails–mandatory for circuits under 15 A.
- Three-terminal junction box per splice point; metal enclosures if ambient temperature exceeds 35 °C.
- Neutral and traveler terminals pre-labeled; avoid shared screws on devices.
- Snap-in wire nuts sized for 2–4 conductors; torque to 0.5 Nm.
Include surge-protected terminal strips when ambient RF exceeds 3 V/m–shielded cables are unnecessary below 10 MHz unless LED drivers have resonant frequencies in the 20–80 kHz band.
Step-by-Step Wiring Connections for Two-Way Control
Begin by identifying the common terminal on each mechanical toggle–this is typically marked with a distinct color or label. Connect the live feed wire from the power source directly to the common terminal of the first controller. Ensure the wire is securely fastened to prevent loose connections, which can cause intermittent operation or overheating.

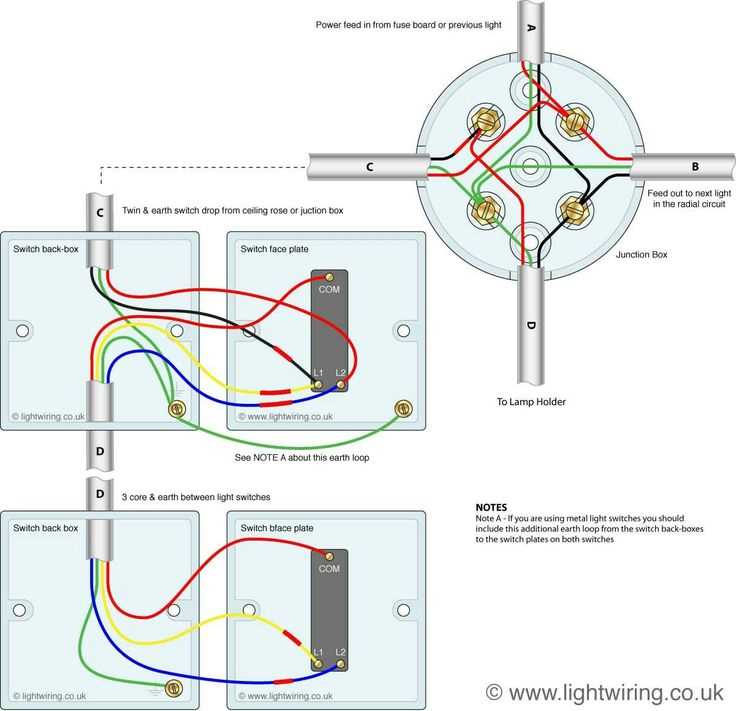

Run a three-core cable between the two control points. The extra conductor will serve as the traveler link, carrying the current between the toggles. Strip the ends of the travelers, then attach one to the L1 terminal of the first device and its corresponding partner to the L1 terminal of the second. Repeat this process for the L2 terminals, ensuring polarity matches at both ends.
Attach the return wire from the load–such as a lamp or fixture–to the common terminal of the second controller. This wire completes the path when either toggle is activated. Verify that all connections are tight and insulated with appropriate connectors; expose no bare conductors, as this increases the risk of short circuits or electric shock.
Test the setup by operating both toggles independently. The load should respond identically regardless of which device is manipulated. If the fixture fails to activate, recheck the common terminals–miswiring here is the most frequent cause of failure. Additionally, confirm the traveler wires are correctly paired and not crossed.
For installations involving multiple loads, use separate traveler links for each control arrangement to avoid interference. In configurations with more than two toggles, employ an intermediate mechanism to bridge the additional control points, maintaining consistent functionality without overloading any single conductor.
Finalize the installation by securing all cables neatly within junction boxes, using cable ties to prevent strain on terminals. Label each wire at both ends with its purpose–power, traveler, or return–to simplify future maintenance. Cover all exposed connections with an insulating cap before restoring power to the system.
Common Pitfalls in Two-Control Illumination Installations
Mismatching wire gauges leads to overheating or premature component failure. Use 14 AWG for 15-amp breakers and 12 AWG for 20-amp breakers–never mix them in the same run. Thinner wires create resistance points, causing voltage drops that flicker bulbs or trip fuses.
Skipping junction box grounding invites electrical hazards. Every metal box requires a bonded ground wire connected to both the fixture and the controls. Plastic boxes need internal grounding via the incoming ground wire, but many omit this, leaving exposed metal parts live.
Incorrect terminal pairing on multi-way toggles disrupts functionality. Identify the common terminal on each control–it’s often darker or labeled–and connect it to the power source or load, not travelers. Reversing this results in inconsistent operation or dead zones.
Using incompatible bulb types strains the system. LED drivers and dimmable fixtures require specific toggle models rated for their wattage and voltage. Forcing a 100W LED into a 60W-rated setup risks flickering or burnt-out drivers.
Neglecting Traveler Wire Organization
Haphazard traveler connections cause malfunction. Label each runner at both ends before stripping: “A” at one end becomes “A” at the other. Swapping them reverses toggling logic–up becomes down, creating user confusion and wasted troubleshooting time.
Ignoring local electrical codes voids insurance and creates fire risks. Some regions mandate arc fault circuit interrupters (AFCIs) for lighting runs, while others require separate neutral wires for each runner. Verify code requirements before assembling components.
Overloading Neutral Pathways
Shared neutrals in multi-way setups cause overcurrent. Each toggle should have its own dedicated return path back to the panel. Bundling neutrals from multiple fixtures into one wire overheats connections, melting insulation and risking short circuits. Use labeled bundles and test continuity before finalizing.
Verifying and Resolving Issues in a Two-Control Wiring Setup
Begin by confirming power at the power source with a multimeter set to AC voltage. Measure between the live feed and neutral; readings should match the expected household supply (typically 120V or 230V). If absent, trace the feed back to the breaker panel–check for tripped breakers or blown fuses. Next, probe each control terminal while toggling both levers independently. A functional configuration will show voltage at the common terminal in at least one lever position. If voltage drops unexpectedly, inspect terminal connections for corrosion, loose screws, or pinched cables.
Common Faults and Corrective Steps
| Observed Issue | Diagnostic Action | Resolution |
|---|---|---|
| No output at load despite power at controls | Check continuity between traveler terminals across both controls with a multimeter in resistance mode | Replace faulty control or repair broken traveler connection |
| Load activates only with one control | Test each traveler wire for voltage while toggling both levers | Swap miswired traveler and common terminals or re-terminate loose wire |
| Flickering output | Inspect for high-resistance joints using a contact cleaner or wire brush | Tighten terminal screws and clean oxidized contacts |
For persistent anomalies, segment testing: disconnect the load and wire a single control in isolation. Validate basic operation before reintroducing the second control. Always de-energize the installation before handling terminals to prevent shock hazards.
