Begin with two identical power sources–matching capacity, age, and brand eliminates imbalances. Connect the positive terminal of the first unit directly to the vehicle’s starter or load distribution block using 4-gauge or thicker copper cable. The negative terminal must link to the chassis ground or a shared negative busbar, ensuring zero voltage drop across critical paths. Repeat this for the second power source, but here’s the key: interconnect both positives with identical cable length and gauge before attaching to the load. This prevents one unit from discharging faster and maintains equal voltage distribution.
Install a 100–150 amp isolator between the alternator and the secondary power source to prevent cross-charging. Without it, one unit may discharge into the other during engine-off periods, reducing lifespan. For auxiliary systems (e.g., inverters, winches), use a separate fuse block rated for 20% above total load. Fuses should sit no farther than 7 inches from each terminal to prevent damage from short circuits.
Measure open-circuit voltage after 24 hours of rest. A disparity over 0.1V indicates sulfation or internal resistance differences–replace mismatched units immediately. For temperature extremes above 30°C, derate current capacity by 30% and add a temperature-compensating charger. Use heat-shrink sleeves over all connections to prevent corrosion in humid or saline environments.
Verify setup with a multimeter under load. Start with a 50-amp draw; voltage at the load should not drop below 12.2V. If it does, check cable resistance–12 AWG should read less than 0.005 ohms per foot. Reduce distance between power sources and load to minimize losses. For deep-cycle applications, bypass the isolator during discharge cycles to allow balanced depletion, but always re-engage it before recharging.

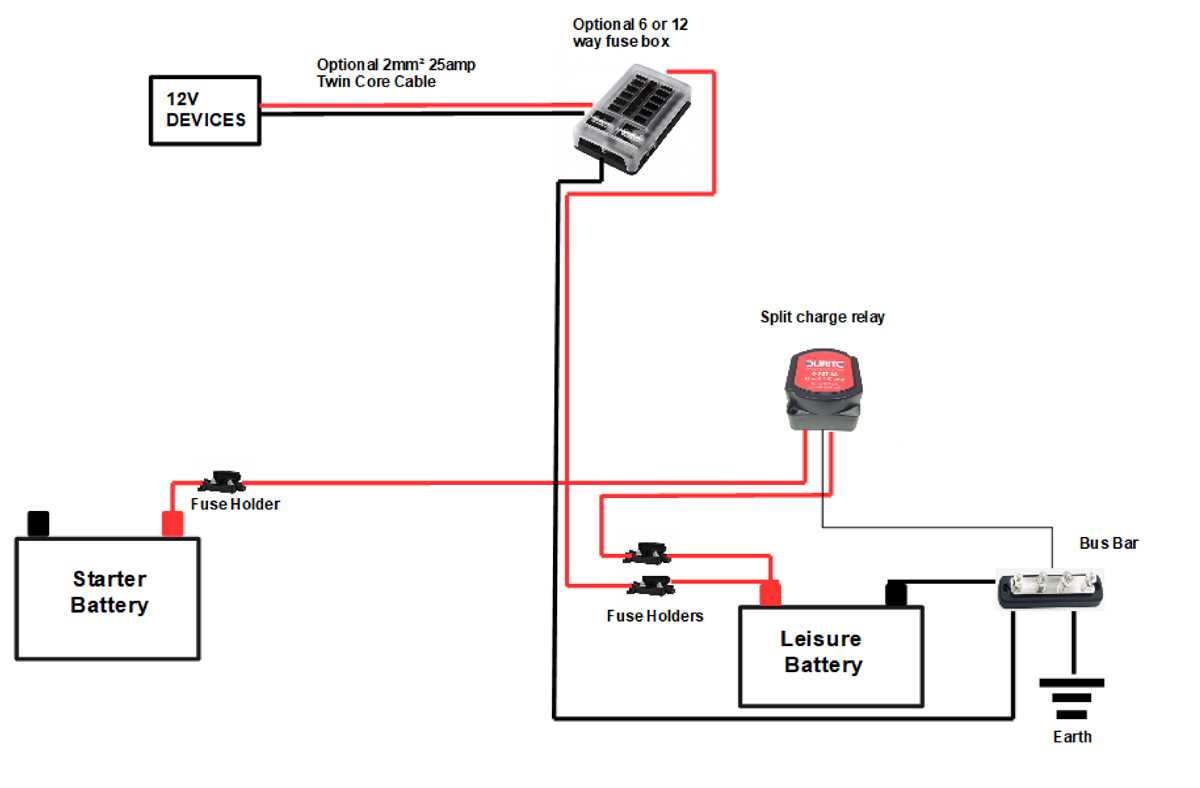

How to Configure a Twin Power Source Setup for 12V Systems
Use a 100-amp isolator between the auxiliary and primary power units to prevent parasitic drain when the engine is off. Mount the isolator within 18 inches of the starter system to minimize voltage drop–test with a multimeter to ensure less than 0.2V loss across connections.
Run 2/0 AWG cable between the two energy stores, terminating at brass busbars rated for 250A continuous. Avoid crimp terminals; solder and heat-shrink all joints, then coat with dielectric grease to resist corrosion. Ground the negative busbar directly to the chassis using 1/0 AWG cable, ensuring no shared ground paths with sensitive electronics.
Optimal Circuit Protection
Install 150A ANL fuses within 7 inches of each power unit’s positive terminal. For branch circuits, use 30A blade fuses near the distribution block–never exceed 80% of the fuse rating for sustained loads. Route cables away from exhaust manifolds and sharp edges, securing with adhesive-lined clamps every 12 inches.
For a managed charging system, wire a 30A smart relay with a voltage sensing lead to the starter energy unit. Configure the relay to engage only when voltage exceeds 13.2V, preventing deep-cycle depletion during accessory use. Test relay function with a load tester pulling 20A to confirm clean switching.
Label every connection with heat-resistant sleeves color-coded per ISO standards: red for positive, black for negative, blue for auxiliary feeds. Include a schematic in a sealed pouch under the hood–update it whenever modifying the setup. Use marine-grade adhesive labels that withstand temperatures up to 200°C.
Common Pitfalls and Corrections
Never parallel unsynchronized alternators–each charging unit must be isolated by a diode or relay. Check alternator output at idle; it should maintain 13.8–14.4V across both power sources. If voltage fluctuates, replace the voltage regulator or inspect the alternator’s internal rectifier.
Size cables conservatively–calculations must account for 3% voltage drop per 10 feet of 2/0 AWG copper at 150A. For dual-purpose setups (e.g., winching plus refrigeration), add a third 200A busbar dedicated to high-demand loads. Connect the battery-to-battery link via a 250A thermal breaker that trips at 105°C.
Audit the system annually: measure resistance across terminals (target
Critical Elements for a Parallel 12-Source Energy Configuration
Select an isolator with a 140-200 amp rating for mid-sized setups. Brands like Blue Sea Systems and Victron offer models tested under 1,000+ charge cycles, ensuring separation between primary and auxiliary units without voltage sag. Verify the isolator’s recovery time–under 300 milliseconds prevents micro-dropouts during high-demand loads like compressors or inverters.
Use 2/0 AWG cable for the main busbars, reducing resistance to under 0.0005 ohms per foot. Larger setups benefit from 4/0 AWG, but weight increases by 23%–balance performance with physical constraints. Pre-tinned copper strands resist corrosion in marine environments; avoid aluminum for primary connections due to oxidation risks.
Optimal Charge Controller Specifications
Pair deep-cycle units with an MPPT controller for solar inputs exceeding 200W. The table below compares key parameters:
| Controller Type | Efficiency Gain | Max Input (Volts) | Cost (USD) | Ideal Use Case |
|---|---|---|---|---|
| PWM | 70-80% | 36 | 80-120 | <150W panels |
| MPPT 100V | 92-97% | 100 | 180-300 | 200-600W arrays |
| MPPT 150V | 95-98% | 150 | 350-500 | >600W high-voltage |
Fuse both sides of the parallel connection independently–no shared fusing. Class T fuses (30-300A) handle 20,000 amp interrupt ratings; ANL fuses suit budgets but peak at 2,700 amps. Mount fuses within 7 inches of the terminal to contain catastrophic failures.
Add a battery monitor with shunt-based current sensing. Models like the Victron BMV-712 provide 0.5% precision and track amp-hour history, preventing unexpected depletion. Avoid monitors relying solely on voltage–charge states can read 70% while actual capacity drops to 30% after 200 cycles.
Use a manual kill switch in-line with the primary starter to prevent parasitic drains from auxiliary loads. Rotary switches (Blue Sea 9001) handle 300A continuous loads, while push-button variants risk overheating at sustained draws above 150A.
Grounding and Protection Priorities
Secure all chassis grounds to a single point using star topology. Multi-point grounding creates circulating currents, accelerating terminal corrosion by 40%. Use dielectric grease on terminals and inspect torque values biannually–loose connections raise resistance by 1.5x within three months.
Step-by-Step Connection Guide for 12V Energy Storage Pairings
For parallel linking, attach the positive terminals of both accumulators to a single 4 AWG copper cable using ANL-type fuse holders (150A minimum rating). Connect the negative terminals identically to another 4 AWG cable, ensuring all joints are crimped with hydraulic lugs and sealed with heat-shrink tubing. Use a multimeter to verify voltage remains at 12.6V across both units before finalizing connections. Avoid combining different amp-hour capacities; mismatched outputs can cause uneven charging cycles and reduce system longevity by up to 40%.

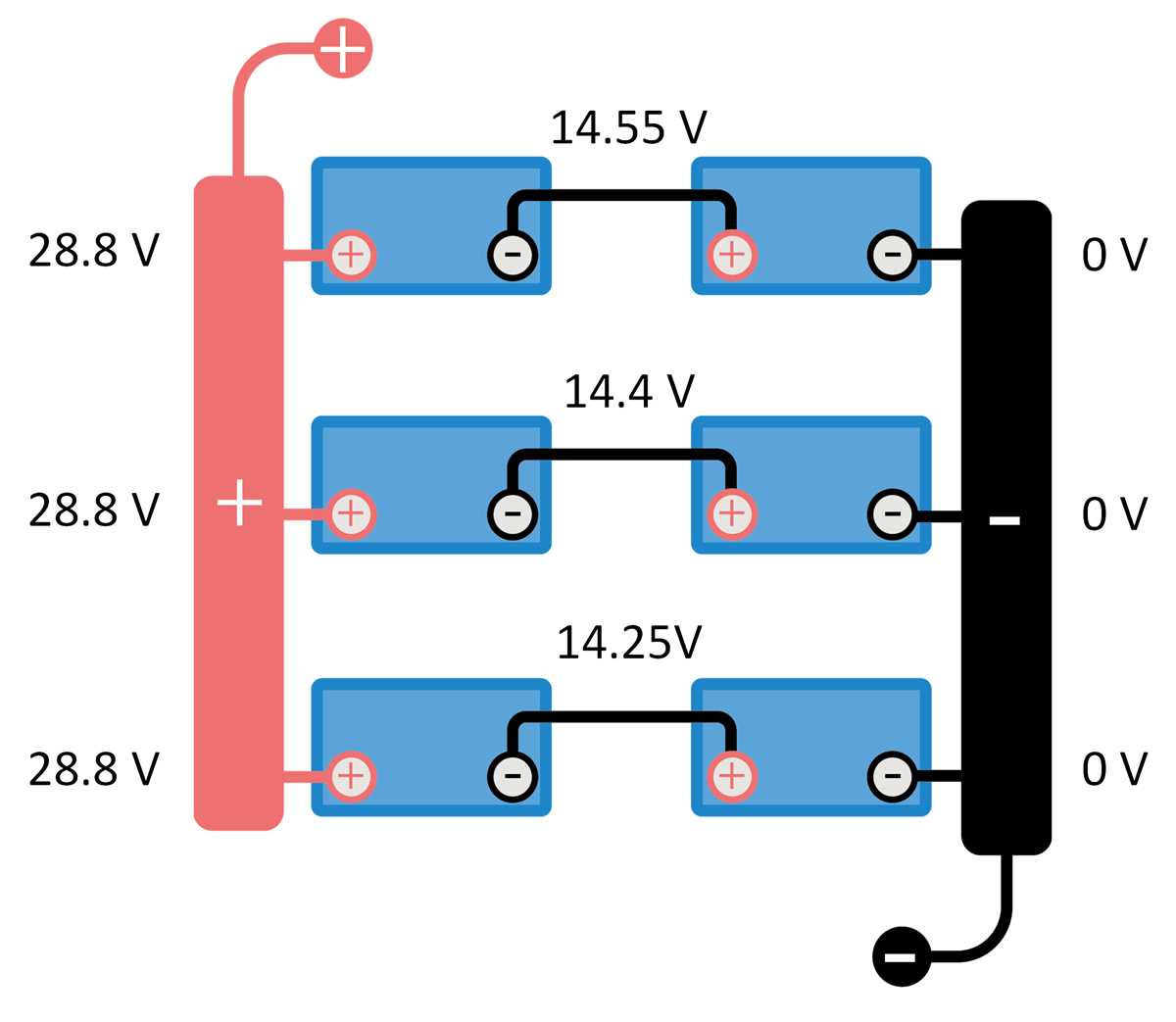

Series arrangements require connecting the first unit’s negative post to the second’s positive using 2/0 AWG copper cable with a Class T fuse (200A) in-line. Secure joints with tin-plated lugs and torque to 12 Nm using a calibrated driver. Test output voltage immediately–proper series linkage yields 25.2V. Never exceed manufacturer-recommended charging thresholds (14.8V for flooded, 14.4V for AGM) during operation; overvoltage risks permanent cell damage. For high-current applications, incorporate a relay-controlled isolator to prevent parasitic drain during idle periods.
After securing all connections, apply dielectric grease to terminals and recheck continuity with a load tester at 50% capacity for 10 minutes. Monitor temperature fluctuations–parallel setups may dissipate heat unevenly if airflow is obstructed. Label all cables with heat-resistant tags to simplify future troubleshooting. For marine or off-road use, encase the entire assembly in a waterproof junction box rated IP67, sealing cable entries with marine-grade silicone. Disconnect the negative terminal first when servicing to minimize short-circuit hazards.
Choosing the Right Isolator or Split Charge Relay for Energy Storage Separation
Opt for a solid-state isolator if your system demands minimal voltage drop and silent operation. Models like the Victron Smart BatteryProtect or Blue Sea Systems 65A handle 12V setups efficiently, offering continuous current ratings up to 65A with peak loads of 120A. These units eliminate mechanical wear, reduce heat buildup, and respond in microseconds–critical for sensitive electronics.
For high-amperage applications, a heavy-duty solenoid relay such as the Battery Sleuth 200A or Cole Hersee 9500 ensures robust separation. These relays tolerate surges exceeding 1000A, ideal for winches, compressors, or inverters. Check coil voltage compatibility (typically 12V) and mounting orientation to prevent overheating. Install a flyback diode across the coil to protect against inductive spikes.
Bidirectional DC-DC chargers like the Renogy 20A or Redarc BCDC1225 combine separation with active charging. These units transfer energy between banks while regulating voltage, preventing overcharging. Prioritize models with adjustable charging profiles (bulk, absorption, float) to match AGM, gel, or lithium chemistries. Ensure the charger’s input/output voltage aligns with your system (e.g., 13.8V for lithium, 14.4V for lead-acid).
Thermal protection is non-negotiable. Devices like the Sure Power 1314A feature built-in heat sinks and fan cooling, rated for ambient temperatures up to 85°C. Avoid mounting isolators near exhaust manifolds or enclosed spaces–use remote relay boxes if necessary. For marine or RV applications, specify corrosion-resistant terminals (tin-plated copper) and waterproof housings (IP67).
Key Specifications to Verify
Amperage rating: Multiply your system’s continuous load by 1.25 to determine minimum requirements. A 50A load needs a 63A isolator; factor in 20% headroom for safety. For intermittent loads (e.g., starter motors), use the peak rating (often 3–5x continuous).
Voltage drop: Solid-state isolators like the Sterling ProSplit R offer
Compatibility: Lithium setups require isolators with low-voltage disconnect (LVD) at 10.5V to prevent deep discharge. Lead-acid systems need float voltages of 13.2–13.8V. Verify isolator voltage thresholds match your regulator or alternator output–mismatches cause premature failure. Test with a multimeter before finalizing installation.
Environmental resilience: Off-road or marine setups demand ingress protection (IP67 minimum). Isolators like the Stinger SGP35 include vibration damping for rough terrain. For sub-zero operation, select models with wide temperature ranges (-40°C to +85°C) and silicone-insulated terminals. Avoid polypropylene cases–they crack under thermal stress.
