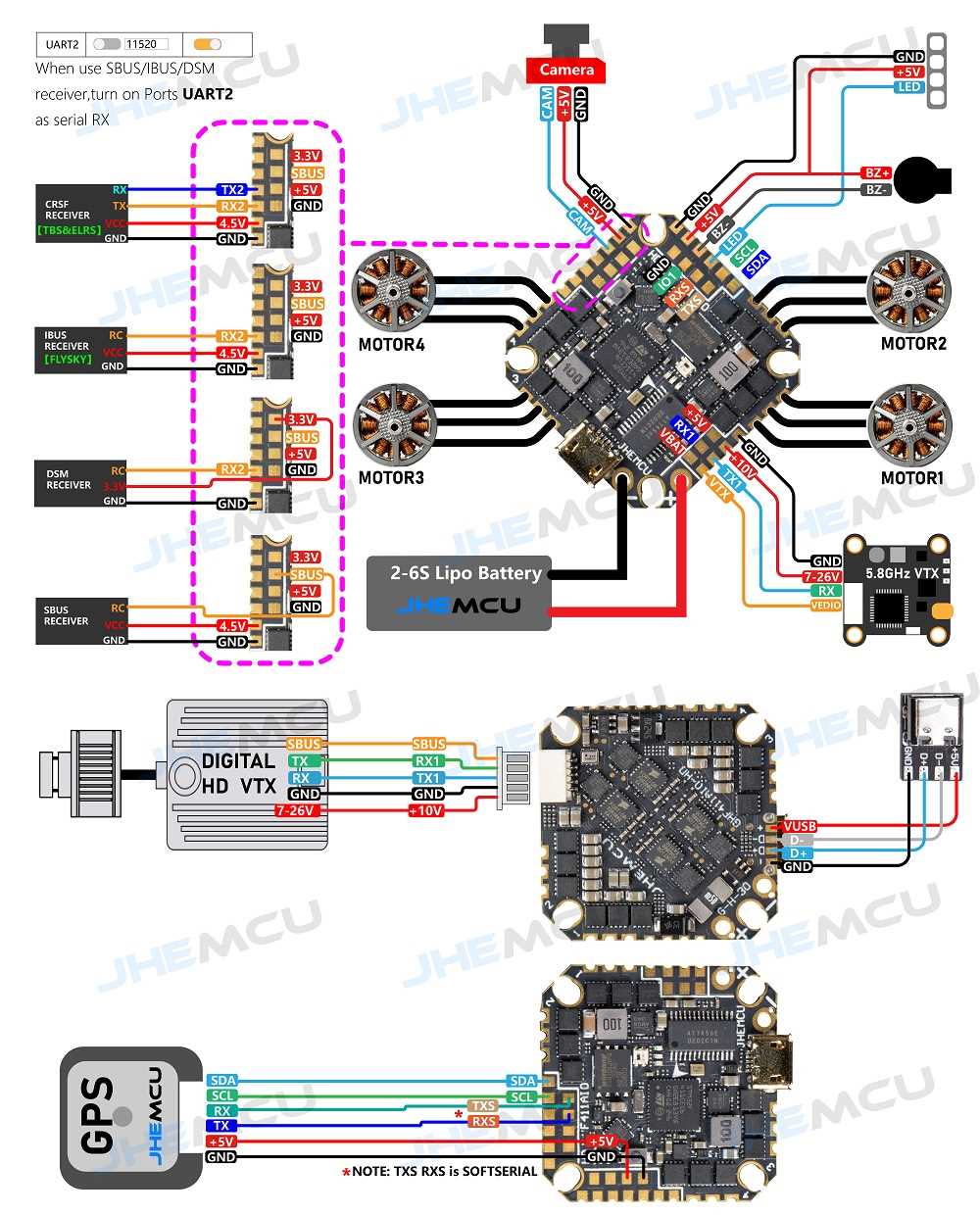

Begin with a 32-bit microcontroller like the STM32F405 or ATmega2560–these handle sensor fusion and PID tuning at 8kHz minimum for stable maneuvers. Avoid 8-bit MCUs; they lack the processing power for real-time inertial measurement updates. Pair the MCU with a dedicated MPU6000 or ICM-20602 IMU, positioned at the platform’s center of gravity to minimize vibration-induced noise. For altitude control, integrate a BMP280 barometric sensor rather than ultrasonic–it provides consistent readings above 5m, where acoustic sensors fail.

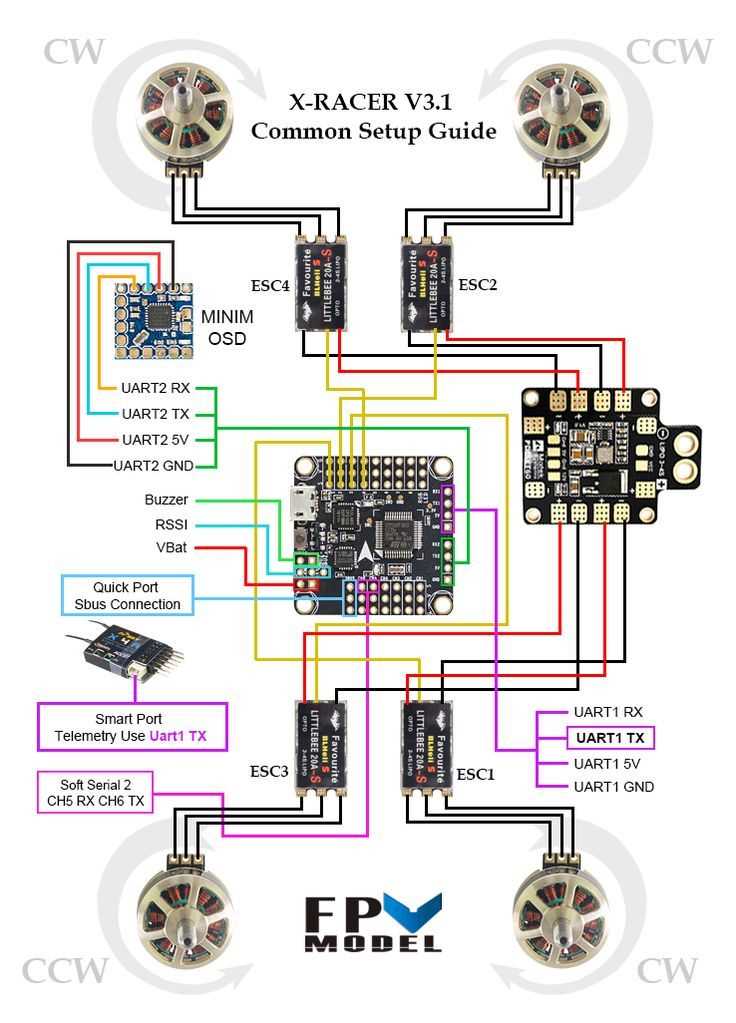

Power distribution requires separate regulators: a 12V-to-5V buck converter (e.g., LM2596) for the MCU and a 3.3V LDO (e.g., AMS1117) for gyroscopes and magnetometers. Isolate sensor power rails with 10μF ceramic capacitors to prevent voltage spikes during motor startup. ESC wiring must use 16AWG silicone wires; thinner gauges overheat under sustained 15A loads. Connect ESCs to the MCU via PWM at 400Hz or DShot600 for faster response–analog PWM introduces 20ms latency.
For failsafe redundancy, add a FrSky XSR receiver (or equivalent) with FPort protocol–it transmits telemetry and RC signals over a single wire, reducing weight by 3g compared to SBUS/PPM setups. Ground the system at a single point near the battery to avoid ground loops; verify signal integrity with an oscilloscope for voltage drops exceeding ±50mV. Use 100Ω resistors on all GPIO lines to protect against electrostatic discharge. Test the schematic’s thermal performance under continuous 80% throttle–the DRV8302 motor driver should not exceed 65°C when paired with 50A ESCs.
Debugging requires logging IMU data at 1kHz to a microSD card via SPI–slower interfaces miss transient oscillations. Implement a watchdog timer (IWDG on STM32) to reset the system if the main loop freezes for >100ms. Avoid breadboards; solder components to a 4-layer PCB with dedicated power and ground planes–single-sided boards suffer from EMI interference above 10A currents. For magnetic interference, use twisted-pair cables for compass connections and keep them ≥5cm from power lines.
Calibrate the magnetometer at each deployment location using Hard Iron Compensation; ignore generic factory offsets. Tune PID loops with step-response tests: adjust P until oscillations dampen in 0.5s, I to eliminate steady-state error, and D to smooth overshoot–values outside P:0.8–1.2, I:0.05–0.15, D:0.01–0.03 indicate incorrect sensor scaling. Validate the schematic’s safety by testing motor cutoff during RC signal loss–use the MCU’s input capture interrupt to detect failsafe triggers within 20ms.

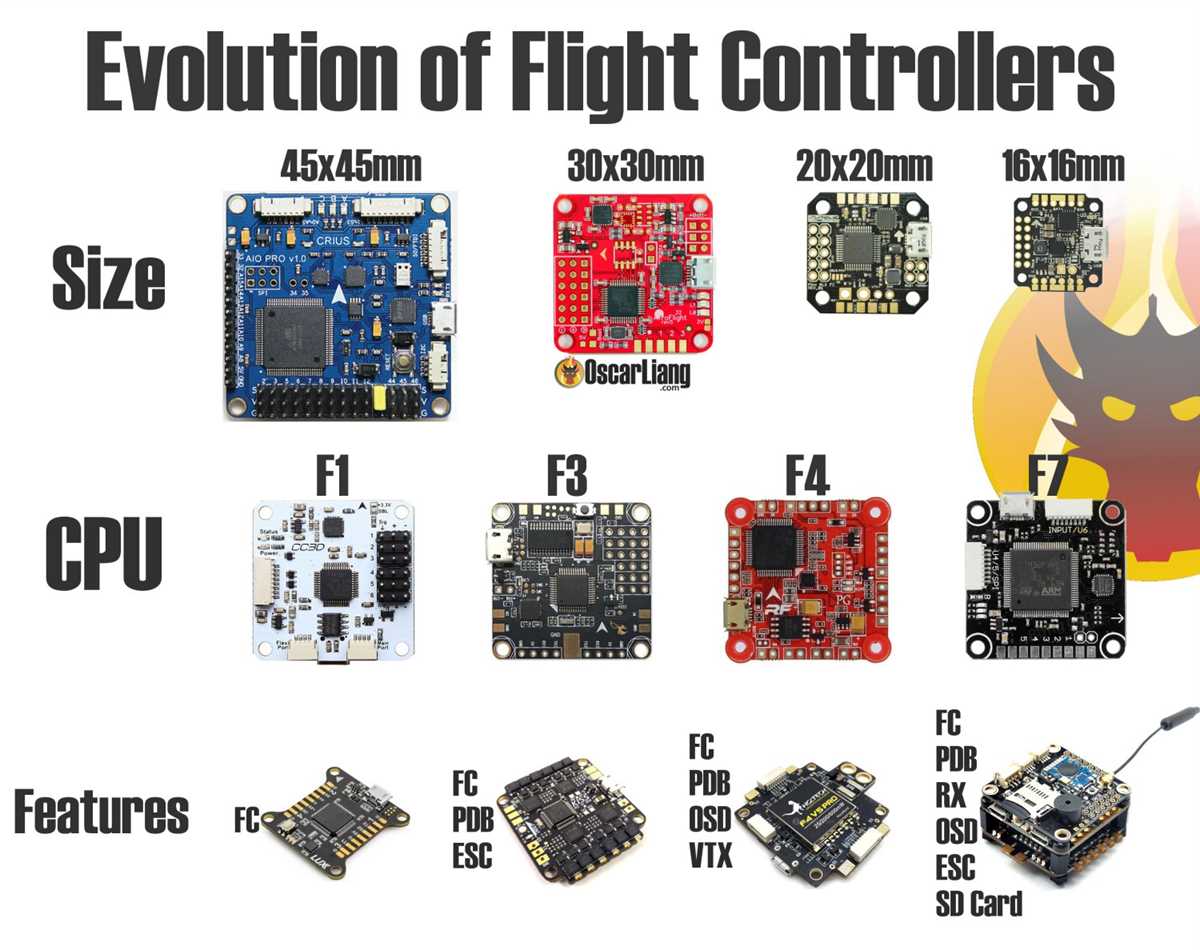

Designing an Autopilot Board Layout for Aerial Systems
Begin by selecting a microcontroller with at least 168 MHz clock speed and dual-core architecture–STM32H7 or ESP32-S3 are optimal choices for handling real-time sensor fusion without latency. Allocate separate power rails for the processor and peripherals: use a 5V buck converter for the main MCU, while servos and motors should run on isolated 7.4V or 11.1V lines with dedicated voltage regulators to prevent ground loops.
Place inertial measurement units (IMUs) at the geometric center of the PCB, at least 30mm from switching regulators or high-current traces to avoid magnetic interference. Route SPI or I2C traces for gyroscopes and accelerometers with controlled impedance (50Ω), keeping lengths matched within 5mm to prevent clock skew. Include a 0.1µF ceramic capacitor decoupling each sensor’s VCC pin, positioned within 2mm of the device.
- Use a 4-layer PCB with dedicated ground plane for analog and digital sections, separated by a keep-out zone.
- Route ESC signals via differential pairs (100Ω impedance) for PWM or DShot protocols, shielding them with adjacent ground traces.
- Include a 10kΩ pull-up resistor on the I2C bus to prevent bus lockups caused by noise.
- Add an RC filter (10Ω resistor + 10µF capacitor) on the power input to suppress voltage spikes from abrupt motor changes.
For fail-safe redundancy, integrate a secondary watchdog timer circuit–an ATtiny85 or similar microcontroller–configured to trigger if the primary MCU fails to respond within 100ms. Connect the watchdog’s output to an emergency relay that cuts motor power and deploys a recovery switch, such as a parachute or GPS-based return-to-home logic. Test this subsystem under simulated brownout conditions (3.3V input) to verify response time.
Signal Integrity and Power Distribution
Limit high-speed trace bends to 45° angles–90° angles introduce reflections and crosstalk. For critical signals like PPM or SBUS inputs, use series termination resistors (22-33Ω) at the source to dampen overshoot. Place ferrite beads (600Ω at 100MHz) on all power lines entering the board to block high-frequency noise from ESCs or wireless modules.
- Verify trace widths: 0.5mm for 2A currents, 1.5mm for 8A+ (1 oz copper thickness).
- Solder a 10nF capacitor across the crystal oscillator to stabilize clock signals against EMI.
- Avoid vias under QFNs or BGAs–thermal pads require direct copper pour connections to inner ground layers.
Firmware-Ready Hardware Checks
Ensure UART/USB interfaces include ESD protection diodes (e.g., PESD5V0S1BA) on data lines to prevent static damage. Confirm pull-down resistors (10kΩ) on unused GPIO pins to avoid floating inputs. For bootloader compatibility, reserve a dedicated 1.8V-tolerant pin for firmware updates–this allows in-field flashing without disassembly. Test the board’s electromagnetic compliance by sweeping frequencies from 30MHz to 1GHz at 3V/m; target
Key Components of an Unmanned Aerial Vehicle Processor Board Design
Prioritize separating high-current traces from sensitive signal lines to minimize interference. A minimum clearance of 1.5 mm between power tracks and analog inputs prevents voltage spikes from corrupting sensor readings. For switching regulators, place input capacitors immediately adjacent to the IC to suppress transients–use 10 µF ceramic caps with X5R or X7R dielectric for stable performance across temperature variations.
Thermal management dictates PCB layer selection. Dedicate an internal 2 oz copper plane for ground to dissipate heat from motor drivers and voltage regulators–avoid thermal vias under the processor unless filled, as voids trap heat. For ARM-based MCUs (e.g., STM32F4 or H7), allocate a 20–30 mm² copper pour on the top layer beneath the package, stitching it to the ground plane with 0.3 mm vias spaced ≤5 mm apart.
Sensor placement demands precision. Accelerometers and gyroscopes (e.g., MPU6000) require symmetrical decoupling–place one 0.1 µF cap per VDD pin, no farther than 5 mm from the pad. Route I²C/SPI traces as differential pairs with 100–120 Ω impedance; length mismatch should not exceed 0.5 mm to prevent phase errors. Shield magnetometers (e.g., HMC5883L) with a solid ground plane on the layer beneath to block EMI from nearby buck converters.
Optimize the power distribution network (PDN) for transient response. Use polygon pours for VCC rails, avoiding narrow traces that introduce inductance. For 5 V rails, a 2.5 A track requires ≥1 mm width on 1 oz copper–double this for 3.3 V rails with dynamic loads (e.g., ESC logic). Place bulk capacitors (100 µF–220 µF) near the connector to suppress inrush current; smaller 1–10 µF ceramics should sit ≤1 cm from high-frequency ICs.
Barometric pressure sensors (e.g., MS5611) mandate hermetic isolation from airflow turbulence. Mount the component on a separate daughterboard or position it ≥2 cm from propellers, routing air pressure tubes directly to a dedicated vent (ø 1.5–2 mm) in the PCB. Avoid placing this sensor near clock signals–keep ≥3 mm separation from oscillators to prevent pressure drift due to mechanical vibrations.
ESC signal integrity relies on controlled trace geometry. PWM lines to motor drivers must be ≤10 cm long to prevent ringing; if unavoidable, terminate with a 100 Ω series resistor at the driver input. For 4-layer stacks, route these signals on the top layer with a ground return plane immediately beneath to maintain 50 Ω impedance. Never route high-current power traces (>3 A) adjacent to PWM lines–coupling can induce false triggers.
Firmware loading interfaces require robust error handling. Expose JTAG/SWD pads with 0.1″ pitch for debug probes, avoiding solder mask over pads to ensure reliable contact. USB connectors (if used) should have ESD protection diodes (e.g., PRTR5V0U2X) ≤1 mm from the port, alongside 1.5 kΩ pull-up resistors for USB_D+ to meet spec timing. For wireless modules (e.g., ESP8266), isolate the RF section with a ground moat (≥1 mm wide) around the antenna trace to prevent detuning by nearby components.
Step-by-Step Wiring Guide for IMU and Microcontroller
Begin by connecting the IMU’s VDD pin to the microcontroller’s 3.3V or 5V output, depending on the sensor’s voltage requirements. Check the datasheet to confirm tolerances–some modules require strict voltage regulation. Use a decoupling capacitor (0.1µF) between VDD and GND near the IMU to filter noise.
Wire the IMU’s SCL (clock) and SDA (data) pins to the microcontroller’s corresponding I2C pins. For STM32, these are typically PB6 (SCL) and PB7 (SDA). For Arduino, use A4 (SDA) and A5 (SCL). Pull-up resistors (4.7kΩ) on both lines are mandatory unless the module includes them internally. Verify pull-up presence with a multimeter before proceeding.
- Identify the IMU’s interrupt pins (e.g., INT1, DRDY) if real-time data streaming is needed. Connect these to unused microcontroller GPIO pins and configure them as inputs with internal pull-downs if required.
- Avoid wiring I2C near high-current traces (e.g., motor drivers) to prevent crosstalk. If space constraints exist, route signals orthogonally and add ground planes between them.
- For SPI communication, connect MOSI, MISO, SCK, and CS. Prioritize short traces (≤10cm) to minimize signal degradation. Use 10kΩ pull-up on CS unless hardware-controlled.
Test each connection with a continuity check before powering on. Initialize the interface in code with correct clock speeds–400kHz for I2C (fast mode) or 1-10MHz for SPI. Use library examples (Wire.h for Arduino, HAL_I2C for STM32) to confirm sensor detection via device ID register read. If the read fails, recheck pull-up resistors and trace integrity.
For power management, add a 10µF bulk capacitor across VDD and GND if the IMU draws transient currents (>50mA). Log raw sensor values (accelerometer/gyroscope) to verify zero-g offsets–ideal ranges are ±0.05g (accelerometer) and ±2°/s (gyroscope). Deviations beyond ±0.1g or ±5°/s indicate improper wiring or calibration needs.
