Start with a low-power LED array–preferably 3W to 5W per module–rated for 12V or 24V systems, depending on the vehicle’s electrical setup. Use a series-parallel arrangement to ensure redundancy: group three LEDs in series with a shared 150Ω current-limiting resistor for each string, then combine four such strings in parallel. This topology balances brightness and power dissipation while preventing overload if a single diode fails.

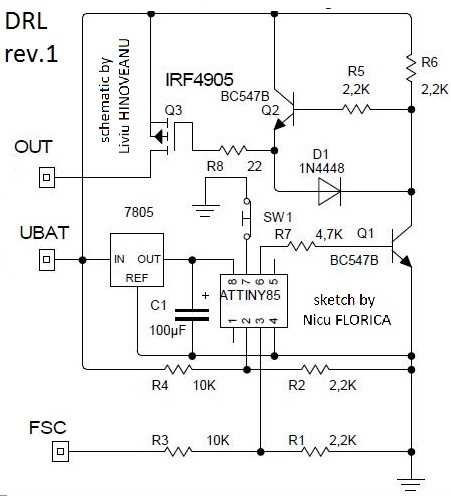

Integrate a Schottky diode (e.g., 1N5822) between the power source and the LED network to protect against reverse polarity, which is critical in automotive applications. For dimming control, incorporate a PWM signal from the vehicle’s ECU or a standalone microcontroller like the ATtiny85. Configure the PWM frequency at 1kHz to avoid flicker visible to the human eye while minimizing EMI interference.
Add a thermal fuse (125°C cut-off) in line with the power feed to prevent overheating, especially if the setup lacks active cooling. Ground the circuit through a 4.7kΩ pull-down resistor to avoid floating inputs during ignition transitions. Validate the configuration with a multimeter: verify 3.2V–3.6V across each LED string and a total current draw below 500mA under full load. Exceeding these values risks premature LED degradation or resistor failure.
Avoid relying on the vehicle’s stock relay for high-current draws. Instead, use a mOSFET switch (e.g., IRLZ44N) driven by the PWM signal to handle switching efficiently. Mount the MOSFET on a heatsink if ambient temperatures exceed 60°C, as automotive environments often lack airflow for passive cooling. Confirm all solder joints are secured with automotive-grade silicone sealant to resist vibration and moisture ingress.
For modular designs, include a two-pin JST connector between the LED panel and control unit to simplify troubleshooting. Test the entire setup under simulated worst-case conditions–e.g., 14V alternator output and 40°C ambient–before final installation. Document voltage drops across connectors and any deviations beyond 0.1V, as they indicate corrosion or loose terminals requiring correction.
Building an Automatic Daytime Running Lights Schematic
Start with a 12V relay (SPDT, 30A) as the core switching element. Connect pin 85 to the ignition wire (switched +12V) and pin 86 to a grounded chassis point–this ensures activation only when the engine runs. Avoid direct battery connection to prevent drainage when the vehicle is off.
Use a 10A fuse inline between the light assembly and the relay’s pin 30. This protects the wiring harness from shorts and overheating. For LED strips, reduce the fuse rating to 5A to match lower current draw. Position the fuse within 15cm of the power source.
For halogen bulbs, wire a 1N4007 diode across the relay coil (cathode to pin 85) to suppress voltage spikes. LEDs require a 470Ω resistor in series to stabilize current. Measure voltage drop across the resistor–it should not exceed 0.7V under normal load.
Voltage Regulation for Stable Operation
Install an LM7812 voltage regulator if input exceeds 14.5V. Input connects to the ignition-switched line, output feeds the relay coil. Add 100μF and 0.1μF capacitors at the input and output to filter noise. Test with a multimeter: output must hold steady at 12V ±0.2V.
Ground the regulator’s center pin to the chassis via a dedicated 16AWG wire–shared grounds cause intermittent failures. For PWM-controlled setups, replace the fixed regulator with a buck converter (e.g., LM2596) set to 12V. Verify ripple frequency doesn’t exceed 1kHz to prevent flickering.
Testing and Failure Prevention
Before finalizing connections, probe each joint with a continuity tester. Resistance above 0.5Ω indicates corrosion–clean terminals with electrical contact cleaner. Energize the system and measure current draw: halogen assemblies should pull 3–5A, LEDs 0.5–1A. Deviations signal partial shorts.
Simulate ignition cycles by toggling the relay 20 times. Listen for arcing or chatter–this reveals loose contacts. Seal exposed joints with heat-shrink tubing and dielectric grease. Document wire colors and pin assignments; mismatches during reassembly cause irreversible damage.
Key Elements for an Automotive Daytime Lighting Assembly
Select LED strips with a lumen output between 100–300 lm per meter. Brands like Osram or Philips offer 6000K color temperature units, ensuring visibility without blinding oncoming traffic. Verify forward voltage requirements–typically 12V or 24V–to match the vehicle’s electrical system precisely. Avoid strips exceeding 20W per meter unless paired with a heat sink, as thermal degradation cuts lifespan by up to 40%.
Use a relay module with a 30A+ rating to handle startup inrush currents. A Bosch 0 332 209 150 or equivalent eliminates voltage drops that dim bulbs inconsistently. Wire the relay’s coil to the ignition switch’s accessory position to ensure lights activate only when the engine runs, preventing battery drainage. Bypass factory daytime running modules if they don’t meet ECE R87 standards.
Fuse each light bar or strip segment individually with amperage 20% above calculated load. For a 10A circuit, install a 12A fuse. ATC/ATO blade fuses are reliable; avoid glass fuses prone to vibration-induced failure. Position fuse holders within 15 cm of the battery terminal to isolate shorts before they reach wiring harnesses. Label each fuse with its corresponding segment (e.g., “Front Left Cluster”).
- Dual-rectifier diodes (1N4007) prevent back-feeding into other systems when integrating with headlight or fog light circuits.
- Voltage regulators (LM7812) stabilize output if alternator fluctuations exceed 14.7V, which accelerates LED degradation.
- Grounding points must be bare metal, sanded to remove paint/oxide layers, and secured with star washers to prevent corrosion-induced resistance.
For wire gauges, follow this reference:
- 18 AWG: <5A, short runs under 3m (e.g., signal wires).
- 14 AWG: 5–15A, primary power feeds (most strips/fog light retrofits).
- 10 AWG: >15A, battery-to-relay connections or combined high-output clusters.
Mount resistors in series if pulse-width modulation (PWM) causes flicker. A 1Ω, 5W ceramic resistor smooths current spikes from dimmer circuits. Alternatively, use a dedicated PWM controller with a 1 kHz+ switching frequency to avoid visible strobing. Encase connections in adhesive-lined heat shrink tubing (3:1 ratio) or liquid electrical tape for waterproofing. Silicone-based sealants resist UV and fuel vapor exposure better than traditional rubber coatings.
Test the assembly with a multimeter set to 20VDC before final installation. Probe each segment for voltage stability within ±0.5V of the target. Check for parasitic current draw (<50mA) after shutdown to rule out relay or diode leakage. If brightness varies across segments, recalculate resistor values using Ohm’s law (R = Vdrop / ILED). Document all measurements for troubleshooting during seasonal temperature shifts.
Step-by-Step Wiring Instructions for Daytime Running Light Assemblies
Begin by identifying the vehicle’s fuse box location, typically found under the dashboard or in the engine bay. Consult the owner’s manual for the exact position and a fuse rating table–most modern vehicles allocate a dedicated low-amperage slot (5-10A) for auxiliary lighting systems. Insert a blade-type fuse matching the specified rating to prevent overloads that could damage the wiring harness.
Select a relay rated for 12V automotive applications, preferably with a 30/40A capacity. Mount the relay near the fuse box using a zip tie or adhesive pad to avoid vibration-induced disconnections. Connect pin 85 to the switched ignition source–locate a live wire (red or yellow) behind the dashboard using a non-contact voltage tester. Confirm ignition dependency to prevent battery drain when the engine is off.
- Strip 8mm of insulation from the chosen ignition wire using wire strippers, avoiding nicked strands.
- Crimp a female spade connector (0.5-1.0mm²) to the stripped end and attach it to relay pin 85.
- Ground relay pin 86 to the vehicle chassis–use a self-tapping screw or existing bolt near the mounting point. Scrape off paint or rust to ensure a low-resistance connection.
Route the power feed cable (pin 30) from the relay to the battery’s positive terminal. Use a 10AWG red wire for minimal voltage drop over long distances. Install an in-line fuse holder 150mm from the battery terminal, inserting a 15A fuse. For vehicles with sensitive electronics, add a diode (1N4007) in series to block reverse current that may trigger CAN bus errors.
- Split the output (pin 87) into two Y-branches using butt connectors–one branch supplies voltage to the light modules, the other to the parking brake override wire (if equipped).
- For the override line, tap into the parking brake switch wire (often brown/white or pink), adding a 1kΩ resistor to mimic factory load and prevent warning lights.
- Feed the main output branches through a grommet into the engine bay, securing excess wire with loom tubing to prevent chafing against sharp edges.
Attach the light module wires directly to the LED assemblies using solder and heat-shrink tubing for waterproof joints. Match polarity: the red wire connects to the +12V relay output, black to chassis ground. For PWM-controlled systems, interpose a 500Ω resistor in series with the ground leg to stabilize brightness and eliminate flickering during engine cranking.
Test the installation before finalizing. Turn the ignition to ACC–the lights should activate instantly and dim by 50% when headlights engage (if the vehicle supports PWM). Verify the parking brake override by engaging the pedal; the lights must remain off. Use a multimeter to check for voltage at the relay pins 30 (constant 12V) and 87 (12V when active), ensuring no parasitic draw exceeds 50mA with the ignition off.
