Start with a constant-current source if your load demands stability under fluctuating voltage. A single N-channel MOSFET (e.g., IRFZ44N) paired with a dedicated gate driver IC (MIC4420) ensures rapid switching and minimizes thermal losses. For 1W LEDs, target 350mA; for 3W, increase to 700mA. Use a 0.5Ω sense resistor in series with the MOSFET drain to monitor current–keep the voltage drop below 80mV to prevent excessive power dissipation.
For dimming, implement PWM control at 1kHz minimum to avoid visible flicker. A 555 timer in astable mode delivers consistent pulses; adjust the potentiometer to vary duty cycle between 5% and 95%. Avoid linear regulation–it wastes energy and generates heat. Instead, modulate the MOSFET gate directly with the PWM signal, coupling it through a 10kΩ resistor to limit current surges.
Isolate high-voltage sections with an optocoupler (PC817) if the control signal originates from a microcontroller. Pair the optocoupler output with a pull-up resistor (4.7kΩ to 12V) to ensure clean transitions. Add a 100nF bypass capacitor across the driver IC’s power pins to suppress noise. For inductive loads (e.g., motors), include a flyback diode (1N4007) in reverse polarity across the load terminals to clamp voltage spikes.
For multi-channel boards, use individual current-limiting resistors (22Ω) for each LED string to balance brightness. Test thermal performance by monitoring MOSFET case temperature–exceeding 80°C warrants a heat sink or active cooling. Replace generic wire with 22AWG silicone-insulated cable for currents above 1A; it withstands 200°C and prevents melting under sustained loads.

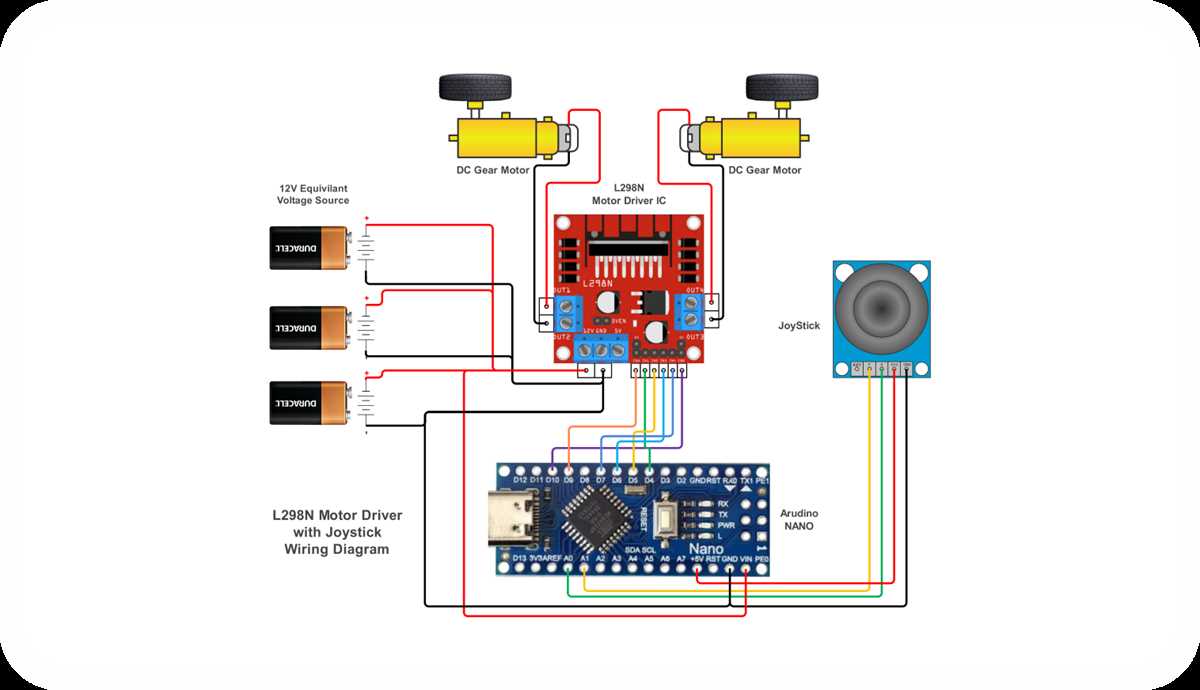

Key Schematics for Optimal Signal Control

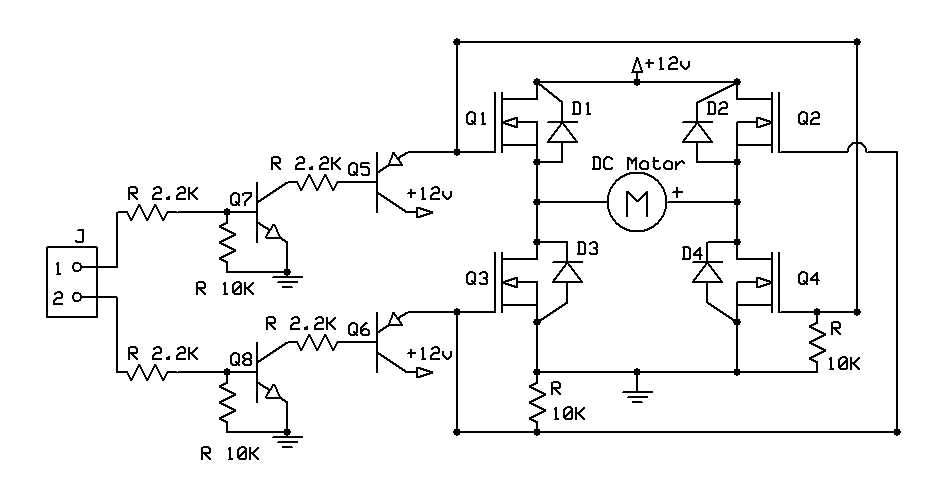

Select a half-bridge arrangement for switching inductive loads up to 1 kW–this layout minimizes voltage spikes by integrating freewheeling diodes directly across each power transistor. Use IRF540N MOSFETs with a 100V breakdown rating for 24V applications; their RDS(on) of 44 mΩ ensures thermal stability under continuous 10A currents.
Place a 1N4007 diode (1A, 1000V) in parallel with the load to suppress back EMF during rapid switching. For gate-drive isolation, deploy an optocoupler like the 6N137–its 10 MBd speed prevents signal degradation in PWM frequencies exceeding 20 kHz. Maintain a 1kΩ resistor between the optocoupler output and the MOSFET gate to curb ringing.
Critical Layout Practices
- Keep high-current traces under 1 oz/ft2 copper thickness; double-layer boards require 2 oz/ft2 for currents above 8A.
- Separate analog ground from power ground with a single-point connection at the smoothing capacitor to eliminate noise coupling.
- Position the snubber network (100 nF + 27Ω in series) directly across the MOSFET drain-source to clamp transients above 150V.
For 3.3V logic compatibility, use a TC4420 gate-driver IC–its 6A peak current handles capacitive loads up to 2700 pF. Bypass the VDD pin with a 1 μF tantalum capacitor within 2 mm of the IC to prevent false triggering. When driving IGBTs, replace the MOSFET with an IRG4PC30U (600V, 23A) and add a 47 nF bootstrap capacitor for high-side operation.
In high-voltage setups (48V+), employ a galvanically isolated DC-DC converter like the RECOM R-5W with 5 kV isolation. This isolates the control logic from the power stage, enabling safe floating gate references. For phase-shifted full bridges, synchronize dead-time to 2 μs using a 74HC123 monostable multivibrator to avoid cross-conduction.
- Start with SPICE simulations–model parasitic inductances (10 nH/cm for traces) to validate stability before PCB fabrication.
- Test with an oscilloscope (50 MHz bandwidth minimum) to verify slew rates; gate rise/fall times should remain under 100 ns for frequencies above 50 kHz.
- Use thermal vias (0.3 mm diameter) beneath MOSFET pads to improve heat dissipation; space them 1 mm apart for 10W+ devices.
Fault-Protection Measures
Implement overcurrent detection via a 0.01Ω shunt resistor–amplify the voltage drop with an LM358 op-amp (gain of 100) to trip a latch circuit at 120% of rated current. For overtemperature, mount a 10kΩ NTC thermistor near the heatsink and use a comparator (e.g., LM393) to shut down the system at 85°C. Ensure all protective circuits have redundant paths to prevent single-point failures.
Critical Elements for Assembling a Fundamental MOSFET Switching Setup
Select a logic-level MOSFET for low-voltage control signals, ensuring it handles the load’s current and voltage. IRFZ44N tolerates 55V and 49A but requires gate-source voltage above 4V. For 3.3V microcontrollers, IRLZ44N performs better with lower threshold voltages. Verify the gate charge (Qg)–lower values (20-50 nC) enable faster transitions and reduce switching losses in high-frequency applications.
Choose a gate resistor to limit current surges during state changes. A 10-100 Ω resistor balances speed and ringing; 22-47 Ω suits most mid-power designs. Combine with a Schottky diode (e.g., 1N5817) across the resistor to clamp voltage spikes when turning off inductive loads. For push-pull configurations, add a PNP/NPN pair (2N3904/2N3906) to enhance gate drive strength, eliminating reliance on weak MCU outputs.
Isolate the control interface when managing high-side switching. An optocoupler (PC817) or dedicated gate driver IC (IR2104) separates logic and power domains, preventing latch-up or backflow. For floating supplies, bootstrap capacitors (0.1 µF) maintain gate voltage above the source during conduction. Calculations depend on duty cycle–ensure capacitance exceeds (Qg / ΔV) to avoid voltage droop.
- Low dropout regulator: 78L05 provides stable 5V for logic, withstanding input fluctuations up to 35V.
- Bypass capacitors: 1 µF ceramic near the MOSFET gate, 10 µF electrolytic at the power input.
- PWM filtering: RC network (1kΩ + 0.1 µF) smooths spurious edges for analog loads.
- Thermal management: TO-220 heatsink for currents above 5A; thermal paste reduces junction-case resistance.
Measure transient response with an oscilloscope. Probe gate-source and drain-source waveforms to confirm rise/fall times under 100 ns and absence of overshoot. Adjust resistor values iteratively–higher resistance slows switching, increasing dissipation in the device; lower resistance risks oscillation or avalanche breakdown. For inductive loads, a freewheeling diode (UF4007) across the load prevents voltage transients from exceeding the MOSFET’s breakdown rating.
How to Select the Right Gate Resistor for Your Transistor Switch
Choose a gate resistor value between 10Ω and 100Ω for most MOSFET applications, adjusting based on switching speed requirements and power dissipation limits. For fast-turning configurations, opt for 10–22Ω to minimize rise/fall times, while 47–100Ω suits high-voltage or high-current setups where slower transitions reduce electromagnetic interference (EMI). Verify the resistor’s power rating–typically 0.25W to 1W–to prevent thermal failure under repetitive switching loads. Exceeding these ranges risks either insufficient drive strength (high resistance) or excessive gate current (low resistance), both degrading performance.
Experimental Validation Techniques
Use a double-pulse test with an oscilloscope to measure turn-on/turn-off delays and voltage overshoot at the gate-source junction. Connect a current probe to the gate resistor’s input path to confirm peak currents match datasheet specs for the transistor’s gate charge (Qg). For example, a MOSFET with Qg = 50nC and Vgs = 10V driven by a 15Ω resistor should exhibit ~2.5A peak current (*I = Qg / t; t ≈ 20ns*). If overshoot exceeds 20% of Vgs, increase resistance incrementally until ringing is suppressed. Log results in a spreadsheet to identify optimal values for temperature and load variations.
Prioritize thick-film or wirewound resistors for high-frequency switching (above 100kHz) to avoid parasitic inductance that distorts signal edges. Carbon-composition types suffice for low-speed applications but introduce noise at >50kHz. For paralleled transistors, match resistor values within ±5% to balance current distribution. Replace failed resistors immediately–even minor carbonization alters impedance, leading to thermal runaway. Always derate power by 50% for continuous operation; a 0.5W resistor should dissipate no more than 0.25W in sustained switching.
Assembling a High-Side Switching Configuration with Bootstrap Capacitance
Begin by selecting a gate control IC with integrated charge pump capability, such as the IRS21864 or UCC27211. Ensure the chosen component supports the target voltage domain–commonly 12V to 48V–and verify the maximum allowable gate-source voltage (VGS) matches your power transistor’s specifications. A mismatch risks permanent damage to the switching element, often a MOSFET or IGBT rated for at least 50% above the supply rail.
Connect the bootstrap capacitor directly between the IC’s VB (bootstrap voltage) and VS (switch node) terminals. Capacitor selection depends on switching frequency and load current: use 0.1µF for frequencies below 50kHz, scaling to 0.01µF for 200kHz+ applications. For example, a 0.47µF X7R ceramic capacitor with a 100V rating suits 48V systems at 100kHz. Avoid polarized capacitors–their failure mode under reverse voltage is catastrophic in this topology.
Wire the high-side transistor’s gate to the IC’s HO (high-side output) via a 10Ω to 47Ω series resistor. This resistor dampens gate ringing and limits peak current during turn-on/off transitions. For 600V MOSFETs like the IPW60R041C6, keep resistor values below 22Ω to maintain switching speed; slower transitions increase switching losses. Ground the transistor’s source to the switch node (VS), ensuring no parasitic inductance exceeds 10nH, which can disrupt bootstrap charging.
Route the input logic signal to the IC’s LIN and HIN pins through a 1kΩ pull-down resistor. This prevents false triggering during power-up transients. If using a microcontroller, enable its output pin only after the bootstrap capacitor reaches at least 90% of its target voltage–typically 300µs to 1ms after supply stabilization. Failures here result in partial enhancement of the MOSFET channel, leading to linear-mode operation and thermal runaway.
Critical Component Placement Guidelines
| Component | Trace Length | Clearance | Notes |
|---|---|---|---|
| Bootstrap capacitor | ≤5mm | ≥1mm | Place adjacent to VB/VS pins; avoid vias |
| Gate resistor | ≤10mm | ≥0.5mm | Directly between HO and gate; no stubs |
| VS node trace | N/A | ≥2mm (from GND) | Wide copper pour; minimize loop area |
| Diode (bootstrap) | ≤3mm | ≥0.8mm | Ultrafast recovery; e.g., ES1J |
Test the assembled layout by probing the VB node with a differential probe. The voltage should settle to VDD + VBS (typically 10V to 15V) within one switching cycle. If VB fails to charge, check the bootstrap diode’s cathode connection to the supply rail–reverse leakage current through the diode is a common failure point. For 24V+ systems, add a 15V Zener diode across the bootstrap capacitor to clamp transients.
Final verification involves monitoring the switch node (VS) during operation. At turn-off, VS should transition from 0V to VDD within 50ns; slower edge rates indicate excessive gate capacitance or inadequate bootstrap charging. Use an oscilloscope with at least 200MHz bandwidth and 10x probes–ground loops from poor probing invalidate ringing measurements. Record gate-source voltage overshoot–values exceeding 20% of VGS(max) necessitate snubber redesign or reduced gate resistance.
