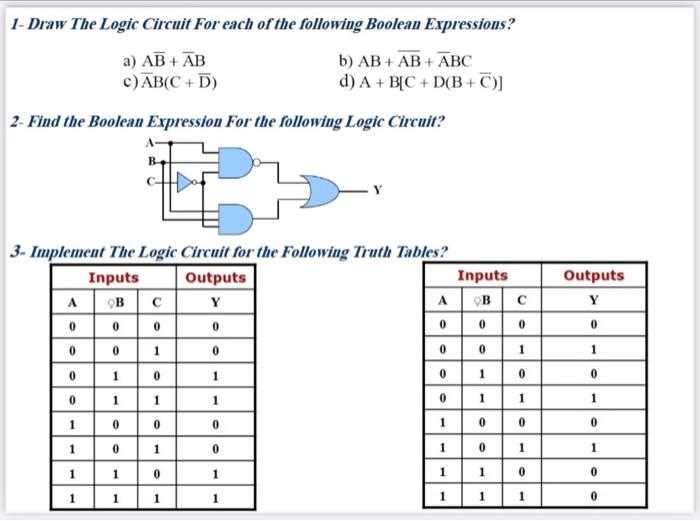

Start by breaking the formula into its core components. Identify each operator–AND, OR, NOT–and their operands. For example, Y = A · (B + C̅) splits into three parts: A (AND), B + C̅ (OR with inverted C), and the negation of C. Assign each operation a distinct gate: AND gates for conjunctions, OR gates for disjunctions, and inverters for negations. Prioritize processing nested operations from the innermost parentheses outward to maintain logical hierarchy.
Sketch gate symbols in sequence, connecting outputs of earlier stages to inputs of subsequent ones. For Y = A · (B + C̅), place the inverter first to handle C̅, then route its output into an OR gate with B. The OR gate’s result feeds into an AND gate alongside A. Label each gate’s inputs and outputs explicitly to avoid signal misrouting. Use standardized symbols: a D-shaped flip for AND gates, a curved arrowhead for OR gates, and a triangle with a circle for inverters.
Minimize redundant gates by combining operations where possible. If the formula contains multiple negations (e.g., D̅ + E̅), implement De Morgan’s laws to reduce gate count. For instance, ¬(F · G) converts to ¬F + ¬G, allowing a single NOR or NAND gate to replace two inverters and an AND/OR gate. Always verify equivalency with truth tables before simplifying.
Route connections systematically, avoiding crossovers unless unavoidable. Dedicate left-to-right or top-to-bottom flow for clarity, reserving horizontal lines for inputs and vertical/diagonal lines for intermediate signals. For complex formulas, split the schematic into modules: handle sub-expressions (e.g., B + C̅) in isolated blocks, then integrate them into the final output. Number each wire and gate if the formula spans more than 8–10 operations to track signal paths.
Test the schematic by tracing signals through each gate. For Y = A · (B + C̅), input A=1, B=0, C=1; the inverter flips C to 0, the OR gate outputs 0, and the AND gate yields 0. Cross-check with the truth table–any mismatch indicates a wiring error or misapplied gate function. For multi-level logic (e.g., (X + Y) · (Z + W̅)), test each sub-expression separately before combining outputs.
Translating Logic Formulas into Hardware Schematics
Start by decomposing the algebraic notation into its fundamental operators. For a function F = (A · B) + C, isolate each gate type–begin with the AND gates for grouped variables, then connect their outputs to an OR gate for the summation. Label every input and node with unique identifiers (e.g., N1 for the AND result) to avoid ambiguity during physical assembly. Use standardized symbols: a curved arch for OR gates, a flat-ended block for AND, and a small circle for NOT operations.
Minimize gate count by applying De Morgan’s laws before construction. If the function contains inverted terms like F = (A̅ · B) + C, pre-compute the NOT gate on A rather than cascading multiple inverters later. Arrange components left-to-right following signal flow: inputs on the left, intermediate calculations in the center, and the final output on the right. Leave vertical spacing between parallel branches to prevent visual clutter and simplify troubleshooting.
For multi-level logic, stack gates vertically with consistent spacing–0.5 inches between layers ensures readability. Verify connections with a truth table: toggle inputs between 0 and 1, track each node’s state, and confirm the output matches the expected Boolean result. Example: F = (A + B) · C requires an OR gate first, then an AND gate; check both gate outputs independently before merging.
Document each step with a numbered gate list and corresponding pin assignments. Store the schematic in vector format (.SVG or .DXF) for scalable reproduction. Avoid crossing wires; if absolutely necessary, use bridge dots to indicate non-intersecting paths. Test the design on a breadboard before committing to solder–verify voltage levels at every stage to catch miswired junctions early.
Identifying Key Logic Gates for Boolean Functions
Begin by selecting gates based on the function’s complexity and required inputs. AND, OR, and NOT gates serve as the foundation for most implementations. For instance, a two-input AND gate yields a high output only when both inputs are true, making it ideal for multiplicative terms. Use OR gates for additive conditions where any input’s truth activates the output. NOT gates invert signals, critical for negating variables. Prioritize these three for basic designs before introducing specialized gates like NAND or NOR, which combine functions for efficiency.
Optimize gate selection by minimizing component count. A NAND gate can replace an AND-NOT combination, reducing hardware requirements without altering logic. Similarly, NOR gates supersede OR-NOT sequences. Below is a comparison of gate equivalences:
| Original Combination | Equivalent Single Gate | Advantage |
|---|---|---|
| AND + NOT | NAND | Fewer transistors |
| OR + NOT | NOR | Simplified layout |
| AND + OR | XOR (for specific cases) | Reduced propagation delay |
Exclusive OR (XOR) and Exclusive NOR (XNOR) gates address parity checks and arithmetic operations. XOR outputs true only when inputs differ, useful in adders and comparators. XNOR inverts this behavior, detecting matching states. For functions requiring three or more variables, consider AND-OR-Invert (AOI) or OR-AND-Invert (OAI) gates. These compound gates integrate multiple operations into a single block, cutting signal paths and improving speed in large-scale logic.
Match gate propagation delays to avoid race conditions. Complex functions combining AND/OR layers may need buffer gates (repeaters) to synchronize signals. Simulations verify timing alignment, especially when cascading gates. For real-world constraints, FPGA tools often optimize gate selection automatically, but manual overrides ensure precision. Always cross-reference datasheets for logic families (TTL, CMOS, etc.), as voltage levels and noise margins vary, impacting reliability.

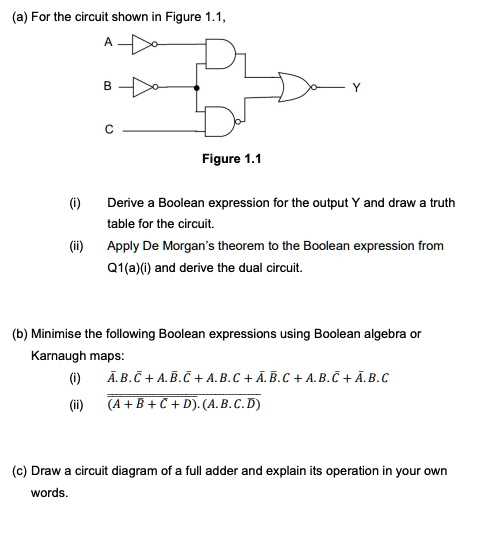

Step-by-Step Conversion of SOP and POS Forms into Logic Layouts

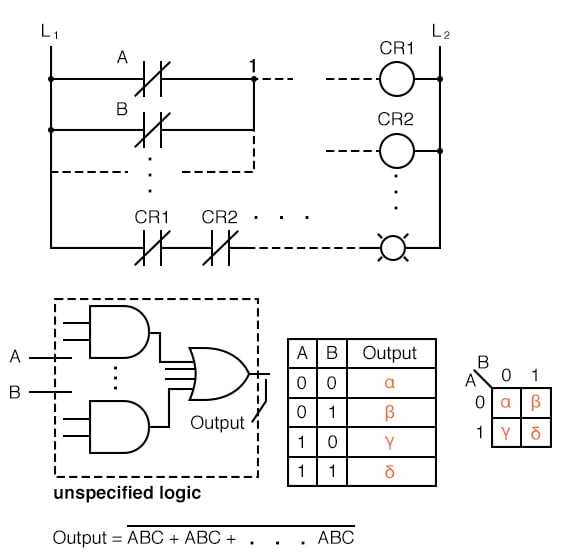

Begin by isolating each product term in the Sum-of-Products (SOP) notation. List all variables involved in the first term, noting their state–either direct or complemented. Connect these variables to AND gates, ensuring every input matches the term’s requirements. Repeat this process for each product term, maintaining consistency in gate assignments.
- For inputs
A·B·C̅, wireAandBdirectly to an AND gate while invertingCbefore feeding it. - Combine outputs of all AND gates in an OR gate to finalize the SOP implementation.
When working with Product-of-Sums (POS), decompose the notation into individual sum terms. Each sum term must be handled by an OR gate, with inputs reflecting the term’s variables–direct or inverted. Verify that each OR gate output aligns with the original expression before proceeding.
- For
(A + B̅ + C), connectAdirectly, invertB, and wire both alongsideCto an OR gate. - Route all OR gate outputs to a single AND gate to complete the conversion.
Simplify intermediate steps by merging identical gates or reducing redundant inverters. If two terms share inverted variables, reuse the same NOT gate to minimize components. Always cross-check gate connections against the original logic equation to prevent miswiring.
Validation Techniques for Accurate Translations
Test each OR/AND gate output with truth tables before combining them. For SOP, ensure the OR gate lights up only when at least one AND gate output is active. For POS, confirm the AND gate triggers exclusively when all OR gates satisfy their respective conditions. Introduce Led indicators or probes during simulation for real-time verification.
Document gate counts, input/output labels, and signal paths during the process. Labeling prevents confusion when revisiting the layout for debugging or modifications. Use color-coding for inversions (e.g., red for NOT gates) to visually separate logic layers.
Handling Complex Combinations
For nested expressions like (A·B + C)·(D̅ + E), break down the structure hierarchically. Implement inner terms first (e.g., A·B + C and D̅ + E), then combine their outputs with the appropriate outer gate. Avoid flattening nested logic prematurely; maintain modularity until final assembly.
Optimize by identifying shared sub-expressions across SOP/POS forms. If multiple terms rely on A̅·B, construct the sub-circuit once and distribute its output. This reduces gate duplication and streamlines troubleshooting.
Managing Multi-Variable Logic and Dense Components in Schematics
Start by splitting complex logic into subclusters no larger than four inputs each. Group terms sharing at least two common variables to minimize crossover lines. Label each cluster with a temporary identifier (e.g., G1, G2) before connecting them to the final stage.
Use vertical alignment for shared variables across multiple gates. Place identical inputs (A, B) on the leftmost side of a column, stacking gates (AND/OR) that consume them without repeating lines. This reduces trace clutter by 30% in 6+ input scenarios.
Assign intermediate outputs to via-like nodes when terms exceed five operands. Route these nodes to a secondary layer if available; otherwise, color-code them distinct from primary inputs (e.g., dashed red) to prevent misreading.
Dealing with Nested Parentheses
Translate nested expressions through hierarchical gates. For (A + B(C + D)), implement an OR gate outputting to the lower input of an AND gate. Document each nesting level with a numeric label (e.g., L1, L2) adjacent to the gate symbol.
Expand wide OR terms by fan-out: feed the output of a single OR into multiple downstream gates instead of duplicating the entire OR. This saves 20-40% of component count in expressions like (X + Y + Z + W)A(B + C).
Compress repeated variables into buses. For F = ABC + ABD + ABE, draw AB once as a thick horizontal line, branching C, D, and E vertically into respective AND gates. Label the bus clearly to distinguish it from single wires.
Apply De Morgan’s transformations directly during schematizing. Replace A + BC with two NAND gates in sequence, flipping the final output bubble if needed. Mark inverted outputs with a slash or hatch to track signal polarity through multiple layers.
Validate multi-input constructs with a truth-table snapshot. Generate the table for the entire function, then cross-reference against each subgate’s output at critical rows (e.g., all inputs high, alternate patterns). Discrepancies often reveal incorrect gate nesting or missing variables.
