Start by selecting a ground reference point–bind all unused gates to this node to prevent floating inputs, even in CMOS variants like the 74HC series. A single 0.1µF ceramic capacitor per IC, placed within 2mm of the power pins, suppresses transient noise that can trigger erratic behavior in sequential elements. Skip this step, and metastability risks escalate in shift registers or flip-flops.

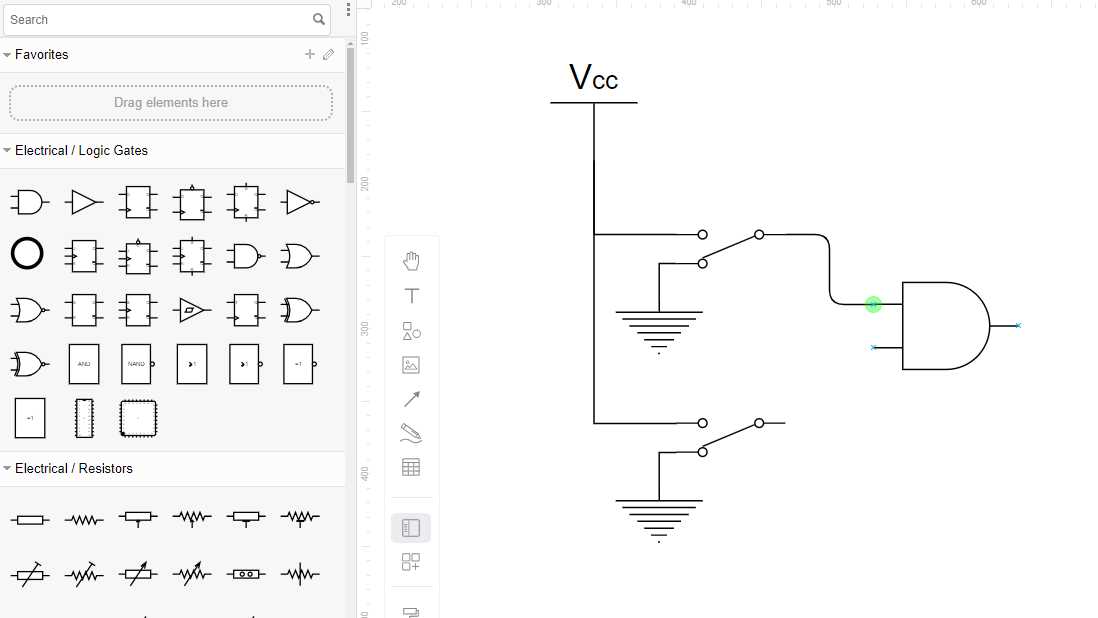

Define signal paths with clear, orthogonal routing–vertical for power rails, horizontal for logic traces. Use dedicated layers for each net class in your editor (e.g., KiCad) to isolate noise-sensitive clocks from general I/O. For 74LS TTL, ensure pull-up resistors (1–10kΩ) on open-collector outputs; omit them, and undefined states corrupt state machines.
Label every net with functional descriptors, not generic names like “CLK” or “RST.” For example, tag a clock input to a decade counter as “CNT_CLK_10Hz” to distinguish it from a UART baud tick. This avoids confusion when debugging with a logic analyzer, where spaghetti wiring obscures root causes.
Test incrementally–verify combinational blocks (AND/OR/NOT) before integrating with timing-critical components like monostables. A 74HC132 Schmitt trigger NAND gate, when fed a slow-rising edge, can oscillate unpredictably; generate test waveforms with a 555 timer tuned to 1kHz if a signal generator isn’t available.
Document edge conditions: annotate whether a counter resets synchronously (e.g., 74HC163) or asynchronously (74HC161) to prevent race hazards. Add footprints for probe points–unpopulated 0402 pads at critical nodes speed up troubleshooting compared to soldering wires post-assembly.

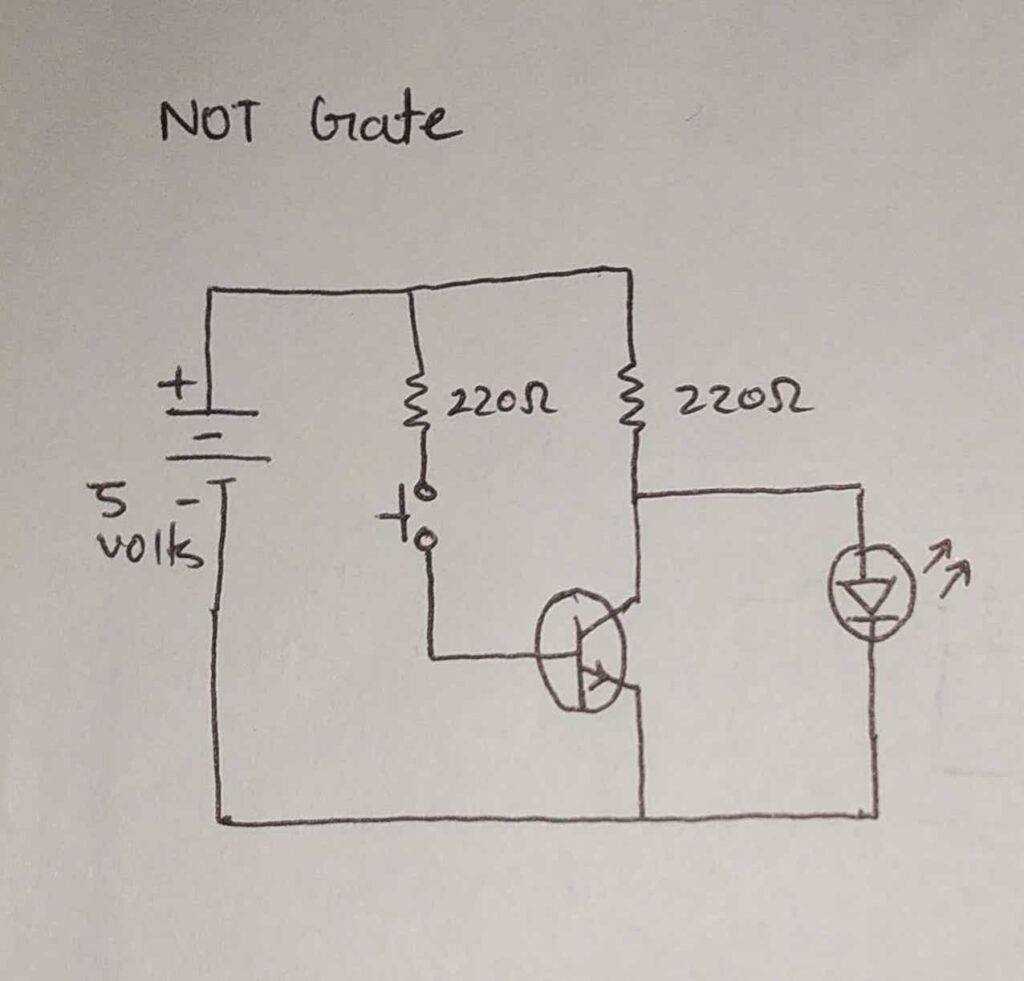

Crafting Circuit Layouts Using Digital Gate Components

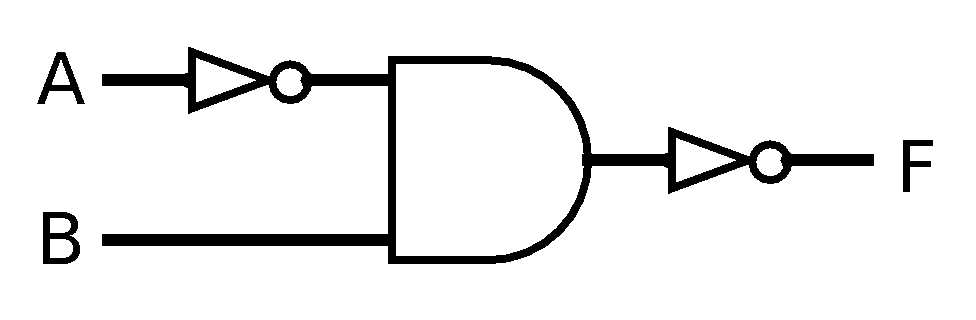

Begin by selecting the exact gate types your design requires–NAND, NOR, XOR, or inverters–based on Boolean logic simplification. Store their datasheets nearby for pinout verification; misplaced connections introduce hidden faults later. For example, a 74LS00 quad NAND gate demands pull-up resistors on unused inputs to prevent floating states. Failing to account for this risks intermittent failures during testing.

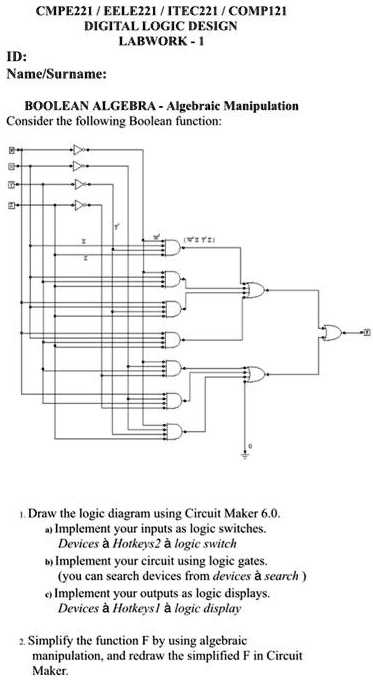

- Group related gates into functional blocks–clock dividers, decoders, or edge detectors–to maintain clarity.
- Label every net with descriptive names (e.g.,
CLK_1MHz,RST_n) to simplify debugging. - Use ground symbols near each IC to emphasize power distribution; ambient noise affects logic thresholds.

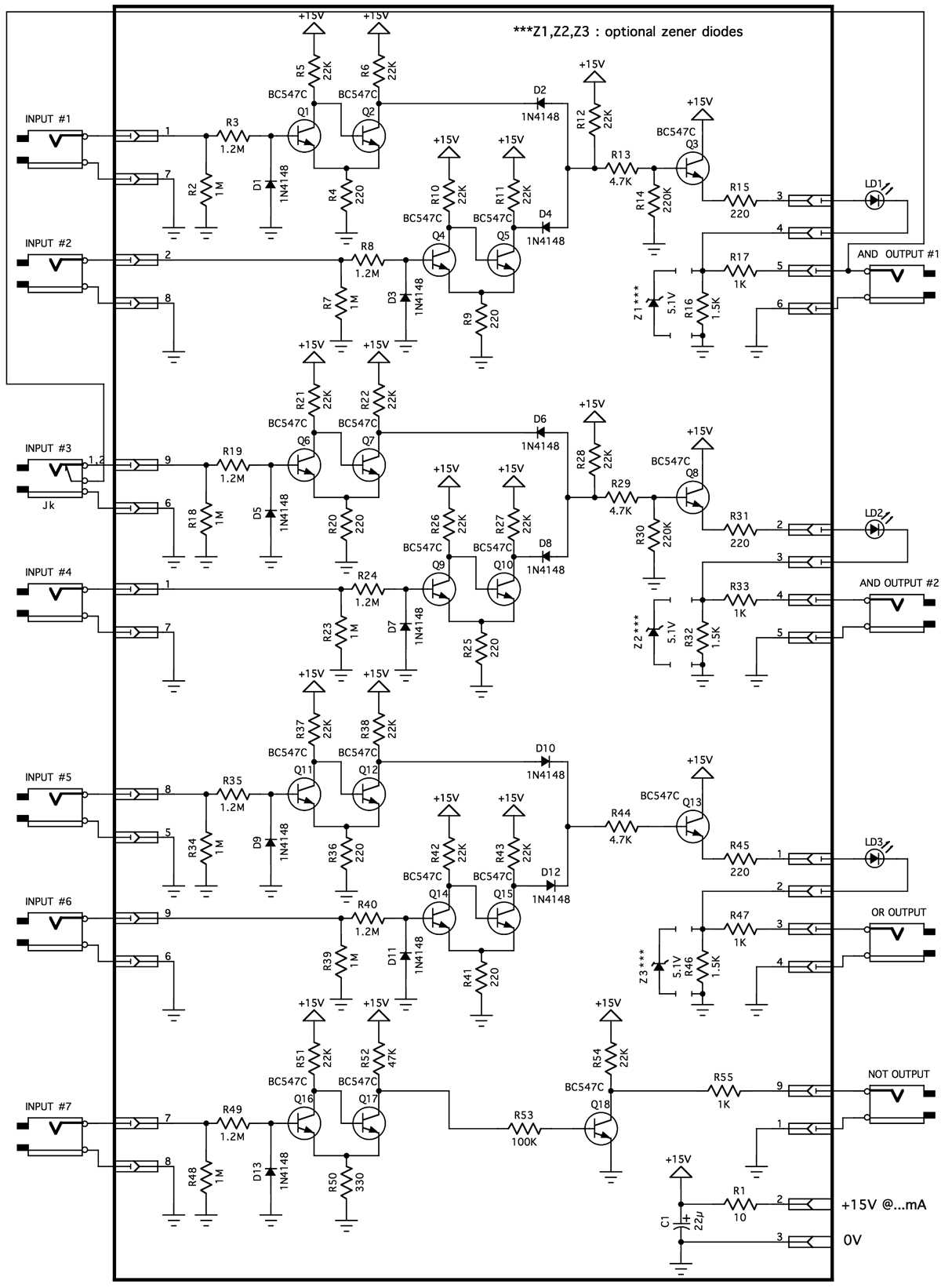

Trace signal flow from inputs to outputs, ensuring no feedback loops exist unless intentionally designed. A simple RS latch (cross-coupled NOR gates) requires dedicated reset/clear lines; omitting these creates unpredictable behavior. Verify timing constraints: a 74HC series gate toggles at 30 MHz, but propagation delays accumulate across cascaded stages. Calculate total delay and compare against clock periods to avoid race conditions.
Power rail placement matters–route VCC and GND as short, thick traces to minimize voltage drops. A 5V supply sagging to 4.7V can corrupt data in high-speed circuits. Decoupling capacitors (0.1 µF ceramic) must sit adjacent to every IC’s power pins; place them closer than 2mm to suppress transients. Test each capacitor’s ESR–higher values (>1 Ω) degrade performance in fast-switching applications.
- Assign unique reference designators (e.g.,
U1,U2) early to avoid confusion. - Annotate pin functions directly on the layout–
OEfor output enable,Y0for decoded output. - Simulate critical paths with SPICE models before prototyping; free tools like LTspice handle TTL/CMOS families.
Avoid right-angle bends in high-frequency paths; they radiate EMI. Route differential pairs–like complementary outputs from a 74AC138 decoder–with parallel traces spaced ≤1 mm. For critical signals, use star grounding: a single point connects all GND returns to prevent ground loops. Measure impedance with an oscilloscope; reflections from mismatched traces distort pulses.
Document every assumption–supply voltage tolerance (±5%), temperature range (0–70°C), and fan-out limits. A 74LS gate drives 10 LS-TTL loads; exceeding this slows edges or causes undefined states. Include test points on nets prone to faults: clock inputs, asynchronous resets, and bus lines. A simple LED probe or logic analyzer validates functionality before PCB fabrication.
Choosing Optimal Integrated Gates for Your Design
Prioritize 74HC series for low-power, high-speed applications where signal integrity matters. These CMOS variants operate at 2–6V, making them ideal for battery-powered devices or noise-sensitive environments. The 74AC family offers faster switching (sub-10ns propagation delays) but draws more current–use it only when speed outweighs power constraints.
For industrial or automotive designs, select 74LVC or 74ALVC families. They tolerate 1.65–5.5V, resist latch-up, and handle ±50mA output current. Avoid 74LS (TTL) in new projects–its 5V-only requirement and 22mA sink current limit compatibility with modern microcontrollers, though it remains useful for legacy repair work.
Single-gate packages like 74AHC1G00 (2-input NAND) or SN74LVC1G04 (inverter) reduce board space for simple logic. For complex functions, 74HC138 (3-to-8 decoder) or 74HC164 (serial-in, parallel-out shift register) replace multiple gates. Always verify fan-out: HC/HCT variants drive 10 LSTTL loads, while AC/ACT drive up to 50–critical for high-load buses.
Check propagation delay specs against your clock speed. A 74HC00 (10ns) struggles above 20MHz, while a 74AC00 (4.5ns) handles 100MHz+. For asynchronous state machines, use 74HC74 (D flip-flop) or 74HC373 (octal latch) with setup/hold times under 5ns to prevent metastability. Temperature range matters: 74HC operates at -40°C to +85°C; CD4000B extends to +125°C but with slower speeds.
Match voltage levels precisely. Mixing 5V TTL (e.g., 74LS) with 3.3V CMOS (e.g., 74LVC) requires level shifters like TXB0104. For open-drain outputs, use 74HC03 (NAND) or 74HC07 (buffer) with pull-up resistors–1kΩ for 5V, 2.2kΩ for 3.3V. Avoid tri-state conflicts by enabling only one 74HC244 (bus driver) or 74HC245 (transceiver) output at a time.
For first-in prototypes, breadboard-friendly packages like DIP (dual-inline) simplify testing. Production designs benefit from TSSOP or QFN variants–74LVC1G series offers SC-70 packages (2x2mm) for compact layouts. Always cross-check pinouts: A 74HC08 (AND gate) in DIP uses pins 1–7/8–14, while a TSSOP flips pin 1 to the top-left corner.
Understanding Pin Configurations and Datasheets
Begin by verifying the pin numbering convention on your IC package–most follow counterclockwise numbering when viewed from the top, but some PLCC or BGA variants may use grid-based labeling or alphanumeric coordinates. Always cross-check the package type (e.g., DIP-14, SOIC-16, TSSOP-20) against the datasheet’s pinout diagram to avoid misalignment, especially when prototyping on breadboards where pins are linear.
Identify VCC (or VDD) and GND pins first–these are typically positioned at opposite corners (e.g., pins 14 and 7 on a 74HC00) but may vary in power-optimized variants like low-voltage CMOS (e.g., 74LVC). Some ICs (e.g., microcontrollers, FPGAs) include multiple power domains; datasheets specify whether pins must be tied to the same rail or can operate at different voltages (e.g., core vs. I/O).
Critical Pin Functions to Verify
| Pin Type | Common Labels | Key Considerations |
|---|---|---|
| Power Supply | VCC, VDD, V+ | Check for absolute max ratings (e.g., 7V for 74HC, 3.6V for 74LVC); exceeding causes latch-up. |
| Ground | GND, VSS | Star-grounding recommended for noise-sensitive designs (e.g., comparators, ADCs). |
| Output Enable | OE, /OE, E | Active-low or active-high? Unused OE pins must be tied to VCC or GND to prevent floating. |
| Clock/Strobe | CLK, ST, CP | Edge-triggered (rising/falling) or level-sensitive? Datasheet specifies minimum pulse width. |
| Bidirectional Pins | I/O, D/Q | Direction controlled by OE or separate write-enable (e.g., 74HC245). Floating inputs can cause metastability. |
For multiplexed outputs (e.g., 74HC4051 analog switches, 74HC154 decoders), note whether common pins (e.g., the shared output of a 74HC138) require pull-up/pull-down resistors when inactive. Datasheets often omit this detail–experiment with a 10kΩ resistor or consult application notes for bus contention scenarios (e.g., I²C, SPI).
Undefined pins (e.g., unused inputs on a 74HC04 inverter gate) must never be left floating–tie them to VCC via a 1k–10kΩ resistor or GND to prevent erratic behavior. Some ICs (e.g., 74HC4046 phase-locked loop) include dedicated “NC” (No Connect) pins; ignore these unless the datasheet specifies otherwise (e.g., thermal pads on QFN packages).
For mixed-signal ICs (e.g., DACs, ADCs), separate analog ground (AGND) from digital ground (DGND) unless the datasheet explicitly permits a shared plane. Noise coupling can degrade performance–use a single-point ground near the IC’s AGND pin. Similarly, decoupling capacitors (0.1µF ceramic) should be placed CC and GND pins, with bulk capacitors (10µF tantalum) for high-current transients.
Thermal pads (common in QFN/DFN packages) often double as electrical grounds. Verify whether they require soldering to the PCB for heat dissipation–datasheets may mandate thermal vias (e.g., via-in-pad) to improve cooling. For ESD-sensitive pins (e.g., USB, HDMI), add TVS diodes or series resistors (22–100Ω) to limit current spikes during hot-plug events.
Datasheet Red Flags
Skip the marketing summary and jump to “Pin Description” and “Absolute Maximum Ratings”. Key sections to scrutinize:
- Recommended Operating Conditions: Voltage ranges (e.g., 2V–6V for 74HC), temperature specs (commercial: 0–70°C; industrial: –40–85°C).
- Electrical Characteristics: Propagation delay (tPLH/tPHL), input/output currents (IOL/IOH), and fan-out limits.
- Timing Diagrams: Setup/hold times for flip-flops (e.g., 74HC74), pulse width requirements for monostables (e.g., 74HC123).
- Application Examples: Look for circuits matching your use case (e.g., debouncing switches with a 74HC14 Schmitt trigger).
If the datasheet lacks clarity, check the manufacturer’s errata sheet–known issues (e.g., marginal noise immunity in certain 74LS series gates) are often documented here. For obsolete ICs (e.g., 4000-series CMOS), cross-reference with third-party guides like TI’s “Designing with Logic” or Nexperia’s application notes, which provide empirical data beyond official specifications.
