Start by sketching the furnace chamber where pulverized coal ignites–ensure it connects directly to the boiler tubes carrying high-pressure water. Position the superheater above the combustion zone to boost steam temperature beyond 500°C, critical for maximizing turbine efficiency. Label all inlets: coal feed (sized for 100–300 microns), preheated air from the air preheater, and water from the feed pump (operating at 150–200 bar).
Draw the steam turbine as three stages: high-pressure (HP), intermediate-pressure (IP), and low-pressure (LP). The HP stage should receive superheated steam first; exhaust from each stage must route to the next with reheaters maintaining 540°C at IP inlet. Place the condenser immediately below the LP turbine outlet–use a shell-and-tube heat exchanger with cooling water flow at 1.2 m³/s per MW generated. Indicate condensate extraction via the hotwell pump.
Include the electrical generator coupled to the turbine shaft; mark the stator windings for 15–20 kV output. Connect transformers to step up voltage to 230–400 kV for grid transmission. Add a de-aerator between the LP heater and feed pump to remove dissolved gases–this prevents corrosion in boiler tubes. For emissions control, integrate an electrostatic precipitator (removal efficiency >99.5%) and a flue gas desulfurization unit (limestone slurry ratio: 1.05:1).
Scale components proportionally: boiler height ≈ 60 meters for a 600 MW unit, turbine hall length ≈ 80 meters. Use distinct colors: red for steam lines, blue for water circuits, green for electrical, and black for fuel/air. Annotate pressures/temperatures at critical points–e.g., boiler outlet (166 bar/565°C), condenser inlet (0.08 bar/42°C). Cross-reference with ASME PTC 4.1 for standard instrumentation symbols.

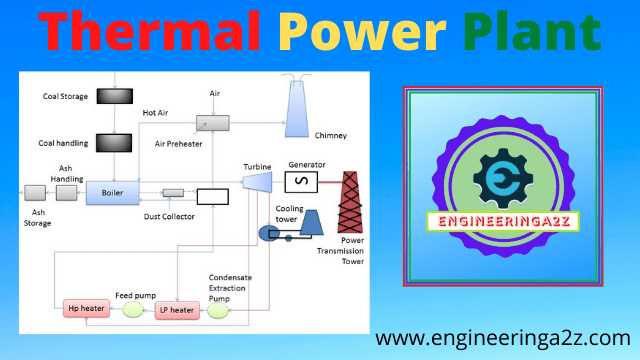

Constructing an Energy Generation Flowchart: Key Components and Arrangement
Begin with the fuel input section placed at the far left–coal, oil, or gas storage bays feed directly into the combustion chamber via conveyors or pipelines, ensuring minimal heat loss during transfer. Position the boiler centrally, as it dictates the entire flow efficiency; label steam lines exiting at high pressure (typically 16–24 MPa) and temperature (540–600°C) to the turbine stages. Include a reheater between the high-pressure and intermediate-pressure turbine expansions to maximize enthalpy recovery–this boosts cycle efficiency by 2–4%.
Locate the turbine assembly in a linear alignment from the boiler, segmenting it into high, intermediate, and low-pressure sections. Each segment should connect to dedicated steam extraction points (bleed lines) leading to feedwater heaters–typically 6–8 stages–gradually increasing water temperature to 250–280°C before re-entry into the boiler. Place the condenser immediately after the final turbine stage, ensuring a vacuum (0.005–0.02 MPa) maintains optimal backpressure for efficiency gains up to 1–2%.
Integrate a closed-loop cooling system adjacent to the condenser, specifying either oncethrough cooling (river/lake) or a cooling tower (evaporative or dry). For wet towers, account for 1–2% water loss per cycle; for air-cooled condensers, note a 3–5% efficiency penalty due to higher condensation temperatures. Position the deaerator above the feedwater heaters to leverage gravity-assisted oxygen stripping–target dissolved oxygen levels below 7 ppb to prevent corrosion.
Illustrate the electrical path starting at the generator, linking to a step-up transformer (typically 11–22 kV to 132–765 kV) via isolated-phase bus ducts to minimize stray losses. Include a simplified control room overlay showing critical instrumentation: boiler pressure gauges, turbine vibration sensors (threshold: 25–50 μm), and generator excitation systems (AVR response time
Mark fuel preparation zones differently based on type–coal: pulverizers (particle size 70% 99.5%) or baghouse filter downstream of the boiler, followed by a flue gas desulfurization unit (wet limestone method, SO₂ removal >95%). Flue gas exit temperatures should achieve 120–150°C to prevent acid condensation in stacks.
Validate component sizing proportionally: boilers 50–100 m tall, cooling towers 100–150 m with basal diameters up to 80 m, turbines occupying 20–30 m in length. Use distinctive line weights–solid for steam, dashed for water, dotted for electrical–and annotate pressures, temperatures, and flow rates at each node. For a 600 MW unit, ensure feedwater flow around 1,800 t/h, steam production 2,000 t/h, and gross heat rate between 8,800–9,500 kJ/kWh.
Critical Elements for an Energy Generation Facility Blueprint
Begin with the combustion chamber, clearly marking fuel input, air intake, and exhaust routes. Specify the type of fuel–coal, natural gas, or biomass–as each alters the auxiliary systems required. Indicate primary and secondary air flows separately to show combustion optimization.
Include the steam generator core, detailing waterwalls, superheater coils, reheater sections, and economizer tubes. Label pressure levels at critical points: 170 bar at the high-pressure turbine inlet, 40 bar at the intermediate stage, and 5 bar at the low-pressure exit.
- Boiler drum for water/steam separation
- Downcomers and risers forming circulation loops
- Attemperators for temperature control
Map the turbine arrangement in three distinct stages: high-pressure (HP), intermediate-pressure (IP), and low-pressure (LP) units. Show extraction points between stages for feedwater heating–typically 5–8 bleeds per unit. Note condenser positioning directly beneath the LP turbine to minimize piping losses.
Outline the condenser and cooling circuit, distinguishing between once-through, closed-loop, or hybrid cooling methods. For air-cooled systems, depict finned tubes and forced-draft fans. Water-cooled setups require pump heads, cooling tower height (30–50 m), and makeup water intake.
Integrate the electrical generator, showing stator windings, rotor excitation system, and step-up transformer connections (11–25 kV to 110–765 kV). Label the main circuit breaker, isolators, and grounding points to meet IEEE 802 standards.
- Fuel handling: conveyor belts, pulverizers for coal; gas compressors for natural gas
- Ash disposal: fly ash hoppers, bottom ash quenchers, electrostatic precipitators
- Water treatment: demineralization plant, condensate polishers, deaerator
- Control systems: distributed control panels, turbine governing actuators, boiler safety valves
Add instrumentation nodes at key locations: boiler inlet/outlet, turbine stages, condenser hotwell, and feedwater pumps. Use symbols consistent with ISO 14617 or ANSI Y32 for pressure transmitters, flow meters, and thermocouples.
Highlight auxiliary power consumers–ID/FD fans (1.5–3 MW each), boiler feed pumps (4–8 MW), and cooling tower fans (0.5 MW). Show emergency diesel generators (1–2 MW) with automatic transfer switches for black-start capability.
Constructing the Fuel and Combustion Subsystem Layout
Begin by positioning the coal bunker as a vertically oriented rectangle adjacent to the leftmost edge of your layout canvas, allocating 30% of total vertical space for storage capacity. Connect it via a horizontal conveyor belt (5mm width) to the pulverizer–rendered as a trapezoid with the wider base (15mm) facing the bunker and the narrower (10mm) leading toward the furnace. Label each component in 8pt Arial: “Coal Bunker” (100t storage), “Crushing Unit” (40t/hr capacity), and “Primary Air Intake” (dashed line, 2mm from pulverizer exit).
| Component | Dimensions (mm) | Material Flow Rate | Critical Notes |
|---|---|---|---|
| Coal Feeder | 12×8 | 35t/hr | Vibrating mechanism prevents blockage |
| Burner Nozzles | 4×6 each (array of 6) | 7GJ/hr per nozzle | Swirl vanes ensure 99.8% combustion efficiency |
| Ash Hopper | 20×15 | 1t/hr residue | Water-sealed to maintain furnace pressure |
Route high-pressure air from the forced draft fan (circle, 12mm diameter) to the windbox–depicted as a 25×10mm rectangle beneath the furnace–using a 45° angled duct (3mm width). Mark combustion zones with concentric rectangles: inner flame core (800°C, solid red), mid-zone (600°C, dashed orange), and outer convective pass (350°C, dotted yellow). Add a 2mm insulating gap between the furnace wall (15mm thickness) and boiler tubes (vertical lines, 1mm spacing) to denote refractory lining.
Depicting Turbine and Alternator in Energy Flow Charts
Place the turbine centrally between boiler outlet pipes and condenser inlet. Use a rectangular block with three labels: “HP Stage” (high-pressure), “IP Stage” (intermediate-pressure), and “LP Stage” (low-pressure) aligned vertically inside. Connect boiler exhaust directly to HP inlet with a bold arrow, then cascade arrows through IP and LP stages. Mark exhaust pressure 0.05 bar at LP outlet; attach condenser line downward. Position alternator immediately right of turbine, linked by a single shaft line. Denote rotor with diagonal hash marks; draw stator as a concentric circle. Label alternator 50-1000 MW range based on facility scale.
- Terminate all arrows with solid circles at connection points.
- Use
<triangle>symbols for valves between turbine stages. - Indicate cooling water circuit bypassing condenser with dashed arrows.
- Highlight emergency stop valve before HP inlet.
- Place frequency 50/60 Hz beneath alternator.
Cooling Tower and Heat Exchanger Arrangement for Precise Engineering Representation
Position condensers adjacent to turbine exhaust outlets with a 3° downward slope toward the cooling water inlet to facilitate gravity-assisted drainage of condensate. Standard once-through systems require a 1.5–2.0 m diameter intake pipe for every 1,000 MW output, while recirculating setups demand a 10–15% larger cross-section to accommodate evaporation losses.
Key Layout Parameters
Specify cooling tower placement at a minimum distance of 50 m upwind of electrical infrastructure to prevent aerosol-induced corrosion. Closed-loop evaporative towers need three-tiered fill layers: a 0.8 m splash grid at the base, 1.2 m film fill in the middle, and 0.5 m drift eliminators at the top. Maintain a 45° airflow vector between fan blades and fill media to optimize heat rejection efficiency, targeting a 8–12 °C approach temperature at full load.
Ensure condenser shells feature titanium tubes with 22–25 μm wall thickness for brackish water applications, or 0.7 mm copper-nickel alloy for freshwater, arranged in a rotated square pitch of 1.3–1.5 times tube diameter. Place extraction pumps 3 m below the hotwell base to prevent cavitation; NPSH requirements scale with 0.1 bar per 2.5 m elevation difference. Centralize instrument clusters on the condenser’s side wall, dedicating separate gauge boards for absolute pressure, differential pressure, and cooling water delta-T readings.
Avoid symmetric cooling water flow paths–stagger intake and discharge nozzles by 120° around the condenser circumference to induce turbulent mixing and prevent stratified temperature zones. Dry cooling towers require finned elliptical tubes spaced 2.8 mm apart with a 0.3 mm aluminum coating, while hybrid systems integrate a 0.6 m wet section beneath the dry deck for seasonal flexibility. Document all dimensions in millimeters and verify thermal expansion gaps (3–5 mm) for steel-supported structures operating above 50 °C.
