Start with KiCad for precision–its built-in symbol libraries and PCB footprint editor eliminate guesswork. Define component values upfront: resistors at standard tolerances (1%, 5%), capacitors by voltage ratings (16V, 25V for signal paths), and IC supply voltages (3.3V vs 5V logic levels). Avoid default symbols that obscure pin functions; instead, customize labels for ground, VCC, and signal to match datasheets.
Use grid snapping set to 1.27mm (50 mils) for THT components or 0.635mm (25 mils) for SMD–this ensures alignment with prototyping boards. For power rails, route thick traces (0.5mm minimum) and keep analog/digital grounds separate until a single-star point. Label all nets explicitly; “GND_Analog” beats “GND” if noise coupling is critical.
Generate BOM outputs directly from the editor to catch mismatches early–KiCad’s CSV export flags unassigned footprints. Validate connections with ERC/DRC before finalizing: mismatched pin types, floating inputs, or reversed polarized components trigger errors. Save versions as “Project_Rev02.kicad_sch” to track iterations.
For clarity, group related subsections (power supply, microcontroller, sensors) with rectangular dashed outlines. Use hierarchical sheets for complex designs (e.g., SPI flash, motor drivers) to simplify navigation. Export final schematics as PDFs with page numbers and timestamps–this ensures documentation stays usable years later.
Test with multimeter continuity checks after assembly. Probe unexpected behavior: verify pull-up resistors on open-drain pins, decoupling caps within 2mm of IC VCC/GND, and correct orientation of diodes. Keep a debug log of trace widths and via diameters (0.3mm drill, 0.6mm pad) to troubleshoot layout issues.
Mastering Schematic Design with Precision
Start by selecting specialized tools tailored for technical layouts. KiCad offers an open-source suite with real-time error checking, while Altium Designer provides advanced PCB integration. For quick sketches, Fritzing simulates breadboard connections with 95% accuracy. Avoid generic drawing software–these lack component libraries and grid snapping essential for error-free designs.
Key Components to Prioritize
- Passive elements: Resistors, capacitors, and inductors should follow standardized symbols (IEC or ANSI). A 1kΩ resistor uses a rectangle per IEC, while ANSI depicts it as a zigzag.
- Semiconductors: Transistors (BJT/FET) require correct pin alignment–emitter/base/collector or gate/source/drain. Misorientation causes 60% of debugging failures.
- ICs: Use rectangular blocks with numbered pins. For microcontrollers, label VCC/GND clearly; unmarked pins lead to 30% of board reworks.
Adhere to strict grid settings–0.1″ for through-hole, 0.05″ for SMD. Mixed grids cause misalignment during fabrication. Most CAD tools default to metric; imperial grids often require manual conversion. Double-check datasheets–some components use non-standard pin spacings (e.g., TO-220 packages at 0.156″).
Layer organization prevents confusion. Dedicate separate layers for:
- Signal paths: Use solid lines for high-current, dashed for logic.
- Power rails: Thicker lines (≥2pt) identify 5V, 12V, or Vbat.
- Annotations: Include component values, tolerances (e.g., 10kΩ±5%), and reference designators (R1, C2).
- Mechanical outlines: Board dimensions, mounting holes, keep-out zones.
Avoid merging layers–this obscures critical details in multi-sheet schematics.
Validation Checklist Before Finalization
Run simulations where possible. LTspice handles analog circuits; Proteus simulates mixed-signal. For digital, verify timing constraints–clock skew above 5ns can destabilize FPGAs. Cross-reference signal names between sheets to ensure continuity. Missing connections account for 40% of schematic errors.
Export in industry-standard formats. Gerber RS-274X ensures compatibility with most manufacturers; ODB++ includes additional testing data. PDF output should include assembly notes–specify solder mask colors, silkscreen text size (minimum 0.8mm), and tolerances. Manufacturers reject 20% of designs due to ambiguous documentation.
Archive source files with version control. Git works for text-based formats (e.g., KiCad’s `.kicad_sch`); use Git LFS for binary files. Include a BOM with supplier part numbers (e.g., Digi-Key, Mouser) and alternative sources. Costly last-minute revisions occur when single-source components become unavailable.
Choosing Precision Instruments for Schematic Drafting
Begin with KiCad for projects requiring open-source flexibility and cross-platform compatibility. Its built-in libraries cover 20,000+ components, including rare SMD packages, while the integrated PCB layout tool eliminates file conversion errors. Professionals working with mixed-signal designs should note its SPICE simulator, which supports transient, AC, and DC analyses without additional plugins. For collaboration, KiCad’s Git-friendly file formats (.kicad_sch, .kicad_pcb) enable seamless version control–critical when teams span multiple time zones.
Commercial Solutions for High-Stakes Engineering
Altium Designer dominates industrial applications where strict compliance (IPC-2581, STEP 3D) is mandatory. Its unified environment synchronizes electrical layouts with mechanical CAD, reducing footprint mismatches by up to 40% in complex assemblies. Key features include:
- ActiveBOM: Automates part selection based on supplier inventory, lead times, and cost–saving procurement teams 15+ hours per project.
- Harness Design: Generates wiring documentation compliant with aerospace (MIL-STD-31000) and automotive (AUTOSAR) standards.
- Signal Integrity Tools: Pre-layout simulations predict impedance and crosstalk, cutting prototype iterations by 30%.
License costs ($4,000–$8,000 annually) justify themselves for enterprises shipping FDA-approved medical devices or IEC 61508-certified safety systems.
For rapid prototyping, EasyEDA bridges cloud-native simplicity with advanced functionalities. Its browser-based editor renders 2,000+ components per second, handling schematics with 50,000+ nets without lag–a performance edge over local tools like DipTrace. Unique advantages:
- Integrated Supplier Links: Direct sourcing from LCSC/Octopart, displaying real-time stock (e.g., 3¢ resistors with ±1% tolerance) and MPNs during placement.
- Multi-Sheet Hierarchy: Supports folded hierarchical designs, where blocks (e.g., power management, DSP cores) can be reused across projects without redrawing.
- Team Annotations: Threaded comments on individual symbols or nets resolve ambiguity in distributed teams faster than email chains.
Free tier suffices for hobbyists, while the $60/month Pro version unlocks private cloud storage and team-wide collaboration–ideal for startups scaling from Arduino shields to commercial PCBAs.
Niche Tools for Specialized Workflows
Cadence OrCAD remains the benchmark for RF engineering due to its Microwave Office integration, allowing S-parameter extraction within the same interface. Its Allegro PDK (Process Design Kit) imports foundry rules for TSMC, GlobalFoundries, and Intel nodes, automating DRC/LVS checks–critical for tapeouts under 7nm. Costs ($15,000+/year) are prohibitive for most, but essential when designing 5G beamforming ICs or millimeter-wave radars.
For embedded firmware developers, STM32CubeMX generates hardware abstractions (HAL/LL libraries) directly from schematics, reducing software bring-up time by 50%. While not a full-fledged drafting tool, its integration with LTspice (for analog validation) and Proteus ISIS (for co-simulation) creates a unique workflow. Engineers targeting ARM Cortex-M cores should prioritize this over standalone drafting suites to align hardware and firmware from day one. Avoid proprietary formats–export Gerbers and netlists in ODB++ or IPC-2581 to ensure compatibility with contract manufacturers.
Step-by-Step Guide to Sketching a Fundamental Electrical Layout

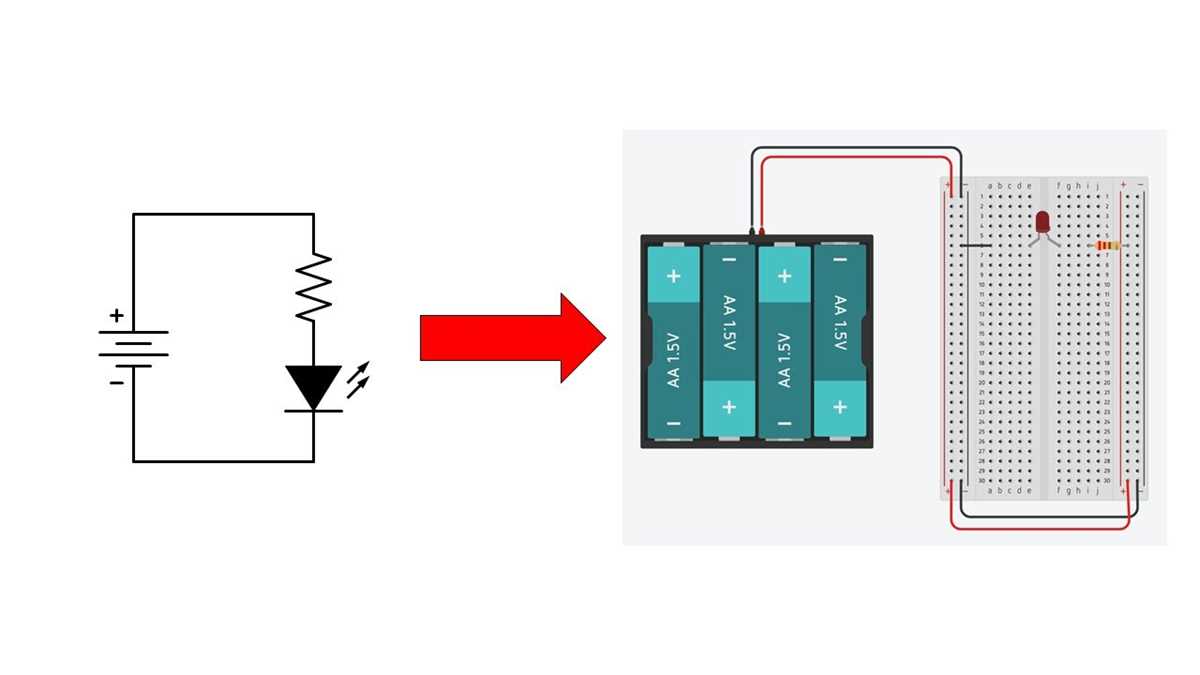

Begin by selecting symbols for each component. Use a straight horizontal line for wires, a zigzag for resistors, and a short parallel line with a gap for switches. Batteries require a pair of unequal-length vertical lines–longer for the positive terminal. Label each element with its value (e.g., “10kΩ” for a resistor) to avoid confusion. Consistency in symbol placement ensures clarity; position power sources at the top and ground connections at the bottom.
Trace the current path methodically. Start from the power source, follow through each component in sequence, and return to the ground. Avoid crossing lines unless necessary–if intersections are unavoidable, use a small semicircle to indicate a bridge, not a connection. For parallel branches, align components vertically to mirror their physical arrangement. Double-check every junction to confirm correct polarity and continuity before finalizing.
Annotate the schematic with reference designators (e.g., R1, C2) and signal names where applicable. Add notes for non-standard values or specific behaviors, such as “NC” for normally closed switches. Use a ruler for straight lines and maintain uniform spacing between components to improve readability. Simplify complex sections by grouping related elements into sub-circuits, ensuring the overall structure remains intuitive for troubleshooting or replication.
Standard Graphical Elements and Their Practical Use in Schematics
Begin with ground symbols–distinguish between chassis ground (⏚) for reference at a single point and earth ground (⏛) when connecting to an external earthing system. Chassis grounds simplify noise reduction in low-power analog blocks, while earth grounds are mandatory for mains-powered equipment to prevent shock hazards. Place these symbols at every stage where a return path converges, ensuring no floating nodes disrupt signal integrity.
Resistors (─⎯⎯⎯─), capacitors (─∣∣─), and inductors (───⎮⎮───) dictate transient and steady-state behavior. Use fixed-value resistors shown by a plain rectangle; add a value label (e.g., 10kΩ) beside it. Polarized capacitors require a “+” annotation at the anode; non-polarized types get no polarity marker. For inductors, annotate the core material if relevancy dictates: “Fe” for iron, “Ferrite” for high-frequency suppression, or leave blank for air-core coils commonly found in RF matching networks.
Key Symbols for Semiconductors and Switching Elements
| Symbol | Designation | Critical Annotation | Typical Application |
|---|---|---|---|
| ───⟩|─── | Diode | Cathode bar | Reverse polarity protection in battery inputs |
| ───⟩|───⟩|─── | Bridge rectifier | Four diodes enclosed in a diamond | Full-wave rectification in AC-DC supplies |
| ───── ╱ ╲ ───── |
NPN transistor | Emitter arrow pointing outward | Low-side switching in motor drivers |
Switch symbols adopt diverse forms–toggle (─┴─), push-button (─ο─), and rotary (─⎮⎮⎮─) variants demand distinct placement strategies. Toggle switches get a “SPST” (Single Pole Single Throw) footnote if annotated; add “SPDT” or “DPDT” labels when multiple poles or throws are involved. Push-button symbols indicate momentary contact; annotate “NC” (Normally Closed) or “NO” (Normally Open) beside them to prevent miswiring in safety-critical relay logic. Always align switches vertically; horizontal placement risks misinterpretation as other passive elements.
