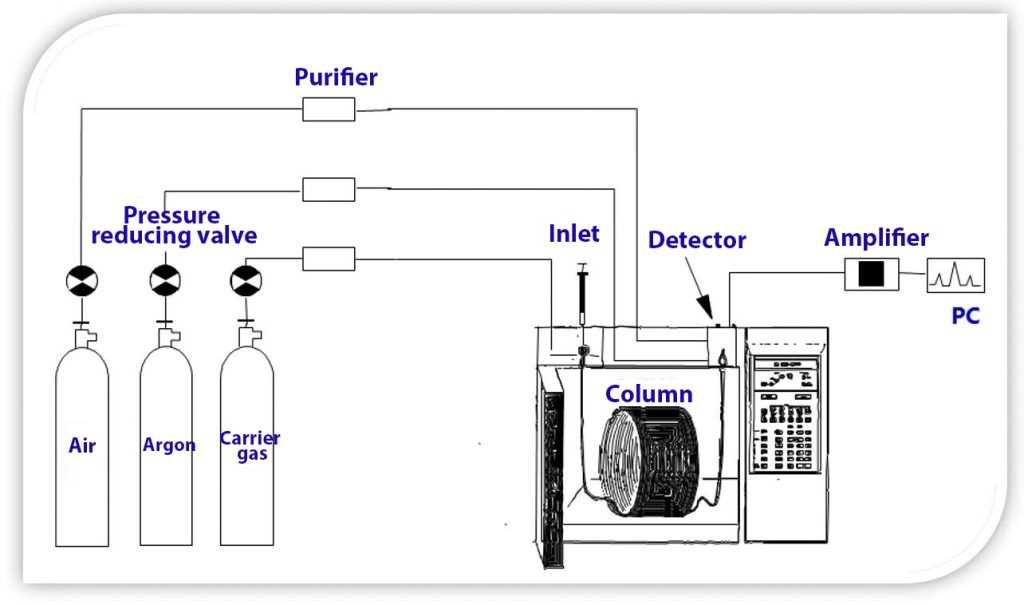

Begin by outlining the core components in a linear progression: carrier input, sample injector, analytical column, and detector. Position the carrier entry point at the far left, followed by the injection port–ensure a direct, unobstructed pathway to maintain consistent pressure and flow rates. The injector must include a septum for precise sample introduction without disrupting the system balance.
Select a capillary or packed column based on resolution requirements. Capillary variants demand thinner internal diameters (0.1–0.53 mm) for heightened sensitivity, while packed columns (2–4 mm ID) tolerate higher sample volumes but sacrifice separation efficiency. Indicate temperature regulators–either isothermal blocks or programmable ovens–adjacent to the column to stabilize or gradient-adjust thermal conditions.
Couple the column outlet to a flame ionization detector (FID) or thermal conductivity unit (TCD). FID operates with hydrogen and air inputs for hydrocarbon analysis, whereas TCD relies on reference and sample streams for universal compound detection. Mark gas inlets for each detector, specifying flow ratios: 30–40 mL/min for hydrogen in FID, 1–2 mL/min for helium or nickel in TCD.
Integrate a data acquisition system downstream, noting response time–typically 0.1–0.5 seconds–to capture peak profiles accurately. Label pressure gauges before and after the column to monitor backpressure; excess resistance (above 50 psi for capillary, 100 psi for packed) signals blockages or column degradation. Include a waste outlet if split injection is used, routing excess sample away from the detector.
Validate each connection with Swagelok or ferrule fittings to prevent leaks; helium leak detectors verify system integrity before operation. For methanizer-equipped FIDs, position a catalyst chamber after the column to convert CO/CO₂ into detectable methane without perturbing retention times.
Creating a Visual Representation of Analytical Separation Processes
Start with clearly labeled components: inject the sample into a heated port (250–350°C) where vaporization occurs instantly. The carrier phase (helium, nitrogen, or hydrogen at 1–2 mL/min) transports the analyte mixture through a coiled capillary column (10–60 m length, 0.1–0.53 mm ID, coated with a 0.1–5 µm stationary phase film). Indicate a detector (flame ionization, thermal conductivity, or mass spectrometer) at the column exit, showing signal output to a data system. Mark critical points:
- Pressure regulator (inlet: 10–50 psi, outlet: atmospheric)
- Oven temperature program (initial 50–100°C, ramp 5–20°C/min, final 200–400°C)
- Split/splitless injection modes (split ratio 10:1 to 100:1 for concentrated samples)
- Makeup gas flow (10–30 mL/min for FID detectors)
Use distinct line weights–thicker for carrier flow paths, dashed for electrical connections, dotted for temperature-controlled zones.
Key Annotations for Clarity
- Label stationary phase polarity (e.g., 5% phenyl-methylpolysiloxane for semi-volatile compounds)
- Specify column diameter and film thickness–directly impacts resolution (e.g., 0.25 mm × 0.25 µm for EPA method 8270)

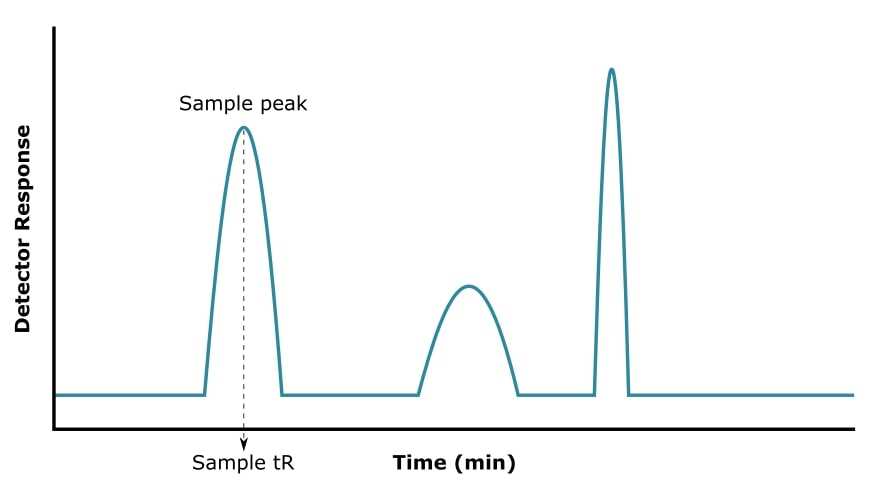

- Show retention time markers along the x-axis (0–60 min typical range)
- Indicate detector response units (mV or absorbance for FID/TCD, m/z for MS)
- Add a legend: ⚫ inlet, △ oven, ◊ detector, – flow, – – – signal path
Selecting Core Components for a Volatile Compound Analysis System
Prioritize a fused silica capillary column with a stationary phase thickness between 0.1–5 μm for most organic separation tasks. Polydimethylsiloxane (PDMS) phases handle hydrocarbons, while polyethylene glycol (PEG) variants excel with alcohols and acids. Match column length to resolution needs: 15–30 m suffices for routine screens, while 50–100 m resolves complex mixtures like petroleum distillates. Avoid excessive internal diameters–0.25–0.32 mm balances sensitivity and sample capacity–unless analyzing high-boiling compounds, where 0.53 mm prevents peak broadening.
Thermal conductivity detectors (TCD) demand filament currents of 150–200 mA for optimal baseline stability, but flame ionization detectors (FID) require precise hydrogen-to-air ratios–30:300 mL/min for linear response. When tracking halogenated compounds, electron capture detectors (ECD) need nickel-63 sources replenished every 2–3 years; nitrogen-phosphorus detectors (NPD) last longer but require bead currents recalibrated monthly. For trace analysis, mass-selective detectors (MSD) with quadrupole filters achieve 1–10 pg detection limits, while time-of-flight variants offer faster scans but higher upfront costs.
Injector selection hinges on sample volatility: split/splitless inlets work for most liquids (split ratios 10:1 to 200:1), but on-column modes prevent degradation of thermally labile analytes like pesticides. Headspace autosamplers handle volatiles in solids, while purge-and-trap configurations extract organics from aqueous matrices at 10–15 ppm concentrations. Always pair injectors with deactivated liners–Silanized glass wool reduces active site interactions, critical for quantifying polar compounds below 10 ng/μL.
Carrier fluids must be ultra-high purity (99.999% helium or hydrogen) to prevent ghost peaks; leakage rates above 0.5 mL/min compromise resolution. For hydrogen-based systems, metal hydride traps remove oxygen down to
Data acquisition software must log raw signals at ≥50 Hz for peak deconvolution; proprietary algorithms like ChemStation’s “Agilent Deconvolution Reporting Software” handle co-eluting peaks but require 64-bit processors for real-time processing. Validate system performance weekly with hydrocarbon standards (e.g., ASTM D6584 mixes for biodiesel), monitoring tailing factors (
Optimizing Carrier Fluid Placement and Stream Regulation
Mount the inert fluid reservoir vertically above the separation column to leverage gravity-assisted pressure stabilization–eliminate upstream pressure fluctuations by keeping the elevation difference between the tank outlet and the injector inlet constant at ≥30 cm. Connect the tank via 1/8″ OD stainless tubing with Swagelok fittings pre-torqued to 15–20 N·m to prevent micro-leaks at flow rates exceeding 5 mL/min. Position a particle filter (0.5 μm) at the tank outlet to intercept impurities that degrade stationary phase efficiency.
- Integrate a dual-stage mass flow controller (MFC) with ±0.1% accuracy downstream of the filter–avoid single-stage regulators as they introduce baseline drift during thermal ramp cycles. Configure the MFC inlet pressure at 1.2× column head pressure to ensure choked flow conditions, typically 40–60 psig for capillary setups.
- Attach the MFC no farther than 50 cm from the injector to minimize dead volume–each 10 cm of 1/16″ tubing adds ~2 μL of extracolumn dispersion. Use electropolished tubing for connections; untreated surfaces adsorb polar analytes and skew retention indexing.
- Insert a backpressure regulator (BPR) at the column outlet set to 5–10 psig below MFC output–this creates a continuous pressure gradient while preventing detector saturation. BPR placement must precede any vented split, as improper staging causes flow instabilities.
Calibrate the stream path annually using a soap-bubble flowmeter at the detector outlet–target precision is ±2% of setpoint. Replace diaphragms in mechanical regulators every 2,000 hours of operation; degraded diaphragms induce 0.3–0.8% daily drift in retention time reproducibility. For helium systems, use ultra-high-purity (99.9999%) tanks with internal cylinder treatments–standard industrial grades introduce 10–30 ppm of moisture and hydrocarbons that irreversibly deactivate silica-based stationary phases within 200 injection cycles.
Designing the Sample Injection System for Optimal Performance
Select a split/splitless inlet with a temperature range of 50–400°C and a maximum pressure tolerance of 150 psi to accommodate volatile compounds like BTEX (benzene, toluene, ethylbenzene, xylene) without thermal degradation. Ensure the liner volume matches the injected sample size–typically 1–5 μL–to prevent flooding while maintaining linear flow rates of 1–5 mL/min. Use deactivated glass wool in the liner to trap non-volatile residues, reducing baseline noise by up to 40% in trace-level analysis.
For liquid samples, employ a 10 μL syringe with a fixed needle (26-gauge, point style 2) to minimize dead volume; deviation exceeding 0.2 μL introduces retention time shifts of ±0.3 seconds. Pre-heat the inlet to 25°C above the boiling point of the highest-boiling solvent (e.g., 220°C for dichloromethane vs. 80°C for n-hexane) to ensure instantaneous vaporization. Pressure pulses during injection should not exceed 5 psi above the carrier flow pressure, or peak asymmetry (tailing factor >1.2) occurs.
Optimize split ratios for concentrated samples: a 50:1 split reduces overloading for 100 ppm solutions, while a 10:1 split improves sensitivity for 1 ppm analytes. For splitless injection, purge the inlet after 0.5–1.0 minutes at 20–30 mL/min to eliminate residual solvent vapor, preventing ghost peaks in subsequent chromatograms. Delayed purge activation beyond 2 minutes increases solvent tailing by 60%.
Critical Parameters for Inlet Maintenance
| Component | Cleaning Frequency | Signs of Failure | Performance Impact |
|---|---|---|---|
| Glass Liner | After 100–150 injections | Baseline drift >5 μV/s | Retention time RSD >0.5% |
| Septum | Every 50–75 injections | Leaks at 30 psi (pressure drop >2 psi) | Peak area CV >3% |
| Gold Seal | Every 300 injections | Carrier flow instability >1 mL/min | Resolution loss >15% |
Use fused silica or metal-coated needles for aggressive matrices (e.g., oils, biological fluids) to avoid contamination; stainless steel needles leach iron, causing catalytic decomposition of sulfur compounds. Replace septa every 50 injections when working with chlorinated solvents or high-temperature methods (300°C+), as silicone degradation generates phthalate artifacts at 5–10 ppm. Store liners in vacuum-sealed containers with molecular sieves to prevent adsorption of atmospheric moisture, which deactivates surfaces and doubles limits of detection for polar analytes.
For headspace sampling, maintain equilibrium temperatures 10–15°C above the analyte’s boiling point (e.g., 90°C for ethanol, 110°C for acetonitrile) with agitation at 250 rpm for 10–15 minutes. Use 20 mL vials with 10 mL headspace to ensure phase ratio (β) ≤2, minimizing distorting effects on partition coefficients. Helium purging of headspace samples prior to sealing removes oxygen, reducing oxidative degradation of terpenes by 30–50%.
Calibrate autoinjectors monthly using toluene or n-decane standards: retention time drift should not exceed 0.05% per 100 injections. For manual injection, practice consistent needle insertion speed (2–3 cm/s) and dwell time (0.5 seconds) to achieve peak area reproducibility ±1.5% RSD. Use chilled transfer lines (4°C) for thermally labile compounds like pesticides, reducing on-column decomposition by 70%.
Troubleshooting Injection-Related Artifacts
Discrimination effects–where high-boiling components are underrepresented–occur when inlet temperatures are >50°C below the analyte’s boiling point. Correct by increasing inlet temperature 20°C incrementally or switching to on-column injection for samples with boiling points >300°C. Memory effects from previous injections appear as ghost peaks; verify by injecting solvent blanks–peaks should not exceed 0.1% of the original analyte response. If detected, bake the inlet at 350°C for 2 hours with helium flow at 50 mL/min.
Forensic samples (e.g., blood alcohols) require derivatization–use BSTFA + 1% TMCS for hydroxyl groups, converting them to trimethylsilyl ethers with 98%+ efficiency. Inject 1 μL of derivatized sample within 24 hours; longer storage increases hydrolysis, generating silanol artifacts at retention times coinciding with target compounds. Validate injection techniques with EPA Method 8015D standards, ensuring response factors for n-C8 to n-C40 alkanes vary by ≤10% across triplicate injections.
