Use a 12V or 230V configuration depending on transformer presence. UK installations must comply with BS 7671 (IET Wiring Regulations), ensuring RCD protection for all permanent lighting fixtures. Fuse each run with a 3A or 5A breaker–never exceed 10A per circuit. For recessed fittings, maintain 1.5mm² solid copper conductors between junction boxes and terminals, downgrading to 1mm² stranded only for the final 50cm to the luminaire.
Label all junction boxes with circuit reference and voltage. Low-voltage systems require a matched transformer–check VA rating against total wattage (UK-standard transformers: 20VA, 50VA, 60VA, 100VA). For 230V setups, use IP65-rated grommets where cables exit plasterboard. Earth continuity is mandatory; bond metal casings with green/yellow sleeving to the nearest earth terminal.
Space conductors at least 50mm from insulation to prevent overheating. Use colour-coded sleeves (brown for live, blue for neutral, green/yellow for earth) on all ends–UK electrical inspectors will flag deviations. Test polarity before fixing plaster; a cheap socket tester suffices for quick verification.
Group no more than 8 medium-base LEDs per 6A circuit. Overload risks void warranties and trip breakers–calculate total load (sum of bulb ratings + 20% margin). For dimmable variants, confirm compatibility with leading-edge or trailing-edge dimmers (UK standard: trailing-edge for LED).
Seal cable entries with fireproof compound where they pass through timber joists or party walls. Avoid looping wires under joist nails; instead, drill 20mm-diameter holes at least 50mm from edges. Transformers must have electromagnetic compatibility (EMC) marking–CE alone is insufficient.
UK Recessed Lighting Wiring Guide for Safe Installation

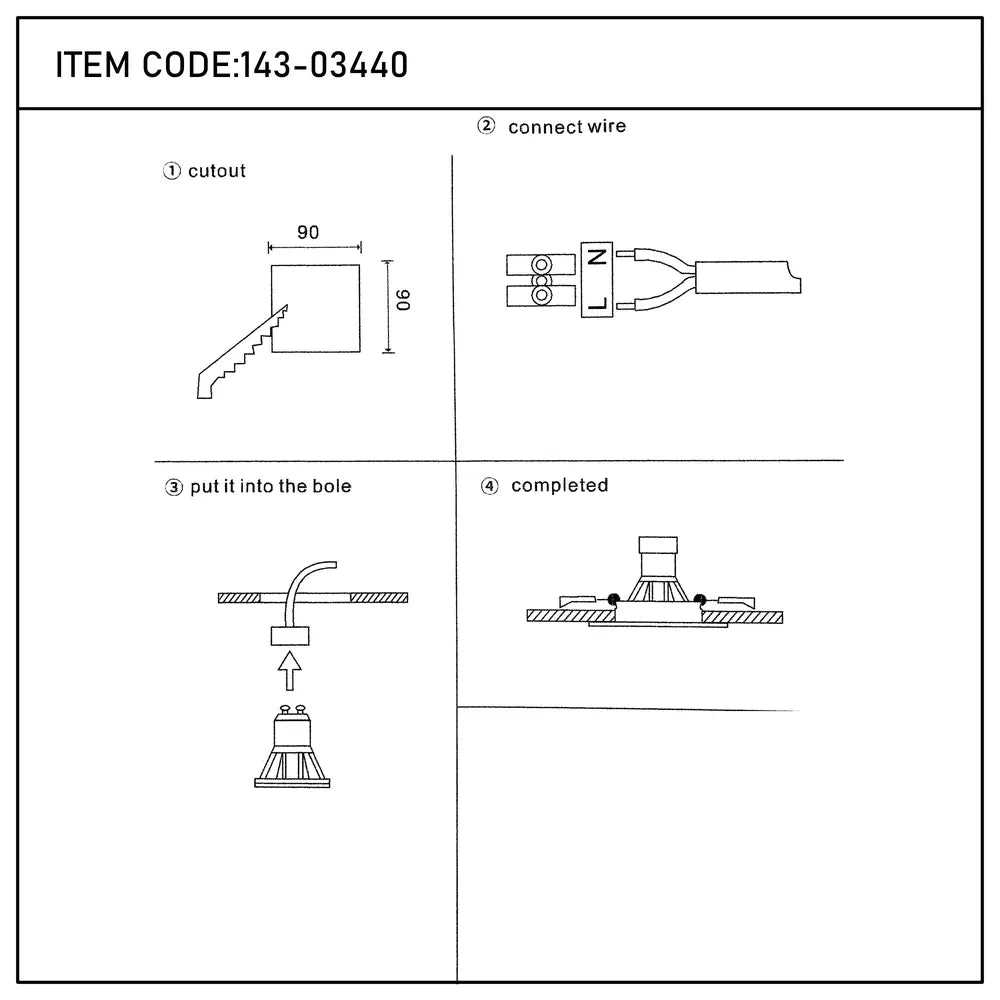

Begin by isolating the power supply at the consumer unit to prevent accidental shocks. Use a voltage tester to confirm the absence of current before handling any wires. UK regulations mandate a 30mA RCD for lighting circuits–ensure your setup complies to avoid violations. For single-point fittings, connect the live (brown) wire to the L terminal, neutral (blue) to N, and earth (green/yellow) to the designated grounding point.
For multiple fixtures, daisy-chain the connections using 1.5mm² solid-core cable, adhering to BS 7671 wiring standards. Secure all joints with Wago connectors or terminal blocks–twist-and-tape methods are unreliable and violate Part P of building regulations. If extending an existing loop, calculate the total load to prevent overloading; a 6-amp circuit breaker typically supports up to 14 LED units (assuming 5W each).
Key Components and Their Roles
Integrate a 5A or 6A fuse in the circuit to protect against overloads. Switched live (grey or red-sleeved) wires must be used for dimmable setups, connecting to a compatible trailing-edge dimmer switch. Avoid mixing halogen and LED transformers–UK voltage (230V) requires dedicated drivers for consistent performance. For low-voltage installations, use a Class II transformer rated for the total wattage of all attached luminaires.
Mark all cables clearly at both ends to simplify future maintenance. Use heat-resistant sleeves where wires pass through insulation or near heat sources. For bathrooms, ensure IP44-rated fixtures are used, with additional IP65 sealing for zones 1 and 2. Zener barriers may be required if integrating smart controls to prevent interference with building management systems.
Common Pitfalls and Fixes
Flickering often stems from loose connections–retighten all terminals annually. Tripping RCDs indicate moisture ingress or faulty insulation; replace compromised cables immediately. Incorrect grounding causes buzzing in dimmable setups–ensure the earth wire is continuous and properly bonded to the metallic backbox. For surface-mounted transformers, check for overheating (maximum 60°C) and relocate if necessary.
Always test the setup before finalizing plasterwork. Measure voltage drop across the longest run–excessive loss (>5%) requires thicker gauge cable (2.5mm²) or reduced load. Keep spares of critical components (terminal blocks, fuses) for quick repairs, as UK supply chains may delay replacements.
Critical Elements for UK Recessed Lighting Electrical Configurations
Begin with a 10A MCB rated for lighting in residential installations–this matches UK wiring regulations (BS 7671) and handles typical LED loads of 4-15W per fitting without tripping. Pair it with a 6A residual current device (RCD) for fault protection, especially in bathrooms (Zone 1) where IP65-rated fixtures demand additional safety. Use 1.5mm² heat-resistant twin-and-earth cable for runs under 15m; beyond this, upsize to 2.5mm² to prevent voltage drop exceeding 3%. For transformers, opt for constant-current drivers (350mA or 700mA) for LED clusters–cheap constant-voltage versions risk premature failure or flickering.
- Terminal blocks: Choose Wago 221 series for secure, vibration-proof connections–screwless designs reduce oxidation in loft spaces.
- Junction boxes: Use IP66-rated plastic enclosures for loft installations; metal variants require earth bonding.
- Switching: Install a single-pole dimmer (400W max) for trailing-edge control–leading-edge dimmers cause audible buzzing in cheap LEDs.
- Spacing: Maintain 500mm clearance from insulation (per Part P regs) to prevent overheating; use thermally protected luminaires marked “TP” if insulation contact is unavoidable.
- Testing: Verify polarity with a socket tester before energising–incorrect neutral/phase connections trigger RCDs and damage drivers.
Wiring Standards and Colours for Recessed Luminaires in the UK
Always defer to the BS 7671 IET Wiring Regulations (18th Edition) as the primary authority for electrical installations in the UK, including recessed lighting. Non-compliance risks voiding insurance coverage and failing EICR inspections.
For new installations, use the following colour coding for fixed wiring:
| Conductor Type | Colour (BS 7671) |
|---|---|
| Line (Live) | Brown |
| Neutral | Blue |
| Earth (Protective Conductor) | Green & Yellow (striped) |
| Switched Line | Brown (with brown sleeving at terminations) |
Pre-2004 installations may still contain red (line), black (neutral), and bare or green (earth) conductors. These must be clearly labelled at both ends with permanent warning sleeves to indicate their function, especially if mixed with modern wiring. Failure to re-identify legacy conductors constitutes a non-compliance under Regulation 514.13.1.
For looping connections, ensure each joint is mechanically secure and insulated with heat-shrink tubing or Wago connectors. Twist-and-tape methods are prohibited in all new work. Terminal blocks used in junction boxes must be rated for the maximum expected load–typically 6A for LED fittings, with derating applied for cables longer than 3m.
Key Requirements for Protective Devices
Recessed luminaires fed from a 6A radial circuit require a 3A fuse or MCB at the distribution board, even if the total load is below 1A. This prevents nuisance tripping without compromising overcurrent protection. For circuits serving multiple fittings, calculate diversity using Appendix 1 of BS 7671–assume 100% of the first fitting, 75% of the second, and 50% of the rest.
RCD protection is mandatory for all circuits in domestic installations, including lighting. Use a Type A 30mA RCD with
Earthing and Bonding Considerations
Metal-clad recessed luminaires must be earthed via a dedicated 1mm² green/yellow conductor terminated to the fitting’s earth stud. Plastic fittings still require equipotential bonding if installed in metal ceiling voids or near conductive building elements. Verify earth continuity with a low-resistance ohmmeter–values above 0.1Ω indicate poor connections requiring remediation.
Final circuits exceeding 16A require a separate protective conductor, not shared with other circuits. For fuse boards without dedicated earth terminals, use a PME (TN-C-S) earthing arrangement with a combined neutral-earth bar, ensuring the main earthing terminal is connected to the supplier’s earth via the meter tails. Never bond to gas or water services as a substitute.
Step-by-Step Guide to Wiring Recessed Lighting in Series vs Parallel
Always wire recessed lighting fixtures in parallel for UK installations–series connections risk uneven brightness and failure if one unit breaks. Start by switching off the mains at the consumer unit and verify with a voltage tester before handling cables.

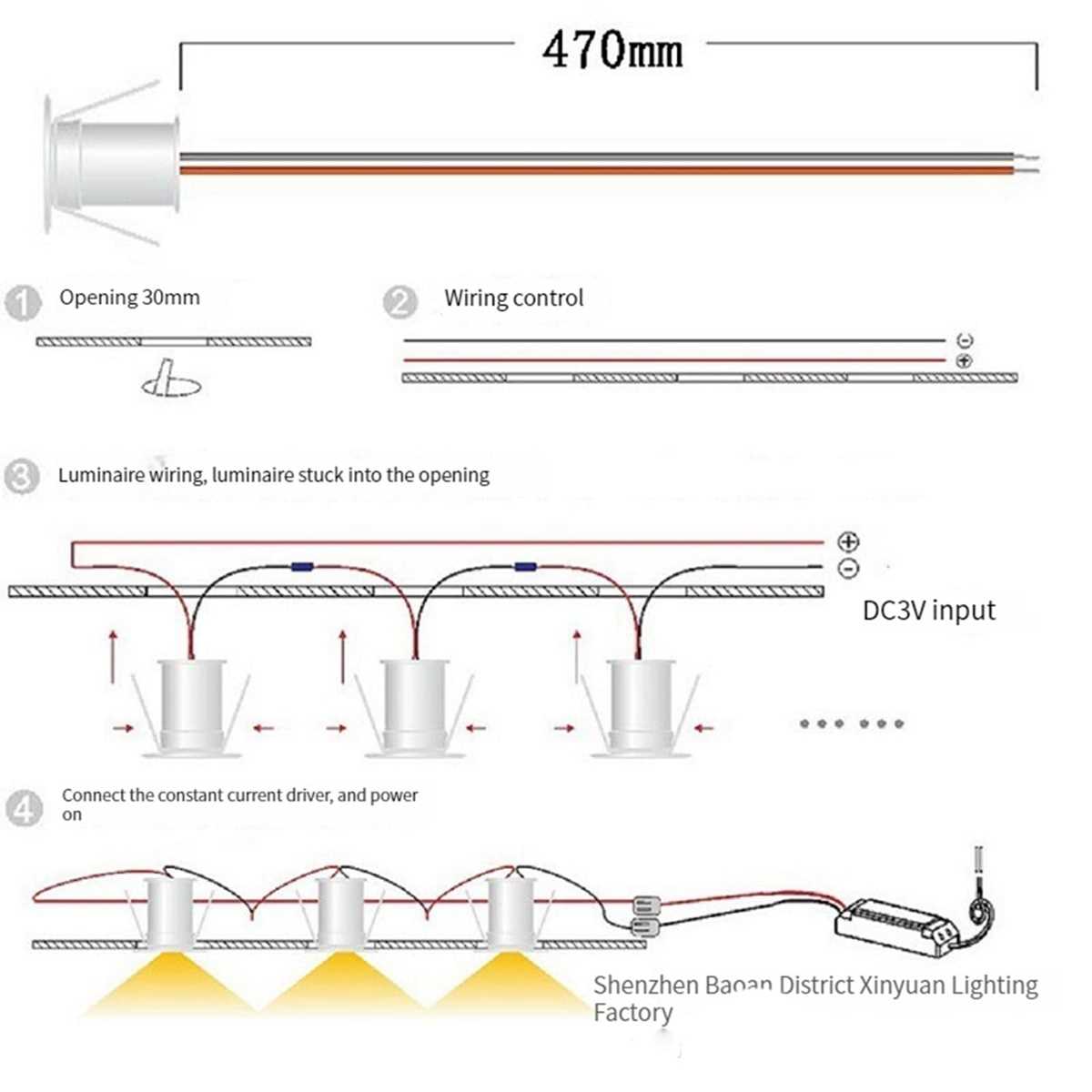

For parallel wiring, run a 1.5mm² live (brown) and neutral (blue) cable from the power source to the first fitting. Connect the incoming live to the fitting’s terminal, then extend another live cable to the next fixture, repeating until all units are linked. Neutral cables follow the same method, creating independent paths for each light. This ensures consistent voltage (230V) across all fixtures, meeting UK electrical standards.
Series connections demand thicker cable (2.5mm² minimum) due to cumulative resistance. Join the live terminal of the first fitting to the neutral of the next, continuing in a chain. While simpler, this method reduces voltage along the chain–each light receives less than 230V, causing dimming. A single fault cuts power to all downstream units, complicating troubleshooting.
Tools and Materials Required
Use these for safe, compliant UK installations:
- 18th edition cable clips or conduit
- Chocolate block terminals (for junctions)
- Insulated screwdrivers (VDE-certified)
- Wire strippers with 1.5mm/2.5mm notches
- MCB (3A–6A) for dedicated lighting circuits
- Fireproof junction box (for hidden connections)
Label each cable during wiring–colour-coding prevents misconnections under Part P of the UK Building Regulations. For parallel setups, use separate junction boxes if the ceiling space is limited; series wiring doesn’t require intermediate boxes but needs accessible looping points.
Avoid Common Mistakes
Don’t mix cable gauges in a single run–voltage drop calculations fail. For parallel wiring over 5 metres, upgrade to 2.5mm² to compensate for resistance. Never splice cables inside fitting housings; junction boxes must be accessible for inspections. For series chains exceeding 6 fixtures, switch to parallel or install a higher-rated MCB to prevent nuisance tripping.
Test each fitting individually after wiring. Measure voltage at the last unit in series–it should remain within 5% of 230V (218V minimum). Parallel setups show identical readings at all points. If voltage drops, recheck terminal tightness or investigate cable length/quality issues. Document all connections in a circuit schedule for future maintenance.
Finalise by securing cables with cable clips spaced at 300mm intervals (or conduit for commercial installations). Seal gaps with intumescent putty if penetrating fire-rated ceilings. Energise the circuit only after a qualified electrician verifies compliance with BS 7671.
