Guide to Connecting Your Advanced Multimedia Head Unit
Begin by identifying the harness colors on your vehicle’s original connector and match them to the adapter provided with your new system. Most European vehicles use ISO standard wiring, while Asian and American models often follow proprietary pinouts. A mismatch in power or ground wires–typically yellow (+12V constant), red (+12V ignition), and black (ground)–will prevent the unit from powering on. Use a multimeter to verify voltages: yellow should show 12V regardless of key position, red only when the ignition is on, and ground should read 0 ohms against the chassis.
The table below outlines common wire functions across different brands. If your adapter doesn’t include a labeled harness, refer to the manufacturer’s manual for the correct pairing–some units combine illumination (orange) and reverse signal (purple) into a single wire, while others separate them:
| Color | Function | Notes |
|---|---|---|
| Yellow | Battery (+12V) | Must handle 10A+ current; use a fuse inline |
| Red | Ignition (+12V) | Controls power state; may require relay in some vehicles |
| Black | Ground | Scrape chassis paint for solid connection |
| Blue/White | Amplifier Remote | 12V trigger for external amps; max 300mA |
| Orange | Illumination | Dims display with headlights; may merge with purple |
| Green | Rear Left Speaker (+) | Polung matters–swap wires if sound is inverted |
| Purple | Reverse Signal | Enables camera feed; often shares wire with orange |
For aftermarket cameras or steering wheel controls, verify which protocol your unit supports–CAN bus is standard in most 2010+ vehicles, while older models may require analog resistors or dedicated adapters. Never connect the parking brake wire (light green) directly to ground; doing so bypasses safety locks and disables video playback while driving. For GPS antenna installation, route the cable away from power wires to avoid signal interference. If the touchscreen doesn’t respond, recalibrate through the settings menu–some units require a stylus for precise alignment.

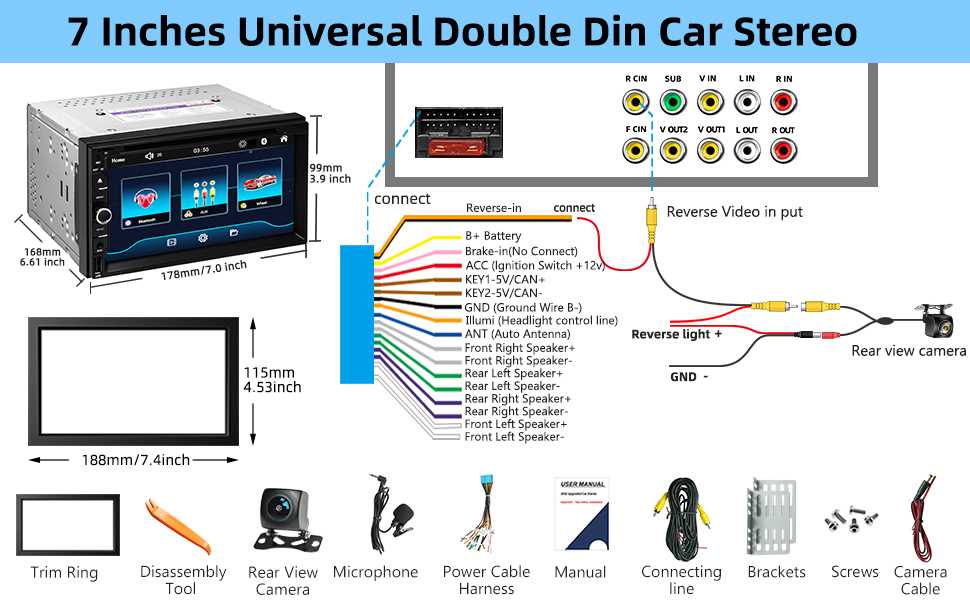

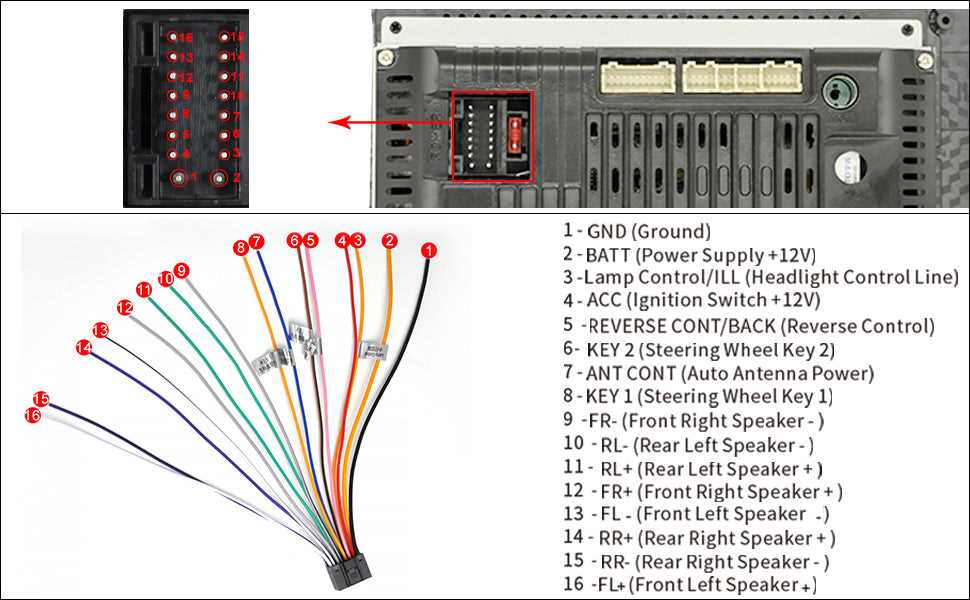

Decoding Color Codes in Your Multimedia Receiver Harness
Begin by locating the main connector from the head unit’s rear panel–typically a 16-pin plug with color-coded leads. Yellow (B+) delivers constant 12V power from the battery, ensuring memory retention for presets and settings when the ignition cuts off. Red (ACC/IGN) taps into the accessory circuit, activating the unit only when the key turns, preventing battery drain. Confusing these two risks either memory loss or a dead battery overnight.
Ground connections use black (GND) or brown wires, often bundled together. Connect these directly to the chassis or a dedicated bolt–resistance here causes noise, dim lights, or erratic behavior. For amplified systems, the blue/white (ANT/REM) wire triggers antenna power or amplifier activation; splice it carefully to avoid shorting nearby high-current leads. Check for continuity between this wire and ground if external amps fail to engage.

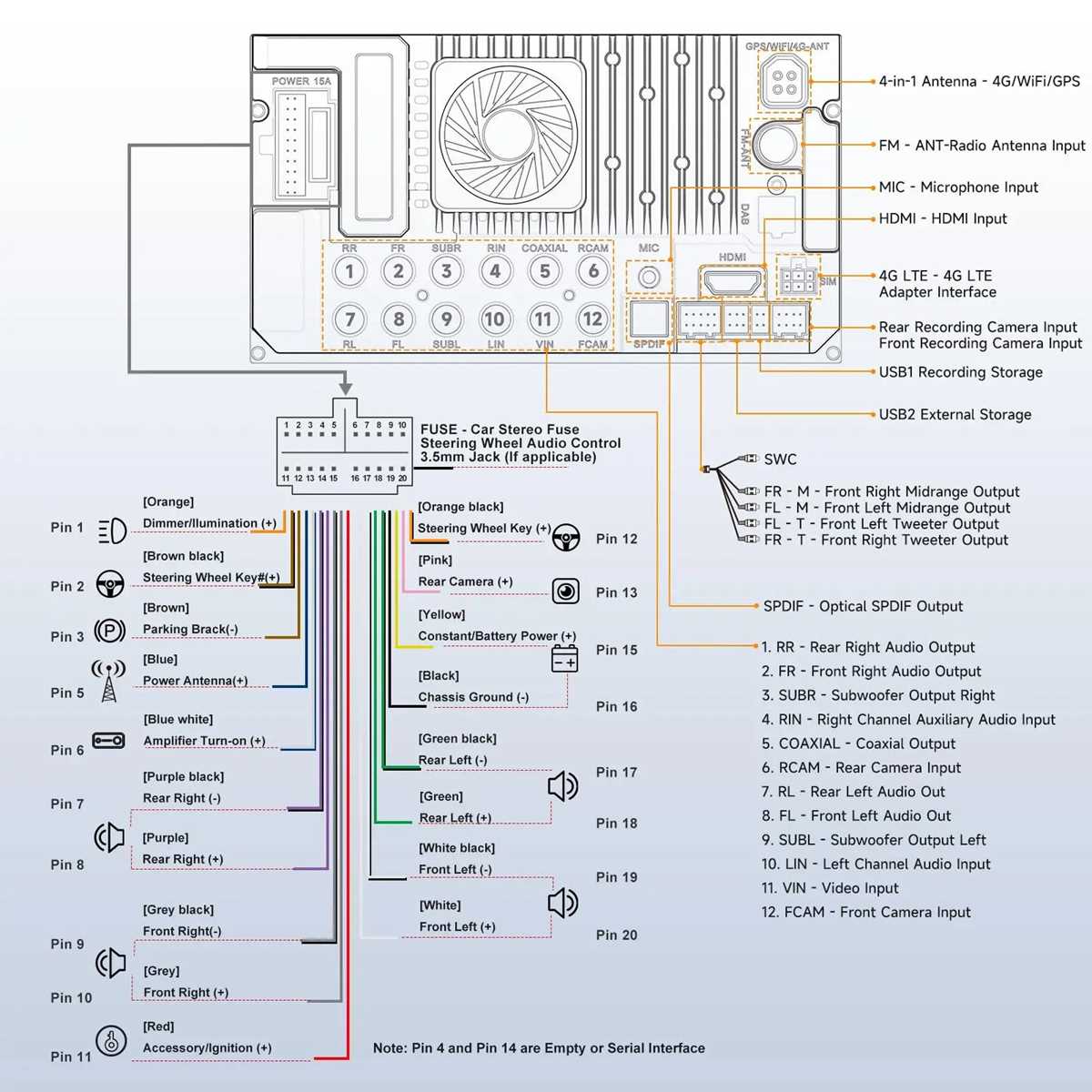

Speaker outputs follow a standardized pattern:
- Front left (+): white
- Front left (-): white/black stripe
- Front right (+): gray
- Front right (-): gray/black stripe
- Rear left (+): green
- Rear left (-): green/black stripe
- Rear right (+): purple
- Rear right (-): purple/black stripe
Swap polarity on any pair to reverse phase, muddying bass response. Test each channel with a 9V battery–speakers should pop outward; inward movement indicates reversed wires.
Illumination control leverages orange or orange/white (ILL) wires, dimming the display when headlights activate. Connect this to the vehicle’s dimmer circuit; mismatched voltages cause either a flickering screen or permanently bright lights. Parking brake safety circuity uses a pink wire–ground it to bypass video lockout, but only for testing; permanent bypass violates local regulations for moving video playback.
USB and auxiliary inputs often hide behind violet, orange, or pink leads, though labeling varies by brand. Consult the unit’s manual for exact pinouts–generic color guides mislead when facing aftermarket adapters. For steering wheel controls, look for a single-purple or purple/white wire; dedicated interface modules map voltages to button presses, requiring precise voltage matching to avoid phantom key presses.
Aftermarket harnesses introduce additional wires–pink/black for reverse signal (triggering cameras), gray/black for mute, or solid green for CAN bus data. Probe suspect wires with a multimeter: key-on voltage (12V), chassis-grounded (0V), or floating (open circuit). Never assume–verify each connection against the vehicle’s service manual before soldering or crimping, as a single misstep fries the unit or blows fuses.
Step-by-Step Guide to Connecting Power Leads Properly
Identify the permanent live wire (typically yellow, 10-12 AWG) and connect it to the battery’s positive terminal via a fuse rated for 10-20A within 18 inches of the terminal–no exceptions. Use crimp connectors with heat shrink tubing or solder joints to prevent corrosion; twist-and-tape methods fail under vibration. Route this lead separately from speaker cables to avoid interference, keeping it at least 4 inches from signal wires. For the ignition-switched lead (red, 16-18 AWG), splice into the vehicle’s accessory circuit (e.g., fuse box or ignition wire) using a multimeter to confirm +12V only when the key is in “ACC” or “ON” positions–never use the starter wire.
Ground the black wire (12-14 AWG) directly to chassis metal using a self-tapping screw (minimum 4mm diameter) or a bolt secured to unpainted, bare metal. Scrape off paint or rust at the connection point and apply dielectric grease to prevent oxidation. Test all connections with a 12V test light or multimeter before finalizing: permanent live should read constant voltage, switched live only when ignition is active, and ground must show continuity with chassis (0 ohms). Recheck torque on all terminals after 50 miles of driving–vibration loosens poorly secured wires.
Ensuring Compatible Speaker Connections Between OEM and Upgraded Head Units
Begin by identifying the impedance ratings of both the vehicle’s original equipment and the new receiver. Most factory-installed speakers operate at 4 ohms, while aftermarket systems often support 2 to 8 ohms. Mismatched impedance can lead to distorted sound, premature amplifier failure, or reduced output. Use a multimeter to verify the exact resistance of each speaker before making any connections. If the impedance falls outside the upgraded unit’s supported range, consider installing impedance-matching adapters or upgrading the speakers to maintain performance.
Trace the original harness color codes and compare them to the new system’s pinout. Factory wiring often uses non-standard color schemes, while aftermarket harnesses typically follow industry conventions (e.g., white for front left positive, gray for front right positive). Create a cross-reference table for your specific vehicle make and model–common variants include:
- Ford: Violet (+) / Violet/Black (-) for rear speakers
- Toyota: Pink (+) / Pink/Black (-) for front right
- Honda: Light Green (+) / Light Green/Black (-) for front left
- GM: Dark Green (+) / Dark Green/White (-) for rear right
Always confirm with a wiring guide tailored to your vehicle’s year; deviations are frequent even within the same manufacturer.
Use a dedicated speaker wire harness adapter when possible. These adapters bridge factory connectors to the new system’s standard RCA or bare wire terminals, eliminating the need to splice into original cables. For vehicles with amplified systems (e.g., premium audio setups in Lexus or Bose-equipped models), ensure the adapter supports the amplified signal–some require additional modules to prevent feedback or signal loss. Avoid twisting wires directly; crimp connectors or soldered joints with heat-shrink tubing provide more reliable, corrosion-resistant connections.
Test each speaker individually after wiring. Play a 1 kHz test tone at moderate volume and verify:
- Sound emerges only from the intended speaker.
- No audible distortion or rattling at higher volumes.
- Both left/right and front/rear channels are correctly phased (e.g., bass notes should sound centered, not dispersed).
If one channel is muted or sounds weak, recheck the polarity–reversing (+) and (-) terminals often causes cancellation. For balanced sound, ensure tweeters and woofers in component speakers are correctly paired; crossovers may need adjustment if included in the factory setup.
For systems with subwoofer outputs, match the signal type–RCA (low-level) or speaker wire (high-level). Factory subwoofers frequently require high-level inputs; using low-level RCA without proper conversion can result in no bass output. If the upgraded head unit lacks dedicated subwoofer pre-outs, use a line output converter (LOC) to derive a clean signal from the rear speaker wires. Adjust the LOC’s gain to prevent clipping or excessive bass boost, which can damage amplifiers. Always ground the LOC to the vehicle’s chassis using a dedicated ring terminal; poor grounding introduces noise.
