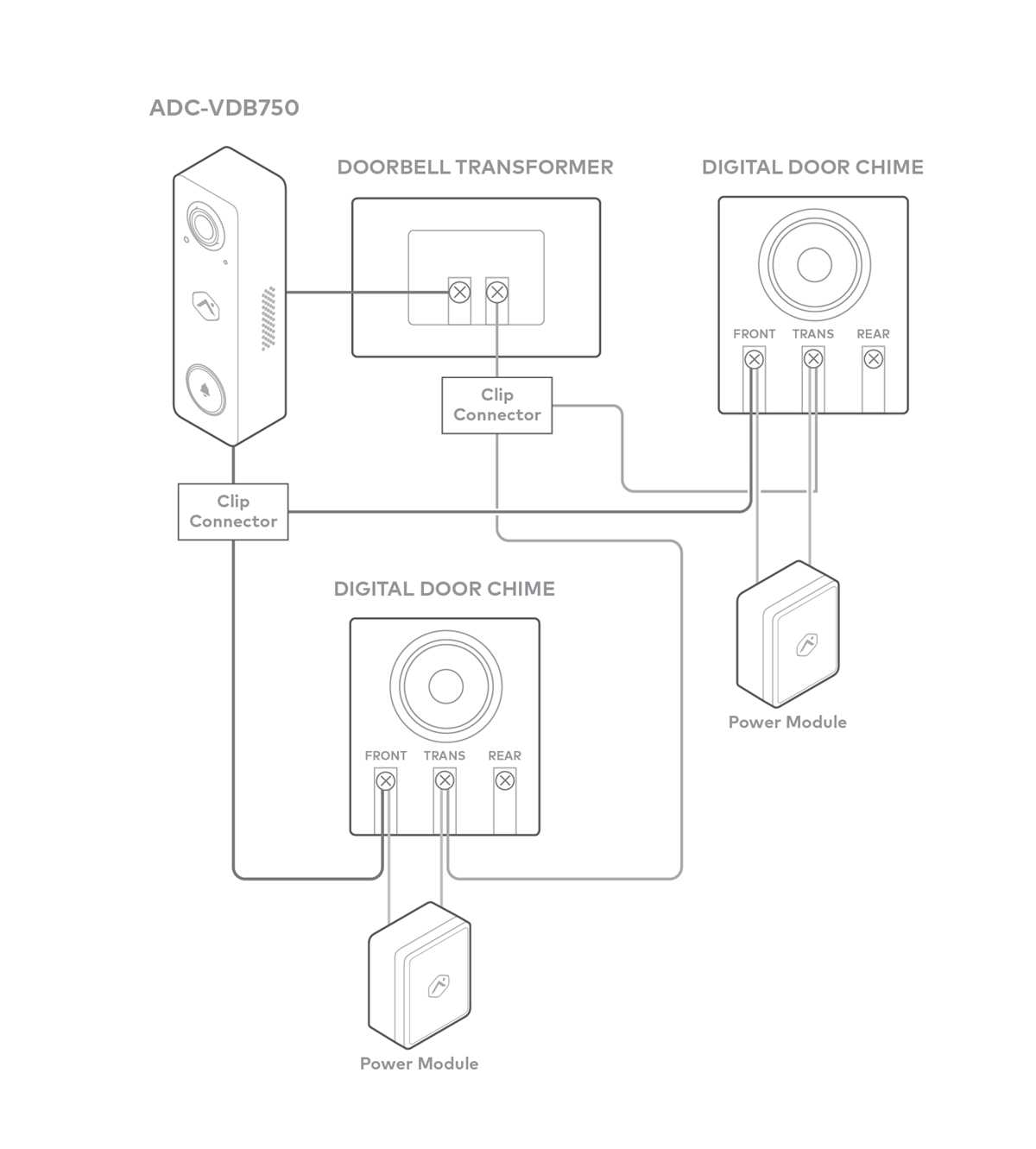

Connect both annunciators to a single transformer using an 18-gauge solid copper conductor. Route the main feed from the power source to the first signal device’s terminal marked “Front” or “Trans.” From the second terminal (often labeled “Rear” or “Common”), extend a parallel wire to the corresponding input on the second unit. This setup ensures simultaneous activation without voltage drop, provided the transformer output matches the combined load–typically 16-24V AC for standard models.
Avoid splicing near high-resistance points like door frames or concrete junctions, where oxidation degrades signal integrity. Instead, use weatherproof junction boxes with silicone-filled wire nuts for outdoor connections. Verify continuity with a multimeter before finalizing; a reading below 1 ohm between common terminals confirms a solid path. If delays occur, check for reversed polarity–common in retrofits where wiring colors don’t match original schematics.

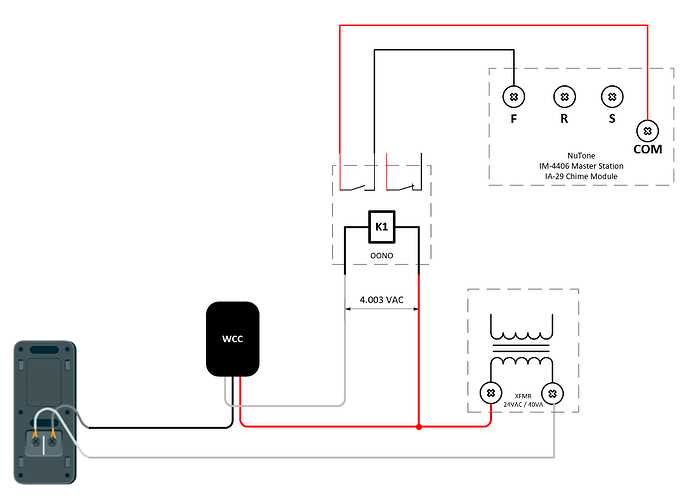

For systems requiring independent control, insert a double-pole relay between the power source and annunciators. Trigger the relay coil using a secondary low-voltage circuit (e.g., a smart switch or motion sensor). This isolates high-current paths from low-signal triggers, preventing false alerts from inductive interference. Keep relay contacts rated for at least 5A to handle inrush currents from older electromechanical models.
Label all conductors at both ends and document the configuration–color alone is unreliable across different brands. Use heat-shrink tubing over exposed terminals to block corrosion, especially in humid climates. Replace any damaged insulation immediately; even minor nicks reduce dielectric strength, risking short-circuits under load. Test the entire sequence with a temporary switch before permanent installation to catch mismatched impedance.
Installing Dual Signal Devices: A Visual Guide

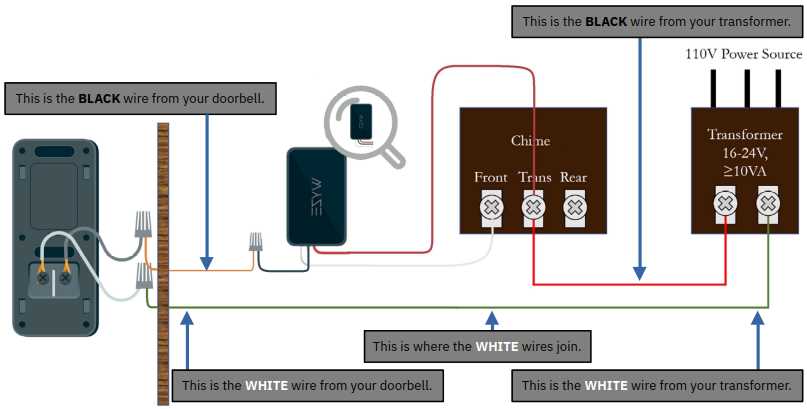

Start by connecting the transformer’s hot wire (typically red or brown) to the first terminal of your front alert mechanism. The neutral (white or blue) should bypass the first unit entirely and route directly to the second signal device’s common terminal. This prevents voltage drop and ensures both units activate simultaneously.
Use 18-gauge solid copper wire for all secondary connections. Twist exposed ends clockwise before securing under terminal screws–loose strands create resistance that can delay activation or cause intermittent failure. Avoid relying on the insulation displacement connectors often included with kits; manual termination yields more consistent results.
- Label wires at both ends to simplify troubleshooting: FRONT/BACK/BELL correspond to terminal positions.
- Test continuity with a multimeter before energizing–each path should show <1Ω resistance.
- If using a mechanical bell and electronic tone generator together, place a diode across the tone generator’s coil to suppress voltage spikes that degrade electronic components.
Mount units at least 3 meters apart vertically to reduce mutual interference; electromagnetic fields from one can induce false triggers in the other if placed too close. Position the lower device where ambient noise (HVAC, appliances) won’t mask its sound–typically near ear level in quiet areas like entry halls.
For systems with a push-button that activates both units, connect the button’s normally open contact to the transformer’s hot side, then split the return path into separate runs to each device’s activation terminal. Include a test resistor (470Ω, ½W) in parallel with the front unit’s path if nuisance buzzing occurs–this dampens inductive kickback without affecting functionality.
Secure all junctions with lever nuts or crimped spade connectors rated for 300V minimum. Tape connections individually, then group wires in bundles using spiral wrap–this prevents accidental shorts when tucking into wall cavities. Never bundle low-voltage signal wires with line-voltage conductors (120V/240V); induced hum from higher voltages can corrupt signal clarity.
Essential Gear for Installing Dual Signal Devices
Begin with a multimeter rated for at least 300V AC to verify circuit integrity and troubleshoot connections. Choose one with a continuity tester and non-contact voltage detection to streamline diagnostics. Avoid models under $30–they lack accuracy for low-voltage systems.
18-gauge solid copper wire is optimal for signal transmission, resisting corrosion better than stranded or thinner alternatives. Use different colors (red, white, and yellow) to prevent miswiring: red for power, white for return, and yellow for front/back circuits. Pre-cut 20-foot segments to avoid mid-installation shortages.
Insulated staples (1/4″ crown) secure wiring without piercing insulation, a common issue with cheaper options. Space them every 18 inches along wooden studs or joists. For masonry, use plastic cable clips paired with masonry screws.
Mechanical Components and Fasteners
Low-voltage transformers should output 16-24V AC, with a minimum 10VA capacity per signal device. Brands like Honeywell or Heath offer models with screw terminals that simplify connections. Avoid plug-in adapters–they’re prone to voltage drops.
Screwdrivers with magnetic tips (3/16″ flathead and #2 Phillips) prevent dropped screws in tight electrical boxes. Include a wire stripper with 18-gauge notches–cheaper strippers damage the copper, increasing resistance. Needle-nose pliers assist in bending loops around terminal screws.
Junction boxes (standard 4″ square) house connections where wires split. Select boxes with knockout plugs for future expansion. Seal unused knockouts with plastic snap-in covers to prevent dust ingress. For outdoor runs, use PVC conduit (1/2″ diameter) with watertight fittings to protect against moisture.
Labeling sleeves or colored electrical tape mark wires at junctions and devices. Apply labels before cutting wires to ensure correct identification during final connections. Test each pathway with a 9V battery and a buzzer before energizing the transformer–this reveals shorts or breaks without risking damage.
Step-by-Step Guide to Setting Up Parallel Signal Devices
First, identify the transformer’s secondary terminals–typically labeled 16VAC or 24VAC–and note their polarity if marked. Strip ¼ inch of insulation from the ends of two 18-gauge solid copper leads, ensuring no frayed strands remain. Connect one lead to the transformer’s hot terminal and the second to the neutral, securing each with a screwdriver to prevent loosening under vibration. Verify voltage with a multimeter before proceeding; readings outside the 16-24V range indicate a faulty power supply or incorrect tap settings.
Run the prepared leads to the first alert unit, attaching them to the “Front” (or primary) terminals, matching polarity if specified in the manufacturer’s documentation. Use wire nuts or terminal blocks rated for 20A to splice the leads for the second device, maintaining consistent wire gauge to avoid voltage drop. Test each connection by temporarily bridging the switch contacts with a jumper–both units should emit a full tone without distortion. If either fails, recheck splices for cold joints or reversed polarity.
Routing and Securing Conductors
Avoid running signal paths alongside high-current circuits (e.g., HVAC, lighting) to minimize interference. Use ½-inch flexible conduit for exposed runs, securing it with staples every 18 inches where it crosses joists or studs. For concealed installations, drill ⅜-inch holes centered on framing members, ensuring a minimum 1¼-inch clearance from edges to prevent drywall fasteners from piercing the insulation. Label each conductor at both ends with heat-shrink tubing or pre-printed markers to simplify future troubleshooting.
At the entry switch, connect the common terminal to the transformer’s hot lead using a spade or ring terminal crimped with a ratcheting tool. Attach the normally open contact to the alert circuit’s input, ensuring the switch’s current rating (typically 10A) exceeds the combined draw of both devices. Secure the assembly with mounting screws, then restore power. Activate the system by pressing the switch–both units must sound simultaneously within 50ms of contact closure. Delayed or inconsistent response indicates resistance in the path, requiring a continuity test with an ohmmeter (target:
How to Identify and Connect Transformer Leads Properly
Locate the power supply unit behind the existing signal device or within a nearby electrical box–typically a small, metal-encased component with two or more protruding wires. Test for voltage using a multimeter set to AC mode: place probes on the exposed ends of the wires while the circuit is active. A reading between 10V and 24V confirms these are the correct terminals; anything lower suggests an auxiliary circuit or damaged unit. Label the wires immediately with masking tape–mark one “L” (line/hot) and the other “N” (neutral)–to prevent confusion during installation. If the unit lacks clear markings, check for embossed symbols: a raised dot or stripe often indicates the hot lead.
Matching Terminals with Signal Device Inputs
Examine the back of your notification device for screw terminals, usually labeled “TRANS,” “AC,” or with numerical values like “16V.” If no labels exist, consult the manufacturer’s guide–many models denote polarity with “+” and “-” symbols, though low-voltage systems often tolerate reversed connections. Attach the hot lead (L) to the terminal corresponding to higher voltage input, typically the outermost screw, and secure it by tightening clockwise. The neutral (N) connects to the remaining terminal. For screwless models with push-in connectors, strip 5/16″ of insulation from the wire, insert firmly until it clicks, and tug gently to verify engagement. Avoid twisting wires together–this creates unreliable contact.
Before restoring power, check for short circuits with a continuity tester: probe both terminals simultaneously. A beep indicates a direct connection, signaling improper setup. If no issues arise, energize the circuit and trigger the signal. Listen for a consistent tone; humming or intermittent response suggests loose connections or mismatched voltage. For older systems, replace corroded wires entirely–aluminum or brittle copper degrades over time. If the signal device draws more than 30VA, upgrade the transformer to a 40VA unit to prevent overheating.
