Use a 9V battery with a push-to-make switch and a piezo buzzer for the most straightforward setup. Connect the battery’s positive terminal to one side of the switch, then link the other switch terminal to the buzzer’s anode. Run a wire from the buzzer’s cathode back to the battery’s negative terminal. This forms a complete loop: pressing the switch closes the path, triggering the alert sound. Ensure all connections are tight to prevent inconsistent operation.

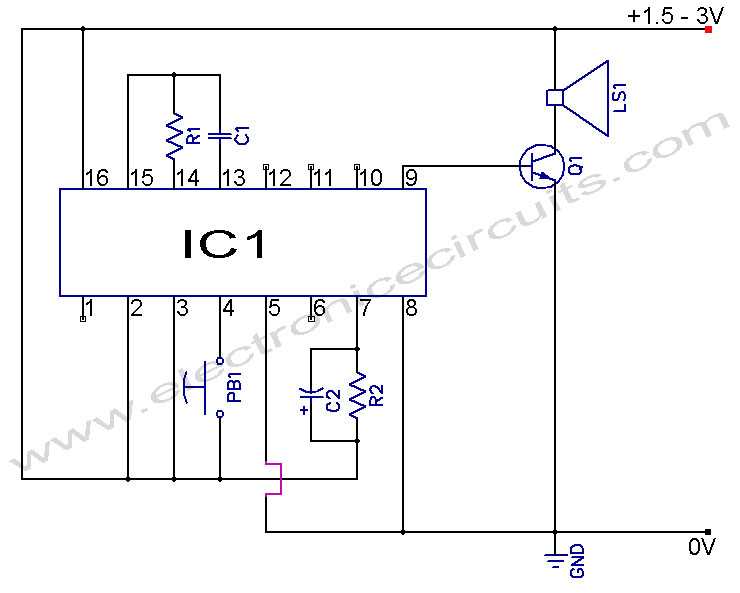

For improved durability, replace the basic buzzer with a solid-state audio module supporting pre-recorded tones. Wire the module’s power pins directly across the battery, then bridge the trigger pin to the switch. This eliminates mechanical wear from repeated button presses. Store-bought modules often include volume adjustments, making them adaptable to noisy environments without extra resistors.
Avoid common mistakes: don’t mix up polarity–the buzzer’s positive lead (usually marked) must align with the battery’s positive side. Loose wires introduce intermittent failures; soldered joints or secure screw terminals improve reliability. If the signal fails, test continuity with a multimeter before assuming component failure. For outdoor use, seal all exposed connections with shrink tubing to prevent corrosion from moisture.
Expand functionality by adding an LED indicator light parallel to the buzzer. Connect the LED’s anode to the switch’s output via a 220Ω resistor, then link the cathode to ground. This provides a silent visual cue when the audible signal isn’t practical. Keep the resistor in place–skipping it will burn out the LED. This two-output setup maintains simplicity while adding versatility.
Build a Basic Home Signaling Device
Start with a transformer rated at 8-12 volts AC and 1-2 amps–these are commonly available as replacement parts for existing systems. Connect its primary side to a 230V or 120V mains supply, matching your local voltage, and the secondary to a pushbutton switch positioned at your entryway. Wire one terminal of the switch directly to the transformer’s output and the other to a solenoid buzzer or chime unit; complete the loop by returning the buzzer’s second lead to the transformer.

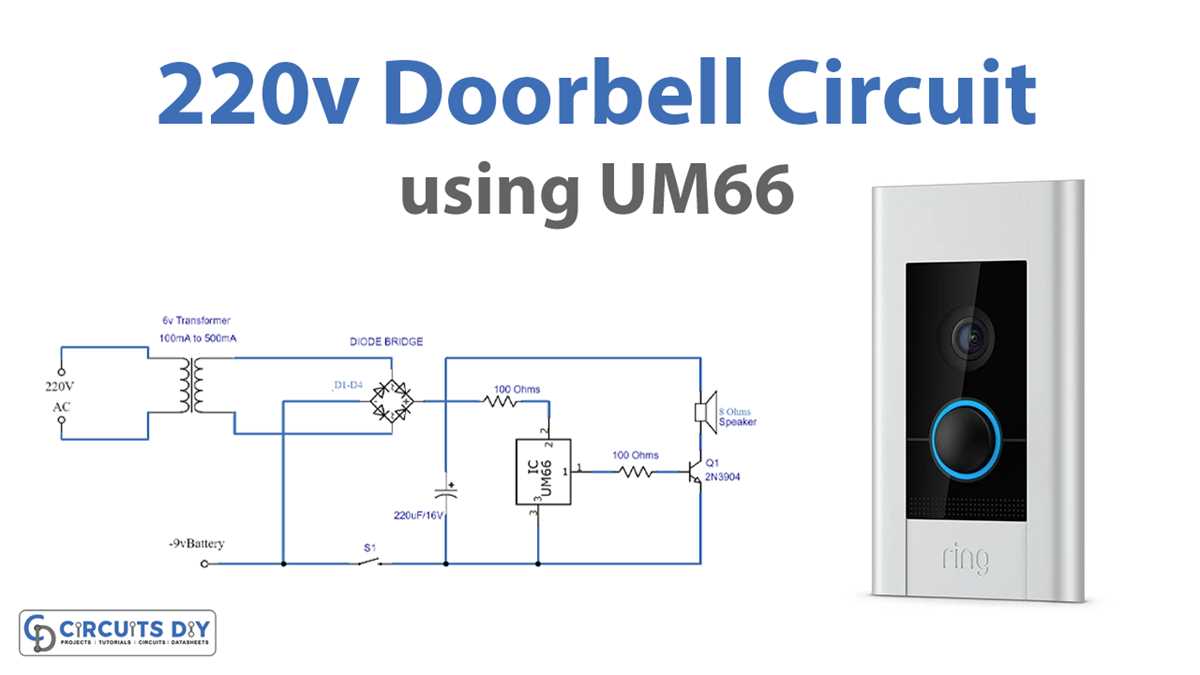

Avoid using DC components unless you include a bridge rectifier and smoothing capacitor–AC buzzers are cheaper and eliminate extra steps. Keep wire runs under 10 meters to prevent voltage drop; if longer distances are unavoidable, use 18-gauge or thicker stranded copper. Secure all connections with solder or insulated crimp terminals to prevent corrosion or accidental shorts, especially outdoors where moisture accelerates degradation.
Test the setup by pressing the switch while measuring voltage at the buzzer terminals with a multimeter. Expect readings within ±0.5V of the transformer’s nominal output; values significantly lower indicate a loose connection or undersized wires. For added reliability, bypass the switch temporarily–if the buzzer sounds continuously, swap the switch or check for insulation damage.
If integrating LEDs for visual alerts, insert a 220-ohm resistor in series to limit current to ~20mA. Position the resistor upstream of the LED near the power source to simplify troubleshooting. Use waterproof enclosures for outdoor installations; even brief exposure to rain can accelerate wire oxidation or cause shorts in unprotected circuits.
Selecting Parts for a Reliable Entry Signal System
Opt for a low-voltage transformer between 8 to 24 volts AC, as higher voltages risk overheating small pushbuttons and chimes. Models like the Honeywell AT140A1000 (16V, 10VA) or Nutone C905 (16V, 15VA) strike a balance–compact yet powerful enough for most residential setups. Calculate wattage needs based on chime impedance; a 4-ohm chime requires roughly 64W at 16V, well within the 10-20VA range of standard transformers.
Momentary contact switches with gold-plated terminals resist corrosion and ensure consistent conductivity. Avoid plastic housings–the Gardner Bender GSW-22 (brass, weatherproof) lasts longer than generic alternatives. For outdoor use, add a protective silicone cover; UV-resistant models like the Electro-Tech ETI-100 prevent brittle cracks after prolonged exposure to sunlight.
For the audible signal, mechanical chimes remain the most reliable–electronic buzzers introduce failure points with capacitors and resistors. The Nutone LA600WH (dual-tone, 6V) works with most AC transformers, while the Heath Zenith SL-755 (single-note) suits simpler layouts. Match impedance to the transformer; a mismatch causes weak sound or overheating in the chime’s solenoid.
Bell wire should be 18-22 AWG, stranded copper for flexibility–solid core snaps under frequent door movements. Shielded cable (like Belden 9541) prevents interference if running alongside power lines. For runs exceeding 50 feet, upsize to 16 AWG to compensate for voltage drop. Use crimp connectors (Panduit PCS-10) instead of solder; they’re quicker and hold securely under vibration.
Install a fuse or resettable PTC (positive temperature coefficient) device like the Bourns MF-R110 (100mA) between the transformer and pushbutton. This protects thin wires from melting if a short circuit occurs. For outdoor setups, seal all connections with heat-shrink tubing (3M FP-301)–exposed terminals corrode within months, even in dry climates.

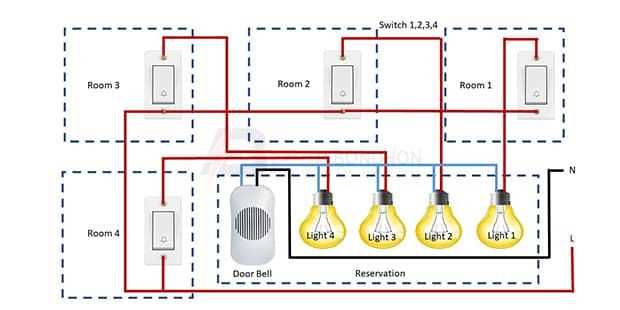

Step-by-Step Wiring of a Push Button Alert System
Choose a low-voltage transformer outputting 8–24V AC for safe operation. Match the output voltage to the chime unit’s specifications–common household models typically require 16V. Verify compatibility with a multimeter before connecting any wires.
Run 18-gauge insulated wire from the transformer to the push button location, then to the chime unit. Keep wire lengths under 50 feet to prevent voltage drop. Use solid core wire for indoor runs and stranded for outdoor sections exposed to weather.
Strip 1/4 inch of insulation from each wire end using precision strippers. Twist stranded wires clockwise before inserting into terminals to ensure solid contact. Avoid nicking copper strands, as this weakens the connection and increases resistance.
Mount the push button at a height of 42–48 inches above finished floor for accessibility. Secure outdoor buttons with silicone caulk around the edges to prevent moisture ingress. Indoor models can be flush-mounted using a single-gang electrical box.
Connecting the Transformer
Attach the transformer’s primary side to a dedicated 120V circuit protected by a 15-amp breaker. Use wire nuts to join the hot (black), neutral (white), and ground (green/bare) wires. Never tape connections–insulate them properly with UL-listed nuts.
Connect the transformer’s secondary side to the chime unit’s “trans” terminals. Polarity does not matter for AC systems, but consistency helps troubleshooting later. Label wires with colored tape at both ends to simplify future repairs.
Finalizing the Push Button and Chime
Join one wire from the button to the transformer’s “front” terminal and the other to the chime’s “front” terminal. Most chimes have two sound bars–use the front terminal for the primary button. Test the button before securing it in place.
Energize the circuit and press the button to verify operation. If silence occurs, check for loose terminals, broken wires, or incorrect polarity (though AC tolerates reversals). Adjust chime volume using the built-in potentiometer if present, or replace the sound bar for louder alerts.
Common Mistakes When Building a Chime Unit
Using undersized wiring for the transformer output is one of the most frequent errors. A 18 AWG conductor may handle occasional short pulses, but sustained current draws exceeding 1.5A can cause voltage drop and overheating. Verify transformer specifications and match wire gauge to the expected load–typically 16 AWG for 10VA units and 14 AWG for 20VA models. Skipping this step leads to intermittent operation or premature failure of the solenoid mechanism.

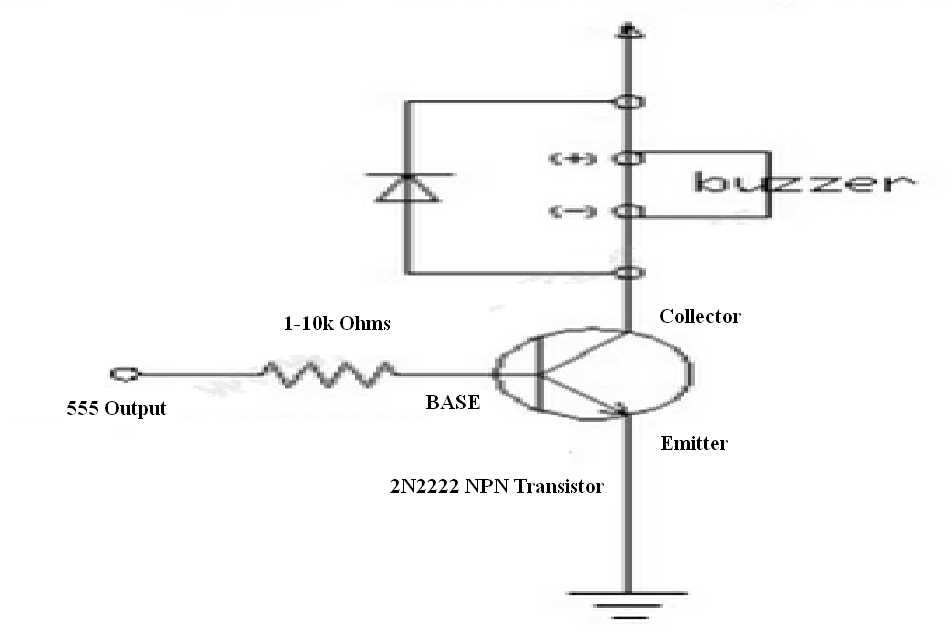

Ignoring Component Polarization
- Reversing diode connections across the buzzer coil will immediately burn the diode, leaving the coil unprotected from voltage spikes.
- Incorrect button switch orientation can short power rails, bypassing the chime entirely.
- Mismatched LED polarity on indicator lights extinguishes them without warning.
Always confirm pin assignments on datasheets before soldering; color-coded wires or silkscreened labels simplify identification.
Failure to secure loose connections accelerates corrosion and vibration-related faults. Twist-and-wrap joints oxidize within months, increasing resistance and arcing under load. Use crimped ferrules or soldered joints inside terminal blocks, then apply dielectric grease and shrink tubing. Periodic tug-testing of every joint ensures longevity–especially in outdoor push-button installations exposed to moisture.
Power Supply Options for Low-Voltage Entry Signal Installations
For entry signal systems requiring 8–24V AC/DC, a plug-in transformer rated at 24VA provides the most straightforward solution. Models like the Heath/Zenith SL-125 or Ring TR-16 output clean 18–24V AC, sufficient for most chime mechanisms while avoiding voltage drop issues over standard 18-gauge wiring. Verify compatibility with your setup’s current draw–most residential units consume 8–12VA under load.
For installations without nearby outlets, hardwired transformers like the Nutone C907 (16V AC, 10VA) mount directly to electrical junction boxes. These require a dedicated 120V circuit but eliminate dependency on wall sockets. When selecting, prioritize transformers with thermal overload protection to prevent overheating during prolonged use, especially in outdoor enclosures.
Battery-powered options suit temporary or minimalist setups but demand frequent maintenance. Lithium-ion packs (e.g., 18650 cells in series) deliver 12V DC with sufficient capacity for 500–1,000 activations before replacement. Rechargeable NiMH variants (1.2V/cell) reduce waste but require a charging circuit, increasing complexity. Alkaline batteries (e.g., 9V) are simpler but offer shorter lifespans–typically 200–300 uses.
Solar charging integrates well with low-power wireless systems. A 6V/3W solar panel paired with a 12V lead-acid battery (4Ah) sustains remote installations in moderate sunlight. Ensure the panel’s output exceeds the system’s idle draw (usually 50–100mA) by at least 30% to account for overcast conditions. Add a blocking diode to prevent reverse current at night.
Comparative Voltage Solutions
| Power Source | Voltage Range | Current Capacity | Typical Use Case | Maintenance Needs |
|---|---|---|---|---|
| Plug-in AC transformer | 16–24V AC | 8–24VA | Permanent indoor setups | None |
| Hardwired AC transformer | 12–18V AC | 10–16VA | Outdoor/junction box mounting | Annual voltage check |
| Lithium-ion battery | 12V DC (3S) | 2,000–5,000mAh | Portable/temporary setups | Recharge every 6–12 months |
| Solar + lead-acid | 12V DC | 1–7Ah | Remote installations | Panel cleaning, battery replacement every 3–5 years |
PoE (Power over Ethernet) adapters like the TP-Link TL-POE150S offer 12V DC for smart entry systems with network connectivity. These require Cat5/6 cabling but centralize power and data transmission, reducing wiring complexity. Pair with a PoE switch or injector rated for the device’s wattage–a 12W adapter suffices for most cams and chimes, while 25W+ models support additional features like IR illumination.
For ultra-low-power setups (≤ 5V), USB adapters or power banks suffice. A standard 5V/2A wall charger paired with a micro-USB cable powers Arduino-based DIY solutions without external regulation. Ensure the power bank’s capacity exceeds 10,000mAh if combining with sensors that draw continuous current (e.g., motion detection). Add a 1N4007 diode to safeguard against reverse polarity.
Voltage Regulation Considerations
Unregulated power supplies introduce voltage spikes, risking damage to solenoids or digital components. Linear regulators (e.g., LM7805 for 5V) stabilize output but dissipate excess energy as heat–suitable for low-current loads (≤ 500mA). Switched-mode regulators (e.g., LM2596) handle higher currents (≤ 3A) with 80–90% efficiency, ideal for multi-feature systems. Always include a 100µF smoothing capacitor on the input to filter AC ripple.
For dual-voltage setups (e.g., 12V for actuators, 5V for microcontrollers), use a buck converter module. Set the output via onboard potentiometers to match the load’s requirements, then verify with a multimeter. Isolate critical components (e.g., Wi-Fi modules) with separate regulators to prevent noise interference. Ground loops are mitigated by connecting all grounds at a single point near the power source.
