Start with a low-power microcontroller like the ATtiny85 for minimal footprint and energy efficiency. Pair it with a reed switch (normally open) or a magnetic proximity sensor rated for 3–5V DC. Position the sensor within 10mm of the moving component to ensure reliable detection without false triggers. Use a 10kΩ pull-up resistor on the input pin to stabilize the signal when the switch is open.
For notification, integrate a piezo buzzer (active, 5V) or a solid-state relay to drive an LED indicator. Keep the buzzer’s tone below 3kHz to avoid irritation during prolonged alerts. If opting for visual feedback, use a diffused LED with a current-limiting resistor (330Ω for 5V supply) to prevent burnout. Test response time–ideal latency should not exceed 50ms for real-time operation.
Avoid relying solely on battery power if the system requires continuous operation. For long-term setups, connect a 5V regulated power supply via a Schottky diode to protect against reverse polarity. Add a 1000µF smoothing capacitor near the power input to filter voltage spikes from inductive loads like relays.
For wireless expansion, attach an nRF24L01 transceiver on the SPI bus, but isolate it from the main circuit using a 1µF decoupling capacitor to prevent noise interference. Log events on an external EEPROM (e.g., 24LC256) if memory retention is critical during power loss. Ensure the I2C lines are pulled up with 4.7kΩ resistors for stable communication.
Mount components on a perfboard with compact traces to minimize signal degradation. Secure the board with non-conductive standoffs if mounting near metal surfaces. Calibrate the system by simulating entry events 20 times–adjust sensitivity by tweaking the resistor values if inconsistency exceeds 5%.
Building a Reliable Entry Alert System: Key Components and Wiring
Select a PIR motion sensor with a detection range of at least 5 meters and a 110-degree field of view–models like HC-SR501 or AM312 offer adjustable sensitivity and minimal false triggers when calibrated for indoor use. Pair it with a 5V active buzzer rated at 85dB or higher to ensure audibility in noisy environments; avoid passive buzzers as they require additional PWM control.
- Power Requirements: Use a regulated 5V DC supply, such as a USB adapter or a lithium-ion battery (e.g., 18650 cell with a TP4056 charging module). Current draw should not exceed 150mA during activation to prevent voltage drops.
- Trigger Mechanism: Connect the sensor’s output to a 2N2222 NPN transistor or an IRLZ44N MOSFET for relay-free operation, reducing component count. Add a 1kΩ resistor between the sensor and transistor base to limit current.
- Debounce Handling: Insert a 10µF electrolytic capacitor across the sensor’s output and ground to filter noise from drafts or ambient heat sources. Test with a multimeter to confirm stable 3.3V/5V logic levels.
For wireless notification, integrate an ESP8266 module (NodeMCU) with MQTT or HTTP push notifications. Flash it with custom firmware using Arduino IDE, configuring Wi-Fi credentials via Wifi.begin("SSID", "password"). Use a 3.3V level shifter if interfacing with 5V logic to prevent GPIO damage–AMS1117 regulators are prone to overheating under sustained loads.
- Secure the sensor at 1.2–1.8 meters above floor level, angled toward the approach path to maximize coverage. Avoid mounting near vents, direct sunlight, or metal surfaces that reflect infrared signals.
- Add a physical reset switch (momentary push-button) tied to the microcontroller’s RST pin to manually clear false alerts without power cycling.
- Enclose the assembly in a flame-retardant ABS box (IEC 60695-2-1 compliant) with 2.5mm mounting holes for wall screws. Drill ventilation slots if using linear voltage regulators to dissipate heat.
For tamper resistance, solder a reed switch to the input side of a 74HC14 Schmitt trigger IC–this creates a hysteresis loop to prevent chatter when the barrier opens. Connect it to a latching relay (e.g., Omron G2RL) to maintain the alert state until manually reset. Verify the setup with a continuity tester before final installation.
Key Elements for a Basic Entry Detection System
Choose a magnetic reed switch as the primary sensing element–its reliability depends on proper alignment. Position the magnet within 1.5 cm of the switch body to ensure consistent operation. Opt for normally-open (NO) contacts if the system must remain in standby during idle states, reducing power consumption in battery-powered setups. Verify the switch’s pull-in distance by testing with a multimeter before final installation.
Route sensor wires through shielded twisted-pair cables if interference is expected. Avoid parallel runs near power lines carrying currents above 5A; maintain at least 15 cm separation. For outdoor deployments, use waterproof enclosures rated IP65 or higher, sealing entry points with silicone gel to prevent corrosion at connection terminals.
Power Supply Considerations
- Select a 5V regulated supply for logic components to avoid voltage fluctuations. Linear regulators (e.g., LM7805) simplify designs, while switching buck converters offer efficiency for battery-driven units.
- Calculate current draw–reed switches require negligible power, but microcontrollers and RF modules may need 50-200mA. Include a 1N4007 diode to protect against reverse polarity.
- Use a 1000µF electrolytic capacitor across the supply rails to smooth voltage transients, particularly if relays or solenoids are involved.
Integrate a microcontroller like ATtiny85 or ESP8266 to process sensor signals. Program it to ignore brief interruptions (e.g.,
For audible alarms, a piezoelectric buzzer emitting 85dB at 3kHz provides sufficient alert range without consuming excessive power. Activate it via a 2N2222 transistor switch, driven by a 1kΩ base resistor. Visual indicators should use ultra-bright LEDs (20mA, 2.1V forward voltage) with current-limiting resistors calculated as (Vsupply - VLED)/ILED.
Solder prototype boards with 25-mil traces for signal lines and 50-mil for power rails to handle unexpected surges. Test continuity with a multimeter after assembly, ensuring no cold joints. For surface-mount designs, use a reflow profile peaking at 245°C with a dwell time of 60 seconds above 183°C to prevent tombstoning.
- Mount the magnet on the movable frame, ensuring it retracts completely when closed–misalignment greater than 2mm may cause false triggers.
- Secure the reed switch to the stationary frame with epoxy, avoiding mechanical stress that could fracture internal contacts.
- Add a manual test button wired in parallel to simulate openings for system validation without physical access.

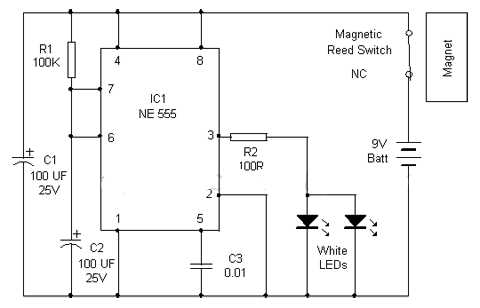

Step-by-Step Wiring for a Magnetic Entry Sensor
Select a normally open (NO) or normally closed (NC) magnetic contact switch based on alert system requirements–NO triggers only when separated, while NC reports disconnection immediately. Confirm switch voltage compatibility with the monitoring panel or alarm module, typically 12V or 24V DC, to prevent false activation or component damage.
Mount the magnetic component on the fixed frame and the actuator on the movable panel, ensuring a gap under 10mm when aligned. Misalignment beyond 12mm may cause inconsistent triggering. Secure both parts with screws or adhesive, avoiding ferrous surfaces that interfere with the magnetic field.
Strip 6–8mm of insulation from the sensor wires, exposing clean copper strands. Twist strands tightly and insert into the terminal block, matching positive (red or yellow) and negative (black or green) polarity as labeled. Tighten screws firmly–loose connections introduce resistance, causing erratic behavior under vibration or minor movement.
Connecting to the Control Unit
Run low-voltage wiring from the sensor to the control panel, keeping runs under 100 meters to minimize voltage drop. Use 22–18 AWG shielded twisted pair cable for outdoor installations, protecting against electromagnetic interference from fluorescent lighting or motors. Avoid routing near power lines.
At the panel, land wires on designated zone terminals, observing the system’s resistance requirements–typically 2.2kΩ for end-of-line monitoring. Bypass resistors only if using a single-zone configuration; multi-zone setups demand per-zone resistors to isolate faults. Test continuity with a multimeter–open circuits read 0Ω, while shorts register infinite resistance.
Activate the system and separate the magnetic components gently. Listen for a relay click or check LED feedback–absence of response indicates reversed polarity, incorrect resistor placement, or faulty wiring. Re-check connections, power cycle the panel, and repeat separation–consistent failure suggests defective sensor hardware.
Integrating a Buzzer or LED for Immediate Alerts
Use a passive piezoelectric buzzer (3V–12V, 10–20mA) wired in series with a 220Ω resistor to limit current. Connect the positive terminal to a microcontroller pin (e.g., Arduino D3) and the negative to ground. For louder alerts, drive the buzzer with a 2N2222 transistor and a 1kΩ base resistor to handle higher currents (up to 100mA). Prefer 4kHz tones–maximize audibility without distortion by avoiding frequencies below 2kHz.
For visual signals, select LEDs based on visibility: red (20mA, 2V) for urgency, yellow (10mA, 1.8V) for warnings. Wire LEDs with a current-limiting resistor (e.g., 330Ω for 5V logic). Use a PWM-capable pin to adjust brightness dynamically–flashing at 2Hz (50% duty cycle) doubles visibility over steady illumination. Table 1 matches resistor values to supply voltages:
| Supply Voltage | LED Forward Voltage | Desired Current | Resistor Value |
|---|---|---|---|
| 5V | 2V | 20mA | 150Ω |
| 3.3V | 1.8V | 10mA | 150Ω |
| 12V | 2V | 15mA | 680Ω |
Combine buzzers and LEDs by triggering them simultaneously via a logic gate (e.g., 74HC08 AND gate) or an OR gate (74HC32) if multiple sensors feed into the system. For battery-powered setups, a 555 timer IC in astable mode (R1=10kΩ, R2=100kΩ, C=10μF) generates consistent alerts without software overhead. Add a schottky diode (1N5817) across the buzzer to suppress voltage spikes when switching inductive loads.
Test alerts under real conditions: position LEDs at eye level (1.5m) and buzzers at ear level (1.2m) to ensure detection in ambient noise (≤70dB). For multi-room coverage, use 74HC595 shift registers to control zones independently without pin limitations. Code snippets should include debounce delays (millis() – lastTrigger > 50ms) to avoid false positives, and hardware interrupts (attachInterrupt()) for critical events.
