Start by identifying the power source for the sensor–typically a 12V or 5V feed from the vehicle’s fuse box. Use a multimeter to confirm voltage at the input terminal before proceeding. Cutting corners here risks damaging the module or triggering false readings.
Connect the positive wire (usually red) to the constant power lead, ensuring it bypasses ignition-controlled circuits to maintain functionality when the engine is off. The ground (black or brown) must terminate at a clean, unpainted chassis point to avoid resistance buildup. Failure to secure a proper ground will result in intermittent operation.
For the signal line (often green or yellow), route it directly to the vehicle’s alarm or keyless entry controller. Use heat-shrink tubing to insulate all exposed splices–electrical tape degrades over time and invites moisture. Test continuity with the door closed and open; the sensor should toggle between 0V and 12V (or 5V) reliably.
Solder all connections for long-term durability. Crimp connectors may loosen under vibration, leading to false triggers. Route wires away from moving parts, sharp edges, and excessive heat sources like exhaust manifolds. Secure them with zip ties at 6-inch intervals to prevent sagging.
If integrating with an aftermarket system, verify compatibility. Some units require a pull-up resistor (1kΩ–10kΩ) between the signal and power feeds. Omitting this causes erratic behavior in vehicles with low-current circuits. Always cross-reference the schematic with the manufacturer’s pinout; colors and functions vary by model year.
Finalize with a system test: simulate entry by activating the sensor. The dashboard indicator (if present) should respond instantly. Delays or fails indicate a weak solder joint, incorrect polarity, or a faulty sensor. Recheck every step–this setup tolerates no shortcuts.
Installing a Vehicle Entrance Control Circuit
Begin by locating the existing actuator trigger near the frame. Most modern assemblies include a pre-wired lead–typically a white or yellow 16-gauge conductor–that connects directly to the body control module. Splice into this lead using a waterproof butt connector, ensuring the added length doesn’t interfere with hinge movement.
Follow the factory conduit along the inner pillar; tape excess length tightly to prevent contact with moving parts. Route the new wire through the firewall grommet alongside existing harnesses, securing it every 4 inches with nylon zip ties. Avoid sharp edges near suspension or exhaust components–use rubber grommets where necessary.
- Verify power source: accessory circuit (12V) or dedicated fuse (10A recommended).
- Connect ground to unpainted chassis point within 12 inches of the control unit.
- Test continuity with a multimeter before finalizing–resistance should not exceed 0.5 ohms.
For aftermarket units, consult the specific relay pinout: pin 85 (trigger), 86 (ground), 30 (input), 87 (output). Use a 40-amp relay to handle inductive loads from solenoid-driven actuators. Secure all connections with heat-shrink tubing, applying dielectric grease to terminals exposed to moisture.
Recognizing Elements in an Entry Sensor Electrical Network

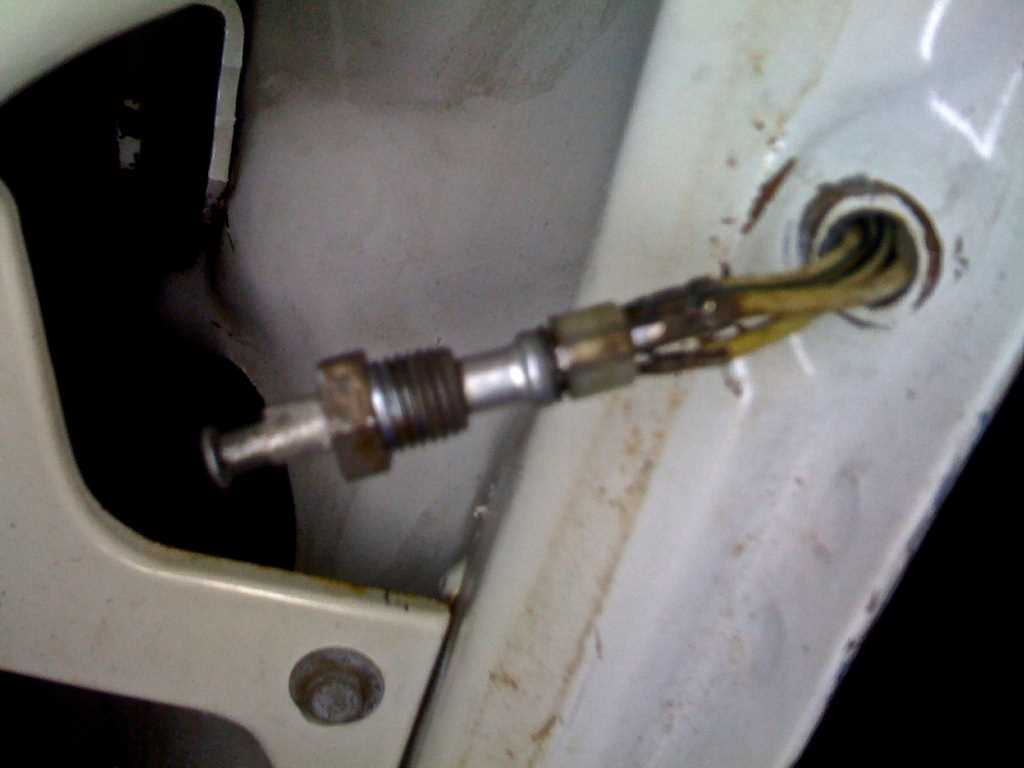

Begin by locating the activation mechanism–typically a small, spring-loaded plunger or magnetic reed relay–positioned near the frame edge. This component responds to the panel’s movement, triggering the connected electrical flow. Verify its mounting: screws or adhesive should secure it firmly to avoid misalignment, which disrupts signal transmission. For plunger-based designs, ensure the contact surface remains clean; dust or corrosion can impede conductivity. Magnetic variants require precise alignment with the opposing magnet, usually attached to the swinging panel, to maintain a consistent closed circuit when the entry is sealed.
Trace the wiring path from the sensor to the control module, noting key connection points. Use a multimeter to check voltage at each node:
- Input terminals (12V or 5V DC, depending on the system)
- Signal output (often a low-voltage pulse)
- Ground connection (verify continuity to chassis or dedicated return line)
Colored insulation helps identify purposes: red for power, black for ground, and an additional wire (yellow, green, or white) for the signal. Splice points or connectors should be crimped, soldered, or secured with locking terminals to prevent intermittent failures. Corrosion-resistant materials like gold-plated contacts or silicone-sealed junction blocks are recommended for high-moisture areas.
Critical Peripheral Devices
Examine auxiliary components linked to the sensor assembly:
- Relay or transistor interface: Converts low-current sensor output into a robust signal for alarms or lighting systems. Verify coil resistance (typically 50–150 ohms) and diode orientation if present to suppress voltage spikes.
- Resistor network (if applicable): Protects against false triggers caused by electrical noise. Common values range from 1kΩ to 10kΩ, depending on the panel’s environment.
- Fuse or circuit breaker: Positioned near the power source to prevent overload. Standard automotive fuses (e.g., 3A–10A) are common; select based on total system draw.
Label each component during inspection to simplify reassembly. Disconnect power before handling conductive parts to avoid short circuits.
Inspect the frame-mounted wiring harness for wear, especially at stress points where flexing occurs. Replace brittle, cracked, or frayed cables immediately–preferably with tinned copper conductors or stranded wire for durability. Heat-shrink tubing or liquid electrical tape applied to exposed joints adds resilience against vibration and environmental factors. For vehicle applications, secure harnesses every 15–20 cm using plastic clamps or spiral wrap to prevent chafing against metal edges. Store spare parts like micro-switches, magnets, and connectors in anti-static bags to preserve sensitivity.
Installing a Fringe Activator: A Sequential Guide
Ensure the circuit is de-energized before initiating work. Locate the power source for the lighting or signaling mechanism the activator controls–typically a junction container adjacent to the frame or a nearby outlet with a breaker. Confirm absence of voltage using a multimeter set to AC mode; probes should register zero on contact with live terminals.
Prepare two insulated conductors–18 to 14 AWG–depending on load requirements. Solid copper is preferred for stability in cramped conduits. Strip approximately 8 mm of insulation from each end of both wires; twist strands tightly if stranded core is used. Tin exposed ends with solder for corrosion resistance and secure attachment.
Attach one conductor to the terminal labeled “common” or marked with a dark screw on the actuator. This is the input side, usually connected to the hot leg of the power supply. The second conductor connects to the normally open terminal–often identified by a brass-colored screw. Secure both connections with a torque screwdriver set to 0.5 Nm to prevent loosening over time. Route wires through any conduit channels without sharp bends to avoid sheath damage.
Integrating the Circuit into Existing Systems
Bridge the remaining contact point of the activator to the auxiliary load–in most cases, this is a light fixture or buzzer. For a simple lighting setup, splice the output conductor directly into the neutral bus of the power source or join it to a dedicated return path that merges with the main neutral at the panel. Use butt connectors or soldered joints sealed with heat-shrink tubing for long-term reliability. Avoid wire nuts in high-vibration areas.
Test functionality by toggling the activator manually. Energize the circuit and verify the load responds instantaneously–an audible click from the mechanism should precede activation. If response is delayed, check for loose splices, improper terminal tension, or incorrect conductor gauge. For systems with multiple activation points, ensure all devices share a single return path to prevent voltage drop. Recheck torque specs on every terminal post-installation.
Frequent Installation Errors and Corrective Measures
Reverse polarity connections at the actuator terminals cause immediate malfunctions. Verify terminal markings–typically labeled L1/L2 or COM/NO–before securing wires. A multimeter set to continuity mode confirms proper pairing between contacts. Misaligned polarity not only disrupts operation but risks damaging integrated circuits in modern mechanisms.
Excessive tension on cables during installation leads to intermittent failures. Secure each conductor with 6-8 inches of slack inside the electrical box, using strain-relief clamps where available. For 18-gauge wire, avoid bending radii tighter than 1.5 inches; tighter curves stress copper strands, creating micro-fractures that manifest weeks later as erratic signals.
Ignoring ambient interference introduces false triggers. Keep low-voltage signal lines separated from power circuits by at least 2 inches, or install shielded cable for runs exceeding 10 feet. Common culprits include fluorescent lighting ballasts and HVAC relays–both emit electromagnetic noise that mimics legitimate signals. Grounding the shield at one end only prevents ground loops.
Over-tightening terminal screws crushes conductor insulation, causing short-to-ground faults. Torque brass screws to 4-5 inch-pounds using a calibrated screwdriver; aluminum terminals require tighter limits around 3-4 inch-pounds. After securing, tug each wire lightly–properly terminated conductors should resist a 5-pound pull without slipping.
