To diagnose issues in the RM2652 system, begin by isolating connectors J1 (power input) and J2 (sensor array). Use a multimeter set to 20V DC to verify voltage at pin 1 (J1)–it should read 12.6V ±0.2V under normal conditions. If readings deviate, inspect the fuse (F1, rated 3A) and replace it only with an identical slow-blow model to prevent electrical overload.
Trace the wiring harness from the main control module to the thermostat assembly. The primary thermistor (TH1) connects via white (signal) and black (ground) wires; resistance should vary between 1kΩ–10kΩ at room temperature. Higher readings indicate a faulty sensor or corroded connection. Clean terminals with isopropyl alcohol (90%+) and reapply dielectric grease before reassembly.
Check the compressor relay (K1) by listening for an audible click when power cycles. No sound suggests a stuck relay–remove the relay and test for continuity between pins 85 and 86 (coil) and 30 and 87 (switch). Replace if resistance exceeds 1.2Ω across the coil or if the switch shows infinite resistance when activated.
For cold-weather performance, adjust the voltage regulator (U1) output to 13.8V ±0.1V by turning the potentiometer (VR1) clockwise no more than ¼ turn at a time. Monitor temperature fluctuations; excessive cycling may indicate a failing capacitor (C4, 470µF/25V)–replace with a low-ESR equivalent.
Always disconnect the battery before probing live circuits. Shorts between J3 (fan output) and chassis ground can trigger automatic shutdowns. Use a 12V test light to confirm proper voltage at the fan motor leads–dim light signals a weak power circuit, often caused by a degraded flyback diode (D2).

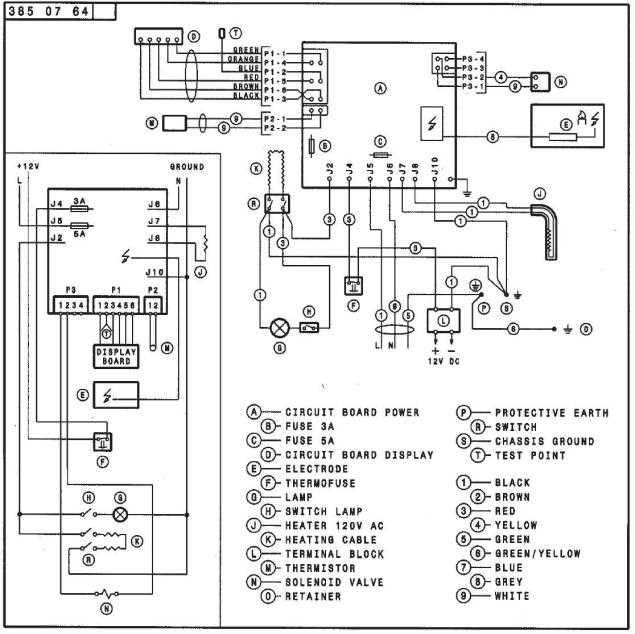

Interpreting the Refrigerator Control Module Schematic
Locate the main power input terminals on the electronic assembly–marked L (live) and N (neutral)–before proceeding. Verify voltage between these points with a multimeter set to AC range; expected readings should align with the local grid standard (110–120V or 220–240V). Deviations exceeding ±5% indicate either a faulty connection or an upstream supply issue requiring immediate rectification.
Key Connection Points and Signal Flow
- Thermistor input: Trace the thin red and white wires from the sensor probe to the marked pads on the module. Resistance should vary between 1kΩ (warm) and 10kΩ (cold); values outside this range suggest sensor replacement.
- Defrost heater relay: Identify the twin spade terminals labeled “DEF” or “HEAT”. Use a continuity tester to confirm the relay coil activates when the control signal is triggered; if silent, replace the relay or inspect the driver IC.
- Compressor relay: Check the thick blue and yellow wires exiting the module’s lower edge. Ensure the relay clicks audibly during startup; absence of sound or voltage at the compressor terminals (300–400V DC) points to relay failure.
Label every wire before disconnecting anything–use a permanent marker directly on the insulation or adhesive tags. Snap clear photographs of the existing setup from multiple angles: front, rear, and both sides of the assembly. Store images in a secure location accessible offline to prevent data loss during reassembly.
- Disconnect the unit from power and wait 10 minutes to allow capacitors to discharge.
- Remove the access panel screws–typically Torx T10 or Phillips #2–and set them aside in a small container.
- Gently lift the panel, noting any grounding straps or secondary connectors often overlooked.
- Use a non-conductive probe (plastic or wood) to trace each wire back to its termination point on the module, cross-referencing with the schematic provided in the service manual (page 14, section 3B).
- Test each terminal with a multimeter in diode mode to confirm no unintended short circuits exist before re-energizing.

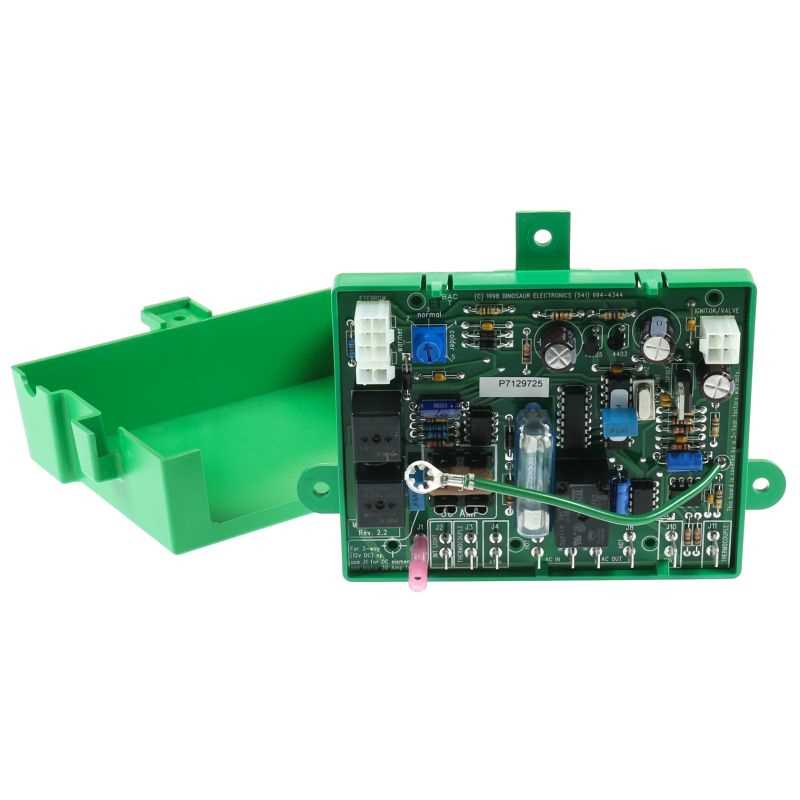

Identifying Key Components on the Control Unit Layout
Begin by locating the primary microcontroller near the center of the assembly–usually a rectangular chip with 20–40 pins, labeled with vendor codes like PIC16FXXX or STM8S. This element manages power distribution, temperature regulation, and user inputs. Verify its position relative to the voltage regulator, typically a three-pin TO-220 package marked 7805 or LM2596, which ensures stable 5V output for logic operations.
Trace the high-voltage relay, often encased in a black or blue plastic housing with metal contacts. This switch handles compressor activation and must be inspected for corrosion on its terminals. Adjacent to it, find the thermal fuse or PTC resettable device–critical for overheat protection–usually embedded in a white or yellow cylindrical component with a resistance below 1Ω in normal conditions.
Examine the capacitor array near the power input section. Aluminum electrolytic types–marked by bulging tops or venting–must be replaced immediately if detected, while ceramic capacitors should show no discoloration. Check values: input capacitors should range 470–1000µF/25V, while those near the regulator typically measure 100–470µF/16V. Deviations suggest degradation.
Identify the keypad interface connector, a multi-pin header linking to the front panel. Count pins: a 6–8 pin layout corresponds to membrane switch inputs, while a 4-pin variant likely serves LED status indicators. Test continuity between these pins and the microcontroller with a multimeter–resistance should drop below 1kΩ when buttons are pressed.
Look for the ambient temperature sensor, often a NTC thermistor (negative temperature coefficient) with a resistance exceeding 10kΩ at room temperature. At freezing (0°C), it should climb to 30–50kΩ. Replace if readings stabilize outside these ranges, as erratic values disrupt cooling cycles.
Inspect the printed resistors–marked with color bands or numeric codes–for physical damage. Low-value resistors (0.1–1Ω) in series with high-current paths (e.g., compressor traces) frequently fail due to thermal stress. Use a DMM in diode mode to confirm zero-voltage drop across these components; readings above 0.3V indicate failure.
Finally, verify the transformer or buck converter module–typically a small, toroidal coil or shielded switching regulator. Input voltage should match system specs (e.g., 12V DC for automotive use, 220V AC for stationary units), with output remaining within ±5% of rated values. Noise or voltage ripple above 100mVpp suggests inductance degradation, requiring replacement.
Step-by-Step Power Link Assembly for Input and Distribution
Locate the 12V input terminals marked B+ (red) and GND (black) near the rear connector block. Securely fasten the positive lead to B+ using a crimped ring terminal tightened to 4-5 Nm torque with a hex driver; confirm no exposed copper protrudes beyond the terminal rim. Attach the ground cable identically to the adjacent GND post, ensuring direct contact with the chassis pad if chassis grounding is specified. Verify each joint with a multimeter–resistance should read <0.2 Ω–before energizing the system.
Route the output harness to the three-pole output cluster labeled Load A, Load B, and Com. Match Load A (typically +12V switched) to devices demanding >3A continuous; use 16AWG stranded silicone wire for runs under 1.5 m, upsizing to 14AWG for distances exceeding 3 m. Thread each wire through the existing loom grommet, avoiding sharp edges that could abrade insulation. Terminate with a male spade connector crimped at 13-15 kgf pressure; soldering is optional but recommended for vibration-prone installations. Label each branch with heat-shrink numerals to eliminate misrouting during future maintenance.
Troubleshooting Common Electronic Assembly Connection Problems
Check voltage drop across terminal blocks using a multimeter in DC mode. Target readings should fall within 11.8–13.2V for 12V systems or 23.5–27.5V for 24V setups. Values outside this range indicate either a loose crimp, oxidized contact, or a faulty power supply unit. Strip 5 mm of insulation from suspect wires, re-crimp with a ratcheting tool, and clean terminals with fine-grit sandpaper before reassembly.
Trace signal paths with a continuity tester, focusing on jumper links and micro connectors. A reading above 0.5 ohms suggests corrosion or a broken strand; replace the entire harness segment if resistance exceeds 1 ohm. Label each connector with colored heat-shrink tubing–red for 12/24V, blue for ground, yellow for data lines–to prevent misrouting during reassembly.
Inspect printed traces for hairline cracks near mounting holes or heat-generating components. Use a 10x magnifier and a fiber-optic light source; heat-induced fractures often appear as faint silver lines. Repair with a fine-tip soldering iron and 63/37 rosin-core solder, then apply conformal coating to protect against moisture ingress.
Signal Integrity Checkpoints
| Pin No. | Expected Voltage | Common Issue | Verification Tool |
|---|---|---|---|
| J1-3 | 4.75–5.25V | Cold solder joint | Oscilloscope |
| J4-7 | PWM 2.5–3.3 kHz | Corroded header | Frequency counter |
| J8-1 | 0V (ground) | Thermal stress break | Thermal camera |
Component-Specific Fixes
Replace surface-mount fuses with identical amp ratings–never bypass–if thermal imaging reveals hotspots exceeding 70°C under load. For temperature sensors, ensure the thermistor’s resistance matches the reference curve: at 25°C, a 10 kΩ NTC should read 10 kΩ ±1 %; deviations signal a faulty sensor or incorrect pull-up resistor value (typically 4.7–10 kΩ).
