Begin by locating the primary power source connection–typically a 12V or 110V input–on the system’s technical layout. Verify the fuse rating between 15-20 amps for 12V circuits and 10-15 amps for 110V lines; mismatched values risk overheating or failure. Trace the red wire from the battery terminal to the thermostat control board, ensuring continuity with a multimeter (resistance should read under 0.5 ohms). If readings exceed this threshold, inspect terminals for corrosion or loose crimps–clean with a wire brush and apply dielectric grease.
Identify the compressor’s relay integration in the schematic. The relay coil draws minimal current (300-500 mA) but switches high-load components; confirm it activates under 12V input by listening for an audible click. Replace relays displaying pitted contacts or inconsistent switching (test with a 9V battery if unsure). For dual-voltage models, note the selector switch position–110V connections require thicker gauge wiring (12-14 AWG) to handle startup surges (up to 30A briefly).
The control module’s wiring often includes ground (black), power (red), and signal (yellow or blue) lines. Cross-referencing colors with the manufacturer’s documentation prevents miswiring; reversed polarity can destroy sensitive electronics. If debugging a non-responsive unit, check the overload protector–a thermal disc reset button near the compressor–before replacing components. Capacitors in the start/run circuit degrade over time; swap with identical microfarad ratings (±5%) to avoid motor burnout.
For split-system setups, follow the condensate drain line connection in the layout–improper slope causes water pooling and mold. Cold-weather kits (if installed) add a heating element to the evaporator; ensure it’s wired in parallel to avoid overloading the thermostat. Always disconnect power before probing circuits and use insulated tools to prevent shorts. Reference the specific revision number on the unit’s label–earlier models may lack updates to ground fault protection.
Understanding HVAC Electrical Schematics for Mobile Units
Begin by locating the main power input terminal–typically marked with a voltage rating of 110-120V AC for North American models or 220-240V for European variants. Verify the color-coding: black wires carry the live current, white or gray serve as neutral, and green or bare copper ground the system. Cross-reference these with the manufacturer’s printed layout; mismatched connections risk tripping breakers or damaging components.
Trace the circuit from the power source to the compressor relay. The relay coil requires a low-voltage signal, usually 12V DC, controlled by the thermostat. Check the relay’s coil resistance with a multimeter–values below 50 ohms or exceeding 120 ohms indicate a faulty relay. Replace if readings deviate, ensuring the new relay matches the original’s contact rating (minimum 20A for most rooftop units).
Inspect the capacitor–both start and run types–for bulging, leaks, or capacitance drift. A 30-40 MFD run capacitor should measure within ±5% of its labeled value; anything outside this range warrants replacement. Label disconnecting wires with tape to avoid confusion during reassembly. Install the new capacitor with the correct polarity: the terminal marked with a “+” or arrow connects to the motor’s auxiliary winding.

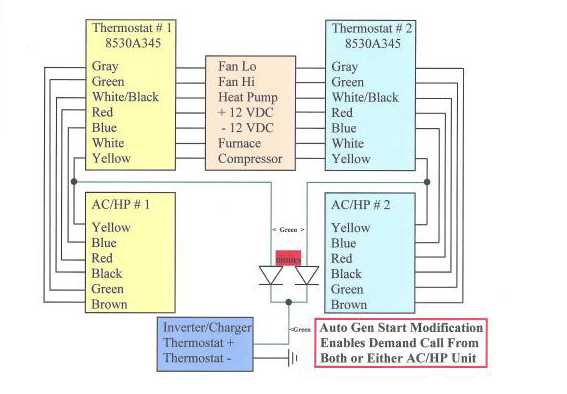

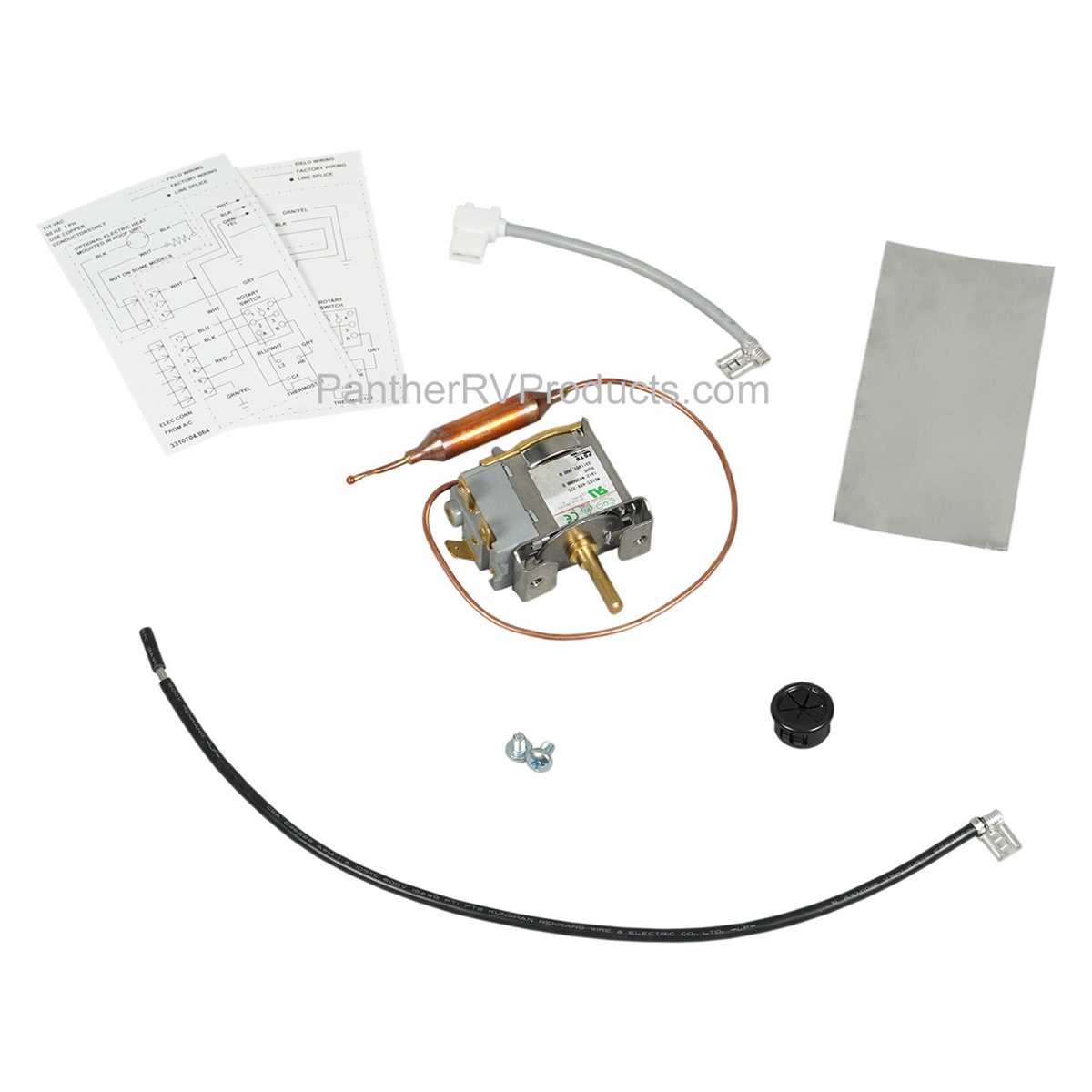

Examine the thermostat wiring harness for frayed insulation or corroded terminals. The control board communicates via 2-5 thin gauge wires (typically red, yellow, blue, and white). Red supplies power, yellow manages cooling, white handles heating if applicable, and blue often interfaces with the fan. Test continuity between each wire and its corresponding terminal on the control panel; infinite resistance signals a break requiring soldering or harness replacement.
Common Failure Points in Climate Control Circuits
Fan motors frequently fail due to bearing wear or overheating. Measure the motor’s windings: a resistance below 5 ohms across the run winding suggests a short, while infinite resistance indicates an open circuit. Lubricate sleeve bearings annually with SAE 10W-30 oil; sealed bearings require no maintenance but must be replaced as a unit if seized. Ensure airflow remains unobstructed–restricted condensers reduce efficiency by 30-40%.
Fuses and circuit breakers are sized to protect downstream components. A 15A breaker for compressors or a 5A fuse for control circuits should trip only under fault conditions. Test with a clamp meter during operation: current draws exceeding 80% of the breaker’s rating for prolonged periods necessitate upsizing or load reduction. Replace fuses with identical ampere ratings–never bypass or substitute with higher values.
Ground connections must bond to the chassis with minimal resistance (below 0.2 ohms). Corrosion at mounting points increases resistance, leading to nuisance tripping or unsafe voltage potential. Clean contact surfaces with emery cloth, apply dielectric grease, and torque bolts to 15-20 ft-lbs. Verify grounding integrity by testing voltage between the neutral bus and chassis–readings above 0.3V indicate a faulty ground requiring attention.
Reverse polarity protection is critical for sensitive electronics. If the unit fails to power on, check the inlet wiring: swap hot and neutral at the plug if the system’s internal fuses blow repeatedly. Some models incorporate a polarity relay; test this component by applying 120V AC to its input–if the relay clicks but the output terminals remain dead, replace the relay. Always confirm proper grounding before energizing the system to prevent damage to control boards.
Key Elements in Climate System Electrical Blueprints
Start by locating the compressor relay–typically labeled with numeric or alphanumeric codes like “K1” or “CR”–and verify its placement near high-current connections in the power distribution section. Trace the thick gauge conductors leading from this relay to both the compressor clutch and the condenser fan; these paths handle peak loads and must be color-coded (red for power, black for ground) without splices. Cross-reference the thermal cutoff switch embedded in the evaporator coil, often marked “TCO” or “SS,” which interrupts the circuit at 150°F–test continuity with a multimeter at room temperature to confirm functionality.
| Component | Typical Label | Wire Gauge (AWG) | Test Voltage (AC) |
|---|---|---|---|
| Compressor Relay | K1/CR | 10-12 | 120/240 |
| Condenser Fan Motor | CFM | 14-16 | 120 |
| Evaporator Fan Motor | EFM | 16-18 | 12 |
| Thermal Cutoff Switch | TCO/SS | 18 | N/A (Resistance) |
| Pressure Switch | LP/HP | 18 | N/A (Continuity) |
Isolate the low-pressure (LP) and high-pressure (HP) switches–usually adjacent to refrigerant lines–by identifying their distinctive two-wire terminals. The LP switch opens at 10-30 PSI, while the HP switch triggers above 350 PSI; both should show closed contacts under normal operating conditions. Check the blower motor resistor block near the air handler, where stepped voltage taps (often labeled “Lo/Med/Hi”) regulate fan speed–use a probe to measure resistance between terminals (typically 0.5-5Ω per stage). Finally, confirm the control board’s 5-amp fuse and 12V transformer secondary coil, which provide isolated power to relays and sensors.
Step-by-Step Guide to Interpreting Air Conditioner Electrical Schematics
Identify the power source first by locating the main input lines–usually marked as L1, L2, and neutral. These correspond to the live and return paths feeding the unit, often connected to a 110V or 220V supply depending on the model. Look for a legend or key at the bottom or side of the schematic that decodes symbols; capacitors, relays, and compressors each have distinct icons. Trace the flow from the breaker or fuse box to the control board to confirm the circuit’s protection measures are properly mapped.
Follow the color-coded conductors–black, red, blue, and yellow–to differentiate high-voltage paths from low-voltage control signals. High-voltage lines typically run thicker and may be shielded, while control wires are thinner and route to thermostats or sensors. Note splice points where wires branch; these are critical for troubleshooting intermittent faults. Check for labeled terminals on motors and compressors to verify correct connections, as miswired components can cause overheating or failure.
Verify the placement of safety devices like thermal overloads, pressure switches, or current relays. These appear as small, box-like symbols in series with the motor or compressor windings. If the schematic includes a legend for these components, confirm their operation mode–normally open (NO) or normally closed (NC)–to anticipate how they affect circuit behavior during faults. Cross-reference the schematic with the physical unit to ensure capacitors and resistors align with their designated positions.
Use a multimeter to test continuity across key paths while referencing the schematic. Set the meter to ohms and probe terminals marked for start/run capacitors; a reading near zero indicates a short, while infinity suggests an open circuit. For AC checks, measure voltage between live and neutral at the compressor; deviations from nominal values (e.g., 220V ±10%) point to power supply issues. Document discrepancies between the schematic and actual readings to isolate faults efficiently.
Frequent Electrical Faults in Portable Cooling Systems and Diagnostics
Check the circuit interrupter first if the unit fails to power on. Reset the breaker by pressing the “Test” button followed by “Reset.” If the issue persists, examine the power cord for frayed insulation, scorched terminals, or loose connections at the plug. For 230V models, confirm the outlet delivers correct voltage with a multimeter–readings below 210V indicate supply problems, often caused by undersized extension cords or overloaded circuits. Replace damaged cords immediately, using only manufacturer-approved replacement parts with matching gauge and polarity.
Inconsistent cooling often stems from thermal sensor malfunctions. Locate the thermistor (typically near the evaporator coil) and test resistance values at room temperature–most should read 10-15k ohms. A reading outside this range confirms a faulty sensor, requiring exact model-specific replacements. Clean sensor contacts with electronic contact cleaner if corrosion is visible. Avoid forcibly bending connectors, as this can break the delicate solder joints common in compact assemblies.
Power Supply and Voltage Drop Problems
- Test shore power sources with a clamp meter to detect voltage drops under load–acceptable loss is under 3%. Higher drops may require dedicated 15A or 20A circuits.
- Inspect all terminals in the junction box for heat discoloration, a sign of loose connections. Torque screws to 8-12 in-lbs; overtightening can strip threads.
- Verify compressor capacitor values using a capacitor tester. Most 1.5-ton units require 35-50µF run capacitors and 180-250µF start capacitors. Replace capacitors showing bulging tops or leaked electrolyte immediately.
Control Board and Relay Failures
- Remove the control panel cover and check for burnt components, particularly relays (marked “RL9” or “K1”). Snap-acting relays should click audibly when energized; silence indicates failure.
- Use a non-contact voltage tester to confirm power reaches the control board. Absence suggests a blown fuse (usually 3-5A) or faulty transformer (AC outputs should be 12V and 5V).
- For units with digital displays, observe error codes–most manufacturers list codes in service manuals under “self-diagnosis.” Code “E1” commonly indicates sensor failure, while “E4” points to compressor overload.
Condensation freezing on evaporator coils usually signals low refrigerant levels or airflow restrictions. Check for clogged air filters first–wash reusable filters with mild detergent and thoroughly dry before reinstalling. For sealed systems, pressurized refrigerant leaks require professional recovery equipment; DIY recharges risk compressor damage. Use soapy water to detect leaks at fittings–bubbles confirm escaping gas, necessitating brazed repairs.
