Begin by locating the fuse box beneath the dashboard on the driver’s side. For model years 2010–2018, the rear lamp circuit is protected by a 15-amp fuse, typically labeled “RT LAMP” on the cover. If the bulbs fail despite a functional fuse, trace the wiring harness from the tail assembly toward the vehicle’s midsection. Corrosion often builds at connectors near the frame rail, where moisture accumulates. Clean contacts with electrical spray and apply dielectric grease before reassembly.
Models with trailer brake controllers require separate attention to the auxiliary harness. The brown wire carries the marker-light signal, while the yellow wire supplies the left turn/brake signal. Verify voltage at the connector behind the bumper using a multimeter–expect 12 volts when the brake pedal is pressed. If readings drop below 11 volts, inspect the ground strap bolted to the chassis; paint and rust inhibit conductivity.
Aftermarket modifications, such as LED upgrades, introduce compatibility issues. Factory circuits assume incandescent load (2.1 amps per bulb), but LEDs draw only 0.2 amps. Install a load resistor (50W, 6-ohm) in parallel to prevent hyper-flashing or false bulb-out warnings. Secure the resistor to a metal surface to dissipate heat, and splice it into the affected circuit before the bulb housing.
The wiring schematic differs slightly for diesel models. The integrated trailer module (ITM) adds a relay near the rear axle, marked “C3” on the diagram. If turn signals operate intermittently, bypass the ITM by probing the white/blue wire (output) and the brown/white wire (input). A consistent 0-ohm reading confirms a faulty relay; replacement costs approximately $120 from authorized dealers.
For fleet vehicles or those subjected to off-road use, reinforce the harness with split loom tubing and zipties every 12 inches. Prevent chafing against sharp edges by rerouting wires away from moving suspension components. When splicing repairs, use heat-shrinkable butt connectors instead of wire nuts–tape adhesions degrade within 18 months under temperature fluctuations.
Full-Frame Pickup Rear Lamp Circuit Guide
Locate the factory harness connector behind the left-side inner fender liner; it carries seven pins labeled A through G. Pin A (14-gauge orange) supplies switched 12 V, while pin G (12-gauge white) is the chassis return. Pins B and C feed the stop illuminators–16-gauge red and 18-gauge pink respectively–with the latter also engaging the high-mount stop unit. Verify continuity with a multimeter set to 200 Ω; resistance above 0.3 Ω indicates corrosion at the bumper ground stud.
For aftermarket LED inserts, splice a 60 W-rated relay between the brake signal and the lamp socket using 14-gauge tin-plated copper wire with heat-shrink insulation. Trigger the coil from the factory pink lead, then route the normally-open contacts directly to the LED array’s positive terminal. Mount the relay within 18 cm of the socket to limit voltage drop; Seco-Larm RL-442 relays handle 15 A continuous at 125 °C.
| Circuit | Wire Size | Color Code | Max Current | Fuse Rating |
|---|---|---|---|---|
| Brake | 16 AWG | Red stripe | 8 A | 10 A |
| Tail | 18 AWG | Brown stripe | 3 A | 5 A |
| Reverse | 14 AWG | Light green stripe | 20 A | 25 A |
Trace the brown-striped 18-gauge conductor from pin D to the taillamp bulb socket; this path supplies the running lights. Use a needle probe to back-probe the socket terminal while toggling the switch–illumination should measure 13.8 V ± 0.5 V. If voltage sags below 12.5 V, inspect the junction box under the instrument panel for oxidized connectors; DeoxIT D5 spray restores conductivity on contact surfaces thinner than 0.1 mm.
Finding the Rear Illumination Connector on a Heavy-Duty Pickup

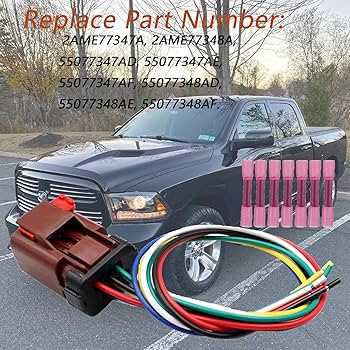

Access the harness behind the rear bumper cover by removing two 10mm bolts securing the inner fender liner. The connector–typically a 6-way plug with gray housing–lies adjacent to the frame rail, 8 inches forward of the bumper’s edge. Use a trim removal tool to pry the liner gently; avoid pulling the wires, as they exit through a grommet directly above the trailer hitch mounting point.
- Locate the ground wire (black with white stripe) at the 12 o’clock position on the plug for testing continuity.
- Trace the running lamp circuit (amber wire) and brake circuit (red with orange stripe) by back-probing with a multimeter set to 12V DC.
- Inspect the rubber boot for cracking–common failure point on 2010-2018 models.
Understanding Wire Colors in Heavy-Duty Pickup Rear Signal Harnesses
Trace the brown wire first–it carries the primary illumination current for brake and running lamps. On most post-2010 full-size trucks, this conductor terminates at the outer socket filament, delivering 12–14V DC when either the service or auxiliary braking system is engaged. Verify continuity with a multimeter; intermittent voltage often indicates a corroded splice near the frame rail grommet.
Locate the yellow circuit next; it supplies voltage exclusively to the turn signal bulb. Unlike the brown wire, this path sees a pulsing signal (60–120 cycles per minute) generated by the body control module. If both rear indicators flash simultaneously, suspect a short between the yellow and dark green wires–common where rodent nesting material bridges insulation near the spare tire carrier.
Dark green handles the right rear directional signal and also serves as the dedicated trailer feed splice point. When adding auxiliary equipment, tap into this wire before it enters the junction box, avoiding the risk of backfeeding into the factory anti-lock brake module. Use heat-shrink butt connectors; crimp connectors often introduce resistance that mimics bulb failure codes.
White serves as the chassis ground reference for all rear lighting, terminating at a stud welded behind the rear bumper. If lamps dim or flicker under load, clean the mounting surface with a wire brush–paint and road grime create high-impedance paths. For auxiliary trailers, attach a separate 8 AWG ground cable directly to this stud rather than daisy-chaining through factory harness clamps.
Purple and light green appear in limited configurations–purple for auxiliary running lights, light green for reverse signal illumination. Both require a 20A fuse inline on any aftermarket addition; factory harnesses route these through the integrated power module, which lacks spare current capacity for high-output LED pods.
How to Verify Rear Signal Circuit Integrity on Heavy-Duty Pickups
Disconnect the vehicle’s negative battery terminal first to eliminate electrical backfeed risks. Use a multimeter set to continuity mode–probe between the harness connector’s ground pin and the truck’s chassis. A reading above 0.5 ohms indicates corroded or loose grounding, requiring immediate cleaning with a wire brush and dielectric grease application.
- Inspect fuse F17 (20A) under the driver-side dash panel–replace if blown, using only OEM-rated replacements.
- Trace the red/white tracer wire from the fuse box to the rear junction block; any chafing or melt marks signal a short circuit.
- Confirm power at the bulb socket’s outer contact with the ignition on–no voltage suggests a broken connector or frayed wire between harness sections.
For bulbs with dual filaments, test each separately by switching the turn signal and running lamps on manually. Ground the probe to the socket’s metallic base while touching the center contact; the multimeter should show ~12.4V. Voltage drops below 11.9V necessitate checking the 18-gauge purple/black feed wire for resistance buildup due to poor crimps.
Remove the rear bumper cover to access the eight-way trailer connector if integrated signals fail. Use a jumper wire to bypass the harness–if the lamp illuminates, the issue lies in the main wiring loom. Focus on the left-side amber lens circuit; common failure points include the T-tap splice near the spare tire carrier and the pinch-point at the frame crossmember.
- Replace any heat-damaged wiring with GPT-14 silicone-jacketed cable, securing with spiral wrap every 12 inches.
- Seal all connectors using Permatex 80050 dielectric compound before reassembly.
- Recheck voltages at the bulb socket after repairs–expected readings: 12.1–12.6V for running, 9.5–10.5V for braking.
Frequent Rear Signal Circuit Problems and Fixes
Check the ground connection first–corrosion at the chassis bolt near the rear bumper often causes intermittent failures. Use a multimeter to verify zero ohms between the negative terminal of the bulb socket and bare metal; readings above 0.5 ohms indicate poor grounding. Clean contacts with a wire brush and apply dielectric grease to prevent future oxidation.
Fused Pathway Repairs
Inspect fuse block under the dash or in the engine bay for blown 15-amp or 20-amp spade fuses linked to the illumination system. Replace with an identical rating; never upsize. If the replacement blows immediately, probe the circuit with a test light–brightness at the socket but no output suggests a short in the harvester bundle between the cab and pickup bed.
Swap bulbs to isolate filament issues; halogen elements on heavy-duty models typically last 700–1200 hours. Burnt filaments show a darkened glass or broken coil. For LED assemblies, verify input voltage remains steady at 12–14 volts under load; voltage drops below 10 volts point to resistances in splices or connectors, which require cutting out and soldering with heat-shrink tubing for a permanent fix.
