Start by sourcing the factory service manual for your specific model year–this remains the most accurate reference for connector pinouts, wire gauges, and circuit paths. Third-party publishers like Haynes or Chilton offer condensed versions, but verify their corrections against known-good OEM documents. Early fourth-generation variants (2006–2010) use a centralized fuse box under the hood with labeled terminals, while 2011+ models integrate a modular auxiliary panel behind the instrument cluster.
Trace power distribution by identifying thick red wires (8–10 AWG) originating from the battery positive terminal and passing through the main fuse block. Ground locations differ: 2005 models rely on a single strap bolted to the transmission bellhousing, whereas later years use dual brackets–one near the firewall and another near the rear axle. For aftermarket modifications, replace the factory relays with 40A units if adding high-draw components; stock relays handle 30A max.
Color-coding follows SAE standards: black/orange for ignition-switched circuits, dark green/white for throttle sensors, and light blue/red for fuel injectors. Use a digital multimeter set to continuity mode to confirm wire integrity–resistance above 0.5 ohms indicates corrosion or fraying. When splicing, avoid crimp connectors; solder and heat-shrink tubing prevent moisture ingress. For HEMI engines, note the dual-variant PCM connectors: 12-pin (2006–2008) vs. 16-pin (2009–2023).
Online repositories like Mitchell1 or AllDataDIY provide interactive schematics with clickable components. If troubleshooting ABS or traction control, focus on the 12-pin gray connector near the brake master cylinder–pin 3 carries the wheel speed signal. For wiring repairs, strip ½ inch of insulation and twist strands clockwise before applying dielectric grease; this reduces intermittent failures from vibration.
Electrical Integration Blueprint for Performance Sedans: A Hands-On Reference
Locate the main fuse block under the driver-side dashboard by removing the lower panel–three 10mm bolts secure it. Disconnect the negative battery terminal before handling any connectors to prevent short circuits. Label each plug with masking tape: color codes and pin counts (e.g., C1=24 pins, orange/green stripe) simplify reassembly. Use a multimeter set to continuity mode to verify each circuit path before routing replacement bundles.
Trace power feeds from the alternator output (1/0 gauge cable, 60-80A capacity) to the distribution module beneath the hood. Check for voltage drops exceeding 0.2V across connections; corroded terminals often cause intermittent faults. For aftermarket upgrades, ensure the new bundle supports 60A draw per circuit, matching OE specifications. Ground straps (bare copper, minimum 8AWG) should bolt directly to unpainted chassis points near the firewall for optimal conductivity.
Route signal loops away from high-current lines–keep CAN bus wires (twisted pair, 0.5mm²) at least 15cm from ignition cables to avoid interference. Zip-tie bundles every 10-12cm using heat-resistant straps; avoid sharp edges on metal brackets. For ECU replacements, flash the module with factory calibration files using a J2534-compliant tool before connecting sensors to prevent DTCs.
Test each component progressively: first headlights (12.4V at bulb sockets), then ABS sensors (0.5-1.8V AC signal), followed by fuel pump relay (audible click within 3 seconds of key-on). If the instrument cluster flickers, probe the cluster plug (pin 18, purple/white wire) for stabilized 5V reference voltage. Document all readings in a spreadsheet for baseline comparison during future diagnostics.
Inspect connector seals for cracks; re-seal with dielectric grease if moisture intrusion is suspected. Replace damaged terminals with gold-plated counterparts to prevent oxidation–crimp using a ratcheting tool, not pliers, for reliable retention. Store removed bundles coiled in anti-static bags; label each segment with its origin point (e.g., “Engine bay, LH headlamp”) to expedite re-installation.
How to Pinpoint Key Electrical Bundle Junctions in Your Performance Sedan

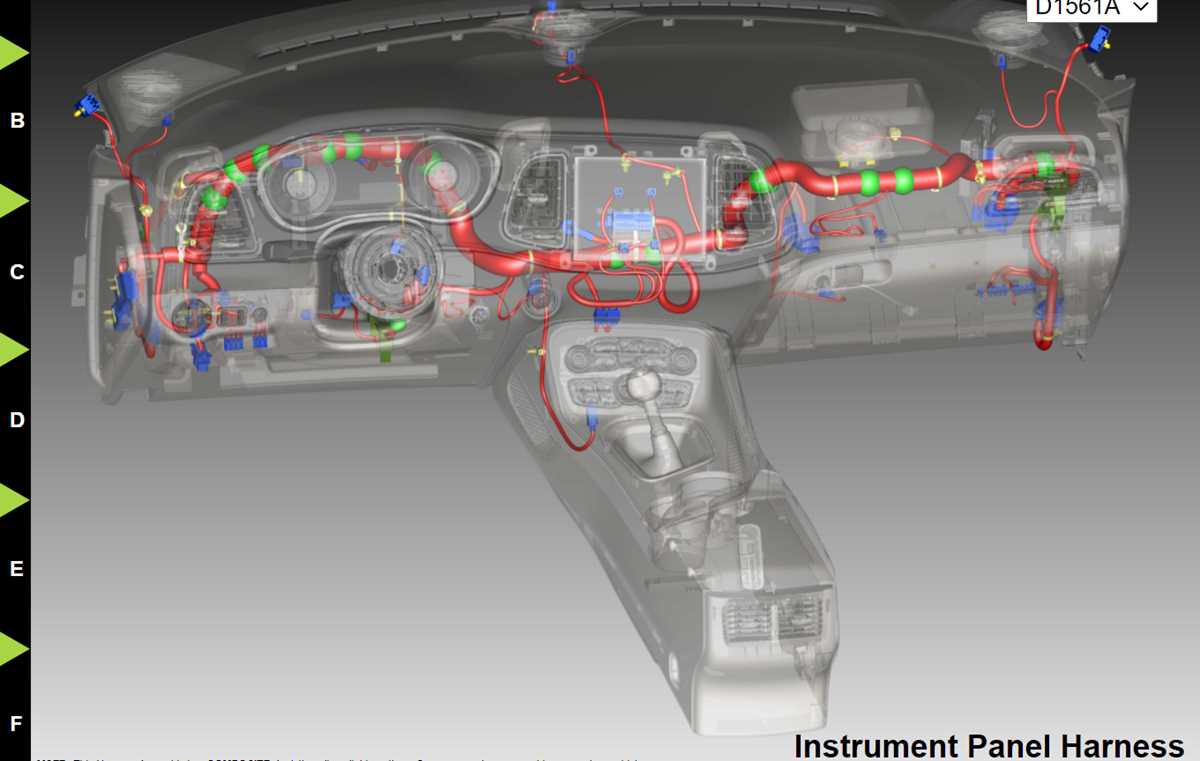

Begin under the dashboard near the driver’s side firewall. The primary junction block for the vehicle’s central nerve cluster is secured behind a plastic panel held by two 10mm bolts. Remove the panel to expose a rectangular connector tray with 68-pin and 40-pin plugs–these serve as the main brain for engine control, lighting, and accessory modules. Label each port with masking tape before detachment to prevent misalignment during reinstallation.
Common Connector Locations by System
| System | Connector Type | Position | Pin Count |
|---|---|---|---|
| Powertrain Control | Black rectangular | Behind glove box, upper firewall | 80 |
| Lighting | Gray oval | Passenger kick panel, near fuse box | 24 |
| Infotainment | White trapezoidal | Center console, beneath shift boot | 32 |
| HVAC | Blue square | Behind lower dash, driver’s side | 18 |
Trace the bundle running along the driver’s side rocker panel to locate auxiliary fuse relay centers. Two corrugated loom tubes–one for high-current circuits (battery, starter) and another for sensors (O2, MAP)–merge at a splice near the front fender. Use a multimeter to verify continuity: probe pin 16 on the gray harness (fused +12V) against chassis ground; readings should stabilize at 11.8–12.6V with the ignition on.
For rear systems, follow the main trunk line beneath the rear seat. A secondary distribution box, housing ABS and fuel pump circuits, sits behind a removable carpeted panel in the spare tire well. Note the torx-25 screws securing the cover–these differ from the standard phillips-head fasteners used elsewhere. Disconnect the negative terminal before servicing to prevent shorting the 4-gauge power lead.
Decoding Electrical Connector Color Schemes in Muscle Sedans
Locate the factory service manual specific to your vehicle’s model year–color coding variations exist even between trim levels. Identify the primary color groups first: dark blue (driver-side auxiliary systems), red (ignition and power distribution), and yellow (lighting circuits). Cross-reference each wire’s stripe pattern against the legend; a solid red with white tracer, for example, typically routes to the main power relay, while red with black stripe supplies the fuel pump.
Pinpointing Grounds and Signal Paths
Trace black wires with colored stripes to chassis grounds–these often terminate at screws welded to the firewall or rear frame rails. For sensor feeds, look for smaller-gauge wires in violet, gray, or orange with secondary striping; these carry signals from the crankshaft position sensor, oxygen probes, or throttle body. Use a multimeter to verify continuity–probes on a violet wire with brown stripe should read under 5 ohms when connecting the PCM to the camshaft sensor.
Match connector housing numbers molded near the terminals to the schematic–plugs labeled T100 or C250 correlate to specific engine bay or interior bundles. Pay attention to dual-function wires like tan with light blue stripe, which may alternate between the transmission control solenoid and a body control module input depending on gear selection. Mark each wire with masking tape before disconnecting; factory labels fade and adhesive residue attracts corrosion.
Frequent Electrical Bundle Problems in Performance Sedans and Diagnostic Steps
Inspect the under-hood fuse block for corrosion around terminals–green or white deposits indicate moisture ingress. Remove the relay for the cooling fan and test with a multimeter; resistance should read below 0.5 ohms. If values exceed this, replace the relay immediately to prevent overheating.
Check the TIPM (Totally Integrated Power Module) for erratic behavior by monitoring live data via OBD-II. Codes P0600-P0699 often signal internal failures–clear codes after repairs, then drive the vehicle for 50 miles to confirm resolution. If faults reappear, consider bench-testing the unit with a known-good replacement.
Ground Connection Failures
Locate primary grounding points near the battery tray and strut tower; these are prone to oxidation. Scrape clean with a wire brush, then apply dielectric grease before reattaching. For intermittent issues, run a dedicated 4-gauge cable from the negative battery terminal to the engine block as a temporary fix.
- G101 (battery tray) – power distribution
- G103 (strut tower) – ECM and lighting circuits
- G202 (firewall) – instrument cluster
Test continuity between the ECU housing and negative terminal; readings above 0.2 ohms require cleaning or replacement of the ground strap. Verify all connections with a torque wrench–spec is 8-10 ft-lbs for M8 bolts.
Connector Pin Retention Problems
Use a terminal release tool to remove pins from C1 and C2 connectors on the BCM. Inspect for bent pins or loose retention clips; straighten with needle-nose pliers if slight, replace the connector if damage is severe. Apply contact cleaner to pins before reassembly.
For CAN bus communication errors, probe pins 6 and 14 (CAN-H/CAN-L) at the OBD-II port with a scope. Signal voltages should oscillate between 2.5V and 3.5V–flat lines indicate a broken circuit. Trace wiring back to the PCM, checking for chafing against the transmission housing.
Replace cracked insulation with heat-shrink tubing–avoid electrical tape for long-term repairs. For engine bay sections, use adhesive-lined shrink tubing rated for 125°C. Secure bundles with zip ties every 6 inches, ensuring no contact with sharp edges or moving components.
- Disconnect battery negative terminal before starting repairs
- Label all bundle branches with masking tape for reinstallation
- Test circuits with a load (e.g., 12V bulb) before reassembly
- Apply dielectric grease to all connections
Use a thermal camera to identify hotspots in bundles–temperatures above 70°C at idle suggest a short. Focus on high-current paths like the alternator output and starter solenoid circuits. Repair with marine-grade wire of equal or larger gauge.
