If your vehicle’s sound interface isn’t responding or produces inconsistent output, begin by verifying the integrity of the primary harness. Locate the 12-pin connector beneath the dashboard, typically positioned near the center console. Pins 5 and 6 carry the left and right front speaker signals, while pins 9 and 10 correspond to rear output. Use a multimeter to confirm continuity–readings should fall between 2 to 4 ohms. A deviation suggests either a severed wire or corroded terminals.
Next, inspect the power supply lines. The constant 12V feed (pin 4) must maintain voltage even when the ignition is off. The switched power (pin 7) should activate only with the key in the “ACC” or “ON” position. If either line registers zero volts, trace back to the fuse panel–F3 (10A) controls the accessory circuit. Replace the fuse if blown, but recheck for short circuits downstream before reinstalling.
Ground connections require meticulous attention. Pin 8 serves as the primary ground, but secondary grounding often occurs through the chassis. Scrape away paint or rust at contact points and secure with a star washer to prevent intermittent failures. For aftermarket installations, route new wires away from engine components or moving parts to avoid abrasion. Use heat-shrink tubing on splices and avoid electrical tape for long-term reliability.
Avoid tapping into existing speaker wires for additional components unless absolutely necessary. Instead, source clean power directly from the battery with an inline fuse (15A recommended). For amplifier setups, verify that the remote turn-on (pin 11) transitions from 0V to 12V when engaged. Failure here indicates a faulty trigger relay or wiring error upstream.
Document every modification with colored diagrams. Note wire gauge (typically 20 AWG for speaker lines, 16 AWG for power) and routing paths. If integrating a modern head unit, verify compatibility with the factory data bus–some late-model vehicles require CAN bus adapters to retain features like steering wheel controls. Test all functions before reassembling panels.
Understanding the Electrical Layout for Your Minivan’s Audio System
Start by locating the 12-pin connector behind the factory stereo unit–this is the primary interface for all connections. Pin assignments typically follow this order: constant power (yellow), switched power (red), ground (black), and speaker outputs (gray, purple, white, green). Verify each wire’s voltage with a multimeter before splicing; incorrect connections risk blown fuses or damaged components. Use crimp connectors instead of solder for field repairs to maintain reliability under vibration.
For aftermarket upgrades, match the harness adapter by vehicle year: 2001-2007 models use a 40-pin ISO connector, while 2008+ variants require a different pinout with separate illumination and mute circuits. Ignore generic “plug-and-play” guides if they don’t specify the exact trim level–differences between SE and Grand models affect the wiring layout, especially for rear entertainment systems.
Color-Coded Wiring Standards
Factory harnesses follow a strict color scheme: light blue (left front speaker +), dark blue (left front speaker -), gray (right front speaker +), dark gray (right front speaker -), orange (rear left speaker +), brown (rear left speaker -), green (rear right speaker +), purple (rear right speaker -). Deviations occur in premium audio packages; consult the vehicle’s build sheet for confirmation. Avoid assuming continuity–test each wire with a tone generator to rule out hidden resistors or fuses.
Connecting a new head unit requires a bypass for steering wheel controls; these systems often use a CAN bus interface, which won’t transmit analog signals without an adapter like Metra ASWC-1. Installation errors here trigger false error codes in the onboard computer, leading to non-functional climate controls or instrument cluster anomalies. Always disconnect the battery’s negative terminal before making any connections to prevent short circuits.
Troubleshooting Common Issues
Flickering display or intermittent power usually traces back to a loose ground connection–ensure the grounding point is clean, bare metal with no paint or corrosion. Corroded connectors in the fusebox (especially Fuses 18 and 22) cause similar symptoms; use dielectric grease when reassembling to prevent future oxidation. If speakers produce static or no sound, check for reversed polarity at the wiring harness–swap speaker wires one at a time to isolate the faulty pair.
Bluetooth or USB malfunctions often stem from incorrect fuse ratings; verify that the accessory fuse (typically 10A) matches the aftermarket unit’s requirements. Factory amplifiers for premium audio systems require a separate trigger wire (usually pink) to activate–omitting this connection results in distorted sound. For rear-seat entertainment, ensure the power inverter’s relay clicks audibly during startup; silent operation indicates a failed relay or blown fuse.
Document every modification with labeled photographs before finalizing the installation–this saves hours during future upgrades or repairs. Use a zip-tie to secure excess wire neatly to the chassis, avoiding areas near moving parts or heat sources like the exhaust pipe. For maximum durability, apply heat-shrink tubing over spliced connections rather than electrical tape, which degrades over time.
Finding the Right Connector for Your Minivan’s Audio System by Production Year
Locate the build plate inside the driver-side door jamb–this small metal tag lists the exact trim, options, and manufacturing date. Cross-reference this data with the OEM part number found in the service manual for your specific release year. For instance, models assembled between 2001 and 2007 use a 16-pin rectangular harness, while 2008-2016 variants switch to an 18-pin configuration with two additional power leads for enhanced amplifier integration.
- 1996-2000: Rectangular 12-pin harness, gray housing, single ground wire.
- 2001-2007: Rectangular 16-pin harness, black housing, bundled illumination wire.
- 2008-2016: Rectangular 18-pin harness, blue housing, separate memory power lead.
- 2017-2023: Circular 20-pin harness, red housing, CAN bus data lines.
Measure the connector width and pin count if the build plate is missing. A 2005 base trim harness measures 32mm across with 16 pins, whereas a 2012 premium trim expands to 38mm with 18 pins–this 6mm difference eliminates aftermarket mismatches. Verify color codes: pre-2008 harnesses use a solid orange wire for constant power, while post-2008 models split it into orange (constant) and yellow (switched).
Check the fuse box diagram under the dashboard for labeled audio circuits. Models with rear entertainment systems require an auxiliary 8-pin sub-harness, typically bundled with the main connector but sometimes omitted in third-party kits. If the fuse labeled “RDO” is rated 15A in the 1998 edition but jumps to 20A in 2003, the harness must support that current increase–failure risks blown fuses or degraded signal quality.
Inspect the existing connector for damage or modifications. Factory harnesses have molded strain reliefs and tinned copper wires; aftermarket replacements often use thinner strands prone to corrosion. For vehicles with integrated navigation, ensure the harness includes the purple (speed signal) and brown/white (reverse trigger) wires–omission causes GPS and backup camera failures. Use a multimeter to confirm continuity on each pin; resistance above 0.5 ohms indicates degraded connections requiring splicing.
Order replacements directly from the manufacturer’s parts portal using the VIN or call the service department with the build date. Avoid universal harnesses–they lack model-specific pinouts for features like OnStar (pre-2010) or Uconnect (post-2011). For hybrids, the harness must include the green/white wire for the quiet-start relay; absence prevents the stereo from powering on during engine-off mode.
How to Find the Audio System Harness Connector Behind the Instrument Panel
Begin by removing the climate control knobs–pull them straight off with firm but steady pressure. The retainer clips behind each knob are fragile, so avoid prying with tools; grip the knob at its base with both hands if resistance is felt. Label each knob with masking tape to prevent mix-ups during reassembly.
Next, unscrew the trim panel covering the lower dashboard section. Most models use three 7mm screws–one on each side beneath the air vents and one centrally below the hazard flasher button. Store screws in a magnetic tray to avoid losing them between carpet fibers or seat crevices. Gently pull the panel away; it is secured by hidden clips that may require slight twisting to release.

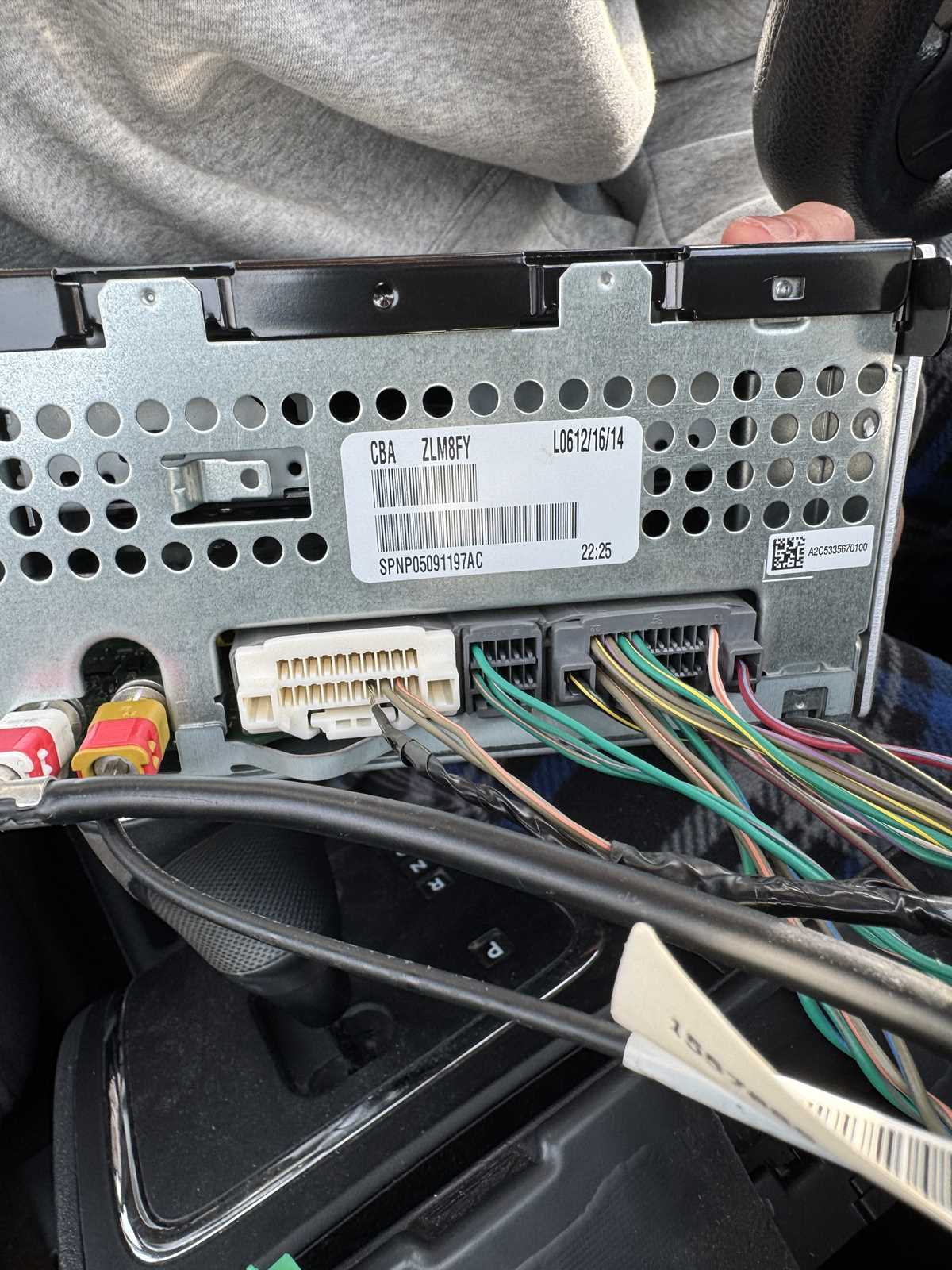

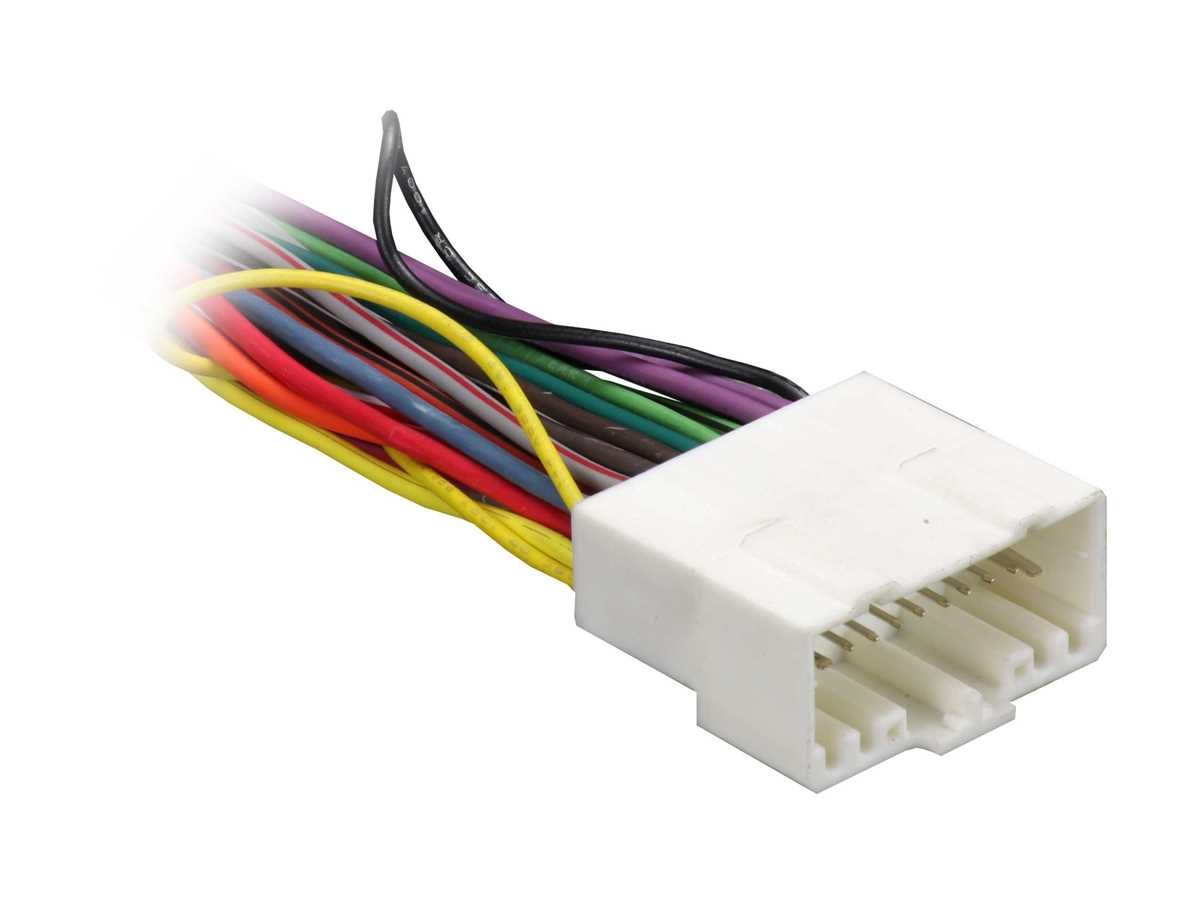

Locate the main audio unit mounting cage–this is a metal frame holding the factory stereo in place. The harness connector is typically a rectangular plug with 12–24 male pins, color-coded (yellow, red, black, orange, blue/white stripe). Trace the bundle of wires exiting the back of the stereo; they converge into a single connector clamped to the firewall or support bracket. If obscured, follow the wires past the HVAC ducts–avoid tugging on unrelated cables.
- Yellow: Constant 12V (battery memory)
- Red: Switched 12V (accessory power)
- Black: Ground (chassis return)
- Orange: Illumination (dims with headlights)
- Blue/White: Amplifier turn-on (remote lead)
Disconnect the negative battery terminal before unplugging the connector to prevent short circuits or airbag system faults. Use a small flathead screwdriver to press the release tab on the side of the plug–most connectors latch with a click, but some require simultaneous squeezing of both locking tabs. Pull the connector straight out without twisting; forced angles can bend pins.
If the harness is not immediately visible, check behind the glovebox or under the lower knee bolster panel. Some installations route the cable through a rubber grommet next to the pedals. For vehicles with factory navigation, an additional 20-pin connector may be present–this carries data lines for the GPS module and should not be disturbed unless upgrading.
Reassemble in reverse order, ensuring all screws torque to 8–10 inch-pounds. Test each control before fully reinstalling trim panels; verify power windows, door locks, and warning chimes function normally. If flickering dashboard lights occur, recheck the ground connection at the chassis point behind the fuse block.
