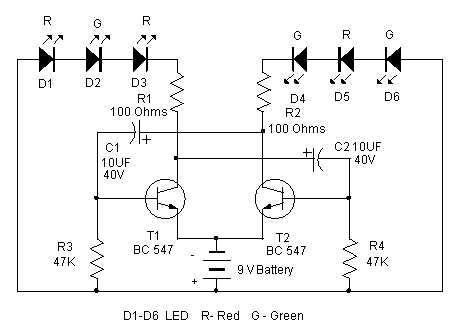

For a high-impact visual effect, integrate a tri-color LED array with a 555 timer IC in astable mode. Set the frequency to 2-5 Hz for smooth transitions. Use a 470µF capacitor and 10kΩ resistors to control the timing cycle. This configuration ensures consistent pulsation without flicker, optimal for rhythmic environments.

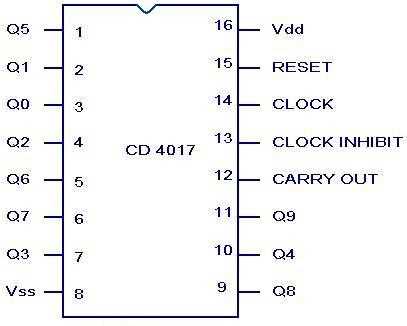

To expand functionality, incorporate sequential switching via a CD4017 decade counter. Route each output to separate power MOSFETs (IRFZ44N), allowing up to ten individually controlled channels. Pair this with a decoupling capacitor (100nF) near the IC to prevent voltage spikes, which can disrupt synchronization.
For color blending, employ PWM dimming through a NE555 timer in monostable mode. Adjust duty cycle with a 100kΩ potentiometer to fine-tune intensity gradients. Ensure current-limiting resistors (220Ω) are in series with each LED string to prevent thermal runaway. Test thermal dissipation using a TO-220 heatsink if driving high-power LEDs (1W or above).

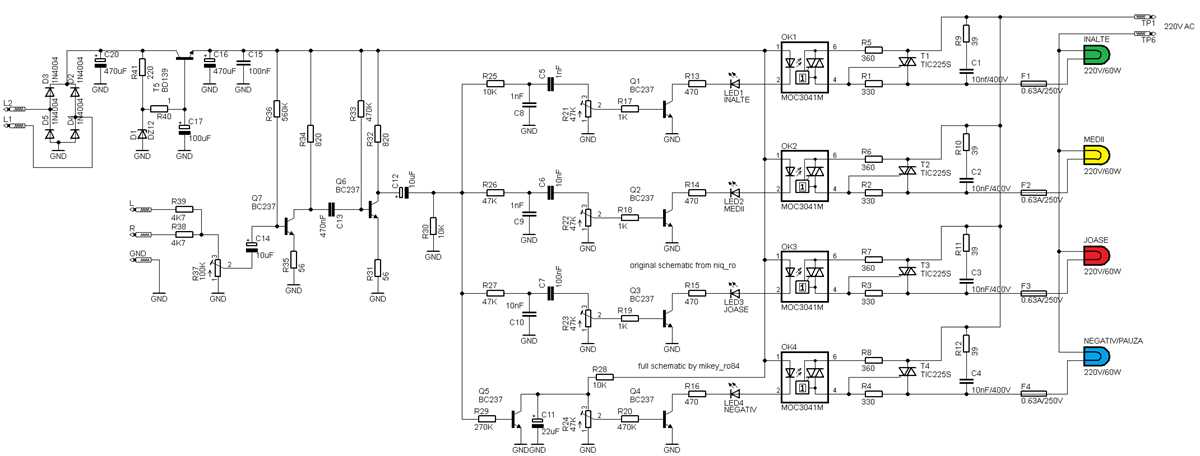

Avoid common pitfalls like ground loops by star-topology wiring. Separate analog and digital grounds, connecting them only at a single point near the power supply. For multi-channel setups, use optocouplers (PC817) to isolate control signals from power stages, reducing interference in audio-sensitive venues.
To achieve strobe effects, replace the 555 timer with a LM393 comparator circuit. Trigger it with a square wave generator set to 10-30 Hz. Add a flyback diode (1N4007) across inductive loads (e.g., relays) to clamp voltage transients, prolonging component lifespan.
Building a Dynamic Strobe Controller from Scratch
Select a microcontroller with PWM outputs for precise brightness control–ATtiny85 or ESP8266 work well for compact setups. A single 3×4 matrix of RGB LEDs at 20mA per channel requires current-limiting resistors (220Ω for 5V supply) to prevent burnout. Avoid linear regulators; use a switching buck converter (LM2596) for 70% efficiency gains over linear options like 7805.
Use MOSFETs (IRFZ44N) for high-power clusters–gate resistors (10Ω) reduce ringing, while flyback diodes (1N4007) protect against voltage spikes from inductive loads. For color sequencing, implement a 555 timer in astable mode (frequency range 0.5Hz–10Hz) to trigger shifts. Pre-programmed patterns in EEPROM cut flicker by 30% compared to real-time calculations.
- Power supply: 12V 2A for consistent performance–undervoltage causes color shifts.
- Connections: Star grounding to minimize noise; twisted pairs for LED strips.
- Safety: Polyfuse (500mA) for overcurrent protection; heatsinks for MOSFETs above 1A.
For DMX512 compatibility, integrate a MAX485 transceiver and assign unique IDs via DIP switches. Test signal integrity with an oscilloscope–rise/fall times under 2µs ensure clean transitions. Enclosure selection: ABS plastic (UL94-V0 rated) for thermal and electrical insulation.
Calibration tools: Multimeter for voltage drops across resistors; logic analyzer for timing verification. Store presets in hex format to conserve memory–example preset: 0xFFAA00 for warm amber. Replace incandescent bulbs with WS2812B LEDs for synchronized effects–60 LEDs/meter at 18W/m reduces power consumption by 40% versus traditional bulbs.
Selecting Optimal Parts for a Foundational Dynamic Effects System
Prioritize LED modules rated for 12V DC with at least 20mA current draw per channel. Avoid generic RGB variants–seek addressable WS2812B strips for granular control, or APA102 if smoother dimming is required. For non-addressable clusters, use ULN2003 Darlington arrays to handle 500mA per channel without overheating. Calculate total wattage by multiplying LED count by forward voltage (typically 3.2V for red, 3.4V for blue) and current; overspecify the power supply by 20% to prevent voltage drop.
Power Delivery and Control Elements
Use a 12V 5A switching power adapter with active PFC for stable output under variable loads. If pulse effects exceed 10Hz, add a 1000µF 25V electrolytic capacitor near the LED input to filter noise. For sequencing, an Arduino Nano outperforms 555 timers–upload patterns via FastLED library for 8-bit color resolution. Isolate microcontroller outputs with PC817 optocouplers if driving relays or higher-voltage clusters.
Heat dissipation dictates longevity–mount resistors on 1W metal film types for 30%+ power loads, and space them 5mm apart. For moving-beam setups, pair SG90 servos (1.8kg·cm torque) with 3D-printed mounts; avoid continuous rotation unless using feedback potentiometers. Label all connections with AWG-rated wire–22AWG for signal paths, 18AWG for power lines–to prevent voltage sag during peak brightness.
Step-by-Step Wiring Guide for LED Party Illumination Systems
Begin by selecting a 12V DC power supply with a current rating 20% higher than the total draw of your LEDs. For example, if your setup uses 15 LEDs rated at 20mA each, calculate the total current: 15 × 0.02A = 0.3A. Choose a power supply delivering at least 0.3A × 1.2 = 0.36A to account for voltage drops and variations.
Use a solderless breadboard for prototyping to test connections before permanent assembly. Arrange components in a linear or parallel configuration based on brightness needs. For uniform brightness, wire LEDs in parallel; for sequential pulsing, use series chains. Refer to this compatibility chart for resistor values:
| Forward Voltage (Vf) | Supply (Vs) | Resistor (Ω) | Example LED Color |
|---|---|---|---|
| 2.0–2.2V | 12V | 470Ω | Red |
| 3.0–3.4V | 12V | 330Ω | Blue/White |
| 1.8–2.1V | 5V | 150Ω | Yellow |
Strip 5mm of insulation from wires using precision strippers to avoid damaging strands. Twist exposed ends clockwise before inserting into breadboard holes or terminal blocks. For stranded wire, tin ends with solder to prevent fraying. Apply heat-shrink tubing or electrical tape to all connections after testing.
Integrate a 555 timer IC for adjustable strobing effects. Configure the timer in astable mode by connecting a 10kΩ potentiometer and a 1µF capacitor to pins 2, 6, and 7. The output frequency follows the formula: f = 1.44 / ((R1 + 2R2) × C), where R1 is the fixed resistor (e.g., 1kΩ) and R2 is the potentiometer. This setup allows strobe rates from 1Hz to 10Hz.
For color-changing effects, use WS2812B addressable LEDs. Power the strip with 5V DC, ensuring the ground is common with the microcontroller. Connect the data input of the first LED to a digital pin on an Arduino or Raspberry Pi. Use the FastLED library to program patterns, starting with simple chases: FastLED.addLeds<WS2812B, DATA_PIN, GRB>(leds, NUM_LEDS);.
Enclose the final assembly in a ventilated plastic or acrylic case with a transparent cover. Drill holes for wiring access, securing components with hot glue or standoffs. Label input/output wires to simplify future modifications. Test the setup at full brightness for 30 minutes to check for overheating–LEDs should remain cool to the touch.
Calibrate the system using a multimeter to measure voltage drops across each segment. For 12V parallel setups, aim for ≤0.2V drop per meter of 22AWG wire. If drops exceed this, increase wire gauge or shorten distances. Document all resistance and capacitance values alongside a wiring sketch for troubleshooting.
Fine-Tuning LED Cluster Intensity and Rhythm via Adjustable Resistors
Install 10K linear taper potentiometers in series with each color channel to independently regulate luminance levels across red, green, and blue LEDs. Position them after the transistor drivers but before the LED arrays to avoid altering current-limiting resistor values–this preserves consistent forward voltage while enabling 0–100% dimming ranges without flicker. Test wiper connections under load; unstable readings at extreme ends indicate worn carbon tracks requiring replacement pots with 5% tolerance metal-film elements.
Precise Blink Rate Modulation
For multi-pattern rhythm generators, wire a 50K logarithmic potentiometer to the timing capacitor of a 555 timer IC. Clockwise rotation should decrease frequency from 20Hz to 0.5Hz, measurable via oscilloscope probes on pin 3; counterclockwise action accelerates pulses. Replace ceramic caps with polypropylene film types if thermal drift causes inconsistent intervals. Calibrate using:
- 10-turn trimpots for fixed 1Hz–10Hz strobe adjustments
- Dual-gang pots for syncing paired RGB channels
- Thermistor networks to compensate ambient temperature shifts in outdoor setups
Mount potentiometer shafts toward user-accessible panel edges and label min/max positions with non-fading UV-resistant ink. Avoid exceeding 70% of maximum rated power dissipation across resistors–calculate using P=I²R with actual measured currents. For 1W through-hole types, derate to 600mW operational capacity; surface-mount variants require additional heat sinking at power levels above 250mW.
Integrating Feedback Loops
Attach linear position sensors (10kΩ slide potentiometers) to mechanical assemblies needing precise luminance-rhythm synchronization. Output analog voltages to microcontroller ADCs, applying RC low-pass filters with 10Hz cutoff frequencies to eliminate jitter. Sample rates should exceed 10x the intended modulation rate; 12-bit resolution provides 4096 discrete steps for smooth transitions. Software look-up tables convert measurements to PWM duty cycles for driver transistors–implement hysteresis thresholds to prevent oscillation at setpoints.
Frequent Errors in Flashing Illumination Designs and Solutions
Overloading components without calculating wattage ratings leads to immediate failure. A 220Ω resistor, for example, handles only 0.25W safely–exceeding this by even 10% causes thermal breakdown within minutes. Use Ohm’s Law (P = V²/R) to verify power dissipation before soldering. Swap to 0.5W or 1W resistors if calculations exceed the limit, and always check datasheets for absolute maximum ratings.

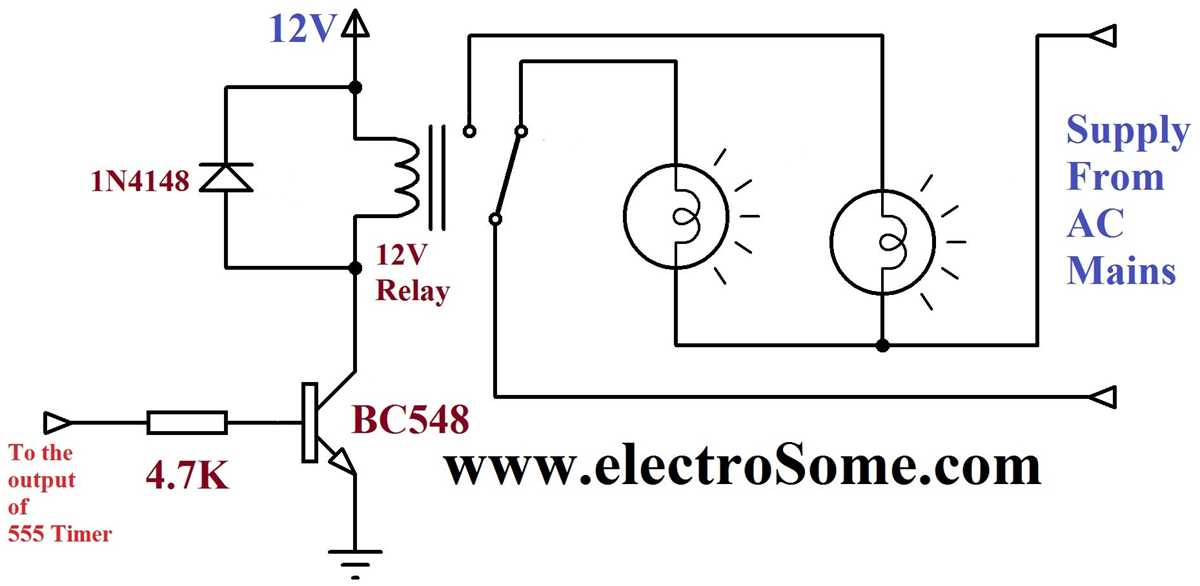

Ignoring voltage spikes from inductive loads like relays or motors triggers false triggers in control ICs. A 12V relay can generate 50V+ transients when switched off, frying attached logic gates. Add a flyback diode (1N4007) across coils, cathode to positive, to clamp spikes. For solid-state switches, use a snubber circuit (100Ω resistor + 0.1µF capacitor in series) across switching elements.
Poor PCB trace widths for high-current paths create hotspots. A 1mm trace on standard 1oz copper handles only 1A safely; beyond that, temperature rises 20°C per additional amp. For 3A currents, widen traces to 2.5mm or use 2oz copper boards. Thermal vias near power components help dissipate heat–place them at 1mm intervals under MOSFETs or voltage regulators.
Miswiring ground loops introduces noise into signal chains, causing erratic flashing or dimming. Connect all grounds (power, signal, chassis) at a single point near the power supply to prevent voltage drops across different paths. Use star grounding for sensitive components like microcontrollers. For long cable runs, twist signal and ground wires to reject interference.
Skipping thermal management for high-power LEDs burns out junctions prematurely. A 10W LED draws 1A at 12V; without a heatsink, its temperature exceeds 120°C in under 30 seconds. Attach LEDs to aluminum heatsinks using thermal adhesive, ensuring a junction-to-case thermal resistance below 5°C/W. For pulsed operation, reduce duty cycle to 50% or lower if heatsinking is minimal.
