For a basic door alert setup, use a transformer rated at 8–16 volts AC with a class-2 output, paired with a solenoid actuator rated for the same voltage range. Connect the transformer’s secondary leads to a push-button switch at the entry point, then route the wiring to the solenoid’s coil terminals. Ensure the actuator plunges freely–obstructions will reduce sound clarity or prevent operation. Check polarity only if using a DC source; AC systems ignore it.
For a multi-tone installation, employ a rotary selector switch between two or more solenoids, each tuned to a distinct resonant frequency. Wire the selector’s common terminal to the transformer’s output and terminate each selector position to a separate coil. A 1N4007 diode across each coil terminal prevents voltage spikes from damaging switch contacts. Use 18-gauge stranded wire for runs under 50 feet; thicker 16-gauge reduces voltage drop in longer spans.
A latching variant eliminates continuous power draw. Replace the push-button with a momentary toggle switch feeding a 555 timer IC configured in monostable mode. The timer’s output drives a relay that closes the solenoid circuit for 1–2 seconds, then resets. Power the IC with a 9-volt regulator; decouple with a 100 µF capacitor near the power pins to suppress noise. Test the relay’s contact resistance–values above 1 ohm will degrade solenoid force.
Volume control demands a potentiometer in series with the transformer output. Choose a wire-wound 10-watt unit; carbon film potentiometers overheat under inductive loads. Mount the control near the chime enclosure to simplify wiring and avoid interference from adjacent cables. For battery-powered mobile units, substitute the transformer with a 12-volt sealed lead-acid pack; recharge via a 2A wall adapter or a USB-C PD trigger set to 9 volts.
Build a Classic Door Chime: Key Wiring Insights
Start with a 12V AC transformer–standard for low-voltage sound emitters–paired with a bridge rectifier to convert AC to pulsed DC for consistent tone generation. Use a 1000µF capacitor to smooth voltage fluctuations, preventing erratic chimes. Connect the solenoid to a 2N2222 transistor as a switch; a 1kΩ resistor at the base limits current to 5mA, ensuring reliable activation without overheating. For timing, a 555 IC in monostable mode delivers a 0.5-second pulse when triggered, adjustable via a 10kΩ potentiometer.
- Primary coil wire gauge: 24 AWG for solenoids under 3W, 22 AWG for 3-5W loads to avoid voltage drop.
- Speaker impedance: 8Ω for direct connection; use a 1:1.5 transformer for 4Ω variants to match output power.
- Supply tolerance: ±10% voltage variation permissible–test with a multimeter at 11.5V and 13.2V to confirm stable operation.
- Component spacing: Mount resistors 5mm apart on protoboard to prevent thermal coupling; capacitors should be 10mm from heat sources.
Isolate trigger inputs with an optocoupler (PC817) if interfacing with high-voltage sources–this protects the timing IC from voltage spikes. For dual-tone setups, wire a second solenoid in parallel but add a 1N4007 diode in reverse across each coil to clamp inductive kickback. Test continuity before energizing: resistance between transformer secondary and solenoid should read 5-15Ω, confirming no shorts. Label wires by function (e.g., “TRIG-1,” “GND”) to simplify troubleshooting during assembly.
Core Elements for Assembling an Auditory Chime System
Select a piezoelectric buzzer with a resonant frequency between 2 kHz and 4 kHz for optimal tonal clarity. Models like the TDK PS1240 or CUI Inc CBL28-120 offer minimal current draw while delivering sufficient acoustic pressure–typically 85-90 dB at 10 cm. Avoid passive buzzers; an active type with built-in oscillation eliminates the need for an external driver stage.

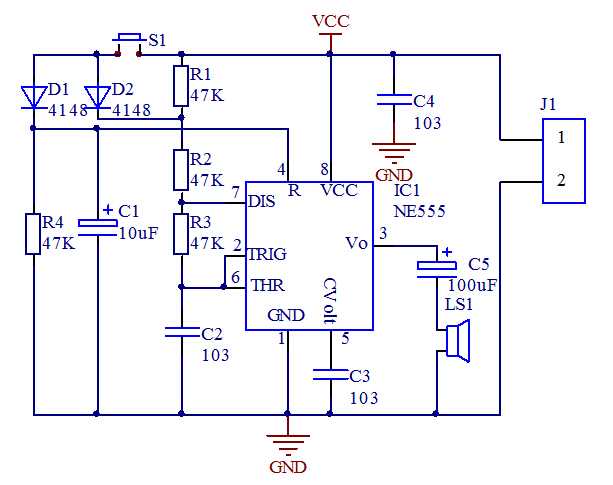

Use a 555 timer IC in astable mode to generate a dual-tone sequence. Configure the timing components–two resistors (R1, R2) and one capacitor (C)–to produce alternating frequencies. For a 1-second high tone followed by a 0.5-second low tone, set R1=68 kΩ, R2=100 kΩ, and C=10 µF. Solder these directly to the IC’s pins 2, 6, and 7 to reduce noise susceptibility.
Incorporate an NPN transistor (2N3904 or BC547) as a switch to isolate the timer’s output from the buzzer. Connect the buzzer’s positive lead to the collector, the emitter to ground, and drive the base via a 1 kΩ resistor from the 555’s output. This prevents excessive current draw–limit to 20 mA–to avoid damaging the IC.
Power Supply Specifications
Stabilize input voltage at 5 VDC for consistent performance. A linear regulator (7805) ensures clean power, critical for preventing frequency drift in the timer. Decouple the regulator’s input and output with 10 µF tantalum capacitors to filter ripples above 100 Hz. For battery-powered setups, use two AA alkaline cells in series; their 3 V nominal output suffices when paired with a low-dropout regulator like the MCP1702.
Add a momentary pushbutton (SPST, rated for 12 VDC) to trigger the sequence. Debounce the switch with a 0.1 µF ceramic capacitor across its terminals to eliminate false triggers caused by contact bounce. Route the switch’s output to the 555’s reset pin (pin 4) via a 10 kΩ pull-up resistor; grounding this pin resets the oscillator.
Include a flyback diode (1N4007) in parallel with the buzzer if using an inductive load variant. This protects the transistor from voltage spikes exceeding the supply by 10x during switching transitions. Position the diode as close to the buzzer terminals as physically possible to minimize trace inductance.
Signal Integrity Enhancements
Place a 100 nF decoupling capacitor within 2 mm of the 555’s VCC pin (pin 8) to suppress high-frequency noise. On perfboard layouts, keep traces between the timer and passive components under 3 cm to avoid parasitic oscillations. For printed circuits, use a ground plane beneath the signal paths to reduce EMI emission.
Test the assembled system with an oscilloscope before finalizing solder joints. Confirm the timer’s output pulses at pins 3 and 6 alternate between 0.8 V (low) and 4.2 V (high) with sharp rise/fall times (
Step-by-Step Wiring Guide for Chime Mechanism Assembly
Start by identifying the transformer’s secondary winding terminals–these typically output 8V to 24V AC. Use a multimeter to verify voltage before connecting; improper polarity risks damaging the solenoid coil. Securely attach the transformer’s output wires to the chime unit’s input screws, ensuring no exposed strands touch adjacent terminals. If the device uses a rectifier module, position it between the transformer and solenoid to convert AC to DC for consistent operation.
For push-button wiring, strip 6mm of insulation from the ends of a two-conductor cable. Thread one wire to the button’s normally open contact and the other to the common terminal. Route the cable through wall cavities or conduit to prevent interference with insulation; avoid proximity to high-voltage lines (minimum 10cm clearance). Terminate both wires at the chime’s designated terminals, matching polarity if specified in the device manual. Use wire nuts or crimp connectors for outdoor installations to prevent moisture ingress.
Test solenoid response by temporarily bypassing the push button–this isolates faults between the switch and mechanism. If the striker fails to activate, check for continuity in the wiring with a multimeter (ohms setting). Replace frayed wires or corroded terminals immediately. For units with adjustable strike intensity, locate the potentiometer near the coil and turn clockwise until the plunger moves smoothly without hesitation. Avoid setting it too high, as this shortens component lifespan.
Grounding requirements vary by model: attach a 14-gauge bare copper wire from the chime’s grounding screw to a nearby metal junction box or grounded outlet. This step is critical in humid environments to prevent static buildup and erratic operation. For battery-powered alternatives, use rechargeable lithium-ion cells rated for 12V, avoiding alkaline types due to voltage drop under load. Connect the battery’s positive terminal to the solenoid’s input and the negative to the common ground; add a 1A fuse inline to prevent short circuits.
Finalize by securing all connections with nylon cable ties or electrical tape, leaving slack for maintenance access. Label wires at both the chime and switch ends using adhesive markers or heat-shrink tubing. Power up the system and press the button multiple times to confirm consistent activation–delayed response may indicate loose wiring or voltage sag. For multi-tone variants, program the sequencer before mounting the cover plate to avoid misalignment of reed switches or solenoids.
Resolving Frequent Problems in Chime Systems
Check the power supply first if the tone generator fails silently. Use a multimeter to verify voltage at the transformer outputs–most residential systems require 8–24V AC. If readings drop below 7V, inspect the wiring for corrosion or loose connections, particularly at terminal blocks. Replace transformers with burned-out coils or swollen capacitors immediately; these components degrade over time and often fail without warning.
No sound despite power? Examine the striker assembly. Corroded hammer pivots or worn solenoids prevent proper activation. Lubricate pivot points with synthetic grease, but avoid petroleum-based products–they attract dust and accelerate wear. If the solenoid clicks but the hammer remains stationary, pry it gently with a non-conductive tool to confirm mechanical obstruction. Replace solenoids showing resistance below 3 ohms or open circuits.
Distorted audio usually stems from damaged speakers or inadequate voltage. Test the chime module’s output with an oscilloscope; clean sine waves indicate healthy operation, while clipped signals reveal blown drivers. For wireless models, ensure the receiver module isn’t obstructed by metal surfaces–signal attenuation cuts range by 60% through walls thicker than 12 inches. Re-solder loose speaker wires and replace diaphragm units if membrane tears exceed 2mm.
Intermittent operation often traces back to faulty push buttons. Clean contacts with isopropyl alcohol and a fiberglass pen to remove oxidation buildup. For outdoor switches, ensure watertight seals–moisture ingress causes short circuits within days. If the issue persists, bypass the button temporarily using a jumper wire; consistent performance confirms a defective switch needing replacement.
False triggers indicate EMI interference. Relocate low-voltage wiring at least 12 inches from power lines and fluorescent lighting ballasts. Twist paired wires tightly (minimum 4 turns per foot) to cancel induced noise. For smart systems, disable “quick notify” modes that sample inputs too frequently–adjust polling intervals to 50–100ms to prevent ghost activations from transient spikes.
