Start with a 555 integrated circuit in astable mode for reliable interval generation. Configure pin 2 (trigger) and pin 6 (threshold) together to reset the cycle automatically, while pin 3 delivers the pulsed output. For a 5-second delay, pair a 47-kilohm resistor with a 100-microfarad capacitor–this combination ensures predictable timing without drift. Adjust values linearly: doubling the resistance halves the frequency, while larger capacitors extend the interval.
Opt for CMOS variants like the 7555 if power efficiency under 5 volts matters. These draw microamperes instead of milliamps, preventing excessive drain in battery-driven setups. Avoid breadboard instability by soldering components–parasitic capacitance between loose connections distorts pulses longer than 10 seconds. Use a ceramic capacitor for the control pin (pin 5) to filter noise, especially if neighboring circuits operate at high frequencies.
Add a 74HC4017 decade counter to expand the system beyond basic on/off cycles. Connect its clock input to the 555’s output; each rising edge advances the count, enabling sequential control. For visual feedback, attach LEDs through 470-ohm resistors to the counter’s outputs. Reset the counter at any point by grounding pin 15–this forces an immediate restart, useful for safety overrides.
Validate timing accuracy with an oscilloscope–compare the pulse width against calculated values. If discrepancies exceed 5%, replace electrolytic capacitors; their tolerance drifts over temperature. For extended intervals (hours), cascade multiple stages: link the first stage’s output to a second 555’s trigger, chaining delays while maintaining precision.
Building a Precision Countdown Circuit: Key Components and Layout
Start with a microcontroller like the ATmega328P–its 16 MHz clock and 32 KB flash memory handle intervals up to 99 hours without drift. Pair it with a 16×2 LCD module (Hitachi HD44780 driver) for real-time display; use 4-bit mode to save I/O pins. For power, a 5V linear regulator (LM7805) ensures stable operation, but add a 1000μF capacitor at the input to filter noise from cheap wall adapters.
- Oscillator precision: Use a 32.768 kHz crystal for RTC functions if sub-second accuracy is critical. Avoid ceramic resonators–they drift ±0.5%.
- Switch debounce: Connect tactile buttons to interrupts via 10kΩ pull-ups and debounce in firmware using 50ms delays or RC networks (1kΩ + 10μF).
- Output stage: Drive relays with a ULN2003 Darlington array–handle up to 500mA per channel. Add flyback diodes (1N4007) to protect against inductive spikes.
Route traces for high-current paths (relay coils, power rails) at least 1.5mm wide on a 1oz copper PCB to prevent voltage drops. Keep crystal traces short (
For programming, expose ISP headers (MOSI, MISO, SCK, RESET) with 0.1″ spacing for easy flashing. Use Arduino IDE with the “TimerOne” library for non-blocking delays. If visual feedback is needed during testing, add a 5mm LED with 220Ω series resistor to monitor heartbeat pulses without draining power.
- Calculate resistor values for LED indicators using
R = (Vcc - Vf) / If. For a 3.3V supply and red LED (Vf = 1.8V, If = 5mA), use 330Ω. - Store presets in the MCU’s EEPROM–use
EEPROM.put()andEEPROM.get()to save/load up to 1KB without external memory. - For battery backup, use a DS3231 RTC module–its integrated crystal compensates for temperature drift (±2ppm).
Core Elements for Constructing a Precision Countdown Mechanism
Begin with a microcontroller (MCU) like the ATmega328P or PIC16F887–these handle logic, interval calculations, and I/O control without excessive power draw. Select models with internal oscillators to reduce component count unless timing accuracy below ±100 ppm is required, in which case add an external crystal (e.g., 16 MHz with 22 pF load capacitors).
A 7-segment LED display or LCD module (HD44780-compatible) serves as the primary interface. For multi-digit setups, use a multiplexing approach: drive common cathodes/anodes sequentially via transistors (2N2222 for LEDs, IRLZ44N for high-current needs) or shift registers (74HC595). Ensure current-limiting resistors (220–470 Ω) for each segment to prevent burnout.
The reference oscillator dictates precision. For sub-second resolution, pair the MCU with a 32.768 kHz watch crystal–its divide-by-32,768 frequency aligns neatly with 1 Hz pulses. For higher accuracy (±20 ppm), consider a temperature-compensated oscillator (TCXO) like the SiT1533, though cost rises tenfold.
Input interfaces must include momentary switches for start/stop and preset adjustments. Debounce circuits–either hardware (RC filters, 0.1 μF capacitor + 10 kΩ resistor) or software (10–20 ms delay)–prevent false triggers. For advanced features, integrate a rotary encoder (EC11) with pull-up resistors (10 kΩ) and interrupt-driven firmware.
Power regulation demands a low-dropout (LDO) regulator like the MCP1700 (3.3V/250 mA) or AMS1117 (5V/1A). For battery operation, prioritize efficiency: use a buck converter (TPS62743) for 2–3 AA cells or a single Li-ion cell with charge management (MCP73831). Bypass capacitors (1 μF ceramic + 10 μF tantalum) stabilize voltage rails near sensitive components.
Output drivers depend on the load. For relays (e.g., triggering a 12V solenoid), opt for an optocoupler (PC817) followed by a power MOSFET (IRFZ44N) or solid-state relay. Ensure flyback diodes (1N4007) across inductive loads. For low-power signals, a direct MCU pin with a 200 Ω series resistor suffices.
Firmware must handle interrupt-driven counting to avoid drift. Use timer modules (e.g., Timer1 on AVR) for precise overflows, pairing with compare-match registers for interval adjustments. Store presets in EEPROM if persistence is needed–ATmega328P offers 1,024 bytes. Include a watchdog timer (WDT) to recover from hangs (8-second reset interval recommended).
Enclosure considerations: mount the display behind acrylic or polycarbonate panels (3–5 mm thick) with diffuser tape for uniform backlighting. Ventilation holes prevent heat buildup near power components, and strain-relief grommets protect wiring ingress. For portable designs, weigh the PCB–FR4 (1.6 mm) balances durability and cost, while aluminum-core PCBs improve thermal dissipation for high-load applications.

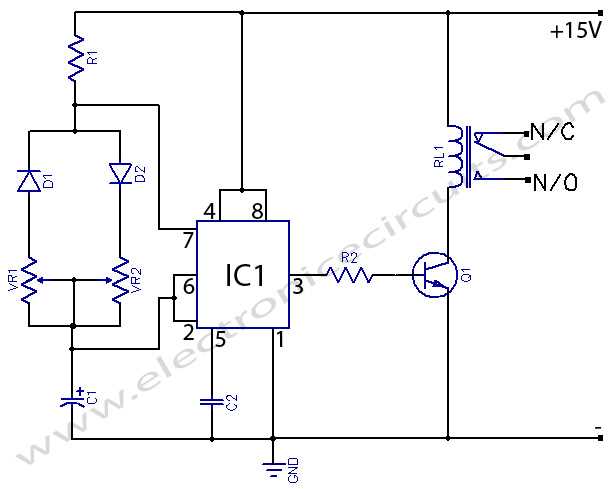

Step-by-Step Wiring Guide for a 555 IC Precision Circuit
Begin by placing the 555 IC on a breadboard, ensuring pin 1 aligns with the board’s negative rail. Use a 9V battery or regulated power supply to avoid voltage fluctuations. Connect pin 8 (VCC) directly to the positive terminal, but insert a 10μF electrolytic capacitor between VCC and ground to stabilize noise.
Essential Component Connections
- Pin 4 (Reset): Link directly to VCC to prevent accidental resets. If manual reset is needed, add a push-button between pin 4 and ground, pairing it with a 10kΩ pull-up resistor.
- Pin 2 (Trigger): Short to pin 6 (Threshold) for astable mode. For monostable operation, connect a 1μF capacitor between pin 2 and ground, then trigger via a momentary switch to VCC.
- Pin 5 (Control Voltage): Leave unconnected unless fine-tuning frequency; then attach a 0.01μF capacitor to ground to filter interference.
- Pin 7 (Discharge): For astable setups, wire this pin to a timing capacitor (e.g., 100μF) and a resistor (e.g., 10kΩ) in series to ground. This defines the charge/discharge cycle.
For a 1Hz pulse (1-second on/off), use these values: a 10kΩ resistor (R1) between VCC and pin 7, a 100kΩ resistor (R2) between pin 7 and pin 6, and a 10μF capacitor from pin 6 to ground. Calculate frequency with the formula: f = 1.44 / ((R1 + 2R2) * C). Adjust R2 to 47kΩ for a 50% duty cycle.
Attach a 220Ω current-limiting resistor to pin 3 (Output) before connecting an LED. Verify polarity–the cathode (shorter leg) should face ground. If driving a relay or transistor, substitute the LED with a 1kΩ resistor to base/gate, ensuring the load’s voltage matches the supply.
Troubleshooting Key Points
- If the circuit triggers erratically, check for floating inputs: tie unused pins (e.g., pin 5) to ground via a 0.1μF ceramic capacitor.
- Replace electrolytic capacitors every 2–3 years; they degrade and alter timing. Use tantalum for longer stability.
- Measure voltage at pin 3–it should swing near VCC and ground. If stuck, inspect pin 2/6 connections for shorts.
- Add a 1N4007 diode across inductive loads (e.g., relays) to absorb back-EMF; cathode faces VCC.
For dual-triggered setups (e.g., retriggerable delays), wire a diode (1N4148) between pin 2 and a secondary trigger source, cathode to pin 2. This prevents feedback into the input. Keep wiring under 15cm to avoid stray capacitance.
Test the timing interval with an oscilloscope at pin 3. If pulses are irregular, shield the circuit in a metal enclosure and twist power leads to minimize RF pickup. For high-precision needs, replace R2 with a 50kΩ potentiometer for manual calibration. Record the final resistance with a multimeter for reproducibility.
When soldering a permanent board, use a 0.1μF bypass capacitor near VCC and ground pins. Avoid cheap socket contacts–they oxidize; gold-plated sockets last longer. For PCB designs, orient the IC’s notch toward the board’s top edge for consistency with datasheets.
Selecting Optimal Resistors and Capacitors for Accurate Delay Circuits
For timing intervals under 1 second, use multilayer ceramic capacitors (MLCC) with X7R dielectric–specifically 0.1µF to 10µF–paired with metal film resistors (1% tolerance). X7R maintains ±15% capacitance from -55°C to +125°C, outperforming Y5V (±22%/-82%) or Z5U (±22%/-56%). Below 10kHz, prioritize 10ppm/°C resistors like Vishay’s ACAS 0603 AT to minimize thermal drift. At 100kΩ, a 10ppm/°C resistor shifts only ±0.1% across 25°C-85°C, while a 100ppm/°C resistor drifts ±1%–critical for sub-millisecond precision.
Component Matching for Extended Intervals
| Interval Range | Capacitor Type | Recommended Value | Resistor Tolerance | Temperature Stability |
|---|---|---|---|---|
| 1s–10s | NP0/C0G (MLCC) | 10nF–100nF | 1% | ±30ppm/°C |
| 10s–100s | Polypropylene film | 1µF–10µF | 0.5% | ±50ppm/°C |
| 100s+ | Tantalum (solid) | 47µF–470µF | 0.1% | ±100ppm/°C |
For intervals exceeding 10 seconds, favor polypropylene or tantalum capacitors over electrolytics–their 5x lower leakage current (e.g., 0.1µA versus 0.5µA at 25°C) reduces drift. Pair with precision wirewound resistors (0.1% tolerance) or thin-film arrays for T = 1.1 × R × C, then derate R by 20% to account for oscillator non-linearity.
