Start with a CMOS 4049 or its modern equivalent like the 74HC4049. These hex buffers offer unparalleled noise immunity–critical for maintaining signal integrity in noisy environments. For most applications, a single-stage configuration suffices, but if you’re dealing with high-capacitance loads or long traces, cascade two stages. Power the IC directly from the supply with a 0.1μF decoupling capacitor as close as physically possible to the VCC and ground pins to eliminate transient spikes.
Input protection is non-negotiable. Use a 1kΩ series resistor on the input line to limit current during static discharge or accidental shorts. For added safety, pair it with a Schottky diode (e.g., BAT54) to clamp voltages exceeding the rail. Avoid relying on internal ESD protection alone–real-world conditions often exceed datasheet margins, especially in industrial or automotive setups.
Output stage design depends on load requirements. For resistive loads under 10mA, the built-in drive strength of a 4049 is sufficient. However, if driving LEDs, relays, or low-impedance lines, buffer the output with a 2N2222 transistor or a MOSFET like the IRLML6401. Remember: MOSFET gates need proper pull-down resistors (10kΩ–100kΩ) to prevent floating states during power-up.
Grounding strategy separates functional prototypes from unreliable hardware. Use a star-ground topology, with the IC’s ground pin connected directly to the main ground plane via the shortest possible trace. Avoid sharing return paths with high-current components–this introduces ground bounce and can invert signals unpredictably. If the design includes analog sections, isolate digital and analog grounds with a single-point connection near the power source.
For variable voltage applications, use a level shifter like the TXB0104 between the polarity-switching IC and other logic families. The 74HC series typically operates at 5V, but many modern MCUs run at 3.3V or lower. Direct interfacing without translation risks forward-biasing the ESD diodes on the MCU, leading to latch-up or permanent damage. Always verify voltage compatibility before connecting nodes.
Testing should include both static and dynamic measurements. Set up a logic analyzer (even a basic 8-channel unit) to monitor propagation delays–especially critical when cascading multiple stages. A single-stage 74HC4049 inverts signals in ~10ns, but consecutive stages compound delays, potentially violating timing constraints in fast data buses. Use an oscilloscope to check edge transitions for overshoot–ringing exceeding 0.5V indicates inadequate decoupling or improper termination.

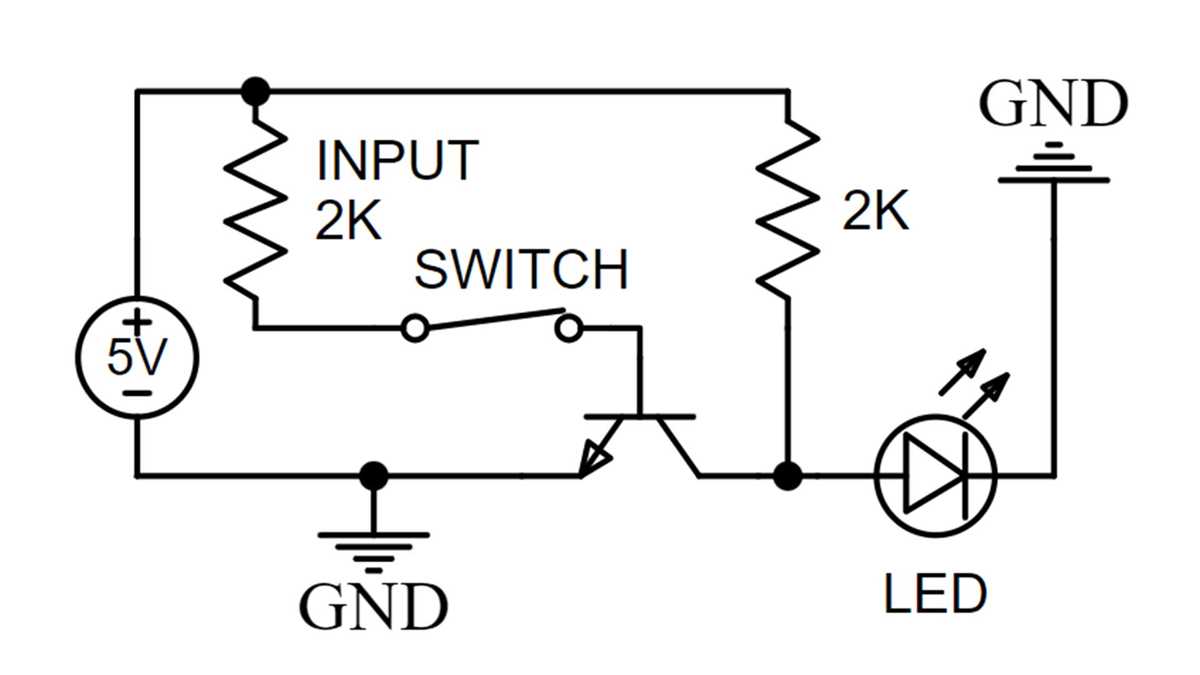

Building a Logic Negator: Schematic and Key Insights
Start with a CMOS-based NOT gate layout using one PMOS atop an NMOS transistor–minimalist yet highly stable for signal flipping. A 2N7000 (NMOS) paired with a BS250 (PMOS) ensures rapid 5V-to-GND transitions with propagation delays under 10ns at 5MHz. Keep trace lengths below 5cm to prevent parasitic capacitance from distorting square waves; ground planes should extend beneath high-speed paths for noise immunity. For threshold adjustment, replace the pull-up resistor with a 10k potentiometer–useful when interfacing 3.3V logic with 5V systems without level shifters.
Component Placement Pitfalls
Position decoupling capacitors (100nF ceramic) within 2mm of transistor power pins to quench voltage spikes during state changes; omit these, and expect erratic behavior at frequencies above 1MHz. Route input/output traces perpendicular to clock lines to minimize crosstalk. If sourcing components, prioritize threshold voltage (Vth) matching–mismatches over 0.2V will skew duty cycles. For prototyping, a 9-hole breadboard works, but solder a stripboard with through-hole vias for reliable high-speed operation.
Constructing a CMOS Logic Negator with Common Parts
Begin by gathering a pair of complementary MOSFETs–one N-channel (e.g., 2N7000) and one P-channel (e.g., IRF9540). Ensure their threshold voltages match: for 5V logic, VGS(th) should lie between 1V–2V for both. Misalignment causes incomplete switching, generating heat and distorting output waveforms. Verify pinouts: P-channel typically has source at the higher potential (connected to VDD), while the N-channel source ties to ground.
Connect the P-channel MOSFET’s gate directly to the input node; the N-channel gate mirrors this same node. Link the drains together–this junction becomes your output. Apply a decoupling capacitor (100 nF ceramic) across VDD and ground, positioned no farther than 1 cm from the transistors to suppress high-frequency noise. Omitting this risks false toggling during transitions, especially at frequencies above 1 MHz.
Voltage Levels and Load Considerations
Test input thresholds: a valid low must fall below 0.3·VDD (1.5V for 5V supply), while a valid high must exceed 0.7·VDD (3.5V). If driving LEDs or resistive loads, limit current to 10 mA per transistor to prevent thermal runaway. For higher loads, cascade two such stages or add a push-pull buffer–anything more than 50 mA necessitates heat sinks on the MOSFETs.
Standard breadboard hookup works for prototyping, but production layouts mandate short traces: gate-to-drain paths should measure under 5 mm to minimize parasitic capacitance. Use ground planes beneath signal routes to reduce cross-talk. During layout, orient both MOSFETs identically–source terminals facing away from each other–to streamline routing and avoid awkward loops.
Verification and Troubleshooting
Use an oscilloscope to inspect rise/fall times: typical values for discrete MOSFETs hover around 50 ns. Exceeding 200 ns suggests inadequate gate drive or excessive load. Measure VOL and VOH–at 5V supply, expect near 0V and 4.95V respectively under 1 mA load. Deviations point to leaky MOSFETs or misrouted traces. To isolate faults, replace each transistor individually; if the output floats mid-rail, the P-channel might be stuck open.
For stable operation above 10 kHz, add a 1 kΩ pull-down resistor on the gates if driving from a high-impedance source. Without this, capacitive coupling can cause erratic behavior when transitioning. Finally, test across temperature extremes: CMOS thresholds drift roughly -3 mV/°C, so prototypes validated at 25°C may fail at 70°C. If thermal stability matters, switch to logic-grade MOSFETs (e.g., IRLML6402) whose thresholds stay tighter across ranges.
Building a Logic Gate Flipping Schematic in PCB Editing Tools
Select a PCB design application with built-in logic component libraries–KiCad, Altium Designer, or Eagle suit best. Launch a new project file and set the grid to 0.5 mm or 20 mils for precise alignment of switching elements. Add a power rail layer and assign it 5V or 3.3V depending on the target logic family (TTL or CMOS). Place a MOSFET symbol–not an NMOS or PMOS separately–from the library directly onto the schematic sheet.
Key Component Placement Sequence
- Drop the MOSFET package: ensure the gate pin connects to the input signal via a 10 kΩ pull-down resistor to ground.
- Attach the drain to the output node and the source to ground.
- Insert a 1 kΩ load resistor between the output and power rail to define high-state voltage.
- Add a 100 nF decoupling capacitor as close as possible to the MOSFET drain to suppress switching transients.
Switch to the board layout view and import the netlist. Route traces in a star topology: input signal first, then power and ground, leaving output last. Use 0.2 mm (8 mil) width for signal paths, 0.5 mm (20 mil) for power rails. Apply ground pour on the bottom layer to minimize noise coupling. Validate the footprint against the MOSFET datasheet–TO-92 packages need 2.54 mm pin spacing, while SOT-23 variants require 0.95 mm pitch. Export Gerber files with RS-274X format, ensuring the drill file includes both plated and non-plated holes.
TTL vs CMOS Logic Gates: Key Differences for Design Choices
Select TTL-based single-stage switches when driving loads below 50 MHz and require 4.75–5.25 V supply tolerance. Their totem-pole output sinks 16 mA (74LS series) while sourcing 0.4 mA, ideal for LED rows or pull-down transistors where fast edge rates matter. Avoid TTL if noise immunity is critical; input thresholds at 0.8 V (low) and 2.0 V (high) leave 0.4 V margin vulnerable to ground bounce or crosstalk.
Opt for CMOS variants (HC, AC, or AHC families) in battery-powered or high-density boards needing 2–6 V operation. Static current draw drops below 1 μA, extending coin-cell life tenfold versus TTL. Switching thresholds track supply (typically 30% VDD), tolerating noisy rails without false triggers. Drive capacitive loads–50 pF at 5 V HC reaches 10 ns propagation delay–making it suitable for 10 MHz SPI buses or touch controllers. Trade speed for power: AC parts reach 3 ns but consume 2 mA per gate.
Match logic family to PCB layout constraints. TTL’s 4.7 kΩ pull-up resistors occupy more board space than CMOS’s open-drain counterparts, which integrate transistors directly. Use Schmitt-trigger inputs (74HC14) on slow-rising signals; their 0.3 V hysteresis prevents metastability in noisy sensors like hall-effect switches. Avoid mixing families on the same trace–TTL’s aggressive pull-down can clamp CMOS high outputs to 2.4 V, creating undefined states.
Test temperature corners before finalizing: 74LS TTL fails below −40°C as silicon resistors drift, while 74HC CMOS maintains specs to −55°C but exhibits leakage above 125°C. For high-voltage interfaces (12 V), 74C series withstands 15 V, unlike LS parts limited to 5.5 V absolute max. Always derate fan-out: TTL gates handle ten 74LS loads, CMOS gates drive 50+ HC units, but trace impedance must stay below 75 Ω to prevent reflections.
