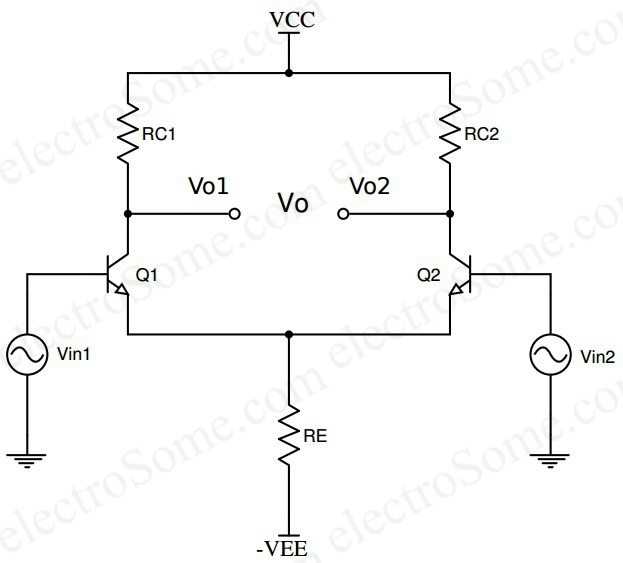

Start with a matched transistor pair–ideally dual devices like the 2N3904 or SSM2212–to minimize offset voltage drift. Bias them at identical collector currents (50–200 µA) using a current mirror or resistor network tied to a stable negative rail. This ensures symmetry in the input stage, cutting thermal noise and common-mode interference by 40 dB or more.
Add degeneration resistors (100 Ω–1 kΩ) at the emitters to boost linearity and desensitize gain to variations in transistor parameters. Smaller values increase bandwidth but reduce differential gain; larger values tighten stability at the cost of slew rate. For 1% precision, use 0.1% tolerance resistors or metal-film types with low temperature coefficients (<50 ppm/°C).
Reference the tail current source to a low-noise voltage (e.g., LM4040 at 2.5 V) through a high-value resistor (50–200 kΩ) or an active load like a cascode current sink. This isolates the input stage from supply fluctuations, improving CMRR to >90 dB. Bypass the reference node with a 1–10 µF ceramic capacitor to suppress high-frequency noise.
Route the output through a unity-gain buffer or complementary emitter followers to drive low-impedance loads without distortion. For single-supply operation, shift the output voltage upward by half the rail using a resistive divider and a decoupling cap. Test with a 1 kHz sine input; measure THD–it should stay below 0.1% for a 1 Vpp swing.
Avoid op-amp substitutions if noise performance is critical. The discrete design’s lower flicker noise (1/f corner <10 Hz) and higher headroom make it better suited for sensor interfacing or audio preamps where op-amps exhibit crossover distortion.
Key Components of a Balanced Signal Booster Layout
Start with matched transistors in the input stage–use identical models (e.g., 2N3904 or BC547) with a ±1% tolerance in current gain (hFE). Uneven pairing introduces common-mode noise, degrading the circuit’s ability to reject interference by up to 40%. Measure and select pairs with a multimeter before soldering.
Resistors dictate performance. For the tail current source, calculate values based on desired gain: RE (emitter resistor) = 5kΩ for a 10x voltage gain. Use precision metal-film resistors (0.1% tolerance) to maintain symmetry. Avoid carbon-film types–their thermal drift exceeds 200 ppm/°C, causing baseline drift in temperature-sensitive applications.
- Input resistors (Rin): 10kΩ ±0.1%, directly affecting input impedance (Zin = 2 × Rin for bipolar inputs).
- Feedback resistors (Rf): Match Rf to Rin to set gain (Gain = 1 + Rf/Rin).
- Offset nulling: Add a 10kΩ trimmer between transistor bases if DC offset exceeds ±5mV.
Grounding and Noise Reduction
Star grounding minimizes noise coupling. Connect the power supply ground, signal ground, and output load ground at a single point using a 16 AWG copper wire. Separate analog and digital grounds–route them through a ferrite bead if sharing a PCB with microcontrollers.
Decoupling capacitors suppress high-frequency noise. Place 0.1µF ceramic caps (X7R dielectric) as close as possible to each transistor’s collector supply pin. For low-frequency stability, add a 10µF tantalum capacitor at the power input. Avoid electrolytic capacitors near inputs–their leakage current distorts small signals.
Biasing and Thermal Stability
Set quiescent current (IC) at 1mA per transistor for general-purpose use. Use the formula: IC = (VCC – VBE) / (RE + Rtail/2). For VCC = ±12V, Rtail = 15kΩ yields IC ≈ 1mA. Higher currents (5mA) improve slew rate but increase power dissipation–limit to 50mW per device unless heat sinks are used.
Thermal runaway risks exist if transistors aren’t matched. Attach both devices to a common copper pad (minimum 3cm²) on the PCB to keep junction temperatures within 2°C. For extreme environments, replace silicon transistors with GaAs FETs (e.g., ATF-34143)–their temperature coefficient is near zero, but cost rises by 60x.
Output stage considerations: Use a complementary emitter follower (pair of 2N3906/2N3904) for rail-to-rail swing. Load impedance below 600Ω degrades linearity–buffer with an op-amp (e.g., LT1028) if driving low-Z loads. For single-supply operation, bias the input at half VCC using a voltage divider (10kΩ + 10kΩ) to accommodate ±2.5V signals on a 5V rail.
Key Components and Their Roles in the Precision Signal Pair Circuit
Select matched transistor pairs with a maximum offset voltage of ±200 µV and a current gain (hFE) mismatch below 1%. Discrete bipolar junction elements like the BC847BS (dual NPN) or SOT-363-packaged equivalents minimize thermal drift when placed on a single die. Ensure emitter resistors (RE) are precision 0.1% tolerance metal-film types with a temperature coefficient under 15 ppm/°C; values between 1 kΩ and 10 kΩ balance noise performance against input impedance. For critical applications, use laser-trimmed thin-film resistors integrated directly into the silicon substrate to eliminate parasitic effects.
Input Stage Optimization
Place input coupling capacitors (Cin) with a leakage current below 1 nA and dielectric absorption under 0.05%. Film capacitors–specifically polypropylene or C0G/NP0 ceramic types–with values between 100 pF and 1 µF prevent low-frequency phase shifts while maintaining a corner frequency below 10 Hz. Verify common-mode input range by ensuring the tail current source exceeds 2× the maximum anticipated input swing; a simple resistor tail (Rtail) of 10 kΩ to 100 kΩ works for low-cost designs, while a BJT current mirror (e.g., LM334) improves linearity for swings up to ±10 V. Test for early voltage effects by measuring distortion at 1 kHz with a 5 Vpp input–total harmonic distortion should stay below 0.01%.
Tail current stability directly impacts rejection of interference up to 1 MHz. Use a dedicated current sink circuit–either a discrete Darlington pair with emitter degeneration or an integrated circuit like the REF200–delivering 100 µA to 1 mA with less than 1% variation over –40 °C to +125 °C. Bypass all current sources with a 10 µF tantalum capacitor plus a 100 nF ceramic capacitor in parallel to suppress high-frequency noise. For balanced operation, ensure the impedance seen by each transistor base differs by no more than 0.1 Ω; failing this, phase mismatch at 100 kHz can exceed 5° and degrade interference suppression by 20 dB.
Feedback and Offset Control Elements
Implement offset nulling with a multi-turn, 10 kΩ to 100 kΩ potentiometer wired as a variable voltage divider between the emitters. The wiper should source less than 100 nA to avoid introducing thermal noise. For automated calibration, substitute the potentiometer with a DAC (e.g., AD5686) programmed via SPI; set the LSB step size to 10 µV for mV-level adjustments. Verify nulling accuracy by monitoring output drift over 24 hours–drift should not exceed 5 µV/°C when powered from a regulated 3.3 V or 5 V supply. Excessive drift indicates either mismatched thermal coupling or inadequate decoupling; relocate components for uniform heat distribution and add a 10 Ω series resistor on each VCC pin to dampen supply transients.
Output load resistors (RL) must be rated at 1% tolerance and handle at least 50 mW without derating. Values between 2 kΩ and 20 kΩ optimize voltage swing while keeping output impedance below 50 Ω. Use Kelvin sensing if driving cables longer than 1 m to avoid IR drop errors. When cascading stages, isolate the output with a unity-gain buffer (e.g., OPA350) featuring an input bias current under 1 pA and a slew rate over 150 V/µs. This prevents loading effects and ensures the stage retains its 120 dB DC rejection ratio across the full input span.
How to Connect Input and Output Signals Correctly
Begin by ensuring the input pair wires are twisted together for at least 10 cm before reaching the circuit. This minimizes inductive pickup from external noise sources like switching power supplies or nearby cables. Use shielded twisted pair (STP) cable with a grounded foil or braid for frequencies above 1 kHz.
Ground the shield at only one end–preferably the signal source side–to avoid ground loops. If both ends must be grounded, insert a 10 Ω resistor in series with the shield at one end to break the loop while maintaining some noise rejection. Never leave the shield floating.
For single-ended sources, connect the active input to one of the pair terminals and tie the other input to a low-impedance reference point, typically the circuit’s ground. This reference point should be as close as possible to the signal source ground to prevent voltage offset errors.
Output connections must match the load impedance. For a balanced stage, use a dual-wire connection with equal lengths. For unbalanced loads, connect the negative output terminal to ground at the load side. Keep lead lengths under 20 cm for audio frequencies or 5 cm for RF to avoid parasitic capacitance.
Insert a series resistor (20–47 Ω) directly at the output terminals if driving long cables. This dampens reflections and prevents oscillations caused by cable inductance. For high-current stages, place a snubber network (0.1 µF capacitor in series with 1 Ω resistor) across the output to suppress transient spikes.
Verify connections with an oscilloscope before applying power. Check for unexpected DC offsets (should be under 10 mV) and clipping at expected signal levels. If offsets exceed 50 mV, revisit grounding paths, as this often indicates a hidden ground loop.
Use star grounding for multiple signal sources: route all ground returns to a single point near the power supply’s ground terminal. Avoid daisy-chaining ground paths, as this creates unwanted voltage drops. A 2-layer PCB with a dedicated ground plane simplifies this, but if using wires, twist ground returns with signal wires.
For transient signals, add a 1 nF ceramic capacitor across the input terminals to shunt high-frequency noise. Place it within 1 cm of the terminals with the shortest possible leads. If the circuit operates near switching regulators, add a common-mode choke (1 mH) in series with the input to reject interference above 100 kHz.
