Select schematic representations based on their functional role. Pictorial layouts suit beginners–use block-style drawings for training modules or field repairs where clarity outweighs technical precision. For microcontroller designs, shift to ANSI-standard ladder logic diagrams; they eliminate ambiguity for firmware teams integrating embedded systems. Military contractors rely on MIL-STD-25 specs for aerospace wiring–pdf-export templates include mandatory color-coding for traceability.
Prioritize spatial efficiency when drafting power distribution maps. Place transformers at the top margin, buses vertically aligned, and breakers grouped by phase using IEEE-315 grid coordinates. Ground symbols must cluster near the bottom to prevent misreading fault paths during high-current tests. CAD plugins like KiCad’s erc tool flag violations before PCB etching.
For RF designs, substitute conventional symbols with IEC 60617-DB microwave-specific icons. Isolate high-frequency paths using stripline notation; annotate trace impedance directly on the schematic to guide PCB layout teams. Libraries from Altium and OrCAD include pre-validated RF component footprints–verify parameters against datasheets before netlist export.
Use hierarchical nesting for multi-stage amplifier schematics. Top-level sheets should mask internal circuitry with abstraction blocks, while sub-sheets detail differential pairs and compensation networks. Version control via Git repositories prevents divergence–tag commits with v1.2-schematic suffixes when collaborating with external PCB fabricators.
Automate validation for safety-critical systems. Scripts in Python can cross-reference schematic values against UL-508 certifications; running LTSpice transient simulations from exported netlists catches oversights in transient voltages. Always embed compliance references (e.g., NEC article 430) as comments adjacent to motor driver circuits.
Key Schematic Representations Used in Electrical Engineering
Begin with a block schematic when planning complex systems–it breaks down functionality into simplified, interconnected modules. Each module (power supply, processor, sensors) appears as a labeled rectangle, while arrows indicate signal or power flow. This abstraction helps identify integration points early, reducing redesign work later. Include annotations with voltage ranges, expected currents, or communication protocols (I²C, SPI) to prevent mismatches during implementation.
For detailed assembly instructions, switch to a wiring illustration. This layout mirrors physical connections, showing components in approximate spatial arrangement with exact wire routing. List wire gauges, color codes, and connector types (e.g., JST-XH 2.54mm) directly on the lines. Use two versions: one for prototype assembly and another for production, highlighting solder mask openings or heat shrink requirements in the latter.
- Schematic for PCB design: Place components logically, grouping decoupling capacitors near IC power pins and pull-up resistors with their respective signals.
- Isometric illustrations: Useful for electromechanical assemblies, combining board layout with enclosure details and mounting hole positions.
- One-line power schematics: Show parallel phase lines or neutral connections without duplicating wiring, ideal for three-phase systems or grid analysis.
Adopt ladder logic plots when working with industrial control systems. Each rung represents a conditional operation, with left-side inputs (switches, sensors) and right-side outputs (relays, motors). Number every rung and cross-reference with PLC documentation tags (e.g., %I:1/0, %Q:0/3). Include fail-safe rungs explicitly–omit them only if redundancy is handled elsewhere in the design.
For high-frequency RF work, create a transmission line sketch. Show conductor widths, gap spacing, and dielectric constants (FR-4, Rogers 4350) at critical segments like antenna feeds or impedance matching networks. Annotate wavelength fractions (λ/4, λ/2) alongside physical dimensions, adjusting for velocity factors of the substrate material.
- Hierarchical schematics: Organize multi-board projects by separating power distribution, signal processing, and user interface into separate files linked by off-page connectors.
- Timing sketches: Plot signal edges for clock, data, reset, and enable lines on a shared time axis, specifying setup and hold requirements.
- Thermal profiles: Overlay heat maps or conduction paths with component power ratings (W) and copper pour area dimensions.
How to Read a Schematic Diagram for Beginners

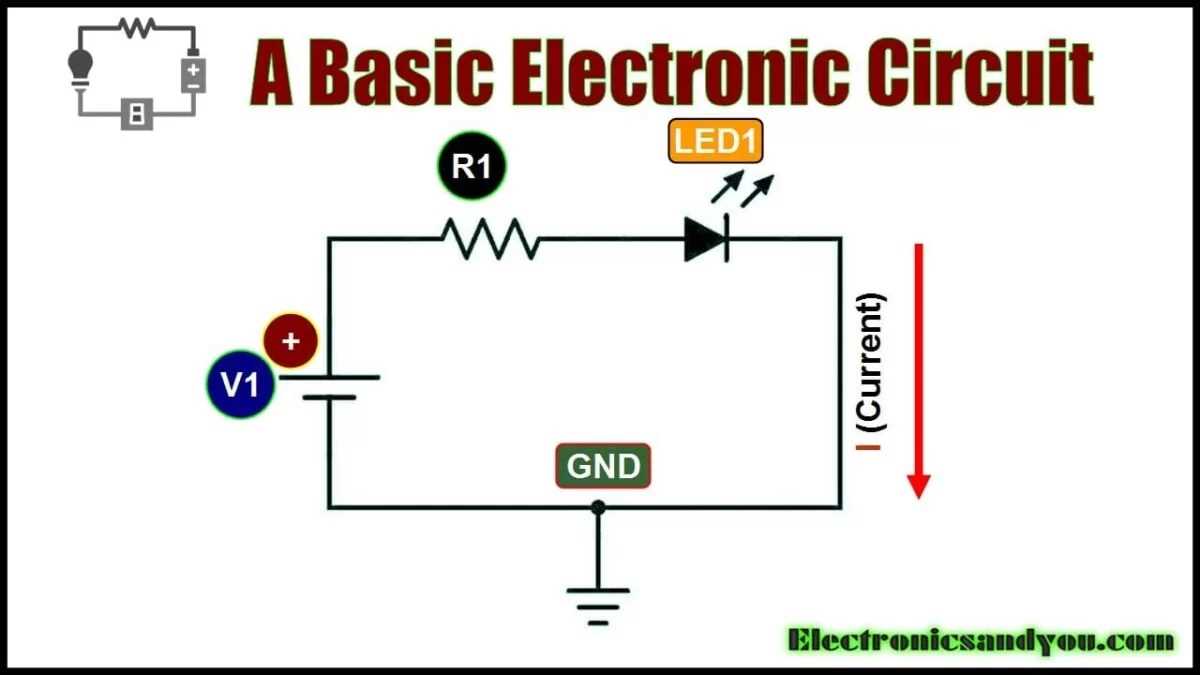

Identify the power source first–look for symbols like batteries (parallel lines of varying length) or voltage rails (labeled VCC or GND). The longest line in a battery symbol represents the positive terminal, while the short line is negative. Ground symbols (a downward-pointing triangle or three horizontal lines) indicate a reference point for zero volts.
Trace connections methodically: follow thin, solid lines linking components. If a line crosses another without a dot, they are not connected. A dot at an intersection confirms an electrical joint. Thicker lines often represent power busses or higher-current paths.
Learn the five core symbols early:
- Resistors: Zigzag lines (Europe) or rectangles (USA), often labeled “R” with values (e.g., 10kΩ).
- Capacitors: Two parallel lines (non-polarized) or a curved and straight line (polarized, e.g., electrolytic). Label: “C” + value (µF, nF).
- Inductors: Coiled line or series of loops, labeled “L” (henries).
- Transistors: Three-terminal devices (BJT: circle with angled lines; MOSFET: arrowed line). Label: “Q” + type (2N2222, IRF540).
- Switches: Break in a line with an angled segment (toggle) or switch symbol (e.g., SPST = single line, SPDT = Y-shape).
Note component designators–letters like R1, C3, or Q2–paired with values. A “10k” resistor marked R4 means 10,000 ohms. Capacitors use prefixes: p (pico-, 10-12), n (nano-, 10-9), µ (micro-, 10-6). Inductors skip prefixes: 10µH is written as “10µH”.
Examine polarities for components like diodes (bar = cathode, arrow = anode), LEDs, and electrolytic capacitors (positive lead marked “+”). IC pins are numbered counterclockwise, starting from a notch or dot (pin 1). Look for datasheets if the symbol lacks details.
Decode signal flow: inputs enter on the left or top; outputs exit on the right or bottom. Arrows within symbols (e.g., op-amps) show direction. Feedback loops (lines looping back) are critical in amplifiers and oscillators.
Check for annotations outside the primary visuals–voltage levels (3.3V, 5V), clock signals (square wave symbols), or enable pins (labeled “EN”). Standard wire colors (red = power, black = ground, green/yellow = earth) may appear alongside lines.
Practice on simple designs–power supply schematics or LED driver layouts–before tackling complex multi-board systems. Cross-reference manufacturer datasheets for ambiguous symbols; no universal standard exists for optocouplers or custom ICs. Use highlighters to color-code power, signal, and ground traces.
Key Differences Between Block Schematics and Wiring Layouts
Start by selecting the right schematic for your purpose–block layouts excel for high-level system overviews, while wiring illustrations are indispensable for physical connections. Block schematics break down complex systems into functional units (e.g., power supply, microcontroller, sensors) without detailing internal links, making them ideal for initial planning. Wiring layouts, in contrast, specify exact conductor paths, terminal points, and component interactions, essential for assembly or troubleshooting.
Use block schematics when designing modular systems or explaining workflows to non-technical stakeholders. They omit low-level details like resistor values or pin assignments, focusing instead on input-output relationships. For example, a block schematic of an audio amplifier might show “preamp → power amp → speaker” without revealing capacitor placements. Wiring layouts reverse this approach, mapping every solder joint, harness, and ground point–critical for PCB fabrication or field repairs.
When to Deploy Each Schematic
| Criteria | Block Schematics | Wiring Layouts |
|---|---|---|
| Primary Use | System architecture | Physical assembly |
| Detail Level | Abstract (functional groups) | Concrete (pins, traces) |
| Audience | Managers, designers | Technicians, assemblers |
| Example Application | Robotics system flow | Arduino shield layout |
Integrate both schematics for comprehensive documentation. A block layout can outline a power distribution network (e.g., “solar panel → charge controller → battery → inverter”), while the wiring counterpart details wire gauges, fuse ratings, and connector types. This dual approach reduces errors–block views prevent oversight of subsystems, and wiring diagrams ensure correct implementation. Always number identical components (e.g., R1, R2) in wiring layouts to avoid ambiguity during repairs.
For rapid prototyping, prioritize block schematics to validate concepts before committing to wiring specifics. A prototype might replace detailed traces with “heuristic” connections (e.g., SPI bus pins grouped as a single block), accelerating iterative testing. Conversely, wiring layouts demand precision–mislabeling a single pin in a 40-pin microcontroller diagram can cause cascading failures. Tools like KiCad or Altium automate this distinction, generating block-level symbols and pin-level footprints in separate views.
Common Pitfalls to Avoid
Oversimplification in block schematics leads to overlooked dependencies. Label each block with its core function (e.g., “RS-485 Transceiver” instead of “Communication Module”) to force clarity. In wiring diagrams, avoid “spaghetti” layouts by grouping related signals (e.g., data lines, power rails) and using consistent color-coding (red for VCC, black for GND). Validate both schematics against physical constraints–block layouts must align with space allocations, and wiring diagrams must respect voltage/current limits (e.g., 18 AWG wire maxes at 10A).
Store schematics in version-controlled repositories, with block layouts in PDF for readability and wiring diagrams in vector formats (e.g., SVG) for scalability. Cross-reference them via unique identifiers (e.g., “Block B3 corresponds to Wiring Sheet 5”) to streamline revisions. For compliance-critical projects (e.g., medical devices), supplement wiring layouts with netlists to auto-generate continuity tests–block schematics alone cannot ensure regulatory adherence.
