Start with a 4-pole automatic transfer switch (ATS) rated for at least 125% of the continuous load. Connect the main line input to the primary side using 35 mm² copper conductors for units under 50 kVA–scale up to 70 mm² for larger models. Ground the neutral busbar directly to a dedicated earth electrode (minimum 2.4 m copper-clad rod) with resistance below 5 Ω. Avoid daisy-chaining grounds; use a star topology from a single grounding plate for noise-sensitive loads like PLCs.
Install a 24 VDC auxiliary winding on the alternator stator for excitation control. Wire this to a three-phase bridge rectifier (KBPC2510 for up to 25 A) followed by a 4700 μF, 63 V electrolytic capacitor to smooth ripple. Route the output to a pulse-width modulation (PM3306) regulator that maintains voltage within ±1% of 400 VAC RMS under 0–100% load swing. Include a crowbar circuit (SCR16A) triggered at 420 VAC to protect downstream inverters.
Use thermal-magnetic breakers (C60H-DC for DC, C60N for AC) sized at 1.1× full-load current on each leg. For engines above 15 L displacement, add a pre-lubrication pump timer (Omron H3CR-F) that engages 10 s before cranking and runs for 30 s post-shutdown. Connect the pump motor via a 10 A fuse to the starter battery busbar, not the main output bus.
Separate control and power conductors into distinct conduits–16 mm² shielded twisted pair for signal lines, 95 mm² V75 cable for main leads. Keep signal wires at least 30 cm from any AC wiring to prevent inductive coupling. Terminate all shields at one end only, preferably at the controller’s chassis ground point.
Electrical Layout of Compression-Ignition Power Units

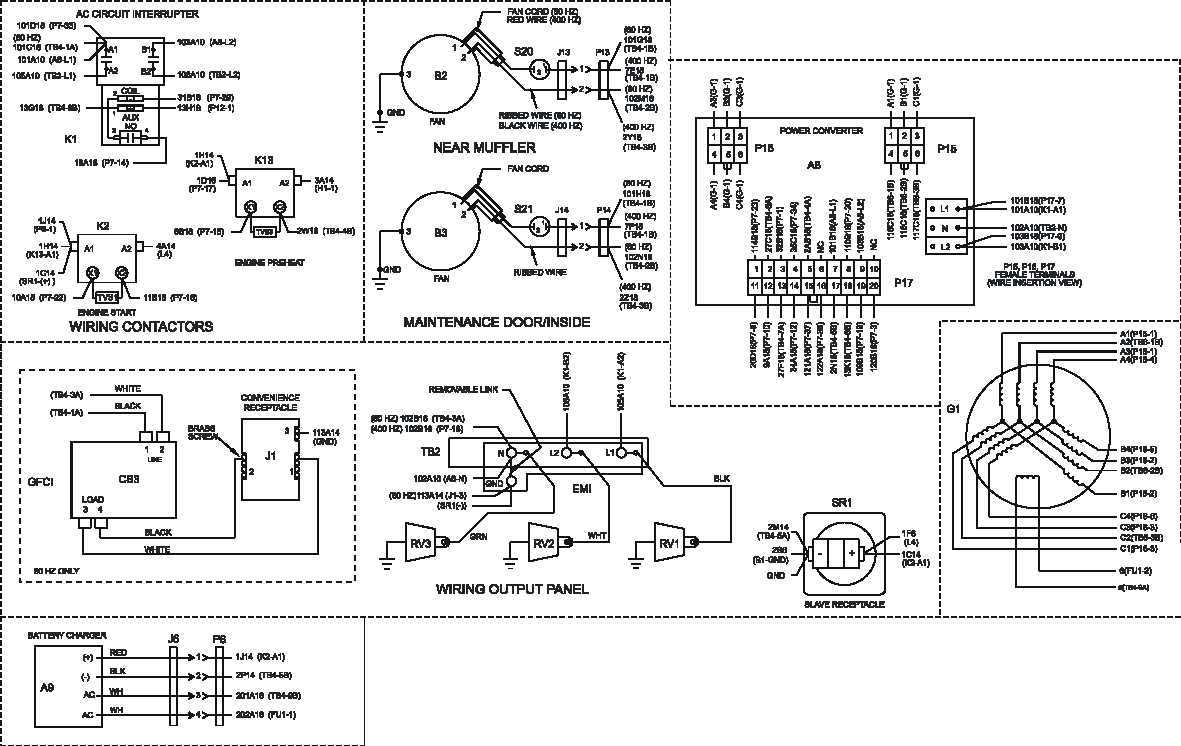

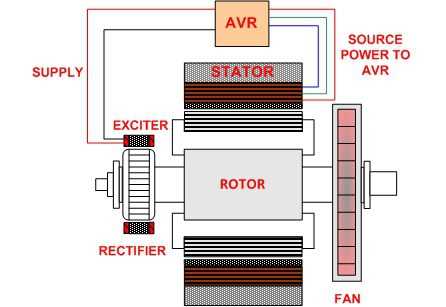

Start by identifying the alternator’s excitation system–most compact power plants use a self-excited brushless design with an automatic voltage regulator (AVR). The AVR’s input terminals connect directly to the stator’s main windings, while its output feeds the rotating rectifier assembly. Check the wiring between the AVR and the exciter stator for continuity; resistance should measure between 0.5–2 ohms, depending on the model’s rated output.
Locate the battery charging subsystem–typically a three-phase bridge rectifier integrated into the alternator’s end cover. Ensure the rectifier’s diodes are intact; reverse voltage leakage above 0.1V across any diode indicates failure. The main battery positive lead must route through a 60–100A circuit breaker before reaching the starter motor solenoid, while the negative return should bond directly to the engine block via a braided strap, not the frame.
Examine the control panel’s interlocks–engine oil pressure, coolant temperature, and overspeed switches must series-connect to the fuel shutdown solenoid. Wiring gauge for these safety circuits should match the starter cable (6–4 AWG for units above 20 kVA), as they temporarily carry starter current during cranking. Bypass any aftermarket add-ons (e.g., remote start modules) that introduce unnecessary voltage drops.
Trace the load distribution paths–single-phase units split the alternator’s windings into two or three legs, each protected by a 1.25× rated output breaker. Three-phase layouts use a delta or wye configuration; confirm the neutral-ground bond exists only in wye setups to prevent circulating currents. For parallel operation, synchronize only alternators with identical voltage, frequency, and phase rotation–cross-connecting mismatched units damages the AVR within minutes.
Verify the grounding scheme–stationary units require a single-point ground bus bonded to the baseplate with 2/0 AWG conductor, extended to external earth rods via exothermic welds. Portable units often omit rods, relying on the frame as a return path; this setup fails during dry soil conditions–retrofit with a dedicated ground lug welded to the chassis.
Inspect the fuel solenoid’s power feed–it must derive from the starter circuit’s “run” position, not accessory, to prevent hot start failures. The solenoid’s coil resistance should read 20–40 ohms; lower readings indicate partial shorting, causing erratic fuel cutoff. Replace any solenoid with carbon deposits on the plunger–these cause lingering shutdown delays, risking hydraulic lock.
Document all conductor routes with heat-resistant labels–engine vibration abrades insulation over time, especially near exhaust manifolds. Use silicone-jacketed cable for segments exposed to temperatures above 200°C, and clamp runs every 12 inches to prevent chafing against sharp edges. Test the entire assembly with a 500V megohmmeter before commissioning; readings below 5 megohms between conductors and ground necessitate rewiring.
Key Components of an Emergency Power Unit Electrical System
Equip the alternator with a voltage regulator rated for 120–480V output at ±1.5% stability to prevent motor burnout in sensitive machinery like CNC lathes or MRI scanners. Ensure copper windings meet IEC 60034-1 class F insulation (155°C thermal limit) and include a neutral grounding resistor sized to 5% of phase current to suppress transient overvoltages during load switching.
Control panel must integrate a PLC with MODBUS RTU for remote monitoring, featuring:
- Three-phase circuit breakers with adjustable trip curves (I²t or inverse-time)
- Analog input channels sampling oil pressure, coolant temp, and exhaust opacity at 50ms intervals
- Digital outputs for aux load shedding logic blocks
- RS-485 ports with surge protectors per IEEE C62.41
Select enclosure NEMA 4X stainless steel if ambient corrosion risk exceeds ISA S71.04 G3.
Battery and Charging Subsystem
Use VRLA AGM cells with 300Ah capacity at 20hr rate; float voltage 2.25V/cell (±0.05V) preserves electrolyte stratification. Include temperature-compensated charging curve that reduces float by 0.003V/°C above 25°C. Mount 1kA rated DC contactor with silver-alloy contacts to isolate battery during engine cranking (typical inrush 300–500A for 5s).
Step-by-Step Wiring for Automatic Start-Stop Control Panel
Begin by connecting the primary power supply to the control module’s L1 and N terminals. Use 6 AWG copper wire for currents up to 50A to prevent voltage drop. Verify the input voltage matches the module’s rating–typically 230V or 400V AC–before energizing the system. Label all wires at both ends to simplify troubleshooting.
Install a three-phase monitoring relay between the mains and the transfer switch. Configure it to detect under/overvoltage, phase loss, or asymmetry exceeding 10% of nominal values. Set the delay for automatic start at 3 seconds to avoid false triggers from transient dips. Connect the relay’s normally open (NO) contacts to the engine’s starter solenoid via a 10A fuse for short-circuit protection.
Wire the start/stop buttons to the control panel’s discrete inputs. Use momentary pushbuttons with gold-plated contacts to minimize oxidation. For automatic mode, link the panel’s AUX output to a 24V DC relay that bridges the start button circuit when mains power fails. Include a diode across the relay coil to suppress voltage spikes.
Critical Connections Table
| Component | Wire Gauge | Terminal | Purpose |
|---|---|---|---|
| Battery + | 4 AWG | B+ | Starter motor feed |
| Alternator exciter | 12 AWG | D+ | Voltage regulation |
| Fuel solenoid | 14 AWG | 85/86 (relay) | Engine shutoff |
| Oil pressure switch | 16 AWG | NC | Shutdown on low pressure |
Route the engine’s RPM signal wire to the control panel’s frequency input. Calibrate the panel’s settings to trigger a shutdown if RPM drops below 400 (for 1500 RPM models) or rises above 1700 during load operations. Use a twisted-pair shielded cable to reduce EMI from ignition noise. Ground the shield at a single point near the panel to avoid ground loops.
Mount the emergency stop button within 2 meters of the control panel. Wire it in series with the fuel solenoid and oil pressure switch using 1.5 mm² wire. Test the button’s function before finalizing connections by simulating a fault condition–it should immediately cut fuel without reliance on software delays.
Safety Interlocks
Implement a door switch on the enclosure that disconnects the starter circuit when opened. Use a microswitch rated for 5A inductive loads. For units above 20 kW, add a thermal overload relay to the starter motor circuit. Set the relay to trip at 120% of full-load current for no longer than 10 seconds.
Connect the cooling fan to run continuously when the engine operates. Use a 120V AC fan for models with liquid cooling, switching it via a relay controlled by the panel’s temperature output. Add a manual override switch for maintenance. Ensure the fan’s airflow exits away from the intake manifold to prevent hot air recirculation.
Finalize by testing the automatic start sequence under simulated power loss. Measure voltage at critical points with a multimeter to confirm no more than 5% drop across relay contacts. Log the cranking time–ideally under 5 seconds–and confirm shutdown occurs within 30 seconds of mains restoration. Record all settings in a laminated reference card mounted inside the enclosure door.
Identifying and Resolving Typical Electrical System Failures in Backup Power Units
Begin by verifying voltage stability across the alternator’s exciter windings. A deviation exceeding ±5% from the rated 24V or 48V (depending on the model) often signals a failing AVR or corroded connection on the control board. Disconnect the load, measure with a multimeter at the terminal block, and trace the excitation path back to its source if readings fluctuate.
Excessive harmonic distortion, typically above 5% THD, corrupts sensitive loads and shortens insulation life. Check for:
- Loose stator winding connections (tighten to 25 Nm torque)
- Faulty capacitor banks (replace if ESR exceeds 1.5Ω)
- Damaged diodes in the bridge rectifier (test forward/reverse bias with diode mode)
Replace any component showing leakage current over 0.5mA.
Overcurrent trips during startup usually stem from stuck relays or misadjusted circuit protectors. Inspect the main breaker’s magnetic trip mechanism:
- Manually reset and test response time (should open within 20–30ms at 300% rated current)
- Lubricate pivot points with silicone grease if sluggish
- Replace if resistance across contacts exceeds 0.1Ω
Parallel checks on the voltage regulator’s sensing circuit should reveal open or shorted transformers if output remains erratic.
Uneven phase loading, where one phase draws 15–20% more current than others, accelerates bearing wear and creates shaft misalignment. Measure phase currents with a clamp meter under full load. If imbalance persists, recalibrate the governor’s fuel rack actuator (follow service manual’s torque specs–typically 12–15 Nm for linkage adjustments).
False alarms from temperature sensors frequently cause unnecessary shutdowns. Bypass the sensor temporarily to confirm whether overheating is real or due to:
- A damaged RTD probe (replace if resistance drifts beyond ±1% at 100°C)
- Poor solder joints on the signal conditioner board (resolder with 60/40 lead-tin)
- Incorrectly routed sensor cables (reroute away from high-voltage lines)
Swap sensor locations to isolate whether the fault lies in the wiring or the monitored component.
Fuel solenoid failures often manifest as rough starts or prolonged cranks. Verify the solenoid’s pull-in voltage (usually 80–90% of nominal) while observing plunger movement. If voltage is correct but action is erratic, clean the plunger guide with contact cleaner–carbon buildup increases friction and prevents full engagement. Replace the coil if resistance falls outside the 12–18Ω range (varies by manufacturer).
Humming transformers indicate core saturation, typically from reversed neutral-ground bonds or DC injection into AC lines. Confirm proper bonding at the service disconnect, then measure DC offset on output terminals. Values above ±120mV suggest:
- Failed suppression capacitors (replace if capacitance drops below 70% of rated)
- Rectifier bridge imbalance (test individual diodes)
- Stray current paths through grounded shields (inspect cable routing)
Reinstall all bonding jumpers to the original torque specifications after repairs.
