Always attach the battery’s positive terminal to the large stud on the activation relay first–this prevents backfeeding when handling the remaining connections. Use a 10-gauge wire for this link; thinner cables risk overheating under load. The second large stud (often marked “M”) should connect directly to the motor’s engagement coil via a 12-gauge cable, avoiding any intermediate splices that introduce resistance.
Next, locate the smaller control terminals. One terminal receives power from the ignition switch through an 18-gauge wire–use a crimped spade connector, not a twisted joint. The other small terminal links to the safety interlocks (seat switch, blade engagement). Bypass this step only if troubleshooting a non-responsive system; otherwise, faulty interlocks will prevent engagement regardless of relay status.
Check continuity between the activation coil and ground before final assembly. A multimeter reading below 5 ohms confirms proper grounding; higher values indicate corroded chassis connections or damaged coil windings. Replace the relay if voltage drops below 9.6V during cranking–weak current causes erratic engagement cycles.
Secure all connections with heat-shrink tubing or dielectric grease to prevent moisture ingress, especially around the battery posts and relay studs. Loose wires vibrate loose during operation, leading to intermittent failures. If the motor spins but doesn’t start, suspect a worn Bendix drive or low battery voltage–both mimic relay failure.
For models with inline fuses, place a 30-amp fuse between the ignition switch and relay to protect the circuit. Larger amp ratings risk melting the 18-gauge control wire before the fuse blows. Always verify the relay’s mounting orientation–some have polarity-sensitive diodes; reversing them causes irreversible coil damage.
Electrical Activation Switch Hookup for Garden Equipment
Connect the ignition switch’s primary terminal to the relay’s smaller spade–typically marked “S” or “50”–using 14-gauge stranded copper wire rated for 20A continuous load. Ensure the connection includes a heat-shrink sleeve over the crimped joint to prevent stray voltage leaks when cycling the system at high cranking currents reaching 180A.
Route the return line from the motor’s positive post through a dedicated 4 AWG cable directly to the relay’s heavy-duty contact, bypassing any inline fuses during engagement to avoid premature failure under instantaneous 200A+ surges. Verify the ground path connects from the motor housing to the chassis via a minimum 6 AWG braided strap, tightened to 12 Nm torque to prevent voltage drop during cold-weather starts.
Test relay continuity with a multimeter set to ohms: probe the coil terminals–expected resistance falls between 0.4 and 0.7 ohms; deviation suggests internal shorting requiring replacement. For bypass testing, jumper the high-current contacts briefly–if the motor engages, the issue lies upstream in the switching circuit or battery voltage below 12.4V.
Secure all connections with nylon-coated ring terminals crimped at 35 Nm pressure using a ratcheting crimper, then apply dielectric grease to inhibit corrosion in environments exceeding 70% humidity. Label each wire with heat-resistant tape denoting source and function, referencing the equipment’s service manual page for terminal identifiers absent from generic schematics.
Locating Electrical Relay Connection Points on Riding Mower Engines
Begin by examining the relay’s metal casing for engraved markings–typically B (battery), S (start switch), M (motor), and G (ground). Trace each cable to its source: the B terminal links to the main battery cable (thick, red); the S terminal connects to a thinner wire from the ignition key switch; the M terminal attaches directly to the engine’s starter motor post; the G terminal grounds to the chassis (bare or black-sheathed). Use a multimeter in continuity mode to confirm: probe the S terminal while turning the key–momentary current (12V) should register. If readings stay at zero, inspect the ignition switch or blown fuse before proceeding.
- Battery (B): Heavy-gauge wire, often 6-8 AWG, always secured with a ring terminal and corrosion-resistant coating.
- Start (S): Smaller gauge (14-16 AWG), frequently purple, yellow, or white, protected by a 5-10A inline fuse.
- Motor (M): Thickest terminal, identical gauge to B, connected to a copper-colored stud on the engine’s drive assembly.
- Ground (G): Bare or green-sheathed, must bond to unpainted metal chassis–clean oxide with sandpaper if resistance exceeds 0.1 ohms.
Label each wire segment with adhesive shrink tubing before disconnection to prevent mix-ups. Replace any frayed insulation or heat-damaged strands immediately–even minor voltage drop (below 11.5V) can cause intermittent failure during cold cranking.
Guide to Connecting the Activation Relay on Garden Equipment

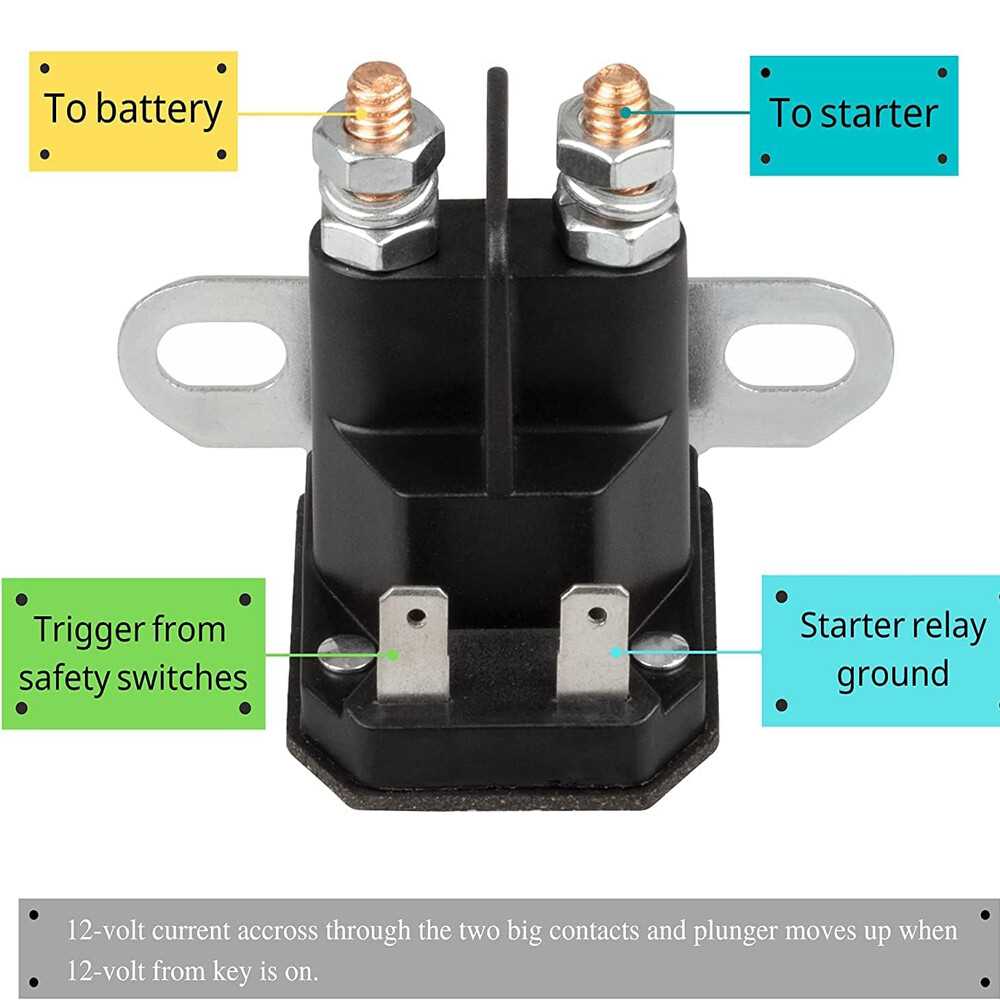

Disconnect the battery terminal clamp before touching any terminals to eliminate short-circuit risks. Identify the relay’s two large posts–one links directly to the battery’s positive lead, while the second connects to the motor’s power input. Attach a 10-gauge wire from the battery post to the corresponding relay terminal, then fasten another identical wire from the motor post to the engine’s starting contact. Secure both connections with a wrench rated for 15 Nm torque.
Small Terminal Connections
Locate the two smaller relay posts–one receives the ignition switch lead, typically a thin red wire with a 16-gauge core. Strip the wire end precisely to 12 mm, twist clockwise, and insert into the designated post. The second small post requires a ground lead, often a black 14-gauge wire. Attach this to the frame using a self-tapping screw, ensuring corrosion-resistant zinc coating on the fastener. Verify insulation integrity on both small-terminal wires before proceeding.
Test relay operation by reconnecting the battery clamp. Turn the ignition key to the start position–listen for a crisp clicking sound indicating proper engagement. If no response occurs, inspect all connections for loose strands, cold solder joints, or oxidation. Use a multimeter set to 20V DC to confirm battery output exceeds 12.4V during cranking; readings below this threshold require battery servicing or replacement.
Frequent Connection Errors and Prevention
Reverse the polarity on terminal posts before securing clamps–this avoids immediate burnout of internal relays. Verify the battery’s positive lead aligns with the ignition circuit’s input lug (typically marked RED or +), while the ground cable must attach to the chassis frame’s clean, unpainted surface. Use a multimeter set to DC voltage (20V range) to confirm 12.6V at rest; anything below 12.2V indicates a weak cell that will cause intermittent failures.
- Ignore manufacturer torque specs: over-tightening M6 fasteners crushes copper washers, creating high-resistance points. Tighten to 8-10 Nm, then recheck after 5 start cycles.
- Run uninsulated wires near moving linkages or sharp metal edges: route all leads through grommets and secure with zip ties every 15 cm.
- Mix up auxiliary switch leads: label each wire with heat-shrink tubing–B (battery), M (motor), S (signal), I (ignition)–to prevent accidental short circuits.
After any adjustment, perform a cold-start test with the engine block temperature below 35 °C–heat masks poor connections. If voltage drops more than 0.4V during cranking, inspect each joint with a thermal scope for hot spots indicative of loose crimps or corroded terminals. Replace suspect connectors immediately; solder alone is insufficient–always crimp and solder fused ring terminals rated for 50A continuous load.
Testing Voltage and Continuity in Activation Relay Circuits
Begin by disconnecting the battery’s negative terminal to prevent accidental shorts. Use a multimeter set to 20V DC to measure voltage at the relay’s input terminal while an assistant engages the ignition switch. A reading below 10.5V indicates excessive voltage drop, often caused by corroded terminals or undersized cables–clean connections with a wire brush or replace conductors rated for at least 8 AWG if resistance exceeds 0.2 ohms per foot.
For continuity checks, shift the multimeter to ohms (Ω) mode and probe across the relay’s contact terminals. A healthy circuit should show near-zero resistance when energized; values above 0.5Ω suggest pitted contacts requiring replacement. Probe the coil terminals separately–coil resistance should fall between 5-20Ω for standard 12V systems. Readings outside this range (open circuit or
| Component | Expected Voltage (V) | Acceptable Resistance (Ω) | Fault Indicator |
|---|---|---|---|
| Input Terminal | 12.6–13.8 | >0.2 (cable) | |
| Coil | – | 5–20 | |
| Contacts | 0 (de-energized) | >0.5Ω |
Verify ground integrity by probing the relay’s mounting point–measure
When testing under load, connect a 10A fused jumper wire between the relay’s battery and motor terminals–this simulates operating conditions without risking uncontrolled motor spin. Listen for a crisp click; a weak or delayed response indicates sticking contacts or weakened coil magnetism. Replace the relay if arcing is audible during this test.
Inspect cables for heat damage–a glossy, hardened appearance or swollen insulation signals overheating. Replace any conductor showing >10% cross-sectional reduction, as this directly impacts current-carrying capacity. Use crimp connectors with adhesive-lined heat shrink for splices, avoiding solder alone in high-vibration environments.
Document all readings before reassembly. Recheck voltage at the motor terminal post-installation–values should match within 0.3V of the input reading. If discrepancies persist, isolate the circuit by disconnecting the motor and retesting; this narrows faults to either the relay or downstream components.
