The ideal setup begins with a 200-amp main service panel installed at the primary structure, feeding a subpanel (minimum 100-amp, 6-space, 12-circuit) in the outbuilding via direct burial cable (Aluminum 1/0-1/0-1/0-2 AWG SER or Copper 2-2-2-4 AWG UF) run in 2-inch Schedule 40 conduit buried 18–24 inches deep. Maintain 36-inch separation from any gas lines, water pipes, or septic systems. Ground the subpanel with a #6 AWG bare copper rod driven 8 feet into undisturbed soil, bonded to the grounding busbar. Use separate grounding and neutral buses–never combine them in the subpanel.
For general-purpose receptacles, run 12 AWG NM-B copper (rated 20A/120V) in ½-inch EMT conduit secured every 4.5 feet with one-hole straps. Include a dedicated 20A circuit for a wall-mounted EV charger (NEMA 6-20 or 14-50, depending on model) protected by a double-pole 20A breaker. Install GFCI protection on all 120V circuits within 6 feet of sinks, doors, or floor drains, testing monthly with the built-in button. For lighting, use LED fixtures (minimum 800 lumens per fixture) wired with 14 AWG THHN copper in ¾-inch conduit, spaced no more than 10 feet apart for uniform coverage.
Label every breaker, wire, and junction box with engraved phenolic tags (e.g., *”Subpanel Feed – L1, L2, N, G”* or *”EV Charger – Circuit #5″*). Store a scaled 1:20 diagram in a weatherproof document case inside the building, including:
- Exact conduit paths (distance from foundation, depth, bends).
- Breaker schedule (circuit number, amp rating, connected load).
- Wire specs (gauge, type, insulation rating).
- Emergency disconnect location (marked with red reflective tape).
Update the diagram immediately after any modifications–even minor ones.
For heavy tools (table saws, welders, air compressors), run individual 30A/240V circuits using 10 AWG NM-B copper (or 8 AWG THHN in conduit for runs over 50 feet). Protect each circuit with a lockable 30A breaker and a NEMA 6-30 or 14-30 receptacle, mounted 48–54 inches above finished floor. Install a manual transfer switch (rated 30A/240V) if connecting a backup generator–never backfeed through a receptacle. Test all ground fault pathways annually by injecting a 30mA leakage current with a portable GFCI tester to confirm trip times under 0.03 seconds.
Electrical Layouts for Standalone Outbuildings

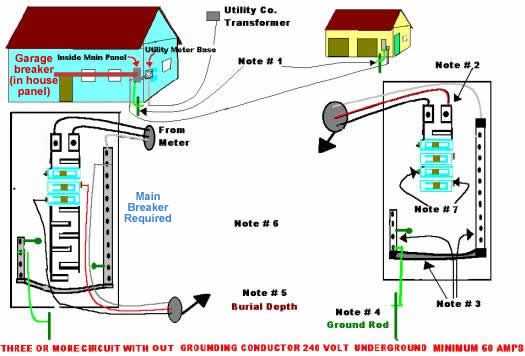

Install a 100-amp subpanel if the distance from the main service panel exceeds 50 feet. Use 2-2-2-4 aluminum SER cable for 120/240V circuits to minimize voltage drop–this setup handles up to 80 feet without derating. For underground runs, bury conduit at least 18 inches deep; schedule 80 PVC resists impact damage better than rigid metal for most soil conditions.
- Separate ground and neutral bars in the subpanel. Bond the ground to a dedicated 8-foot copper rod driven at least 6 feet from the structure’s foundation.
- Run a single #6 copper grounding conductor from the rod to the subpanel; avoid daisy-chaining to other electrodes.
- Include a main breaker in the subpanel sized to match the feeder–typically 60-100 amps–to isolate power during maintenance.
Split circuits into dedicated zones: one 20-amp circuit for general outlets spaced every 12 feet along walls, one 15-amp circuit for lighting on its own breaker, and a third 30-amp circuit for a dedicated 240V outlet if EV charging or heavy-duty tools are needed. Use arc-fault breakers (CAFCI) for all 120V circuits; they trip at 5,000 amps of fault current, reducing fire risk in enclosed spaces.
Label every wire at both ends with its purpose–e.g., “NE Wall Outlets L1”–using heat-shrink tubing or durable tags. Keep a one-line schematic inside the subpanel door showing breaker assignments, wire gauges, and conduit paths. Update this diagram immediately after any modification to avoid future miswiring.
Key Elements for Outbuilding Power Setup
Install a 100-amp breaker panel as the primary power hub for most standalone structures. Undersized panels risk tripping during tool operation or charging EVs. Size subpanels based on load calculations–factor 1,500 watts for lighting, 3,000 watts for outlets, plus dedicated circuits for compressors or welders. Copper conductors (6 AWG minimum for 60-amp circuits) prevent voltage drop over distances exceeding 50 feet. Use individual neutral and ground bars if bonding screws are removed in subpanels.
- Gang-nail connectors rated for 60°C minimum join feeder conductors in weatherproof junction boxes
- THHN wire in conduit withstands outdoor temperatures better than NM-B cable
- Schedule 40 PVC conduit protects buried runs (minimum 18″ depth under driveways)
- Ground rods (two, 8-foot copper-clad, spaced 6 feet apart) tied to the panel’s ground bus
Outlets should follow a zoned approach: 20-amp circuits for workbenches, 15-amp for general-purpose zones. Install GFCI protection within 6 feet of sinks or exterior walls. Combo AFCI/GFCI breakers cost 30% more but simplify installation. Label each breaker with load type and wattage–handwritten tags on painter’s tape work better than pre-printed labels that fade. Dual-voltage outlets (240V) for welders require 10 AWG wire and a dedicated double-pole breaker.
Lighting demands high-lumen fixtures: 8-foot LED shop lights output 7,000 lumens per unit. Mount motion sensors on exterior fixtures to deter tampering; choose models with 180-degree detection ranges. For fluorescent replacements, select ballasts compatible with tubes rated at 4,000K color temperature–warmer tones fatigue eyes during precision work. Explosion-proof fixtures (Class I, Division 2) are mandatory in zones storing flammables.
Separate circuits prevent interference: dedicate one for CNC machines, another for dust collectors. Calculate continuous loads at 125% of nameplate current–motors often pull 5x startup current. Use inverse-time breakers sized to trip at 115% of normal load. Underground feeder (UF) cable suits direct burial but requires oversizing by one wire gauge due to higher impedance in wet soil. Code mandates warning tape 12″ above buried lines.
- Inspect conduit sweeps–90° bends must span 24″ minimum radius to avoid damaging conductors
- Test insulation resistance with a megohmmeter (500V DC) before energizing; minimum 1MΩ reading
- Bury disconnect switches (NEMA 3R rated) adjacent to the outbuilding for emergency shutdown
- Tape all wire nuts with high-temp silicone to prevent loosening from vibration
Step-by-Step Guide to Adding a Secondary Electrical Panel to an Outbuilding
Begin by selecting a 100-amp subpanel with at least 8 spaces–12 if future expansion is likely. Calculate the total load by summing breaker amperages for planned circuits (e.g., 20A for outlets, 30A for a compressor, 50A for an EV charger) and add 25% for safety. Run 2-2-2-4 aluminum SER cable from the main service panel to the outbuilding via a buried conduit; Schedule 80 PVC is required for depths under 18 inches, while rigid metal conduit suffices at 6 inches if protected by a concrete pad. Label the cable at both ends with “120/240V Subpanel Feed” using UV-resistant tags.
Mount the subpanel on an exterior wall or freestanding post, ensuring 36 inches of clearance in front for breaker access. Route the SER cable through a knockout at the bottom, leaving 12 inches of slack inside. Strip 1 inch of insulation from each conductor using a wire stripper calibrated for 2 AWG aluminum–never a utility knife–to avoid nicking strands. Connect the red and black wires to the main lugs, torqueing to 90 in-lbs with a calibrated screwdriver, then bond the white neutral to the isolated bus bar and the bare ground to the panel’s grounding bus. Install a 100-amp breaker in the main panel to serve as the disconnect, matching the subpanel’s rating.
Drive two 8-foot ground rods 6 feet apart and connect them to the subpanel’s grounding bus with 6 AWG solid copper wire, minimizing bends to reduce impedance. Test continuity between the rods and panel with a megohmmeter before energizing. Install individual circuits using 12 AWG copper for 20A outlets (stapled every 4.5 feet) and 10 AWG for 30A appliances, securing wires with nylon ties inside conduit for protection. Label each breaker with its circuit purpose–”North Wall Outlets,” “South Lighting,” etc.–using a label maker for legibility.
After verifying all connections with a non-contact voltage tester, energize the subpanel and check each circuit with a multimeter: 120V across hot and neutral, 240V across hots for double-pole breakers. Inspect for warm wire nuts or buzzing–indicators of loose connections–by touching each device housing with an infrared thermometer. Store spare breakers (one for each common size) and a roll of 12 AWG THHN wire in a locked plastic box mounted inside the panel door for future repairs.
Selecting Proper Cable Thickness and Protective Tubing for Outbuilding Circuits
For a 20-amp circuit powering standard tools, receptacles, or lighting in a standalone workshop, use 12 AWG copper conductors as a baseline. This gauge handles continuous loads up to 20 amps with minimal voltage drop over distances up to 50 feet. For runs exceeding 50 feet or circuits carrying higher currents (e.g., 30 amps for heavy-duty equipment), step up to 10 AWG copper. The National Electrical Code (NEC) mandates these sizes for general-purpose branch circuits, ensuring compliance while minimizing heat buildup in conductors.
Voltage drop calculations become critical for longer runs or higher-demand setups. Assume a 3% maximum drop for most applications. A 100-foot run with 12 AWG copper at 20 amps yields a 1.98% drop, acceptable for lighting or occasional tool use. However, a 100-foot run powering a 30-amp welder requires 8 AWG copper to stay under the 3% threshold (2.46% drop). Use the formula: Voltage Drop = (2 × K × I × L) / CM, where K = 12.9 (copper), I = current, L = length (feet), and CM = circular mils of the conductor. Below are pre-calculated values for quick reference:
| Conductor Gauge (AWG) | Max Recommended Length (ft) at 20A | Max Recommended Length (ft) at 30A | Voltage Drop (%) at Max Length |
|---|---|---|---|
| 12 | 65 | N/A | 3.0 |
| 10 | 104 | 46 | 3.0 |
| 8 | 165 | 110 | 2.5 |
| 6 | N/A | 175 | 2.3 |
For protective tubing, rigid metal conduit (RMC) or intermediate metal conduit (IMC) provides the strongest mechanical defense–ideal for exposed runs along masonry walls or underground feeds. Use 3/4-inch conduit for up to three 12 AWG conductors or two 10 AWG conductors, adhering to NEC Table C.1 fill limits. Liquidtight flexible nonmetallic conduit (LFNC) suits areas prone to moisture or vibration, such as near compressors or damp locations. Avoid ENT (“smurf tube”) for outdoor or direct burial applications due to its limited crush resistance.
Underground runs demand direct burial cable (UF) or conductors in schedule 80 PVC, buried at least 18 inches deep (24 inches if crossing vehicle pathways). UF cable must be Type THWN-2 or equivalent in conduit, with 6 AWG minimum for 50-amp subpanels. For corrosive soil conditions, opt for galvanized RMC or PVC with a solvent-welded joint to prevent moisture ingress. Always verify local amendments to NEC 300.5 for burial depth requirements–some jurisdictions mandate 24 inches regardless of conduit type.
Special Considerations for High-Demand Equipment
Circuits powering 240V equipment (e.g., EV chargers, air compressors) require split-phase configurations with two hot conductors, a neutral, and a ground. For a 40-amp circuit, use 8 AWG copper in 1-inch conduit. Dedicated subpanels in outbuildings should include a grounding electrode system (two 8-foot rods spaced 6+ feet apart) bonded to the main panel’s ground via a #6 AWG bare copper conductor. Avoid undersizing neutrals–double-check ampacity tables for shared-circuit scenarios where harmonic loads (e.g., LED drivers) may increase neutral current beyond the phase conductors.
