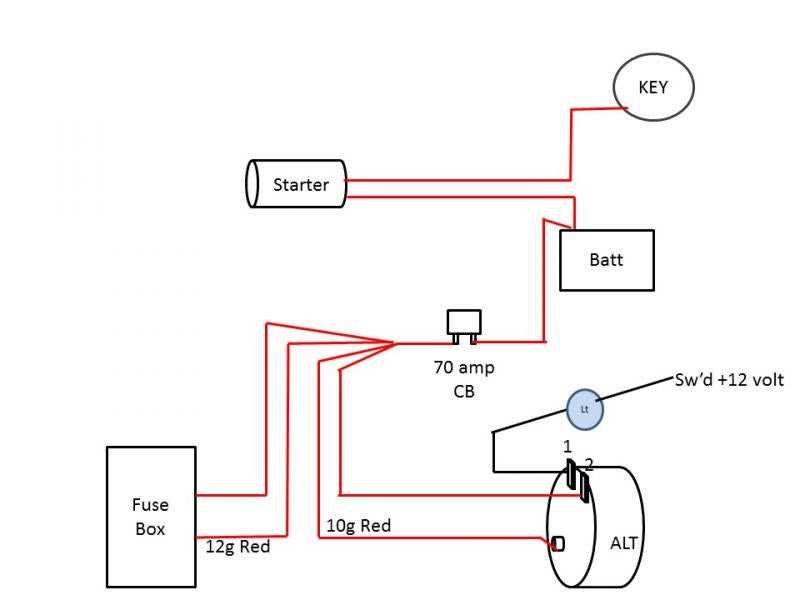

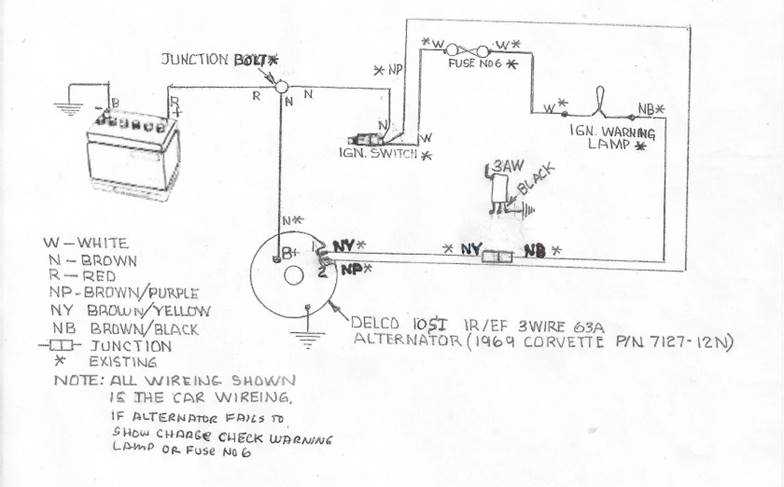

For a 10SI or 12SI series charging unit, connect the battery-positive (B+) terminal to the output stud using 8-gauge or heavier cable, ensuring a secure crimp with a ring terminal. The excitation (1) pin requires a direct 12V source–use a fused 16-gauge wire from the ignition switch or a switched power relay to prevent parasitic drain. The sense (2) terminal must link to the vehicle’s battery positive via 18-gauge wire; this path informs the regulator of system voltage for accurate output control.
Grounding demands attention: attach the voltage stabilizer’s case directly to the engine block with a 6-gauge strap. Avoid chassis grounds–engine mounts and rubber bushings introduce resistance, disrupting regulation. Verify connections with a multimeter: excitation voltage should drop to 0.5V or lower when the ignition is off. If readings exceed 0.8V, inspect for corroded terminals or loose crimps. For high-output models exceeding 100A, upgrade the positive lead to 6-gauge minimum and install an 80A fuse within six inches of the B+ stud.
After assembly, bench-test before installation: spin the pulley at 2,000 RPM with a drill, monitor output voltage–should stabilize between 13.8V and 14.4V. If voltage climbs beyond 15V, replace the regulator or rectifier assembly immediately to avoid battery damage. Field coil resistance should measure 4.5–5.5 ohms; values outside this range indicate internal faults. For vehicles with ammeters, wire in series between the charging unit output and the battery, using cable rated for 20% above maximum current draw.
Adjust belt tension to ½ inch deflection under moderate thumb pressure–excessive slack causes pulley slippage and premature brush wear. Replace brushes if shorter than ⅜ inch; verify spring tension matches the manufacturer’s specifications. When installing in hybrid or electric setups, isolate the casing from conductive mounting surfaces using fiber washers to prevent stray current leakage. For marine applications, apply dielectric grease to all terminals to combat corrosion from moisture exposure.
Connecting a Three-Pin Generator: Key Pinouts and Safety Steps
Locate the three terminals: the BAT (battery-positive) post, the R (relay excitation) spade, and the F (field) spade. Strip 6 mm of insulation from each lead, then crimp ring terminals onto the BAT cable and female quick-disconnects onto the R and F wires. Secure the BAT ring terminal directly to the output stud using a 10 mm stainless locknut–torque to 12 Nm (9 ft-lbs) to prevent loosening under vibration. Route the R lead to the ignition switch’s 12 V ACC terminal through a 10 A fuse; this energizes the internal regulator only when the engine starts. Attach the F lead to the dashboard charge-light bulb’s ground side or to a dedicated 2–3 Ω resistor if the bulb is eliminated. Keep all joints at least 50 mm away from exhaust manifolds and rotating pulleys.
- Use 10 AWG copper wire for the BAT run to handle continuous 60–80 A output without voltage drop exceeding 0.2 V per meter.
- Verify polarity before final connection: the regulator expects 12–14.5 VDC positive-ground logic; reversing polarity destroys the IC.
- After wiring, start the engine and confirm output between 13.8–14.4 V at 2 000 rpm; probe the F terminal–it should read 0–0.5 VDC relative to ground when charging and 12 VDC when the lamp is on.
- If output exceeds 15 V, immediately disconnect the F lead; an internal MOSFET failure is indicated.
- For longevity, heat-shrink every joint and bundle wires with spiral wrap every 150 mm–this prevents chafing against sharp edges.
Identifying Terminals on a Three-Pin Power Generator
Start by locating the battery positive post on the charging unit–marked with a “BAT” or “+” symbol–typically the largest lug. This terminal connects directly to the vehicle’s main power line, ensuring uninterrupted current flow. Verify its size and threading; it often differs from other posts to prevent misconnection.
Battery Sensing and Field Excitation
The “S” (sensing) terminal monitors system voltage, linked to the battery’s positive side via a dedicated lead–usually a smaller gauge cable with insulation matching the ignition circuit. The “F” (field) post, smaller than “BAT” but larger than “S,” receives excitation current from the ignition switch. Color-coding helps here: red for “BAT,” brown for “F,” and blue or purple for “S” in most OE configurations.
Check terminal labels against the unit’s case or documentation–some variants use numerical markings (1 for “BAT,” 2 for “F,” 3 for “S”). If labels are worn, use a multimeter: with the engine off, “BAT” reads ~12.6V, “F” shows near-zero resistance to ground when energized, and “S” mirrors battery voltage when correctly wired.
For non-standard models, inspect the internal regulator’s diode trio–three diodes arranged in a triangular pattern indicate a self-exciting design. If present, the “F” terminal becomes optional, simplifying wiring but requiring careful polarity checks during installation.
Step-by-Step Wiring Guide for Battery Charging Circuit
Disconnect the negative terminal of the power storage unit before initiating any electrical connections to prevent short circuits or accidental sparks. Use a 10-gauge conductor for the primary charge line (bat to output terminal) to handle current loads up to 50 amperes without voltage drop. Secure connections with soldered crimps or high-compression terminals, ensuring no exposed strands beyond 1mm to avoid corrosion. Verify continuity with a multimeter–expect 0.1 ohms or less between the output terminal and the battery’s positive post under load.
| Component | Terminal Type | Conductor Gauge | Torque Spec (in-lbs) |
|---|---|---|---|
| Regulator exciter | Spade | 16 | 8-10 |
| Output bolt | Ring (3/8″) | 10 | 18-20 |
| Ground stud | Ring (5/16″) | 12 | 12-14 |
Check polarity before finalizing the ground connection–reverse polarity will damage the voltage regulator. Install an inline fuse (60A) within 7 inches of the storage unit’s positive post to protect the circuit. Reconnect the negative terminal last, then test system voltage: 13.8–14.2 volts at idle confirms proper operation.
Proper Installation of the Ignition Excitation Lead
Locate the excitation terminal on the voltage regulator–typically marked “#1” or “IG” on aftermarket units. Splice a 16-gauge conductor into the switched ignition circuit that delivers 12V when the key is turned to “ON” or “RUN” but cuts power during cranking. Avoid tapping directly into the starter solenoid feed; this causes premature brush wear due to sustained voltage during engine turnover.
Use a relay if the chosen ignition source exceeds 1.5 amps. Coil the excess conductor in a tight loop and secure it away from moving parts or exhaust manifolds. Heat-shrink tubing or nylon loom over the splice prevents chafing; verify continuity with a multimeter before final connection.
- Connect to the ignition side of the fuse block, not the accessory circuit–accessory leads may not energize during cranking, leading to erratic charge cycles.
- Avoid tapping into the battery light circuit; doing so traps residual field current, preventing proper system reset on shutdown.
- Polarity-sensitive regulators require a diode in series to block reverse current–install a 1N4007 facing the ignition switch.
After installation, start the engine and monitor regulator voltage; normal excitation should pull the voltage up to 14.2V within three seconds. If charging lags, recheck the excitation line for voltage drop–any resistance above 0.2 ohms necessitates a thicker conductor.
Diagnosing Excitation Faults
Symptoms of incorrect excitation include:
- Voltage below 13.5V at idle after 30 seconds of runtime–indicates weak or missing excitation.
- Voltage surging between 12.8V and 15V–suggests intermittent excitation contact.
- Battery light remaining on dimly after start–points to residual field current bleed.
Use a test lamp to verify excitation presence: clip the lamp’s ground to the chassis, probe the ignition lead–bright illumination confirms proper voltage delivery. A dim lamp signals excessive resistance; trace the circuit backwards to identify the fault point.
Seasonal adjustments matter: cold climates may require a slight voltage boost (up to 14.8V) for proper excitation in subzero temperatures. Conversely, persistent high ambient heat (above 38°C) demands excitation voltage capped at 13.9V to avoid electrolyte boil-off.
Final step: document the ignition feed location in the vehicle’s service log. Future diagnostic efforts hinge on knowing exactly where excitation originates–ambiguous wiring prolongs troubleshooting.
Troubleshooting Common Electrical Connection Errors in Automotive Charging Systems
Check for reversed polarity on the main power terminal before assuming component failure. A misplaced positive lead connected to the grounding stud will trigger immediate voltage spikes, often blowing the onboard fuse or damaging the voltage regulator. Use a multimeter set to DC voltage; readings should show 13.5–14.5V when the engine runs. Values outside this range signal incorrect terminal assignment.
Inspect the excitation circuit for broken strands or loose crimp connections. A single frayed filament inside the ignition-switched lead can drop excitation current below the 0.5A threshold required to initiate field magnetization. Probe the circuit under load with the ignition on; expected voltage drop across the full path should not exceed 0.2V. Higher readings point to corroded terminals or undersized cable gauge.
Verify the grounding path integrity by measuring resistance between the housing and chassis. Readings above 0.1Ω indicate rust accumulation or loose mounting bolts. Clean contact surfaces with a wire brush and apply dielectric grease before retightening. Skipping this step often masks intermittent charging failures that surface during high-load conditions.
Isolate parasitic drains by disconnecting the battery and inserting an ammeter in series. Current draw above 50mA suggests a shorted diode trio or faulty warning-light relay holding the circuit closed. Remove fuses sequentially until the excessive draw disappears; the corresponding circuit contains the fault.
Examine the pulley alignment using a straightedge across the drive belt. Lateral run-out exceeding 0.020 inches forces uneven rotor-stator clearance, creating irregular voltage ripple detectable on an oscilloscope as jagged waveforms between 120Hz and 240Hz. Reseat or replace the sheave if misalignment persists.
Replace the rectifier bridge if AC voltage appears at the output terminals. Disconnect the battery, then measure AC volts at the main lug; any reading above 0.5V confirms diode leakage. Swap the bridge with OEM-specified ratings only–aftermarket substitutes often fail prematurely under transient load spikes.
Ensure the regulator senses actual battery voltage rather than a voltage drop across corroded connections. Install a dedicated sense lead directly to the battery positive terminal, bypassing intermediary connectors. This prevents false low-voltage readings that cause overcharging and electrolyte boil-off in flooded cells.
Test the voltage-drop across each cable segment under load. With the engine at 2000 RPM, measure between the main terminal and battery post; acceptable loss is under 0.3V. Higher values indicate either undersized conductor cross-section or compromised connections that require immediate replacement to prevent overheating and fire risk.
