Step-by-Step DC to DC Converter Design with Schematic Examples

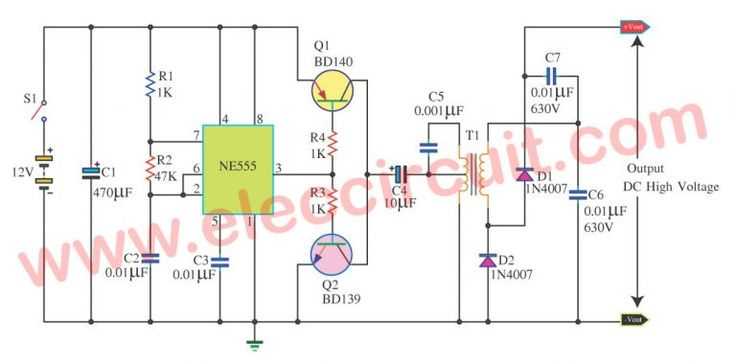

Start with a synchronous buck regulator layout when working with input voltages up to 24V and output currents exceeding 3A. Use a high-side N-channel MOSFET (e.g., IRF540N) with a dedicated gate driver (IXDN609SI) to minimize switching losses–critical for efficiencies above 90%. Pair it with a Schottky diode (MBR20100CT) as a failsafe during startup or driver faults. For feedback, employ a precise voltage divider (10kΩ + 2.2kΩ) and an error amplifier (TL431) to regulate output within ±2% tolerance.

For layouts handling 12V → 5V conversions at 5W–20W, place input capacitors (2× 10µF ceramic, X7R) within 2mm of the MOSFET’s drain to suppress ripple. Output capacitors (3× 22µF low-ESR tantalum) should sit near the load pins to stabilize transient response. Ground return paths must be star-topology to prevent noise coupling–route the feedback trace away from switching nodes to avoid false triggering.

When scaling up (outputs >10A), integrate a current-sense resistor (0.01Ω, 1% tolerance) on the low-side return path. Use a differential amplifier (INA180) for accurate monitoring, ensuring its bandwidth exceeds the switching frequency (typically 300–500kHz). For thermal management, mount the MOSFET on a 2oz copper pad (minimum 10mm²) with vias connecting to an internal ground plane–this reduces junction temperature by up to 15°C compared to single-layer designs.

Test prototypes with an electronic load sweeping from 10% to 100% of rated current. Verify efficiency curves across the input range (e.g., 8V–18V); deviations >3% indicate layout flaws or component mismatches. For isolation needs, substitute the buck stage with a flyback topology (e.g., LT8302) and a 1:1 transformer (EFD15 core) to achieve 60W output while maintaining 3kV isolation.

Key Components for a High-Efficiency Voltage Regulator Scheme

Start with a synchronous rectification topology if input voltage exceeds 12V and output current exceeds 3A. Replace traditional diodes with N-channel MOSFETs (e.g., IRLZ44N) to reduce conduction losses by up to 40%. For switching, use a dedicated controller like the TPS54331 (Texas Instruments) with adjustable frequency (300 kHz–2 MHz) to balance efficiency and size constraints. Include a bootstrapping capacitor (0.1 µF) between the driver output and MOSFET gate to ensure reliable high-side switching.

Select inductors with low core loss materials such as Kool Mu or sendust for frequencies above 500 kHz. For a 5V/5A output, a 10 µH inductor (e.g., SLH6030-100M) with a saturation current rating 30% above peak load (6.5A) prevents core saturation. Place input and output capacitors as close as possible to the switching node: use low-ESR ceramic capacitors (X7R dielectric, 22 µF/25V) for input and polymer electrolytics (e.g., 100 µF/6.3V) for output to suppress ripple below 20 mVpp.

Implement a soft-start feature by adding a 10 kΩ resistor and 1 µF capacitor to the EN/SS pin of the controller to limit inrush current. For thermal management, use a dual-layer PCB with a star grounding scheme; route high-current paths (input, output, inductor) with 2 oz copper traces. Add a feedback loop compensation network (10 kΩ resistor + 2.2 nF capacitor) to the error amplifier to stabilize transient response, preventing overshoot during load steps.

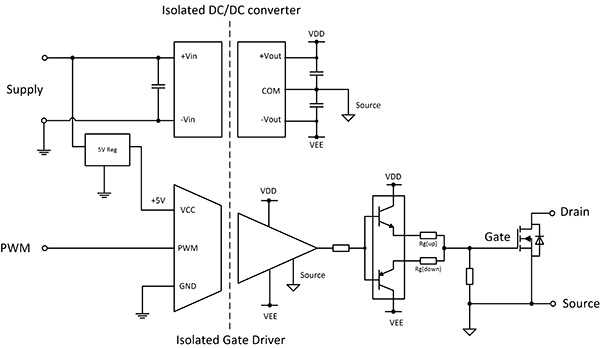

For overcurrent protection, use the controller’s built-in cycle-by-cycle limiting and add a shunt resistor (0.01 Ω) in series with the output. Calibrate the threshold via a voltage divider tied to the current-sense pin. If isolation is required, replace the MOSFET driver with a gate driver transformer (e.g., ADuM3223) and adjust the turns ratio for 10V gate drive. Test efficiency with a precision power analyzer (e.g., Keysight PA2201A) at 10%, 50%, and 100% load–target >90% for 5V outputs, >85% for 3.3V.

Key Components for a Step-Down Voltage Regulator Layout

Select an inductor with a saturation current rating at least 20% above the maximum expected load current. For a 3A output at 5V, a 4.7µH to 10µH coil with a 5A+ saturation limit prevents core saturation under transient loads. Use shielded inductors in noise-sensitive designs to minimize EMI radiation. Ferrite-core types offer lower losses at switching frequencies above 500kHz, while powdered iron suits lower frequencies.

Choose a MOSFET rated for 2x the input voltage with a low R_DS(on) (under 20mΩ for 12V inputs). Logic-level gate drives simplify driving at 5V, but standard-level parts require a gate driver IC. Add a Schottky diode parallel to the MOSFET’s body diode to reduce reverse recovery losses–select one with a blocking voltage 1.3x the input voltage. For synchronous designs, replace the diode with a second MOSFET to improve efficiency by 2-5%.

Capacitors demand strict ESR and ripple current ratings. Input caps should handle 1.5x the inductor ripple current, using low-ESR ceramics or polymer types. Output caps need ESR under 20mΩ for stable operation; 2x 22µF ceramics per amp of load current typically suffice. Add a 100nF ceramic bypass cap near the IC’s V_IN pin to suppress high-frequency noise.

Feedback resistors set the output voltage via the formula V_OUT = V_REF × (1 + R₁/R₂). Use 1% tolerance resistors and keep R₂ under 10kΩ to minimize noise pickup. For adjustable variants, include a 10nF–100nF compensation cap between the feedback node and ground to stabilize the loop. Opt for a switching IC with built-in soft-start to limit inrush current–external timing components can extend this to 10–20ms for large loads.

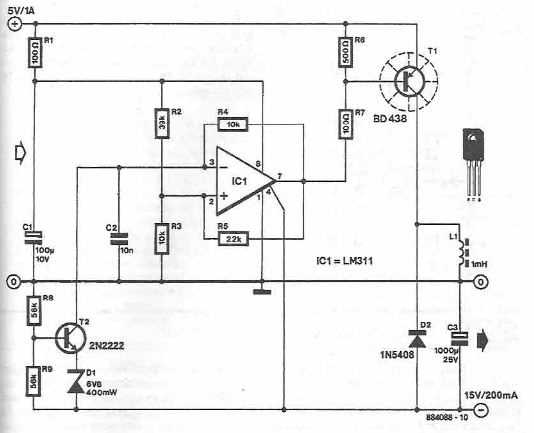

How to Select Inductor and Capacitor Values for a Boost Power Stage

Start with the inductor’s saturation current: choose a value 20–30 % above the maximum expected load current. For a 1.2 A output, aim for an inductor rated at 1.5–1.6 A. Core material matters–ferrite for frequencies above 100 kHz slashes losses, while powdered iron suits budgets under 50 kHz but demands larger size. Keep inductance between 10 µH and 100 µH; below 10 µH risks discontinuous mode, above 100 µH increases ESR and cost. Verify slope compensation if duty cycles exceed 50 % to prevent subharmonic oscillations.

Key Equations for Capacitor Choice

• Output cap: C_out ≥ ΔI_out / (8 × f_sw × ΔV_out), where ΔI_out is load step (A), f_sw is switching frequency (Hz), ΔV_out is allowed ripple (V). A 1 A step at 250 kHz with 50 mV ripple needs ≥10 µF.
• Input cap: C_in ≥ ΔI_L / (8 × f_sw × ΔV_in). For 0.5 A ripple and 100 mV ripple, ≥2.5 µF is safe.
• Low ESR caps reduce voltage spikes. Ceramic X7R/X5R tolerate high temperatures; aluminum electrolytic work but add ESR. Choose cap voltage rating 1.5× the operating voltage–30 V cap for 20 V input.

1. Measure actual ripple with an oscilloscope; adjust cap values if overshoot exceeds 10 % of output voltage.
2. Verify inductor saturation with a DC bias test–current should drop ≤10 % from nominal at full load.
3. Thermal testing at max load confirms core and winding losses; ensure temperature rise stays under 40 °C for reliability.

Common Faults in Flyback Power Stages and Troubleshooting Techniques

Start by checking for excessive ringing on the primary switch drain node using an oscilloscope with a 50 MHz bandwidth. Ringing above 30% of the nominal voltage often indicates poor snubber design or degraded damping components. Replace the snubber capacitor if its ESR exceeds 1.5 times the data sheet value, and verify the resistor’s power rating hasn’t been exceeded by measuring its surface temperature–anything above 85°C suggests undersizing.

Open-load conditions frequently cause secondary rectifier failure. Probe the output diode’s anode-to-cathode voltage; a reading below 0.3V during the off-period confirms avalanche breakdown. Swap the diode for a part with at least 20% higher reverse voltage margin and ensure the PCB trace width can handle 1.5x the expected current density. Heat sinks should maintain diode junction temperatures below 125°C at full load.

• Primary switch short-circuit: desolder the MOSFET and test its body diode forward drop; values above 1.2V indicate internal damage. Cross-check the gate driver waveform for slew rates below 5V/ns–slow edges suggest gate resistance issues or faulty bootstrap circuitry.
• Output voltage drift: measure the feedback resistor divider network’s resistance with a 4-wire Kelvin setup. Any deviation above 0.5% from nominal values warrants replacement. Clean flux residue near the divider to prevent leakage currents that skew regulation.
• Transformer saturation: disconnect the load and apply a 10% input voltage pulse while monitoring the magnetizing current. A non-linear slope confirms core material degradation; rewind with higher-grade ferrite if initial permeability drops below 2000.

Intermittent no-load operation often stems from insufficient soft-start capacitance. Replace the soft-start capacitor with a film type of identical value, ensuring the charging slope limits inrush current to 150% of steady-state RMS. If the problem persists, check the controller’s UVLO threshold–values below 80% of the input’s minimum voltage may trigger erratic behavior.

Overcurrent protection false trips require precise shunt resistor selection. Use a 0.01Ω ±1% tolerance resistor and verify the controller’s internal comparator offset voltage doesn’t exceed 5mV. For digital controllers, ensure the propagation delay through the current sense path stays below 150ns–longer delays can cause nuisance trips. Calibrate the threshold by introducing a known 1.2x overload and confirming trip timing matches simulation.

Spiking on the auxiliary winding typically indicates improper phasing or leakage inductance. Rewind the winding with bifilar wire spacing and add a 1nF ceramic capacitor across the auxiliary diode to damp high-frequency oscillations. Verify the reflected voltage ratio–deviations above 5% from the turns ratio suggest core air gap misalignment; adjust gap spacing in 0.05mm increments while monitoring the ringing amplitude.

1. Verify optocoupler CTR degradation: inject a 5mA current through the LED and measure collector-emitter voltage with a 1kΩ load. A drop below 0.4V confirms reduced gain; replace the optocoupler if CTR falls below 50%.
2. Check layout for parasitic inductance: route high-current paths perpendicular to sensitive traces, keeping loop areas below 15mm². Use via stitching (minimum 4 vias per trace crossing) to reduce ground bounce.
3. Test input capacitance ESR: replace electrolytic capacitors if impedance rises above 0.8Ω at 100kHz. Paralleling a 1μF MLCC can extend lifespan by reducing ripple current stress.
