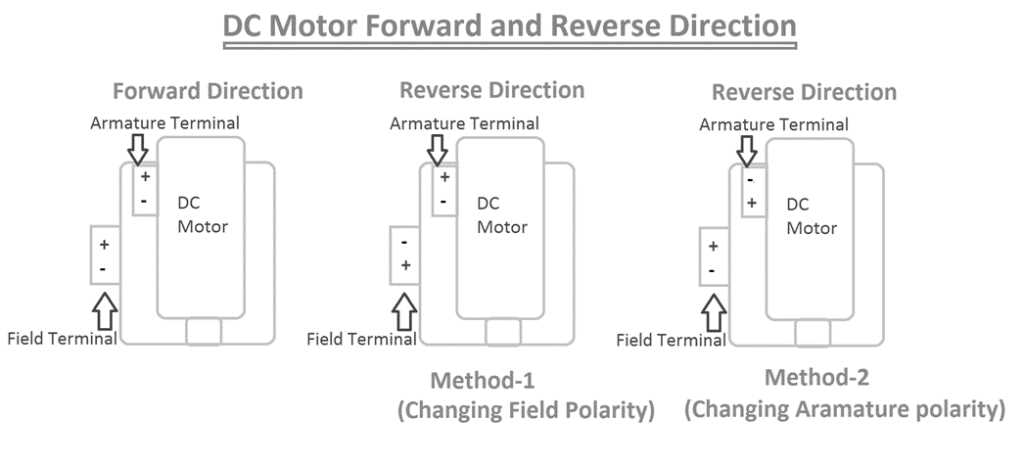

Begin by identifying the field winding terminals. In parallel-wound systems, these coils attach directly across the armature supply points. Mark the positive and negative leads clearly–reversing polarity alters rotational direction and risks uncontrolled acceleration. Use 16–18 AWG wire to handle current draw without excessive voltage drop, particularly for machines rated between 0.5 and 10 horsepower.
Connect a speed-regulating rheostat in series with the field loop. Resistance values should match the machine’s nameplate specifications–typically 50–200 ohms for 110–220 VDC units. Lower resistance increases torque at start-up but raises steady-state temperature; excessive resistance weakens field strength, causing overspeed hazards. Always mount the rheostat away from combustible materials.
Integrate overload protection via a double-pole magnetic circuit breaker sized at 125% of the armature’s full-load amperage. A 10 A breaker suits a 2 HP unit at 110 V; adjust ratings proportionally for higher voltages. Place the breaker within 0.5 m of the armature terminals to minimize current leakage through cable inductance.
Verify armature and field winding continuity before energizing. An ohmmeter reading below 2 Ω across the armature indicates shorted turns; field coils should measure 20–80 Ω depending on rating. Check brush alignment–misalignment causes arcing and premature wear. Spring tension should exert 1.5–2.5 N on carbon brushes; replace worn brushes before the contact face reaches 2 mm thickness.
Test under no-load conditions first. Gradually apply voltage while monitoring rotational speed with a tachometer. Expected RPM should align with the nameplate ±5%. Load testing requires a prony brake or dyno–never exceed 75% of rated torque during initial trials. Record armature current: excessive values signal short circuits or improper field excitation.
Understanding the Parallel-Wound Direct Current Machine Layout
Always begin by verifying the field coil resistance matches the manufacturer’s specification–typically 50–500 ohms for small industrial variants. A deviation beyond ±10% indicates potential shorted turns or open winding, requiring immediate rewinding. Connect the armature terminals directly to the power supply, bypassing control elements during diagnosis to isolate torque fluctuations caused by brush wear or misalignment.
Use a precision multimeter to measure back EMF at varying speeds; discrepancies above 5% from theoretical calculations (Vemf = kΦω) reveal faulty magnetic paths or worn commutator segments. For 180V nominal systems, maintain brush spring tension between 1.5–2.5 N to prevent arcing without accelerating commutator erosion. Replace carbon brushes once length falls below 30% of original, regardless of visible wear patterns.
Critical Safety Interlocks
Integrate a flyback diode (1N4007 or equivalent) across field terminals to absorb inductive spikes exceeding 1.5× supply voltage–failure risks catastrophic winding insulation breakdown. Position a 0.5Ω current-shunt resistor in series with the rotor path to monitor load conditions; voltage drop exceeding 75mV signals mechanical binding or overcurrent requiring 30% derating. Avoid fuse-based protection in high-inertia loads–use solid-state relays with 10μs trip curves instead.
Ground the frame through a 10kΩ resistor to prevent stray current corrosion in humid environments while allowing fault detection systems to remain operational. For regenerative braking applications, incorporate a dump resistor sized for 3× nominal power dissipation–omitting this risks voltage runaway exceeding 1.8× nameplate ratings, destroying semiconductor switches. Always disengage the excitation current before removing the rotor to prevent residual magnetism-induced uncontrolled acceleration.
Select wire gauge for field conductors using 1A/mm² derating for continuous duty; undersized wiring causes thermal derating by 0.5% per degree Celsius above 85°C. For reversing drives, use a dual-pole double-throw relay configuration with mechanical interlocks–electronic H-bridges require 10μs dead-time to prevent shoot-through faults. Test insulation resistance with 500V megger; values below 1MΩ mandate immediate drying or varnish reapplication before energizing.
Optimizing Performance Parameters
Calibrate the speed control potentiometer across 90° of rotation for linear response–nonlinear tracking introduces torque ripple exceeding 12% at low RPMs. For 240V systems, maintain field current within 5–8% of armature current to prevent magnetic saturation while ensuring stable torque-speed characteristics. Replace worn bearings immediately if vibration levels exceed 2.8 mm/s RMS at operating temperature; delayed action compounds commutator wear by 4×.
Incorporate a snubber network (0.1μF + 22Ω) across directional contactors to suppress voltage transients–absence causes pitting on commutator surfaces after 500 switching cycles. For bidirectional rotation, polish brush faces to 60° chamfer angles per NEMA MG-1; improper angles increase brush dust generation by 40%. Use silver-graphite brushes for applications above 10A/cm²–copper-graphite variants require 25% more maintenance intervals.
Critical Elements of a Parallel Field Direct Current Drive Wiring Configuration
Begin by securing a high-quality variable resistor with a power rating exceeding the expected full-load current by at least 25%. This ensures stable field excitation without overheating under prolonged operation. Select carbon composition or wirewound types for heavy-duty applications, while low-power setups benefit from precision potentiometers.
The armature winding must be paired with a starter resistance bank sized to limit inrush current to 150–200% of rated value during initial energization. For a 5 HP drive at 240 VDC, starter resistors typically range between 0.75–1.2 ohms with a continuous duty rating of 10–15 A. Always verify resistance values against nameplate specs before installation.
- Field regulator: 25-turn precision wirewound with linear taper
- Armature terminals: Copper lugs crimped and soldered, minimum 8 AWG cross-section
- Commutator brushes: Electrographitic grade, spring tension adjusted to 1.5–2.5 PSI
- Interpole windings: Sized at 30–50% of main field turns for spark suppression
Ground the frame using a dedicated braided copper strap (minimum 3/8″ width) bolted to a clean, unpainted chassis surface. Avoid daisy-chaining grounds; each return path should terminate independently at the power supply negative bus. Test continuity with a 500 V megohmmeter to confirm <0.5 ohms resistance.
Integrate a thermal overload relay calibrated to trip at 125% of rated armature current, with a reset delay of 30–60 seconds to prevent nuisance tripping during transient loads. For drives above 10 HP, add auxiliary contactors with arc suppression capacitors across coil terminals to minimize inductive kickback.
Field excitation wiring must maintain polarity consistency: connect the positive terminal of the supply to the dynamic end of the field coils, ensuring uniform flux distribution. Reverse polarity reduces torque output by 40–60% and increases brush arcing. Verify pole alignment using a compass; adjacent poles should exhibit opposite magnetic orientation.
For speed regulation, incorporate a feedback loop with a tachogenerator mounted on the shaft extension. Match the tachogenerator’s voltage constant (V/1000 RPM) to the controller’s input range–typically 0–10 VDC for 0–3600 RPM drives. Shield the signal cables with twisted pair and grounded foil; route away from power conductors to eliminate electromagnetic interference.
Maintain minimum clearance of 2″ between power and control wiring. Use conduit or spiral-wrap for all conductors under 300 VDC; above this threshold, employ heavy-duty flexible conduit with liquid-tight seals. Label every conductor at both ends with heat-shrink sleeves showing terminal designation and circuit identifier, e.g., “A1–Armature Start,” “F2–Field Return.”

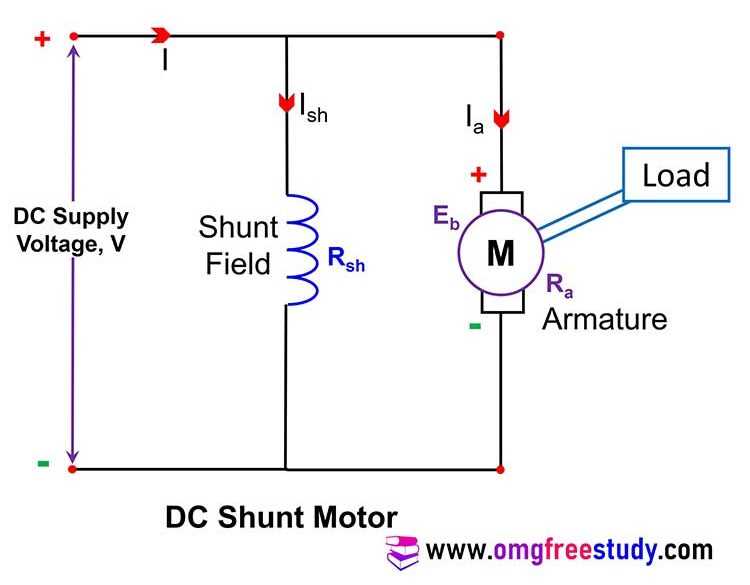

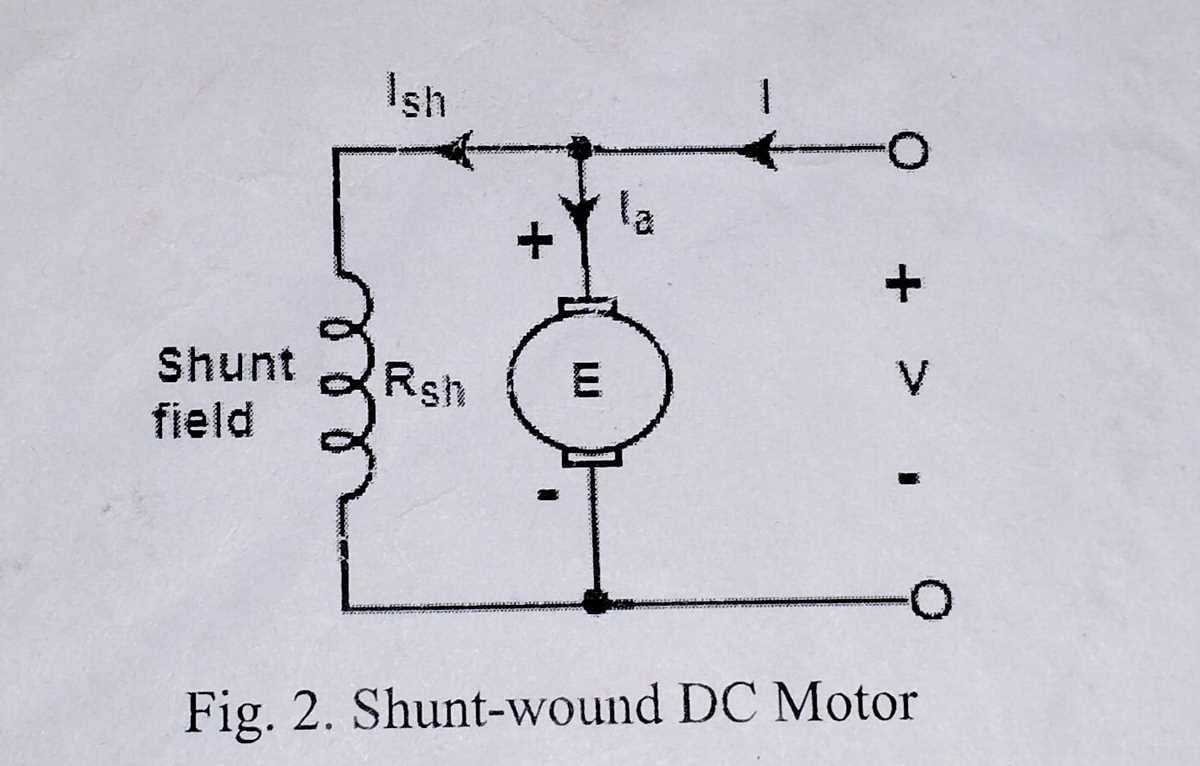

Creating a Schematic for a Parallel-Field Direct-Current Device
Begin by sketching the armature as a rectangle with two terminals labeled A1 and A2. Position it horizontally at the center of your workspace for clarity. Ensure the terminals face outward to simplify later connections. Directly above the armature, draw a vertical line representing the field winding–use consistent spacing (4-5 mm) from the armature to avoid visual clutter.
Add the power source as a battery symbol, placing its positive terminal (+) on the left and negative (-) on the right. Connect the battery’s positive lead to A1 using a straight horizontal line. From the same point, branch a vertical line upward to meet the field winding’s top terminal. This dual connection ensures simultaneous excitation of both components. Label all lines with their current direction (arrows) to prevent confusion during analysis.
Insert a variable resistor between the field winding’s top terminal and the battery’s positive lead. Represent it as a zigzag line with an adjustable tap–place this component 2 cm above the winding for readability. The resistor’s value (typically 100-500 ohms) should be noted nearby. Below, add a fixed resistor in series with the armature; a 1-ohm value is standard for speed control testing.
| Component | Symbol | Typical Values |
|---|---|---|
| Field Coil | Vertical line (L=3 cm) | 0.5-5 H |
| Armature | Rectangle (W=2 cm, H=1 cm) | 5-20 Ω |
| Rheostat | Zigzag with arrow | 100-500 Ω |
Complete the schematic by linking the armature’s A2 terminal to the battery’s negative lead. Use a horizontal line for this return path. Verify all connections form a closed loop–breakpoints here indicate potential open-circuit faults. Add a switch (simple on-off symbol) in series with the armature if operational control is needed; position it 1 cm above the A2 terminal.
Annotate voltage drop points across critical elements. Measure 1 cm from each component’s terminal, then draw a small circle with a letter (e.g., Vf for field, Va for armature). These labels correspond to test points for oscilloscope probes or multimeter leads. For clarity, use contrasting colors: red for positive paths, blue for negative, and green for adjustable elements.
Finalize by grounding one point of the return path–place the ground symbol (three descending lines) at the battery’s negative terminal or A2. This stabilizes reference potential. Double-check all labels for consistency with your calculation sheets: incorrect notation (e.g., swapped field/armature voltages) leads to design errors. Save the file in both vector (SVG) and raster (PNG at 300 DPI) formats for future revisions.
