For reliable performance under varying loads, integrate a PWM-based adjustable drive mechanism using a 555 timer IC paired with a MOSFET (IRFZ44N). This configuration handles currents up to 10A at 24V with minimal heat dissipation, outperforming linear voltage reducers. Set the frequency range between 1 kHz and 20 kHz to balance torque smoothness and switching losses.
Critical components include a 10kΩ potentiometer for manual tuning, a 1N4007 diode to suppress voltage spikes across the rotor coils, and a 1000μF capacitor to stabilize the supply. Avoid using resistors below 1W to prevent thermal failure. For bidirectional operation, replace the single MOSFET with an H-bridge module (L298N), adding a 0.1μF ceramic capacitor near the IC power pins to filter noise.
Calibrate the system by monitoring rotor RPM with a tachometer; adjust the potentiometer until the desired range (500–4000 RPM) is achieved. For dynamic applications, substitute the potentiometer with a microcontroller (Arduino Nano) and implement a closed-loop PID algorithm using feedback from a Hall-effect sensor. Ensure the sensor is positioned within 2mm of the rotor magnets for accurate readings.

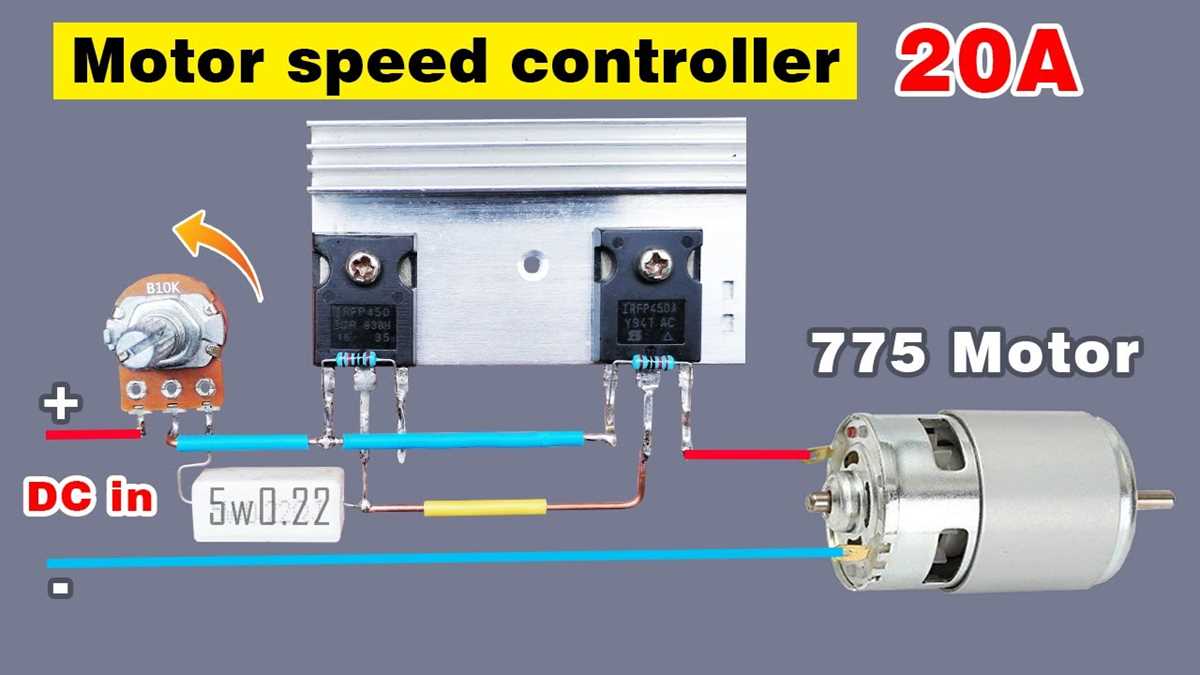

Custom DC Drive Regulator Schematics Guide

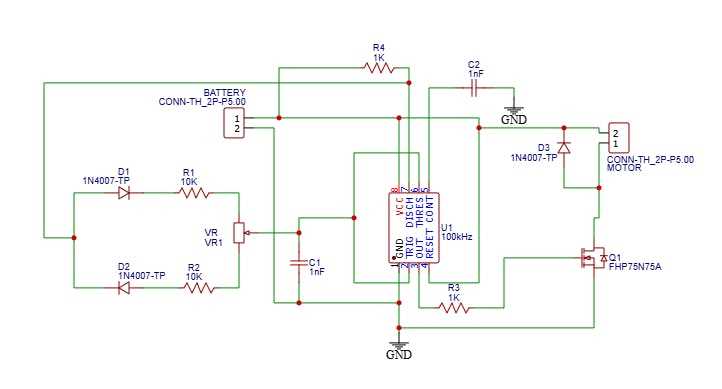

Begin with a pulse-width modulation (PWM) generator like the NE555 timer IC. Configure it in astable mode, using a 10kΩ resistor, 100kΩ potentiometer, and a 10µF capacitor to achieve a frequency range of 50Hz to 1kHz. This setup delivers adjustable duty cycles from 5% to 95%, directly influencing rotor torque and revolutions per minute (RPM).
Pair the PWM source with an N-channel MOSFET–an IRFZ44N handles up to 49A and 55V, making it suitable for small- to medium-sized actuators. Ensure the MOSFET’s gate receives a 100nF decoupling capacitor to suppress high-frequency transients that could trigger erratic behavior. A flyback diode, such as a 1N4007, must clamp inductive spikes when the drive coil de-energizes to protect both the MOSFET and surrounding components.
For precise revolutions, integrate a tachometer feedback loop using a Hall-effect sensor (e.g., A3144) mounted near a magnetized rotor disc. Wire the sensor’s output to a low-pass RC filter–combine a 1kΩ resistor with a 10µF capacitor–to smoothen ambient noise. Feed the filtered signal into a comparator like the LM393, set with a 2V reference, to generate clean digital pulses proportional to RPM.
Incorporate a proportional-integral (PI) regulator stage using an operational amplifier, such as the TL072. Scale the tachometer pulses down to match the 0–5V range of the PWM comparer and adjust the proportional gain (Kp = 0.8) and integral gain (Ki = 0.2) via 50kΩ trimpots. This configuration corrects deviations within 3% of the target revolutions under varying load conditions.
Add thermal protection by embedding an NTC thermistor (10kΩ at 25°C) near the MOSFET’s heat sink. Connect the thermistor to a second comparator configured with a 3V reference voltage. When the temperature exceeds 70°C, the comparator triggers a latch circuit that forces the PWM duty cycle to 0%, halting operation until manual reset via tactile switch.
Power the entire assembly from a 12V DC supply rated at 3A minimum. Include a 220µF bulk capacitor at the input to handle inrush current during startup and a 10µF capacitor at the IC power pins to filter voltage ripples. Keep trace widths on the PCB at least 2mm for current paths exceeding 2A to minimize resistive losses.
Verify the completed regulator using an oscilloscope. Probe the PWM gate signal, tachometer feedback, and PI amplifier outputs simultaneously. Confirm that steady-state RPM matches the potentiometer setting within ±2% and that load disturbances (e.g., sudden 50% torque increase) settle back to target revolutions in under 200ms without overshoot exceeding 10%.
Key Components for a PWM-Based Actuator Regulation Setup
Select a switching device with a current rating exceeding the driven load’s stall peak by at least 30%. For 12 V applications, MOSFETs like the IRF540N (17 A continuous, 39 A pulsed) or IGBTs such as the IRG4PC50U (27 A @ 100 °C) ensure thermal margin. Gate drive voltage must reach the device’s threshold–typically 10–15 V–to achieve full saturation; under-driving increases conduction losses. Place a fast freewheeling diode (e.g., MUR860, 8 A, 600 V, 35 ns reverse recovery) directly across the load terminals to clamp inductive flyback, preventing avalanche breakdown of the switching element.
- Pulse-width generator: NE555 timer in astable mode (adjustable 5–95% duty via 10 kΩ potentiometer + 100 nF capacitor) or a microcontroller (ATtiny85) for closed-loop RPM feedback.
- Gate driver: TLP250 optocoupler isolates logic from power stage; IR2104 half-bridge driver simplifies bootstrap capacitor management for high-side switching.
- Power supply: Buck converter (LM2596) delivers stable 5 V for control logic; 12 V rail requires bulk capacitance (470 µF/25 V) plus ceramic decoupling (0.1 µF) at input and output terminals.
- Sensing element: Hall-effect sensor (A1302) monitors torque via magnetic flux; shunt resistor (0.01 Ω, 5 W) measures armature current for overcurrent protection.
- Filtering: LC network (1 mH inductor + 470 µF capacitor) smooths PWM ripple before load; cutoff frequency set to 10× the switching frequency (typically 20–50 kHz).

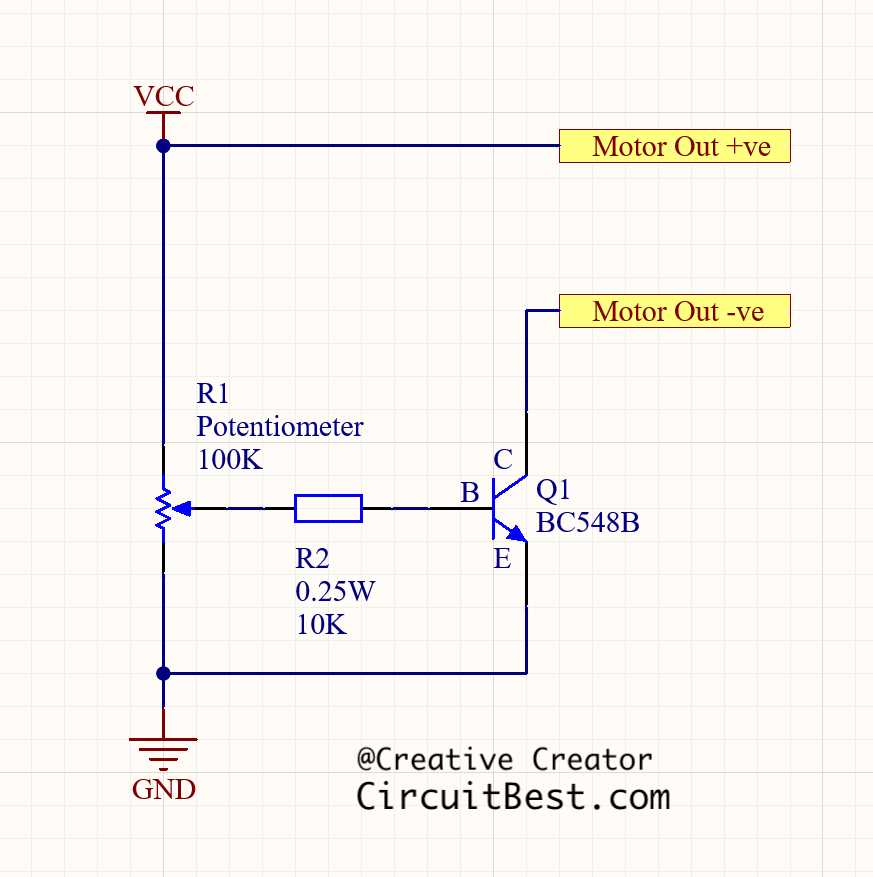

Step-by-Step Wiring Guide for a Potentiometer-Controlled Driver
Connect the rheostat’s outer pins to the power supply’s positive and negative terminals, ensuring the adjustable arm links to the switching regulator’s input. A 10kΩ linear taper potentiometer works best–avoid logarithmic variants for consistent response.
Solder a flyback diode (e.g., 1N4007) across the drive unit’s coils, cathode to the positive rail. Omitting this risks damaging the transistor during inductive load spikes. Verify polarity with a multimeter before finalizing connections.

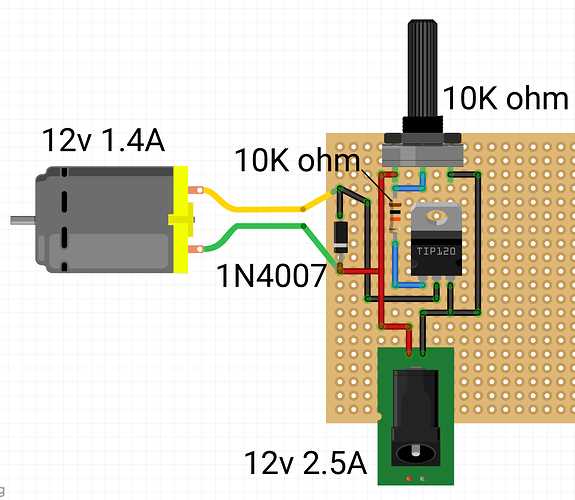

Use an NPN Darlington pair (TIP120 or similar) for current amplification. Base connects via a 1kΩ resistor to the potentiometer’s wiper; collector to the load; emitter to ground. Keep leads short to minimize noise interference.
For stable operation, add a 0.1µF ceramic capacitor between the power input and ground near the transistor. This filters high-frequency fluctuations induced by PWM signals, preserving signal integrity.
Fine-Tuning Adjustments
Test with a bench power supply set to the nominal voltage of your actuator. Rotate the potentiometer slowly–jerky movements indicate insufficient smoothing. If erratic, increase capacitance to 470µF electrolytic at the input stage.
To calibrate, measure output current at minimum and maximum settings. Ideal ranges should span 5–95% of total travel with linear progression. If non-linear, replace the potentiometer or recalibrate the resistance curve.
Avoid exceeding the transistor’s maximum collector current (check datasheet). Overcurrent destroys components instantly–use a fuse or current-limiting resistor to prevent thermal runaway.
Mount the assembly on a heatsink if continuous operation exceeds 2A. Thermal paste ensures proper heat dissipation; without it, performance degrades under sustained loads. Secure all connections with strain relief to prevent vibration-induced failures.
Choosing the Right MOSFET or Transistor for Your Voltage Range
Select a MOSFET with a VDS rating at least 20–30% higher than your peak supply voltage. For a 24V system, opt for a device rated for 30V or above; transients can exceed nominal levels, especially in inductive loads. Brands like Infineon’s OptiMOS series (e.g., IPP075N10N3) or Vishay’s SiHF series (e.g., SiHF8N60E) offer robust margins without unnecessary cost.
For low-voltage applications (5–12V), logic-level MOSFETs such as IRLZ44N (55V VDS, 2.5V VGS(th)) or STP55NF06L (60V, 1V VGS(th)) ensure full enhancement with microcontroller outputs. Avoid general-purpose transistors like 2N2222–their 40V VCEO is insufficient for most power-handling tasks, and current limits (~600mA) restrict performance.
Evaluate switching speed based on frequency requirements. For PWM above 20kHz, prioritize MOSFETs with low Qg (gate charge) and td(on) (turn-on delay). The IRFZ44N (60V, 44A) has a Qg of 63nC, while the IRFB4110 (100V, 120A) reduces this to 36nC, cutting switching losses by ~40%. For sub-5kHz operation, slower devices like IRF540N (100V, 33A) suffice but dissipate more heat.
Thermal performance dictates long-term reliability. Check the RθJC (junction-to-case thermal resistance) and package type. TO-220 devices (IRF540N: 1.1°C/W) require heat sinks for currents above 5A, while DPAK (STP16NF06: 60V, 0.4°C/W) suits compact designs with lower currents. For high-power applications (50A+), TO-247 packages (IXFH40N60P3: 600V, 0.22°C/W) offer superior cooling.
Gate drive voltage (VGS(th)) must align with your driver capabilities. Logic-level MOSFETs tolerate 3.3V or 5V gates, but standard devices need 10V for full conduction. The FQP30N06L (60V, 30A) guarantees low RDS(on) (0.045Ω) at 5V, whereas the IRF3205 (55V, 110A) requires 10V for optimal performance.
- 5–12V: IRLZ44N, IRL540N, STP55NF06L
- 12–36V: IRFZ44N, IRFB4110, IPB075N10N3
- 48V+: IXFH40N60P3, IRFP4668, SiHF8N60E
Polarity matters: N-channel MOSFETs dominate for high-side switching but require a gate voltage higher than the source. For simplicity, use P-channel devices like IRF9540N (100V, -20A) for low-side or complementary configurations, though their RDS(on) is typically higher. Avoid P-channel for currents above 10A–efficiency drops sharply.
Test prototypes under worst-case conditions. Measure VDS drop at maximum load; a 100mΩ RDS(on) at 20A equals 4W dissipation. Simulate voltage spikes with an oscilloscope–snubbers or flyback diodes may be necessary for inductive loads. If inrush currents exceed device limits, add series resistance or a soft-start mechanism.
