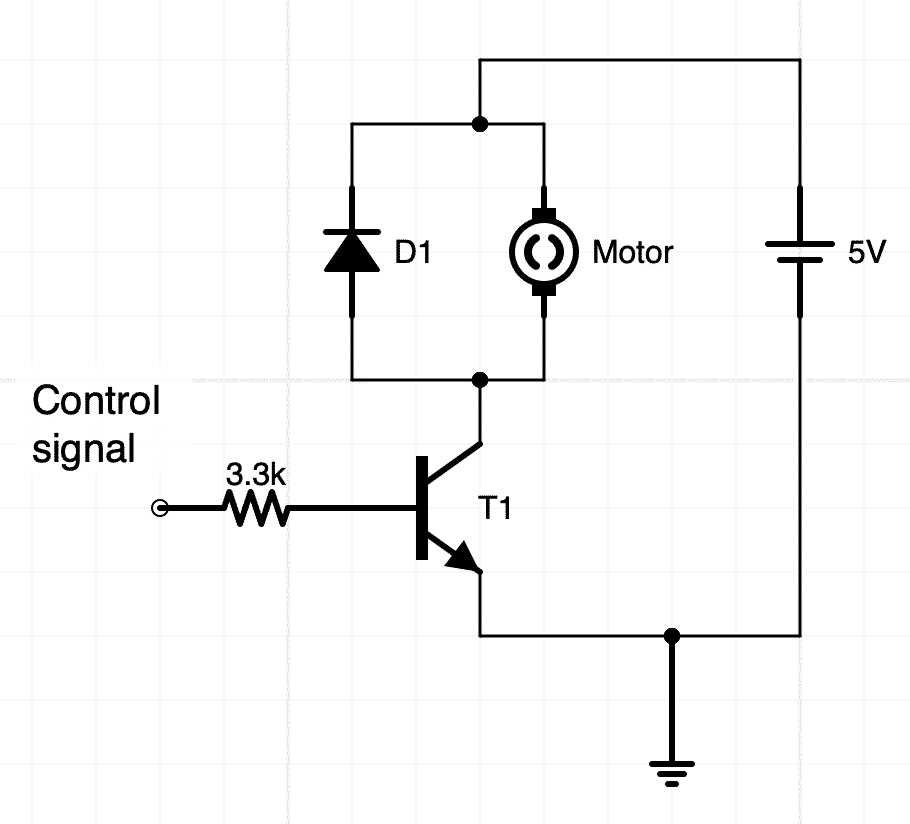

Start with a H-bridge arrangement for bidirectional current flow. Use four N-channel MOSFETs (IRFZ44N or equivalent) with 10 kΩ pull-down resistors on each gate to prevent floating states. Pair high-side and low-side transistors with freewheeling diodes (1N5408) rated for 3x the drive’s peak current to handle inductive kickback. Include a 0.1 μF ceramic capacitor across the supply pins of the driver IC (L298N or DRV8871) to suppress voltage spikes.

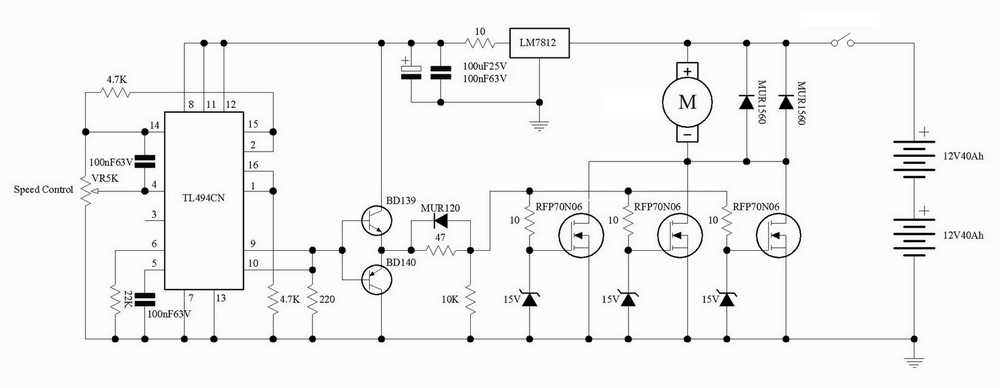

For PWM-based speed modulation, route the signal through an optocoupler (PC817) to isolate control logic from high-power components. A 5-10 kHz switching frequency minimizes audible noise while balancing switching losses. Connect a 10 μF electrolytic capacitor in parallel with the drive’s main power input to stabilize voltage under load fluctuations. Use current-sense resistors (0.1 Ω, 5W) in series with ground paths for fault detection–output should remain below 5% of the nominal current to prevent overheating.
Wire a thermal shutdown circuit using an NTC thermistor (10 kΩ) mounted near the heatsink. Configure a comparator (LM393) to cut power when temperatures exceed 80°C. For low-voltage drives (under 24V), a buck converter (LM2596) can replace linear regulators to reduce power dissipation. Test all connections with a 10 MHz oscilloscope to verify rise/fall times–ideal values should not exceed 1 μs for clean commutation.
Grounding demands attention: separate analog and power grounds, joining them only at a single star point near the primary capacitor. Route high-current traces (>3A) at least 2 mm wide on a 2 oz copper PCB. For protection, add a fuse (blade or PTC type) rated 20% above the drive’s continuous current and a varistor (14D471K) across the power input to clamp transients above 30V.
When selecting drivers, prioritize ICs with dead-time control (e.g., DRV8871) to prevent shoot-through. For custom layouts, simulate using LTspice with worst-case scenarios: stalled rotor, rapid direction changes, and input voltage sag to 80% of nominal. Critical nodes should have test points for debugging–label them clearly (e.g., “PWM_IN,” “CURRENT_SENSE”).
Building a Reliable DC Drive Circuit Layout
Start with an H-bridge arrangement using four N-channel MOSFETs (e.g., IRF540N) for bidirectional current flow. Ensure the gate drivers (like TC4427) isolate the logic signals from the power stage to prevent shoot-through. Place 10 kΩ pull-down resistors on each gate to maintain a defined off-state during microcontroller resets. A 100 nF decoupling capacitor near the IC’s power pins suppresses transient voltage spikes, critical for stable switching at 20 kHz or higher.
Integrate a current sensing resistor (0.01 Ω, 5 W) between the bridge’s ground return and system ground. Amplify the voltage drop with an op-amp (LM358) configured at a gain of 20; this provides a 1 V/A output for your feedback loop. Add a 10 μF bulk capacitor across the power input to filter low-frequency noise, while a 100 V TVS diode (SMBJ100A) across the supply terminals clamps transient voltages from load dumps.
Regulate logic supply with a 7805 linear regulator, but bypass it with a 22 μF tantalum capacitor to handle sudden load changes. For PWM input, use an optocoupler (6N137) if the control signal originates from a different voltage domain (e.g., 3.3 V logic controlling a 12 V bridge). This isolates ground loops and reduces conducted EMI.
Protection and Diagnostics
Implement overcurrent shutdown by comparing the amplified sense voltage to a 1.2 V reference (TL431). If exceeded, trigger a latch (74HC74) to disable the gate drivers until a reset signal is received. Include a flyback diode (UF4007) across any inductive loads to absorb back-EMF energy. For debugging, route the PWM signals, current sense output, and fault status to test points with 0.1″ headers for easy probing.
Key Components for Building a DC Drive Regulation Setup
Start with a H-bridge module capable of handling at least 30% more than the peak current draw of your actuator. For 12V systems, popular choices include the L298N (2A per channel) or TB6612FNG (1.2A per channel), though higher-power alternatives like the DRV8871 (3.6A) extend reliability for demanding loads. Ensure the module includes built-in flyback diodes–external Schottky diodes (e.g., 1N5822) add protection if the on-board components are insufficient.
Select a microprocessor with sufficient PWM outputs and processing speed. The ATmega328P (Arduino Uno) suits basic applications, while the ESP32 offers dual-core 240MHz performance for real-time adjustments. For precision, opt for 10-bit PWM resolution (default on most MCUs) or higher–external DACs like the MCP4725 (12-bit) refine control if analog voltage regulation is needed.
Critical Passive and Protection Elements
| Component | Recommended Value | Purpose |
|---|---|---|
| Ceramic capacitor | 100nF (X7R dielectric) | Noise filtering near IC power pins |
| Electrolytic capacitor | 220μF–470μF (25V rating) | Bulk decoupling at input/output |
| Thermal fuse | 130°C–150°C (e.g., TF600) | Prevent overheating in H-bridge |
| Current sense resistor | 0.01Ω–0.1Ω (1W–5W) | Current limiting via op-amp feedback |
Power supply stability dictates performance. For 12V systems, use a buck converter (e.g., LM2596) to drop voltage efficiently–linear regulators waste excess energy as heat. Add a 10μF tantalum capacitor at the converter output to smooth voltage ripples. For battery-powered setups, include a low-voltage cutoff circuit (e.g., TL431 with a MOSFET) to prevent deep discharge, which degrades cells.
Implement optocouplers (e.g., PC817) to isolate logic-level signals from high-current paths. This prevents ground loops and protects the microprocessor from voltage spikes. For feedback, Hall-effect sensors (ACS712) measure current without inserting resistance into the circuit, while incremental encoders (AS5600) provide closed-loop speed control.
Choose transistors based on switching speed and power dissipation. MOSFETs (IRFZ44N for 55V/49A) outperform BJTs for PWM frequencies above 1kHz, reducing switching losses. Gate drivers (IR2104) improve efficiency by ensuring rapid transistor transitions. For braking, include a high-power resistor (e.g., 25W wirewound) to dissipate regenerative energy safely.
Firmware must prioritize debounced inputs (RC filters with 10kΩ + 0.1μF) and PID tuning for responsive regulation. Store calibration values in EEPROM to retain settings after power cycles. Include failsafes–watchdog timers (ATtiny13 standalone or MCU-integrated) reset the system if software hangs. For modularity, use I²C or SPI buses to connect peripherals like displays (SSD1306 OLED) or Bluetooth modules (HC-05).
Final adjustments focus on thermal management. Mount H-bridge ICs on heatsinks (≥10°C/W rating) with thermal paste. For compact builds, use copper pours on PCB ground planes to dissipate heat. Test PWM frequencies–start at 5kHz and adjust upward until switching losses dominate. Validate current limits with a bench power supply before connecting the load to avoid overheating or component failure.

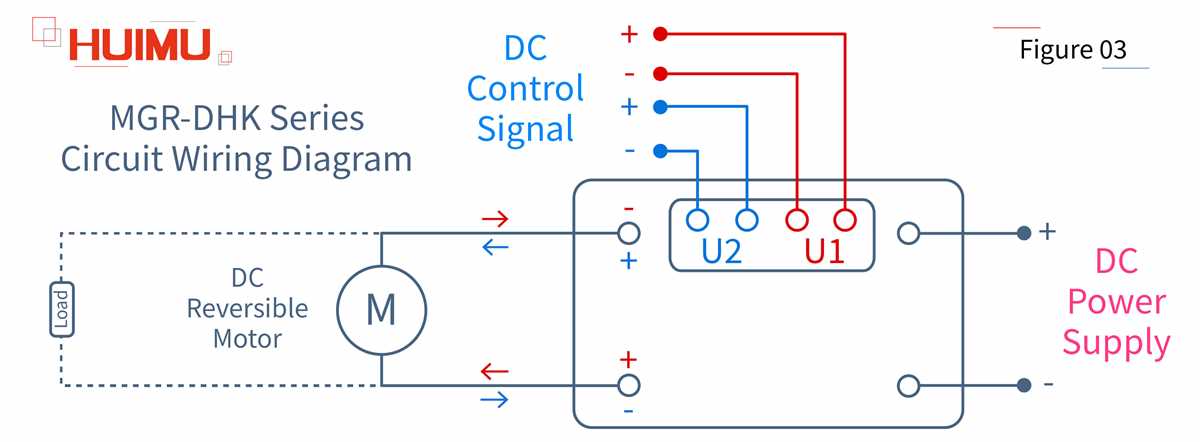

Step-by-Step Wiring of an H-Bridge for Actuator Direction Control
Begin by identifying the four switching elements–typically N-channel and P-channel MOSFETs or bipolar transistors–on the bridge circuit. Label the high-side and low-side pairs for clarity: Q1/Q2 (forward path) and Q3/Q4 (reverse path). Ensure the gate resistors (100–220Ω) are soldered between the driver IC outputs and each MOSFET gate to prevent ringing and gate damage. For logic-level MOSFETs, verify the gate threshold voltage matches your microcontroller’s output (3.3V or 5V); standard MOSFETs may require additional level-shifting circuitry.
Connect the power rails: the bridge’s positive terminal to the supply voltage (VCC, e.g., 12V) and the negative terminal to ground. Install a 10µF decoupling capacitor between VCC and ground, positioned as close as possible to the bridge IC to absorb voltage spikes. If using discrete components, add flyback diodes (1N4007) anti-parallel to each switching element to clamp induced voltages when the actuator decelerates. For integrated H-bridge ICs like the L298N, omit these diodes–they’re built-in.
Signal Integration and Isolation
Wire the input control signals (IN1, IN2 for direction) directly to the microcontroller’s GPIO pins or optocouplers for electrical isolation. For PWM speed regulation, connect the enable pin (or a dedicated PWM pin on ICs like the DRV8871) to a timer output, ensuring the frequency stays below 20kHz to avoid excessive switching losses. When testing, measure the voltage at each gate with a DMM to confirm the driver IC outputs valid logic levels; floating inputs cause erratic behavior or shoot-through.
Finalize the wiring by attaching the actuator’s leads to the bridge’s output terminals. For bipolar setups, polarity defines direction: high on IN1 + low on IN2 spins one way, reversed inputs invert it. Validate functionality with a bench power supply first, limiting current to 500mA to avoid damaging untested components. Monitor temperature during operation–bridges exceeding 60°C need heat sinks or cooling. If oscillations occur, add a 10nF capacitor between the actuator terminals to dampen high-frequency noise.
Choosing the Right Microcontroller for PWM Speed Regulation
For precise actuation management, the STM32F103C8T6 (Blue Pill) delivers 16-bit PWM resolution at 72 MHz, supporting dead-time insertion and complementary outputs–critical for H-bridge drives requiring sub-1% duty cycle accuracy. Its 12-channel timer block handles six independent PWM pairs with configurable polarity, eliminating external gate drivers for low-power setups under 5A.
AVR microcontrollers like the ATmega328P remain optimal for 8-bit applications where cost constraints prevail. The 16 MHz system clock generates 4 µs resolution at 50% duty cycle stability (±0.5%) in hardware, sufficient for fixed-speed fans or pumps. For variable loads, prioritize units with phase-correct PWM modes to minimize harmonic distortion below 1.2 kHz switching frequencies.
ESP32 variants excel in wireless-controlled systems requiring dual-core processing. The LED PWM controller supports 16 independent channels with 13-bit resolution, scaling linearly from 1 Hz to 40 MHz. Useful for IoT-driven actuation, it integrates ADC synchronization for closed-loop torque adjustment without external ICs. Beware: RTOS scheduler latency adds ~34 µs jitter–test with real-time tasks before deployment.
- Frequency range: Select STM32 for 50 Hz–200 kHz, ATmega for 1 Hz–62 kHz, ESP32 for 0.01 Hz–40 MHz.
- Current handling: Direct MCU PWM suits 1A drivers; pair STM32 with DRV8871 (3.6A) or TMC6200 (20A) for higher loads.
- Power budget: ATmega draws 3.5 mA at 5V, STM32 consumes 8 mA, ESP32 with Wi-Fi enabled reaches 240 mA.
NXP’s MK20DX256VLH7 (Teensy 3.2) offers a 96 MHz Cortex-M4 core with 4-channel DMA-backed PWM, reducing CPU load during periodic updates. Its 12-bit resolution and 0.01% frequency stability (±5 ppm) suit multi-axis machinery synchronization. Combine with a 40 V MOSFET bridge for CNC stepper emulation, achieving 97% efficiency at 24V/3A.
TI’s MSP430FR2476 integrates 12-bit PWM with zero-crossing detection for sensorless commutation. Operating at 16 MHz with 0.5 µA standby, it targets battery-powered tools. Hardware fault protection (OVC, OCP) triggers within 200 ns, preventing half-bridge shoot-through in ±12V systems. For brushed setups, its synchronous rectification mode improves efficiency by 8% at 50% load.
- Verify MCU timer registers support your desired switching frequency–STM32 TIM1 runs up to 72 MHz, ATmega Timer1 maxes at 62.5 kHz.
- Check pin header compatibility: STM32 exposes 6 PWM pairs, ESP32 offers 16 but shares pins with ADC/GPIO.
- Test thermal impact: ESP32 throttles at 105°C; use heatsinks if combining Wi-Fi, PWM, and heavy computation.
- Validate toolchain support: STM32CubeIDE handles dead-time calibration, Arduino IDE lacks ESP32 advanced timer features.
