For precise control of DC voltage levels, implement a step-down configuration using a power MOSFET (IRFZ44N or similar) paired with a PWM signal at 20–50 kHz. This setup minimizes switching losses while maintaining stable output. Use a Schottky diode (1N5822) for fast recovery and reduced reverse leakage.
Select a 100 µH inductor with saturation current 1.5× your load current to prevent core saturation. Calculate the inductance using L = (Vin – Vout) × D / (f × ΔIL), where D is the duty cycle (0.1–0.9), f is the switching frequency, and ΔIL is the ripple current (target 20–30% of load current).
Add a 220 µF electrolytic capacitor across the output to filter voltage ripple, complemented by a 1 µF ceramic capacitor for high-frequency noise suppression. For feedback control, employ an error amplifier (TL431) with a voltage divider (e.g., 10 kΩ + 2.2 kΩ) to regulate output within ±2% accuracy.
Avoid continuous conduction mode (CCM) at light loads by integrating a hysteretic controller (LM2576) or enabling pulse-skipping modulation. Test thermal performance with a 10°C/W heatsink for the MOSFET under full load (24V → 12V at 5A). Replace the diode with a synchronous rectifier (IRF3710) for efficiencies above 95% in high-power applications.
Simulate the design in LTspice or PSIM before prototyping, focusing on transient response (load steps of 10–90%) and steady-state ripple (pp). For EMI compliance, add a common-mode choke (3.3 mH) and snubber network (10 Ω + 0.1 µF) across the MOSFET.
Key Components of a DC Voltage Regulator Schematic
Begin assembly with a reliable switching transistor–preferably an N-channel MOSFET like the IRF540 rated at 100V and 28A–mounted on a heatsink with thermal paste to prevent overheating under continuous loads exceeding 15A. Connect its gate to a PWM controller IC such as the SG3525, configured with a 10kΩ resistor and 1nF capacitor for precise duty cycle adjustment from 5% to 95%. Avoid generic drivers; opt for optically isolated gate drivers like the TLP250 to block transient voltages above 200V, ensuring stable operation in industrial environments.
| Component | Model | Critical Rating | Purpose |
|---|---|---|---|
| Switching Element | IRF540 | 100V, 28A | Handles high current with low RDS(on) |
| PWM Controller | SG3525 | 5V–40V input | Generates adjustable pulse widths |
| Isolated Driver | TLP250 | 2500V isolation | Protects from voltage spikes |
| Freewheeling Diode | MUR1560 | 600V, 15A | Clamps inductive load transients |

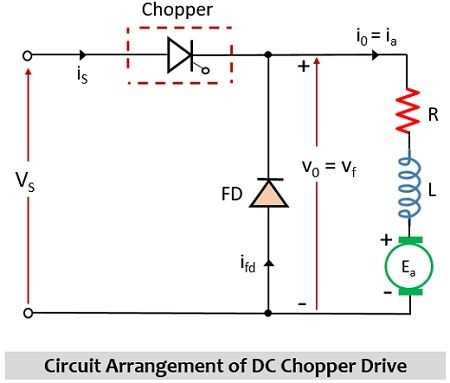

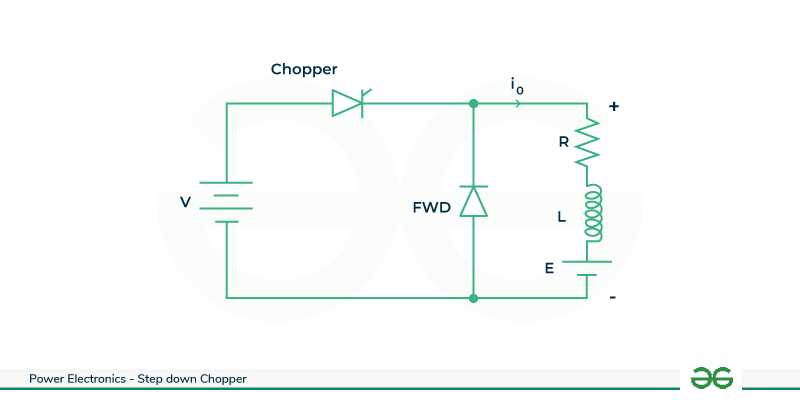

Position the freewheeling diode (e.g., MUR1560) antiparallel to the load–its recovery time of 35ns prevents voltage overshoot during transistor switching. Use a 10µH inductor with a saturation current 20% above the maximum load to filter ripple, combined with a 470µF low-ESR capacitor for stable output. For input protection, add a 100nF ceramic capacitor across the power rails to suppress high-frequency noise, and a 10Ω resistor in series with the MOSFET gate to dampen oscillations. Test the configuration with an oscilloscope: target less than 50mV ripple at full load and ensure the MOSFET case temperature stays below 80°C under prolonged operation.
Basic Components of a DC Switching Power Converter
Start with a power semiconductor as the core element–typically a MOSFET or IGBT for high-frequency operation. Choose a device rated at least 1.5 times the input voltage and twice the expected current to handle transients. For 48V systems, a 100V MOSFET like the IRF3205 ensures reliable switching without voltage spikes compromising performance. Include a freewheeling diode in antiparallel to the switch to provide a path for inductive load currents, preventing damage from back EMF.
Select a driver stage capable of delivering clean gate signals. Isolated gate drivers (e.g., isolated half-bridge modules) isolate control logic from power rails, reducing noise susceptibility. For compact designs, non-isolated drivers like the MIC4422 work when power and logic share a ground. Add a small resistor (1–10Ω) in series with the gate to dampen oscillations from parasitic inductance, stabilizing turn-on/off times.
Inductors shape output current and voltage. Use powdered iron or ferrite cores for frequencies above 50 kHz, ensuring magnetic saturation limits exceed the peak inductor current. For 10A loads, a 100 µH inductor with a saturation current of 15A prevents core losses. Wickhoff’s equations help calculate the minimum inductance: L_min = (V_in – V_out) * D / (ΔI * f), where D is duty cycle, ΔI ripple current, and f switching frequency.
Output capacitors smooth voltage ripple. Polymer electrolytics or ceramic capacitors excel in high-frequency converters; low ESR values (below 10 mΩ) minimize heat buildup. For 5V outputs at 5A, a 470 µF capacitor with ≤ 5 mΩ ESR reduces ripple below 50 mV. Place capacitors near load terminals to avoid parasitic inductance degrading performance.
Control logic determines switching behavior. PWM controllers (e.g., TL494, UC3843) regulate output voltage via feedback loops. Use voltage dividers (precision resistors, tolerance ≤ 1%) to scale output voltage for error amplifier inputs. Add compensation networks (type-II or type-III) to stabilize loop response, targeting a crossover frequency f_c ~1/10th of the switching frequency.
Include protection mechanisms to prevent failures. Overcurrent sensors (shunt resistors, Hall-effect ICs) trigger shutdown at 120% of rated current. Thermal monitoring with NTC thermistors ensures heatsinks stay below 100°C. UVLO (under-voltage lockout) circuits halt switching if input drops 20% below nominal, preserving component lifespan. Soft-start capacitors (0.1 µF) ramp output voltage over 50 ms, reducing inrush currents.
Design PCB traces for high currents–use 2 oz copper for 10A+ paths, widening traces to 1 mm/A. Route switching nodes away from analog signals to avoid noise coupling. Keep power and ground planes separate, connecting them at a single point to prevent ground loops. Test thermal rise at full load; derate components by 20% for ambient temperatures exceeding 50°C.
Step-by-Step Assembly of a DC Buck Converter
Select a power MOSFET with a drain-source voltage rating at least 20% higher than your input voltage. For a 24V supply, use an IRF540N (100V/33A) or equivalent. Verify gate threshold voltage matches your PWM controller–most require 4-10V for full enhancement. Position the switch close to the input capacitor to minimize parasitic inductance.
Attach a ceramic capacitor (10μF-47μF, X7R dielectric) directly across the high-side MOSFET’s drain and source terminals. Mount it within 5mm of the pins to suppress voltage spikes during switching. For additional filtering, parallel this with a 100μF electrolytic capacitor, ensuring the polarities align with the input voltage polarity.
Install a Schottky diode rated for continuous current exceeding your load by 50%. For a 5A load, use an SB560 (5A/60V) or similar. Solder the cathode to the inductor’s input node and the anode to ground. Keep trace lengths under 10mm to reduce forward recovery losses.
Choose an inductor with a saturation current 30-50% above your peak load current. For 3A output, use a 100μH component with ≥4A saturation (e.g., Murata 14R104C). Windings should have a ferrite core to limit eddy currents. Secure the inductor with thermal adhesive if operating above 1A to prevent vibration-induced noise.
Connect the output capacitor (minimum 22μF per amp of load current) between the inductor’s output node and ground. Use low-ESR types (Oscon SP or similar) for frequencies above 100kHz. Add a 0.1μF ceramic capacitor in parallel to handle high-frequency transients. Verify ESR specifications–values above 50mΩ will degrade efficiency by 2-5%.
Wire a 10kΩ pull-down resistor from the MOSFET gate to ground to prevent floating gate conditions during startup. For gate drivers, use a dedicated IC like the TC4427A or construct a discrete push-pull stage with BJTs if cost is critical. Ensure the driver’s rise/fall times align with the PWM frequency to avoid shoot-through.
Calibrate the PWM signal generator to 50-150kHz for optimal inductor size/efficiency tradeoff. Set initial duty cycle to 50% and measure output voltage with a load resistor. Adjust duty cycle incrementally (0.5% steps) while monitoring ripple–target
Enclose the assembly in a grounded metal housing if EMI exceeds 50dBμV at 30MHz. Route high-current paths (>1A) with 2oz copper traces and avoid 90° bends–use 45° angles to reduce inductance. Test thermal performance under full load; MOSFET case temperature should stabilize below 100°C without active cooling for reliable operation.
Common Switching Devices for DC Power Converters and Their Ratings
For most low-to-medium voltage applications (up to 1200V), Silicon IGBTs (Insulated-Gate Bipolar Transistors) remain the dominant choice due to their balanced switching speed (10–50 kHz) and current-handling capacity (50–3600A). Modules like Infineon’s FF1400R12IP4 (1200V/1400A) or Mitsubishi’s CM1200HC-24H (1200V/1200A) offer optimized thermal performance with ≤1.1°C/W junction-to-case resistance, critical for high-power density designs. Prioritize devices with anti-parallel diodes rated for ≥1.2× nominal current to handle reverse recovery transients without derating. For cost-sensitive applications under 600V, Silicon MOSFETs like STMicroelectronics’ STW140N65M5 (650V/60A, RDS(on) ≤ 30mΩ) provide faster switching (100–500 kHz) with lower gate drive complexity, but require careful PCB layout to mitigate ringing.
Emerging Alternatives and High-Power Considerations
- Silicon Carbide (SiC) MOSFETs excel in efficiency-critical systems:
- Wolfspeed’s C3M0065090D (900V/36A) achieves ≤22mΩ RDS(on) and ≤65ns turn-off time, reducing switching losses by 70% vs IGBTs.
- Infineon’s IMZA120R040M1H (1200V/36A) integrates a SCR-based short-circuit protection, eliminating external clamping circuits.
- Premium SiC pricing ($0.10–$0.20/A) justifies adoption only for >100 kW systems where efficiency gains (1–2% higher than Si) offset costs.
- Gallium Nitride (GaN) HEMTs dominate sub-600V, ultra-compact designs:
- EPC’s EPC2054 (100V/90A) offers 4mΩ RDS(on) and ≤5ns switching, ideal for 48V automotive or telecom DC-DC converters.
- Texas Instruments’ LMG3425 (600V/12A) includes integrated gate drivers and temperature sensing, simplifying layout but requiring to prevent oscillations.
For >3.3 kV applications, press-pack IGBTs (e.g., ABB’s 5SNA 2400E330100, 3300V/2400A) eliminate bond wires, improving reliability in traction drives and wind turbine inverters. Thermal cycling endurance (≤150°C ΔT) dictates lifespan–opt for modules with AlSiC baseplates over copper for 5–10× longer MTBF in harsh environments. Always derate devices by ≥20% nominal voltage and ≥15% current to account for transient overvoltages (≤1.4× VDC) during commutation.
