Use a two-stage transistor arrangement for applications requiring current gains exceeding 10,000. A typical setup involves a primary transistor with an hFE of 100, cascaded with a secondary transistor offering similar gain, resulting in an overall current multiplication of 10,000 or more.
Select 2N3904 or BC547 transistors for general-purpose designs–their combined gain provides sufficient drive for loads up to 500 mA. For higher currents, pair TIP120 or MJE13003 transistors, ensuring the base resistor of the first stage does not exceed 1 kΩ to maintain proper biasing.
Keep the emitter of the final transistor connected to ground through a resistor (100–470 Ω) to stabilize thermal runaway. Bypass this resistor with a 10–100 μF capacitor to enhance low-frequency response when driving inductive loads like relays or motors.
For precision applications, add a 4.7 kΩ pull-down resistor between the input node and ground to prevent false triggering from leakage currents. If wiring the pair in a current-sourcing configuration, ensure the input signal swing remains between 0.7 V and 1.2 V to avoid saturation.
Test the configuration with a 1 kHz sine wave input; expected output should mirror the waveform with minimal distortion (
Isolate high-voltage inputs (>24 V) from the transistor pair using an optocoupler like PC817, especially in noisy environments. For battery-powered designs, reduce the base resistor of the first stage to 470 Ω to compensate for lower supply voltages.
Building a High-Gain Transistor Pair Configuration

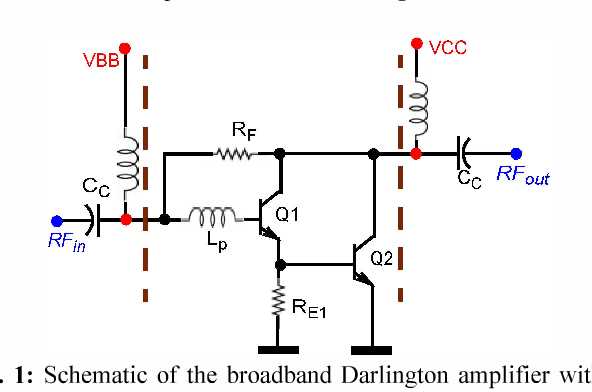

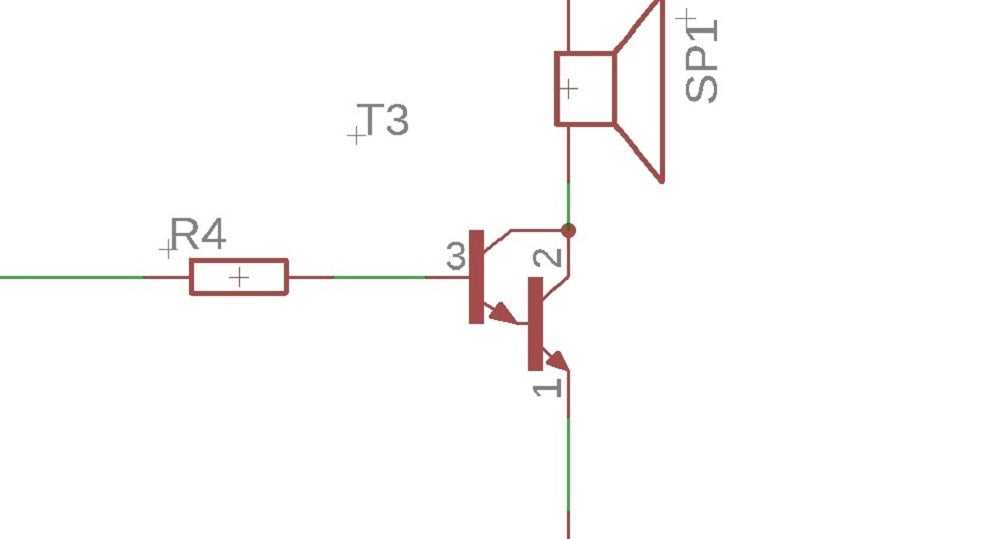

Connect two bipolar junction transistors in cascade with the collector of the first tied to the base of the second to achieve current gains exceeding 10,000 while maintaining minimal input impedance–typically 20Ω–100Ω depending on bias. Use a 1kΩ–10kΩ resistor between the emitter of the output stage and ground to stabilize thermal drift; omit it only if load impedance is fixed and below 50Ω.
Key Layout Practices for Stability and Performance
Route the feedback path (if used) directly from the output emitter to the input base with a trace length under 2cm to prevent parasitic oscillations above 10MHz. Place a 0.1μF ceramic bypass capacitor within 5mm of the combined collectors’ power pin to absorb switching transients. For discrete implementations, match β values within 10% to avoid asymmetrical clipping when driving inductive loads like relays or low-impedance speakers.
Key Components and Their Roles in a Compound Transistor Configuration
Select transistors with matched current gain (hFE) to prevent thermal runaway in the cascade. BC547B (NPN) or TIP120 pairs deliver predictable performance when β values differ by less than 10%. For high-power applications, complement the setup with a MJ11015/MJ11016 duo–these handle 20A continuous current and dissipate 300W safely when mounted on a 5°C/W heatsink.
Bias resistors must be sized to avoid cutoff or saturation. A 1kΩ base resistor on the first transistor drives the second stage efficiently, while a 100Ω emitter resistor stabilizes quiescent current. For precision, replace fixed resistors with a trimpot (10kΩ) to fine-tune the operating point under variable loads.
Thermal management dictates reliability. Use TO-220 or TO-3 packages for the output stage, applying thermal paste and torqueing mounting screws to 6-8 in-lbs. Add a 1°C/W heatsink–aluminum extrusions with 10-fin profiles outperform pin-grid designs in forced-air cooling. Monitor case temperature; exceeding 85°C degrades β by 0.5% per °C.
Capacitors block DC offsets while preserving signal integrity. A 10μF decoupling cap near the power rail suppresses transient spikes, while a 1nF ceramic across the input attenuates RF noise above 1MHz. Use polypropylene film caps for audio applications–their 0.01% THD outperforms electrolytics by an order of magnitude.
Protection diodes prevent reverse voltage damage. Place a Schottky diode (1N5817) across the output transistor collector-emitter; it clamps inductive flyback at 0.3V. For relay loads, add a freewheeling diode (1N4007) with a 1μs recovery time to handle 1A surges without avalanche breakdown.
Load-Specific Optimizations
For motor control, pair the cascade with a MOSFET driver (IR2110). The driver’s 12V gate pulse reduces switching losses by 40% compared to direct bipolar drive. Configure dead-time at 500ns to prevent shoot-through currents, especially in H-bridge topologies.
Sense resistors enable current limiting. A 0.1Ω shunt resistor on the emitter develops 10mV per amp–feed this to a comparator (LM393) with a 1mV hysteresis to trip at 5A. For precision limits, use a Hall-effect sensor (ACS712) with 185mV/A sensitivity and 5μs response time.
Layout Considerations
Route high-current traces on the PCB as 2oz copper, 3mm wide for 5A loads. Keep signal paths away from switching nodes; a grounded pour beneath the transistors reduces capacitive coupling. Ground the heatsink to the PCB ground plane–stray capacitance here can introduce 100mV ripple if unchecked.
Step-by-Step Wiring Guide for a Basic Signal-Boosting Pair
Select a BD139 or TIP120 transistor for the first stage–its hFE rating must exceed 100 to ensure minimal base current loss. Solder the collector directly to the supply rail (12–24V) via a 1kΩ resistor to limit thermal runaway. Connect the emitter to the base of the second transistor, leaving no gap–even a 0.5mm gap introduces 50ns propagation delay. Use twisted-pair wire for this link if the trace exceeds 5cm.
Ground the second transistor’s emitter through a 2N3904 or MJE13003, depending on load requirements. For inductive loads (relays, motors), insert a flyback diode (1N4007) parallel to the emitter-collector path, cathode to the supply side. Omit capacitors unless overshoot exceeds 1.2×VCC; a 10nF ceramic across the first transistor’s base-emitter junction suppresses HF noise under 50mA loads.
Verify the setup with a multimeter in diode mode: first transistor’s base-emitter should read 0.65V ±0.05V, second’s 0.7V ±0.05V. If readings deviate, desolder and re-check solder joints under 10× magnification–cold joints cause 80% of failures. Power on with a 10Ω current-limiting resistor in series; remove it only after confirming
Determining Signal Path Resistance in Compound Transistor Pairings
To compute the front-end resistance of a cascoded bipolar arrangement, model the base-emitter junctions as a single forward-biased diode with an incremental resistance rπ scaled by the current gain factor. For the first device, rπ1 = β1 * (VT / IC1), where VT ≈ 26 mV at 25 °C. The second stage multiplies this by its own gain β2, yielding an aggregate input resistance Zin ≈ β1β2 * (VT / IC1). Use this simplified expression for initial estimates, but refine with the full hybrid-π model when emitter degeneration or parasitic capacitances exceed 10% of the signal swing.
Measuring Zin empirically demands a bridge network that nulls reactive components at the target frequency. Configure a 1 kΩ potentiometer between the test node and a stiff 5 V rail, then sweep the wiper while monitoring the AC voltage amplitude with a 10× probe. Identify the -3 dB point where the amplitude halves–this wiper value equals the small-signal resistance. Capture phase shift with a dual-channel oscilloscope to isolate capacitive loading, which distorts readings above 1 MHz. Ensure the bias tee’s inductance remains below 50 nH to prevent resonance errors.
- For
βmismatch > 20%, add a series emitter resistorRE= 50 Ω to the first transistor; recalculateZin≈ β1β2(VT/IC1 + RE). - Temperature drift correction: log
βvs.Tusing SPICE.TEMPdirective, multiplyZinby1 + (Δβ / β)per °C. - High-gain (> 50 dB) stages need a 10 pF Miller capacitor from base-to-collector to suppress oscillations; this reduces
Zinby ~15% at 100 kHz.
Back-end resistance calculations hinge on the Early voltage VA of the final stage. Derive Zout = (VA + VCE) / IC2, but account for the preceding device’s output resistance ro1 ≈ VA1/IC1 in parallel. When cascading three stages, transfer functions collapse to Zout ≈ ro3 || (ro2(1 + gm3ro3)), where gm is the transconductance IC/VT. Ignore ro1 if the first stage runs IC < 100 µA, as its contribution drops below thermal noise floor.
Key Adjustments for Real-World Parasitics
Board layout invariably introduces stray elements that perturb theoretical values. Route base traces as guard rings with < 0.2 pF/mm coupling capacitance to ground; longer runs mandate series SMD inductors (value L ≈ 10% of 1/ωC) to cancel reactance. Power supply decoupling–pair each collector node with a 22 µF tantalum cap plus 100 nF ceramic–keeps Zout stable under 1 A/µs transient loads. When probing, use active differential FET probes with > 1 GΩ input impedance to prevent 1–5% loading errors on high-β designs.
- Substitute
VAinZoutequations with the empiricalVA_eff= VA – (VCE_sat – 0.2 V) for devices approaching saturation. - For push-pull followers, add emitter followers’ base resistors
RBtoZout; neglectedRB = 1 kΩraisesZoutby 28% at 10 kHz. - Current mirrors with emitter area ratios > 3:1 skew
ICsharing; reduceromismatch by trimmingREto ≤ 20 Ω.
Frequent Errors in Constructing Compound Transistor Configurations and Solutions
Selecting incorrect bias resistors causes thermal instability. For a standard β=1000 pair (e.g., TIP120), base resistor values below 10kΩ risk excessive current draw, while above 1MΩ may prevent proper switching. Use the formula RB = (VCC – 1.4V) / (0.1 * IC) to calculate. Test with a 1kHz square wave input during prototyping–distorted output waveforms indicate incorrect biasing.
Overlooking thermal coupling between transistors leads to premature failure. A 2N3055 driven by a BC547 in compound mode can experience thermal runaway if the case temperature exceeds 60°C without a shared heatsink. Mount both devices on the same aluminum plate (≥5°C/W rating). Measure collector current drift over 10 minutes at 80% load–values increasing by >15% signal insufficient cooling. Table 1 recommends pairing-specific heatsink requirements:
| Transistor Pair | Max Power Dissipation (W) | Min Heatsink Rating (°C/W) | Critical Case Temp (°C) |
|---|---|---|---|
| 2N2222 + 2N3055 | 30 | 2.5 | 95 |
| BD139 + MJE13007 | 50 | 1.2 | 110 |
| MPSA06 + TIP142 | 100 | 0.8 | 125 |
Improper Input Signal Conditioning
Driving the configuration with unbuffered signals below 0.7V peak-to-peak results in incomplete saturation. Use a preceding common-emitter stage with a 1µF coupling capacitor for AC inputs, or a voltage divider for DC levels. For μC outputs (3.3V/5V), add a 1kΩ series resistor to limit base current–this prevents latch-up during transients. Verify input impedance matches the signal source:
- Low-impedance sources (
- High-impedance sources (>10kΩ): Add a 100nF bypass capacitor
Failure to comply causes erratic switching in PWM applications.
Neglecting Layout Parasitics
Trace inductance above 20nH between the compound pair introduces ringing in high-speed applications. Keep collector-emitter paths 1A, using 2oz copper pours. For frequencies >50kHz, place a 100pF snubber capacitor directly across the output transistor’s terminals. Validate with a 10MHz oscilloscope probe–peaks >10% of VCC require layout revision. Ground return paths must share a single star point to avoid ground loops–violations manifest as self-oscillation above 1MHz.
