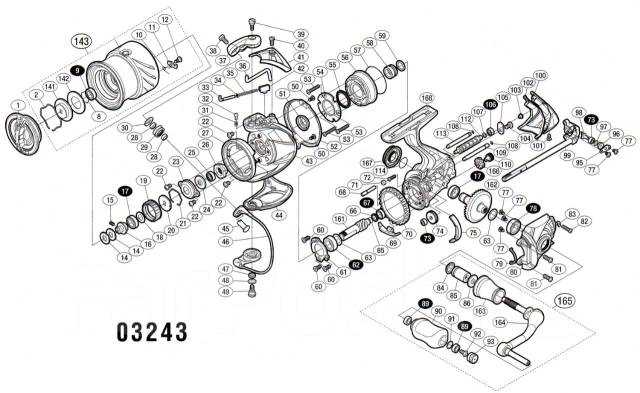

Begin by locating the exploded view manual for your exact model series–serial numbers stamped on the frame usually match nomenclature like 17-Tournament, 20-Lexa, or 25-Crossfire. These documents contain exact dimensional tolerances for drag washers, pinion gears, and spool bearings, critical for reassembly without play or misalignment. Ignore generic tutorials; discrepancies in component spacing between model years (e.g., 2018 vs. 2021 4000-size) lead to binding or premature wear.
Trace the drive train path: main gear teeth mesh with the pinion at a 22.5-degree pressure angle, requiring 0.1–0.3mm backlash–measure with calipers, not feeler gauges. The one-way clutch rollers (commonly 1.2mm diameter) must seat fully in their races; partial engagement causes slippage under 6+ kg load. For handle assemblies, note torque specs: M6 x 1.0 screws secure arms to shafts at 8–10 Nm–over-tightening warps the frame plate, disrupting rotor balance.
Identify the braking system early: centrifugal brakes activate at 3,200 RPM via 0.8mm steel pins in polyester bushings. Replace any bushings showing 0.05mm+ clearance–factory gaps tighten to 0.02mm. Hydraulic drags use stacked 1.5mm carbon washers under 35 kg/cm² spring pressure; orient grooved washers outward or drag curves drift unpredictably under load.
Spool alignment hinges on two 3mm thrust bearings seated in the rotor base–clear any corrosion with CRC 2-26 (avoid WD-40; it dissolves lubricant films). The spool shaft endplay should not exceed 0.03mm; adjust via rotor cap shims in 0.05mm increments. Verify line lay by winding 120m of 0.4mm braid; misalignment manifests as uneven wraps within the first 50 turns.
Final inspection: rotor oscillation tolerance must stay below 0.08mm TIR–use a magnetic base dial indicator on the bail arm pivot. Any wobble above this limit requires replacing the 6201RS bearings (sealed, not open). Reassemble with Molykote EM-30L on gears and Penn Super Lube on bearings; substitutes like lithium grease degrade under heat cycling, reducing lifespan by 35–40%.
Understanding Fishing Gear Internal Blueprints: A Hands-On Approach
Start by locating the gear housing plate–typically secured with three or four screws along the outer edge. Remove these fasteners with a precision screwdriver (PH0 or PH00 size) to avoid stripping. The plate often conceals critical components like the pinion gear, main drive gear, and anti-reverse clutch. Check for alignment marks; these indicate factory positioning and must be re-matched during reassembly to prevent drag miscalibration.
Inspect the gear train ratio printed on the internal casing–common ratios include 5.2:1, 6.2:1, or 7.1:1. Higher ratios retrieve line faster but sacrifice torque. For saltwater applications, confirm the presence of corrosion-resistant materials like stainless steel ball bearings (minimum 5 sealed units) and zinc-alloy gears. Replace any worn bushings immediately; these thin-out faster under lateral pressure and cause uneven spool rotation. Use manufacturer-specified lubricants–never generic grease–to prevent viscosity breakdown.
- Disassemble the drag system stack: alternating fiber washers (often 3–5) and metal plates. Note their sequence; reversing washers alters drag smoothness. Clean each with isopropyl alcohol (90%+ concentration) to remove salt deposits. Dry completely before reassembly–moisture trapped here accelerates oxidation.
- Check the spool release mechanism: press the quick-release button while turning the handle. If resistance exists, the pawl may be misaligned or the spring fatigued. Replace the spring if tension feels inconsistent.
- Test the handle knob threads: cross-thread damage here causes wobble. Apply thread locker (medium-strength) during reassembly to prevent loosening.
Trace the line roller path: the roller should rotate freely without lateral play. If it sticks, remove the two retaining screws and clean the bearing with ultrasonic cleaner or compressed air. Re-grease with waterproof marine-grade lubricant, focusing on the inner race. Misalignment here causes inconsistent line lay and increases twist accumulation.
Verify the centrifugal brake system if applicable–count the braking blocks (usually 6–8) and confirm they retract fully when spool speed decreases. Adjust tension by rotating the brake dial incrementally; each click represents a ~3% braking force change. Record your settings for future reference. For magnetic brakes, adjust the external dial while spinning the spool–listen for smooth deceleration without abrupt stops.
- Reassemble in reverse order: start with the spool, ensuring the line clip aligns with the spool’s cutout.
- Thread the handle onto the drive shaft, turning clockwise until fingertight. Use a torque wrench set to 15–20 N·m to avoid over-tightening.
- Hold the gearbox stationary while rotating the handle to seat the internal gears. Failure here indicates improper mating–recheck alignment marks.
- Test the anti-reverse by pulling the line backward: the handle should lock instantly. If it slips, the one-way bearing needs replacement.
How to Identify and Analyze the Central Drivetrain in Fishing Equipment Blueprints
Begin by identifying the exploded-view illustration section labeled for internal mechanics. Look for the largest toothed component near the handle spindle–this is the primary power-transferring element. It typically spans 60–75% of the gearcase’s width, with module sizes ranging from 0.5 to 0.8 mm depending on the series. Cross-reference its position with the adjacent shaft bearings; these often appear as clustered circles with diagonal hatching in engineering drawings.
Trace the power flow in reverse from the rotor arm attachment point. The central drivetrain engages with a smaller pinion (12–18 teeth) mounted perpendicularly. Both components should align within ±0.1 mm tolerance in the layout, visible through concentric dashed lines indicating their mating relationship. Any deviation in these lines suggests misalignment corrections needed during reassembly.
Critical Specifications of Core Components
| Component | Tooth Count (Approx.) | Material | Surface Treatment |
|---|---|---|---|
| Main drive wheel | 50–80 | Forged aluminum 7075 | Hard-anodized 25–35 μm |
| Pinion engagement | 12–18 | Stainless steel SUS440C | Black oxide coating |
Verify spline engagement patterns between the main gear and arbor. Standard models use 6-point or 9-point interfaces, while high-torque variants employ 12-point or involute profiles. The blueprint should display these as star-shaped cutouts radiating from the shaft’s center axis. Missing splines indicate a damaged or incompatible replacement part.
Locate the clutch mechanism adjacent to the large gear. It consists of a pressure plate with 4–6 friction discs arrayed in alternating steel-fiber layers. Their depiction in technical layouts includes dimension callouts for compressed disc thickness (typically 1.2–1.5 mm) and release clearance (0.3–0.5 mm). These values directly affect drag washout resistance during peak loads.
Troubleshooting Mismatched Assembly Markings
Compare index marks on both mating gears. These appear as small triangles or diamonds etched into non-functional faces, aligning precisely during optimal meshing. Rotational offsets exceeding 0.2 mm between these markers correlate with audible gear chatter during operation. If the diagram lacks these indicators, assume the zero-backlash position matches when teeth fully engage at the widest point of the involute curve.
Inspect bearing seat diameters closely–inner race tolerances hold ±0.005 mm for press-fit stability. The main axle bearing (6900 or 6800 series) sits recessed within the housing, while the pinion bearing (often a double-shielded MR63) floats between the smaller gear and crank plate. Improper seating presents as excessive endplay measurable via dial indicator during oscillation tests.
Note lubrication pathways, usually marked with dotted or dashed arrows leading to grease reservoirs. High-performance models route synthetic oil (PAO or ester-based) through micro-channels feeding both the central drivetrain and bearings simultaneously. Absence of these pathways in the schematic suggests batch-specific modifications requiring OEM maintenance procedures.
Step-by-Step Disassembly Path Using Precision Gear Blueprint Analysis
Begin by securing the fishing mechanism on a non-slip surface to prevent rotational movement. Identify the drag adjustment knob–typically located atop the spool–and rotate it counterclockwise until fully loosened. This exposes the tension spring beneath, which must be carefully pried away using a flat-head tool, ensuring no lateral force is applied to avoid deformation.
Remove the spool assembly by lifting it vertically after unscrewing the retaining clip. Examine the internal gear housing for lubricant buildup or debris; clean with isopropyl alcohol and a lint-free cloth. The pinion gear, nestled adjacent to the main shaft, requires alignment checks–misalignment here often causes erratic drag performance.
Critical Component Examination
Disassemble the handle assembly by first detaching the counterbalance weight, then unscrewing the handle arm using a hex wrench specific to the model’s thread pitch. The drive gear beneath should be inspected for tooth wear; replace if pitting exceeds 15% of the surface area. The anti-reverse mechanism, often a pawl-and-ratchet system, must be disengaged before separating the side plate–failure to do so risks spring-loaded components ejecting unpredictably.
Lubricate the bearings using manufacturer-specified grease–overapplication can attract particulates. Apply sparingly to the main shaft bearings, focusing on the races. Reassemble in reverse order, ensuring the spool’s free-spin test yields less than 0.5mm lateral play. Tighten all fasteners incrementally, alternating between sides to maintain uniform pressure.
The bail arm assembly often requires partial disassembly for thorough cleaning. Remove the bail wire by unscrewing its mounting posts, then extract the roller bearing without forcing it–excessive torque damages the needle bearing inside. Reinstall the roller with its concave side facing the spool lip to ensure line alignment during retrieval.
Validate gear engagement by manually rotating the handle post-reassembly. Grinding or resistance indicates misaligned gears; recalibrate the pinion gear’s depth by adjusting the side plate’s positioning screws. Use a feeler gauge to confirm a 0.1–0.2mm gap between the pinion and drive gear. Over-tightening here strips threads or binds the mechanism.
Final Calibration Checks
Test drag consistency by attaching a tension meter to the spool. Gradual resistance increases should align with the manufacturer’s torque specifications–deviations greater than 10% require spring or washer replacement. Reinstall the spool cap, verifying the drag knob’s smooth rotation from zero to maximum tension without catching.
Conclude by verifying the anti-reverse switch’s operation. Flick it on/off while rotating the handle; any hesitation suggests worn pawl teeth or a contaminated lubricant. Apply light machine oil to the pawl pivot point before final reassembly. Store disassembled parts in a segmented tray to avoid cross-contamination or loss.
