For safe and reliable operation, connect the indoor air handler to the outdoor compressor using 14 AWG stranded copper wire rated for 60°C. Use four conductors: red (power), blue (common), green/yellow (ground), and black or brown (signal). Verify the outdoor unit’s terminal block labeling–L1 (power supply), N (neutral), S (signal), and ☒ (ground)–as some models require swapped connections for heat pump modes.
Route wiring through liquid-tight conduit if exposed to moisture; secure with insulated staples every 3 feet. Avoid parallel runs with high-voltage lines–maintain at least 6 inches of separation. For dual-zone setups, label each cable pair clearly: Indoor Unit A → Outdoor Terminal 1, Indoor Unit B → Outdoor Terminal 2. Cross-reference the model-specific documentation–some variants demand a jumper wire between terminal S and ☒ for defrost cycles.
Test continuity before energizing: measure 0 ohms between power and neutral, and 24V AC across signal and common. If the system fails to start, verify the outdoor disconnect switch is closed–some installations place it over 10 feet from the unit, hidden behind condenser coils. Check for voltage drop in long runs (exceeding 100 feet); upsize to 12 AWG if necessary. Reset the circuit breaker after confirmation, but expect a 5-minute delay–modern inverters enforce a startup cooldown.
Practical Installation Guide for Climate Control Units
Start by verifying the power supply matches the unit’s specifications. For most residential systems, check the label on the outdoor compressor for voltage (typically 208/230V or 115V) and amperage. Connect the dedicated circuit breaker matching these values to prevent overheating. Use 12 AWG copper wire for 20-amp circuits and 10 AWG for 30-amp setups, ensuring wires are rated for at least 75°C. Route cables through a conduit if installed outdoors, securing them with weatherproof connectors to avoid moisture exposure.
| Wire Gauge | Max Amperage | Recommended Breaker |
|---|---|---|
| 14 AWG | 15A | 15A |
| 12 AWG | 20A | 20A |
| 10 AWG | 30A | 30A |
Identify the terminal block inside the outdoor unit–usually marked as L1, L2, N, and ground. Strip 1/2 inch of insulation from each wire, then secure them tightly to prevent arcing. For single-phase units, connect red (or black) to L1, black (or blue) to L2, white to N, and green/bare to ground. Cross-reference the indoor air handler’s diagram, as some models require linking communication wires between units. Power off the circuit before testing continuity with a multimeter to confirm connections. Label all wires at both ends to simplify future troubleshooting.

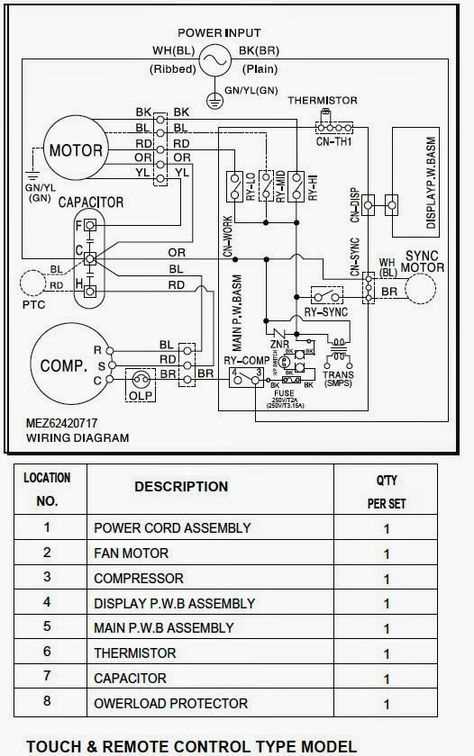

Core Conductors in Climate Control System Electrical Blueprints
Locate the power supply lines first–these are typically marked with L (live), N (neutral), and ⏚ (ground) on the schematic. The live conductor is often red or brown, while neutral is blue or white. Ground wires are universally green, yellow-green, or bare copper. Verify these against the unit’s rating plate, where voltage requirements (e.g., 230V or 115V) dictate compatibility. Mismatched connections risk tripping breakers or damaging components.
Trace the indoor and outdoor communication leads, usually a twisted pair labeled 1 and 2 or S1/S2. These carry low-voltage signals between the air handler and condenser, coordinating compressor operation and fan speeds. On older models, they may appear as thin, insulated wires (18-22 AWG) distinct from thicker power cables. Interrupting these breaks cycle synchronization, leading to error codes like U4 or E5.
- Thermistor leads: Often labeled TH or T, these thin wires (AWG 22-24) connect temperature sensors to the control board. Indoor sensors monitor evaporator coil temps; outdoor sensors track refrigerant pressure. Shorts or opens here trigger E1 or P4 faults. Use a multimeter in resistance mode to test continuity–values should align with manufacturer tables (e.g., 10kΩ at 25°C).
- Defrost heater wires: Found only in heat pump variants, these thicker conductors (AWG 16-18) connect to the outdoor coil’s defrost element. Look for labels like DH or H. Absent or compromised connections cause ice buildup, activating H6 or J6 errors. Verify with an ohmmeter–readings below 20Ω indicate a functional heater.
- Stepper motor outputs: For variable-speed blowers, locate CN or M connectors linked to the indoor fan motor. These four wires (usually yellow, blue, pink, and gray) deliver pulse-width modulated (PWM) signals. Swapping polarity or loose terminals result in erratic fan operation or H3 overheat errors. Check wiring against the PCB diagram–sequential colors often match pin assignments.
Identify high-voltage components next: the compressor contactor coils (labeled CC or 52C) and capacitor leads (C or MC). The contactor’s control wires are 24V; miswiring here prevents the unit from starting. Capacitors require discharge before handling–use a 20kΩ resistor across terminals for 30 seconds. Reversed leads on run capacitors (marked HERM and FAN) cause humming without startup, tripping the P1 overload code.
Cross-reference wire colors with the legend in the service manual–generic schematics may invert conventions (e.g., European models use brown for live, while North American use black). For inversion-capable units, locate the RVS or REV wires controlling refrigerant flow direction; these are low-voltage (12-24V) and critical for heating cycles. Ensure separation from high-voltage lines to avoid arcing. Use a wire tracer tool if the schematic lacks color coding.
Validate all connections with a clamp meter: measure current draw against rated specifications during startup (e.g., 5-7A for the compressor, 1-2A for fans). Deviations suggest shorted windings or failing relays. For multizone systems, note the Y1/Y2 and W1/W2 outputs–these route to zone dampers or secondary air handlers. Label each conductor with heat-shrink tubing or adhesive tags during reassembly to prevent future misrouting.
Step-by-Step Electrical Hookup for Climate Control Components
Before handling any connections, disconnect the power supply at the circuit breaker to prevent accidental shocks during installation. Verify the absence of voltage using a multimeter on the L1 and L2 terminals of the indoor equipment’s terminal block. Failure to confirm zero current will risk severe injury or equipment damage.

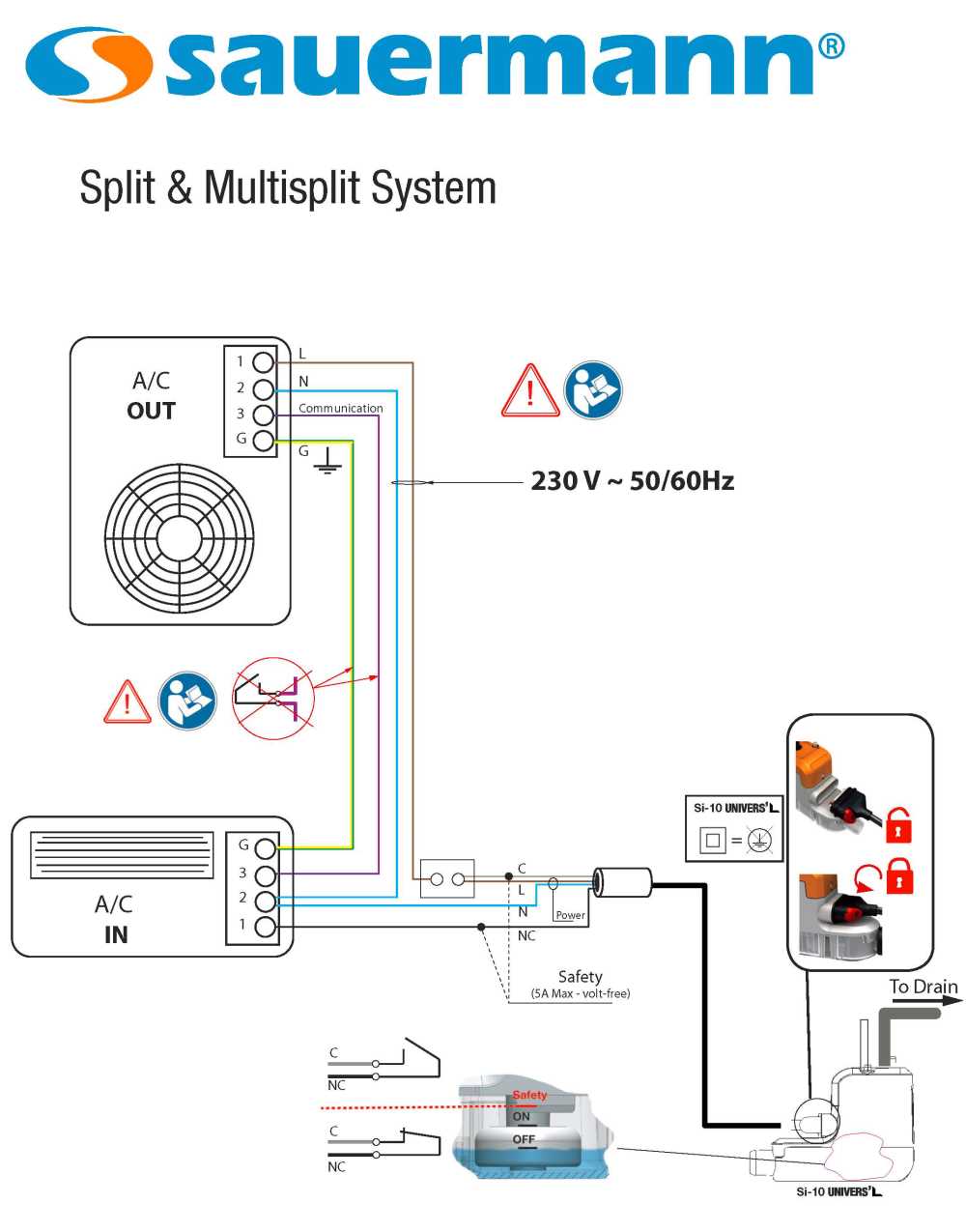

Locate the labeled terminals on both the wall-mounted evaporator and the exterior condenser. The indoor unit typically features a block with markings for “1,” “2,” “3,” and sometimes “S” or “T” for communication lines. Match these precisely with the outdoor unit’s terminals–mismatches cause operational failures or compressor burnout.
Connect the indoor coil’s terminal “1” to the outdoor compressor’s corresponding “1” using 14 AWG stranded copper wire rated for 75°C. Ensure the connection is crimped with insulated ring terminals and secured with a torque wrench at 1.2 Nm. Loose or overtightened screws lead to arcing or stripped threads.
For terminal “2,” link the indoor handler’s power input to the condenser’s matching point. Use yellow-jacketed wire for this 230V line if adhering to standard color codes, though local regulations may dictate alternatives. Cross-check polarity with a non-contact voltage tester before finalizing the link.
Handling Signal and Ground Connections
Attach the indoor “S” terminal to the outdoor “T” port with shielded 18 AWG twisted pair to prevent electromagnetic interference. Secure the shield at one end only–grounding both ends creates a ground loop. This line carries low-voltage control signals; damage here results in unresponsive thermostat commands.
Route the ground wire (bare or green) from the indoor fan coil’s grounding screw to the outdoor unit’s dedicated ground lug. This path must bypass all breakers and connect directly to a copper-clad ground rod driven at least 8 feet into moist soil. Resistance above 25 ohms violates safety standards and voids warranties.
After securing all wires, recheck each connection against the system’s technical manual. Verify that no exposed conductors exceed 6mm beyond terminals. Reconnect power only after replacing all access panels–exposed wiring invalidates UL certification and poses fire hazards.
Test functionality in cooling mode first by setting the thermostat 10°F below ambient. Listen for the outdoor unit’s fan startup within 30 seconds; delayed activation indicates a miswired signal line. If the compressor fails to engage, revisit terminal “3” and ensure it connects to the condenser’s “3” port without breaks.
Color Coding Standards in Climate System Electrical Schematics
Follow manufacturer-specified color codes rigorously–black (L) for live phase, blue (N) for neutral, and green/yellow (⏚) for grounding in all indoor and outdoor units. Any deviation risks miswiring, which can trigger error codes E5 or E7 during initial power-up. Verify these colors against the printed label on the compressor housing before connecting terminals, as some regional variants swap blue and brown for neutral and switched live.

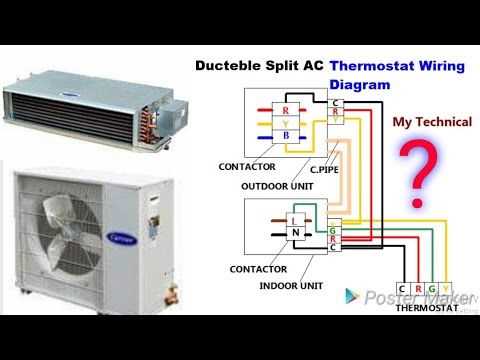

Low-voltage control circuits use distinct hues: red (R) for 24V power, white (C) for common, yellow (Y) for cooling demand, and orange (O) for reversing valve activation. Connecting red to the wrong terminal disables defrost cycles. Terminal blocks in wall-mounted evaporators label these wires with alphanumeric codes; cross-reference with the schematic legend to prevent accidental shorting of the Y and W circuits, which can fry the PCB.
Regional Variations and Compliance
European models adhere to IEC 60446 standards, while North American units follow NEC Chapter 3. The difference is critical–brown replaces black as the live phase in EU equipment, and striped cables may denote secondary functions like fan speed control (e.g., violet for high, gray for low). Always check the terminal cover sticker; it lists the precise mapping for that specific capacity rating (e.g., 9kBTU vs. 24kBTU).
Field wiring often involves three-conductor cables–identify the correct lead based on diameter. Larger gauge (1.5 mm² or 16 AWG) handles power, while smaller strands (0.75 mm²) carry signal pulses. Swapping them can overheat relay contacts. Use a multimeter in continuity mode to trace paths before energizing; probe between the outdoor disconnect and indoor breaker to confirm uninterrupted conductivity.
For outdoor condenser fan motors and compressor contactors, purple or pink leads typically indicate start winding, and light blue marks run winding. Incorrect pairing reduces efficiency by 18% and shortens motor life. Double-check diode bridges if auxiliary defrost heaters are present; these appear as black-striped white wires, distinct from the single-color neutral busbar.
