Begin voltage regulation analysis by isolating U5 and its associated feedback loop (R32, C18). The revised layout shifts this node to pin 4 with a compensated bandwidth of 85 kHz, requiring adjustments in decoupling capacitance values–replace C17 (0.1µF) with 22µF ceramic to mitigate ringing at load transients (±3.3V output). Failure to update this component risks 120mV overshoot under rapid current swings, exceeding design margins.
Trace power sequencing through Q3 (SSM3K34AS) and its gate driver U3. The updated design introduces a delay circuit (R44, C23) with a 2ms ramp for controlled soft-start. Remove D4 if present in earlier iterations–its omission prevents reverse recovery spikes during 12V→5V transition. For stability, short R47 to 2.2kΩ and verify U3’s dead-time (typical 50ns) with an oscilloscope before final assembly.
Inspect signal integrity on the LVDS lanes (J6, J7). The latest revision relocates termination resistors (R50–R55) to the receiver side for impedance matching (100Ω differential). Replace 0402 packages with 0603 if signal reflections exceed ±150mV. Check trace lengths–maximum skew: ±5mm between pairs–as violations introduce bit errors at data rates above 1.2Gbps.
Validate thermal dissipation for U2 (ISL6237). The revised heatsink pad (8mm × 10mm) must bond to a 2oz copper pour on the PCB’s inner layer. Use thermal vias (0.3mm diameter, 0.8mm pitch) filled with solder mask; poor conduction leads to temperature derating (Tj_max: 125°C) under 3A load. Forced airflow (200LFM) is mandatory if ambient exceeds 50°C.
Prioritize ESD protection on USB-C ports (J4, J5). The latest design integrates TVS diodes (SRV05-4) with ±15kV air-gap compliance. Bypass R6 and R7 (originally 0Ω) with 27pF caps to suppress high-frequency noise coupling into GPIO lines. Test with a HBM simulator–failure thresholds below ±8kV indicate flawed grounding.
Key Components and Signal Flow in the Reference Design
Examine the power distribution block first–locate the PMIC (MTS8512) at U3, responsible for generating 5V, 3.3V, and 1.8V rails from the 12V input. Verify that the EN pin (pin 7) is pulled high via R42 (10kΩ) for proper startup. If voltages deviate by more than ±3%, check C12 (22µF) and C31 (10µF) for ESR compliance, as failing capacitors are the most common cause of rail instability.
Critical Traces and Layout Validation
Inspect the USB-C connector (J4) differential pairs (DP/DM) for impedance matching–target 90Ω ±10%. Use a TDR probe if traces exceed 3 inches or include vias, as reflections above 5% will disrupt enumeration. The HDMI output (J3) requires similar scrutiny: ensure TX0+/TX0− and clock pairs (at least 100Ω differential) avoid ground plane splits near pin 15, where common-mode noise peaks. For high-speed signals, confirm that stitching vias appear every 0.5 inches along the return path.
- Test point TP5 (MOSI) and TP6 (MISO) must be probed with an active differential probe (≤1pF loading) to verify SPI flash (GD25LQ32C, U5) communication. Ringing on MISO exceeding 200mVpp indicates insufficient series termination–add a 22Ω resistor at R19 if observed.
- Check the reset circuit (R39/C37) timing: the delay must be 20-50ms after 3.3V stabilizes. Outside this window, the SoC (RK3399, U1) enters an undefined boot state. Use a 1ns-resolution scope to measure the RC constant.
- For DDR4 (H5TC4G63CFR, U4), confirm ODT resistors (R5-R8) are populated with 47Ω (±1%) values. Incorrect ODT causes bit errors at ≥1600MT/s–validate with a memory stress test (e.g., memtester) post assembly.
Discrete power components demand close inspection: the buck converter (SY8208, U2) requires a 1µH inductor (L2) with ≥2A saturation current. Substitution with lower-rated inductors (e.g., 1.5A) leads to core saturation under load, increasing ripple to 80mVpp (limit: 30mVpp). The input capacitor (C10, 22µF) must be X5R dielectric; Y5V or Z5U will fail at 85°C ambient due to capacitance loss.
Final validation involves three steps:
- Load default firmware via USB-OT (maskrom mode) to confirm boot ROM integrity. Failure here typically indicates cold solder joints on U1 pins 25-32 (power/clock).
- Run a 12-hour prime95 stress test to verify thermal throttling kicks in at 80°C (measured at U1). Exceeding 90°C suggests inadequate heat sink contact or voids in thermal paste.
- Check GPIO3_C0 (pin 171) toggles within 5ms of power-on–delays >10ms signal a faulty pull-up resistor (R21, 4.7kΩ).

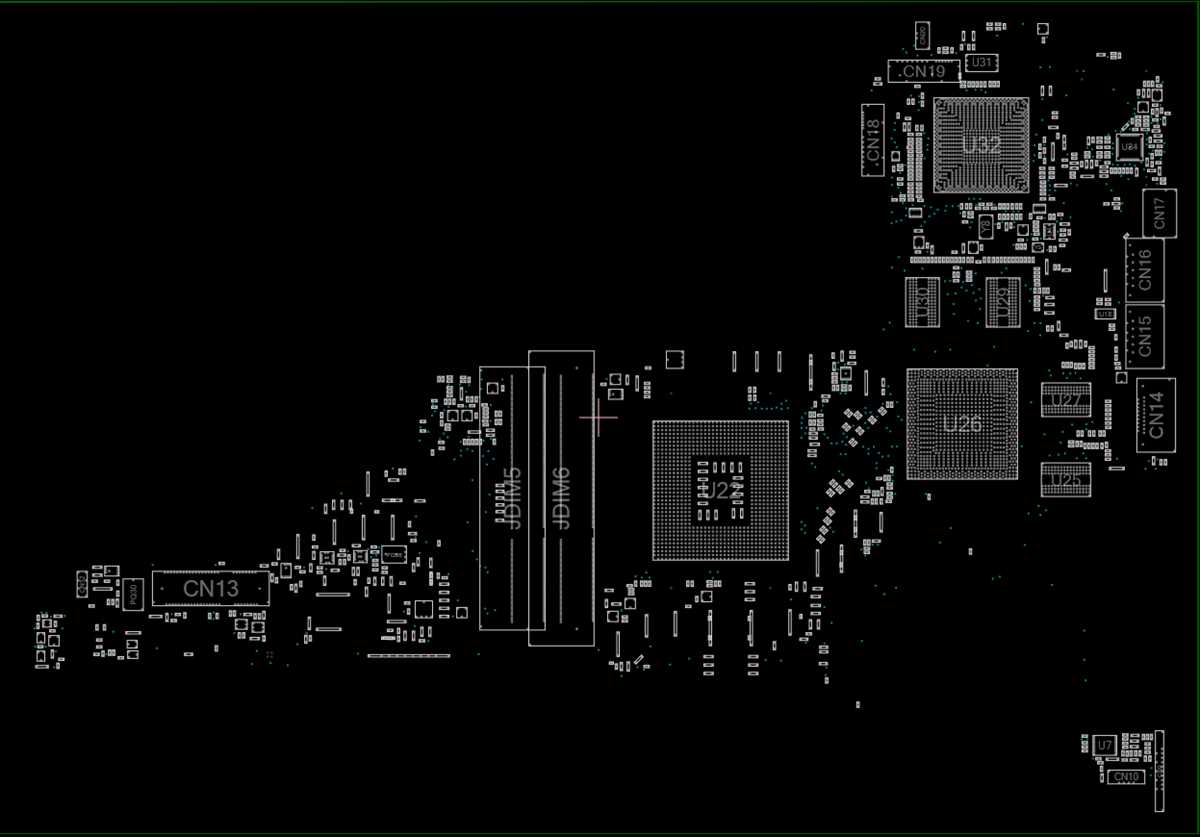

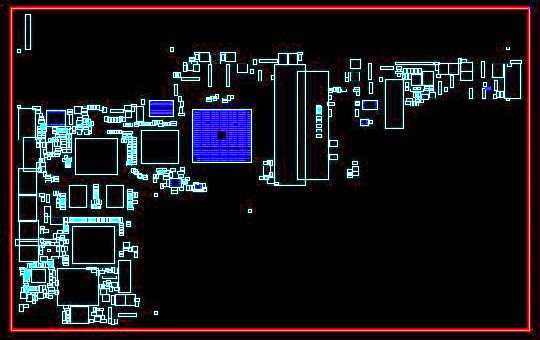

Identifying Critical Elements and Trace Routing in the PCB Reference Design
Begin with the power delivery network–trace the main 12V and 5V rails from the input connector to the onboard regulators. The primary voltage conversion stages are clustered near the ATX power headers, marked by large copper pours and adjacent filtering capacitors. Look for inductor coils labeled LXX (e.g., L1, L3) and adjacent MOSFETs (QXX) to pinpoint buck converters. Signal integrity hinges on these components, so verify no vias disrupt the high-current paths.
Examine the memory interface by locating the DRAM slots and their associated data lanes. Follow the serpentine traces from the CPU socket to the DIMM connectors, noting impedance-controlled routing for differential pairs. The address/command lines typically use 50-60 ohm traces, while clock signals maintain tighter 40-45 ohm specifications. Bypass capacitors (0.1µF X7R) should sit within 2mm of each DRAM power pin–deviations here introduce jitter.
Isolate the PCIe lanes by tracing the high-speed differential pairs from the CPU to the M.2 slot and expansion ports. Look for length-matched traces with consistent spacing (usually 85-100 ohms differential impedance). The reference design often uses curved routing for PCIe Gen3/Gen4 to avoid sharp angles, which degrade signal quality. Check for AC coupling capacitors (typically 100nF) on the TX/RX paths–missing or misplaced components here cause link training failures.
Verify the platform controller hub (PCH) connections by following the low-speed interfaces (SMBus, I2C, UART). These routes are thinner (often 4-6 mil) and link to super I/O chips, TPM headers, and BIOS flash. Debug interfaces like JTAG or SPI typically terminate at test points near the board edge–confirm these are accessible for firmware updates. The RTC circuit, usually a CR2032 holder with a 32.768kHz crystal, sits near the southbridge–check for proper solder mask clearance to prevent shorts.
Cross-reference thermally critical zones–CPU VRM, PCH, and GPU power stages–with heatsink mounting holes. The board should show thermal vias under major ICs, connected to inner ground planes for heat dissipation. For voltage monitoring circuits, locate shunt resistors (typically 1-5 milliohms) near the VRM phases; their traces should feed the controller IC’s sense lines directly, without intermediate branches that could skew readings.
Step-by-Step Voltage Rail Tracing for PCB Reference Design Analysis
Begin by isolating the power delivery network at the input connector–locate the main 12V, 5V, and 3.3V feed lines marked VIN, +5V_SYS, and +3VA on layer one. Use a multimeter in continuity mode to verify their paths before energizing the board; probe test points TP102, TP105, and TP203 to confirm zero resistance between the connector and the first stage of regulation. Record readings in a trace table:
| Rail | Source Pin | First Stage Regulator | Test Point | Expected Voltage |
|---|---|---|---|---|
| 12V | J1-1 | U301 (APW7147) | TP102 | 11.8–12.2V |
| 5V | J1-2 | U302 (RT8204) | TP105 | 4.9–5.1V |
| 3.3V | J1-3 | U303 (APL5910) | TP203 | 3.25–3.35V |
Move downstream to the switching regulators–each feeds two secondary rails. For the 12V line, probe L301 (2.2µH) and C305 (22µF) before the inductor to detect switching noise; a differential probe set to 20MHz bandwidth will reveal ripple under 50mVpp. If ripple exceeds 80mVpp, replace C305 with a low-ESR ceramic rated 10V. Repeat for 5V rails at L304 and C312, ensuring an output capacitor values align with:
| Rail | Inductor | Input Capacitor | Output Capacitor | Max Ripple |
|---|---|---|---|---|
| +1.5V_CORE | SLP1128-3R3M | 2x 22µF (X5R, 6.3V) | 4x 10µF (X5R, 6.3V) | 30mVpp |
| +1.05V_GPU | SLP1128-2R2M | 1x 47µF (POSCAP) | 3x 10µF (X5R, 4V) | 25mVpp |
Trace tertiary rails using the reference silkscreen–look for VCC_DDR and VTT_DDR near memory ICs. Probe FB306 and FB307 ferrite beads; they should read ~0.5Ω DC resistance. If either exceeds 1Ω, suspect fatigue–remove load before replacing. Measure VTT_DDR at C357 (termination resistor network); it must track VCC_DDR at exactly 50% ±20mV. Any deviation signals failed termination IC U352 (RT9040).
Cross-reference secondary rails against the SoC datasheet–GPU and CPU VIDs dictate rail priority. Connect an oscilloscope at TP601 and TP602 while triggering a cold boot; capture transient response during C-state transitions. Document rise times: +1.5V_CORE must stabilize within 20µs, +0.9V_VDDQ within 15µs. If recovery exceeds 30µs, increase gate capacitance on Q301 (AO4710) to 2.2nF. Disable EC_SLP_S4# via jumper to isolate standby circuits during debugging.

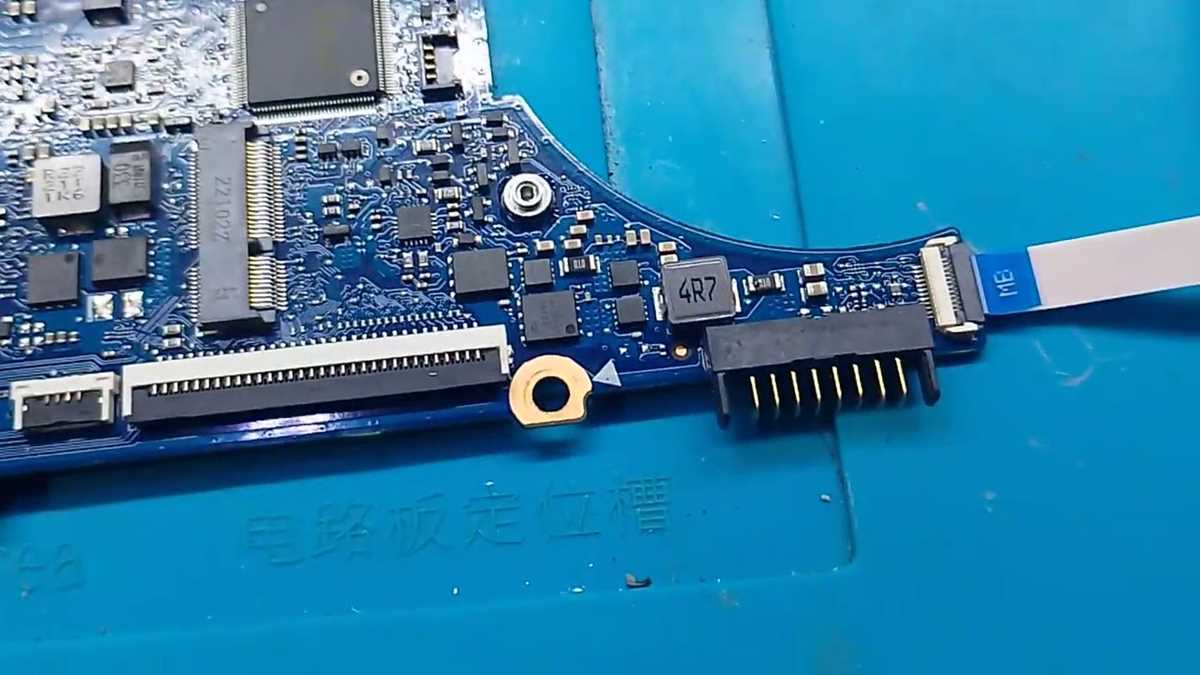

Key Failure Zones in the Circuit Layout Reference
Inspect the power delivery network first–specifically the 3.3V and 5V rails. Look for insufficient solder joints or oxidized pads at U7, Q3, and the input capacitors C45-C48. Resistance spikes here often mimic memory timing errors or CPU throttling issues. Measure node-to-ground voltage while applying load; any drop below 2.9V on the 3.3V line indicates a faulty linear regulator or corroded vias near L3.
Check signal integrity on the PCIe lanes originating from the PCH. Use a 100 MHz scope with differential probes to capture eye diagrams at TP21 and TP24. Degraded transitions–rise times exceeding 0.8 ns or jitter above 120 ps RMS–point to damaged traces between U22 and the M.2 connector. Termination resistors R515-R518 must match the design value precisely; even a 10% deviation skews link negotiation.
Verify thermal monitoring circuitry. The NTC thermistor TH1 connects directly to the EC, but parasitic resistance in the copper path (target <1Ω) distorts readings. If the system boots but shuts down erratically, probe the ADC input channel at pins 9-11 of U18. Voltages outside 0.5V-2.7V suggest a broken trace or faulty EC firmware.
Focus on USB 2.0 lanes routed through the EHCI controller. Shorts between differential pairs D+ and D- cause enumeration failures. Lift one pin of each pair at J27 and check continuity; a direct short necessitates replacing the connector. Additionally, verify series resistors R200-R203–damaged components here manifest as intermittent device drops or descriptor errors.
Examine the SMBus pull-ups at R33 and R34. Incorrect values (target 4.7 kΩ±5%) prevent proper I²C communication, leading to sensor initialization failures. Replace these resistors if signal rise times exceed 1 µs; slow edges indicate excessive capacitance on the bus from degraded traces or cold joints at U11.
Test the DDR4 address/control lines for skew. Perform a write-read-verify loop using boundary scan–errors at specific addresses isolate faulty vias or broken traces. Prioritize A12-A15 and BA0-BA1; these signals travel the farthest from the memory controller and use narrower traces, making them more susceptible to manufacturing defects.
Look for intermittent boot failures? Probe the SPI flash CE# line at U5 pin 1. A WEAK pull-up (greater than 10 kΩ) allows false triggers, corrupting the boot sequence. Replace R101 if resistance drifts–factory value must be 2.2 kΩ±5%. Additionally, check continuity between U5 pin 8 and the PCH; broken connections here cause silent boot hangs.
Finally, scrutinize the eDP lane routing if display artifacts appear. Differential pairs at C4-LV1 and C4-LV2 carry 2.7 Gb/s signals–any impedance discontinuities (target 100 Ω±10%) cause color banding or flickering. Use a TDR to locate discontinuities; damaged connectors or solder bridges under the LCD connector require rework with a minimum 0.1 mm clearance.
