To construct a reliable two-state memory unit, prioritize a configuration of four NAND logic blocks arranged in a cross-coupled feedback loop. The primary inputs–designated S (set) and R (reset)–must connect directly to the first pair of gates, while the complementary outputs (Q and ¬Q) feed into the second pair. Ensure proper grounding of unused inputs to prevent floating states, which can introduce metastability.
Begin by connecting the S input to the first NAND block alongside the feedback from ¬Q. The output of this gate forms Q, which then links to the second NAND block along with the R input. The output here generates ¬Q, completing the feedback loop. Verify that the inputs comply with the truth table: S=0, R=1 forces Q=1; S=1, R=0 yields Q=0; and S=1, R=1 retains the prior state.
For stability, add pull-up resistors (10 kΩ) to both S and R lines if driving from mechanical switches. Avoid the S=0, R=0 condition–this creates an indeterminate output race hazard. Simulate the design in SPICE or Logisim before prototyping to confirm propagation delays remain below 20 ns, preventing asynchronous glitches.
When selecting NAND chips, prefer 74HC00 (CMOS) for low power or 74LS00 (TTL) for speed. Isolate the memory cell from load interference by buffering outputs with a high-impedance stage, such as an additional NAND pair or a tri-state driver, if connecting to data buses. Document the schematic in KiCad, labeling all nodes for clarity during debugging.

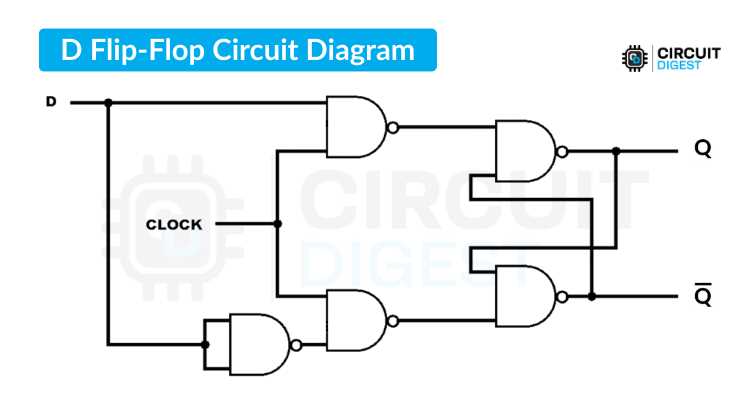

Constructing a Data Latch with NAND Logic Elements
Begin by connecting two NAND operators with cross-coupled feedback to form the core bistable stage–arrange their outputs as inputs to the opposite gate to ensure stable states. Introduce data input through a third NAND element tied to one side of the pair, while a control pulse enters via a fourth gate feeding the remaining bistable node. Interconnect the data input NAND’s output to the control input gate to enforce single-bit storage when the clock line toggles; this prevents race conditions by isolating the data path during transitions.
Route the clock pulse to both the data and control input NANDs simultaneously–apply an inverter if active-low triggering is required. Verify signal integrity by monitoring propagation delays: the data input must stabilize before the control pulse rises, and hold time should exceed the metastability window of the NAND elements used (typically 5–10 ns for 74LS00). Add pull-up resistors (2.2 kΩ) to unused inputs to prevent floating nodes, and decouple power rails with 0.1 µF ceramic capacitors near each logic component to suppress transient noise.

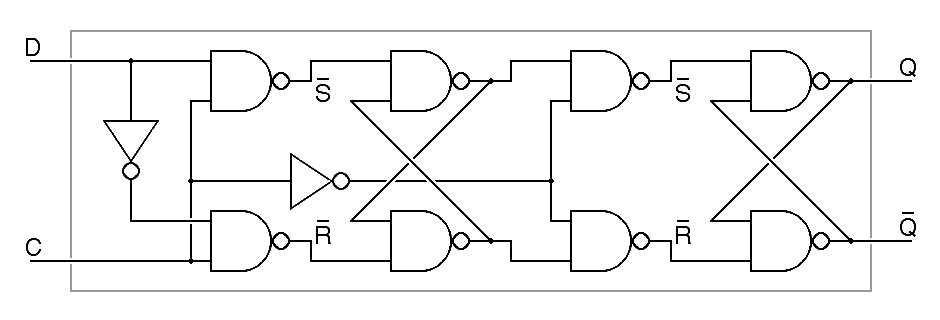

Core Architecture of a D-Type Storage Element with NAND Logic Components
Implement a dual-stage configuration for optimal signal integrity. The master section captures the input during the clock’s high phase, while the slave retains the state when the clock transitions low. Ensure each stage consists of two cross-coupled NAND elements forming a basic bistable unit, preventing metastability.
Begin with the data input (D) fed into the first NAND pair alongside the clock signal (CLK). This pair acts as a gated latch, permitting data passage only when CLK is active. The second NAND pair mirrors this structure but operates on the complementary clock phase, isolating the master and slave stages to prevent race conditions.
- Use 74HC00 NAND ICs for precision–each contains four 2-input gates, sufficient for constructing the entire dual-latch system.
- Assign distinct NAND pairs for master (inputs: D, CLK) and slave (inputs: master output, inverted CLK) to maintain temporal separation.
- Apply a pull-up resistor (10kΩ) to unused inputs to prevent floating nodes, which can cause erratic toggling.
The inverted clock signal for the slave latch must derive from a dedicated NAND gate configured as an inverter. Connect CLK to one input and tie the other input high (VCC) to ensure consistent inversion. This guarantees the slave latch updates only when the master holds a stable value, eliminating back-and-forth signal contention.
Minimize propagation delay by routing signals directly between NAND gates without intermediate components. For breadboarding, use 22-gauge solid-core wire to reduce parasitic capacitance. Measure the setup/hold times empirically–target <20ns for D relative to CLK edges to avoid undefined states.
- Verify metastability resistance by injecting slow-rising edges (1µs slew rate) at D; the output should stabilize within two clock cycles.
- Test asynchronous reset (CLR) functionality by adding a third NAND gate to the slave stage; tie CLR to one input and the slave output to the other.
- For synchronous preset (PRE), modify the master stage similarly, ensuring PRE overrides D when active.
Isolate power domains for analog (sensing) and digital (storage) sections. Connect a 100nF decoupling capacitor between VCC and GND near the NAND IC to suppress transient voltage drops. For mixed-signal applications, star-ground the digital and analog GND pins to prevent ground bounce from corrupting retained data.
Extend functionality by cascading two such dual-latch systems to form a divide-by-four frequency divider. Feed the inverted slave output back to the D input of the next stage. This configuration halves the clock frequency, demonstrating the edge-triggered behavior critical for sequential logic design.
Step-by-Step Assembly of Bistable Units with Logical Operators
Begin by pairing two cross-coupled two-input combinational blocks. Connect the output of the first element to one input of the second, then link the output of the second back to one input of the first–ensuring complementary inputs remain free for data and enable signals. Apply a logic-low signal to both free inputs to initialize the state; this forces the outputs into a stable, opposing binary condition (e.g., Q=1, Q̅=0). Verify stability by toggling the enable input: the primary output should retain its value while the auxiliary output inverts only when the enable condition is met, demonstrating memory behavior.
Proceed by introducing a third combinational block to form a gated update mechanism. Route one input of this block to the existing primary output, its other input to an external data line, and its output to the complementary input of the first block. When the enable line transitions high, the new block evaluates the data input against the current stored value; if they differ, the feedback loop resolves into the new state within a single propagation delay (typically 5–10 ns for standard silicon implementations). Ground unused inputs to prevent floating-node errors, and test edge cases by pulsing the enable signal at 10 MHz to confirm race-condition immunity.
Truth Table Verification for D Latch Logic Operation
Construct the state transition matrix for a single-bit storage element by listing all possible input combinations. Include data input (D), clock edge (CLK), and current output (Q) as columns. The exact values for Qnext must align with the sequential behavior: when CLK transitions high, Qnext mirrors D; otherwise, Qnext retains its previous state.
Verify each row through direct simulation of the gate-level logic network. Apply D=0 and CLK=1 to the input nodes and measure the resultant output. Repeat for D=1 while maintaining CLK=1. Confirm that outputs toggle as predicted. Discrepancies suggest incorrect gate interconnections or faulty transistor thresholds.
Expand testing to cover metastability conditions. Force CLK to transition simultaneously with D and monitor output settling time. Stable behavior should resolve within one propagation delay; oscillations indicate race conditions. Adjust resistor-capacitor values at the feedback nodes if unstable outputs persist.
Document minterm transitions in the following format: 0→0, 0→1, 1→0, and 1→1. Compare empirical results against theoretical expectations. Ensure all four transitions occur without glitches when clock pulses align with setup and hold margins. Record propagation delays for each transition separately.
Use an oscilloscope to capture real-time signal integrity. Probe D, CLK, and Q simultaneously. Look for voltage levelling consistent with logic high/low thresholds. Clock edges must exhibit sharp rising/falling times; rounded edges necessitate buffering or pull-up/down corrections.
Examine asynchronous clear/set operations if present. Trigger reset while CLK is low, then verify Q resets to 0 regardless of D. Repeat for preset to confirm forced 1 output. These operations override synchronous behavior and must function independently.
Cross-reference the tabulated results with synthesis tools. Generate RTL models that replicate the physical logic structure. Discrepancies between RTL and actual hardware point to layout parasitics or incorrect timing constraints. Re-run both simulations until convergence.
Create worst-case test vectors that stress signal paths. Sequence rapid D toggles during clock active periods to reveal setup/hold violations. Measure power consumption spikes during these sequences; peak current should not exceed gate driver limits. Repeat across temperature corners to ensure robustness.
Clock Signal Integration in Bistable Logic Constructs
Implement a dual-edge triggered synchronization by cascading two synchronous memory elements: the first steers the data input through a pair of cross-coupled NOR-based comparators, while the second samples the output on both rising and falling transitions of the timing pulse. A 100 kHz clock requires a minimum propagation delay of 20 ns between stages to avoid metastability–use a shielding inverter between the comparator outputs to enforce this timing margin, ensuring the intermediate node stabilizes before the next edge arrives. For reliable operation, restrict the clock duty cycle to 45–55%: deviations beyond this range increase setup/hold violations due to asymmetrical charge/discharge times of the parasitic capacitances at the internal nodes.
| Parameter | Recommended Value | Failure Mode |
|---|---|---|
| Clock Rise/Fall Time | ≤10 ns (20% of period @ 1 MHz) | Input skew, false triggering |
| Hold Time | ≥5 ns | Data corruption during transitions |
| Supply Voltage Tolerance | ±5% of nominal | Reduced noise margin, erratic toggling |
Attach a pull-down resistor (10 kΩ–100 kΩ) to the timing pulse input to eliminate floating states during power-up; omit this only if an external driver guarantees a clean low level within 10 μs of startup.
