Start by locating the main harness connectors at the rear of the block–labeled J13 and J14 for 6.7L models, or J22/J23 for earlier 5.9L variants. Trace the red wire (10 AWG) from the alternator B+ terminal directly to the starter solenoid; this is your primary charging circuit. Verify continuity with a multimeter set to ohms–resistance should not exceed 0.5Ω. If readings spike, inspect for corrosion at the ring terminals under the valve cover, a common failure point in high-idle applications.
Next, isolate the ECU pinout: 85-pin Delphi in pre-2010 units, 120-pin Bosch for later builds. Pin 37 (gray wire, 18 AWG) carries the throttle position signal; confirm a 0.5V–4.5V sweep when cycling the pedal. Voltage irregularities here often stem from chafed wires near the bulkhead firewall grommet–replace the entire harness if insulation breaches exceed 2mm. For common-rail systems, Pin 88 (purple/white stripe) is critical: it monitors rail pressure via the sensor at the pump. A stalled reading of 0.2V suggests sensor failure, not wiring–replace the sensor first.
Ground distribution varies by model year. Early units rely on three ground straps: one at the block (M8 bolt), one at the chassis rail (1/4″ stud), and one at the intake manifold. Later builds consolidate grounds into a single bus bar near the turbo pedestal. Corroded grounds manifest as erratic idle, glow plug faults, or CAN bus errors. Use dielectric grease on all ground connections and torque to 18 ft-lbs–over-tightening cracks the castings. For parasitic draws, disconnect the battery negative and probe with a clamp meter; current draw should not exceed 50mA after 30 minutes. If higher, focus on the ECM and instrument cluster, which are frequent culprits.
Sensor circuits require precise excitation voltages. The MAP sensor (Pin 41, white/blue) and IAT sensor (Pin 60, brown/red) both operate on a 5V reference from the ECM. Measure this at the sensor connector–voltages below 4.8V indicate a failing ECM or a short in the red/yellow excitation wire. Thermistor-based sensors like the ECT (Pin 93) transition from 3.3V at -40°F to 0.5V at 250°F. Any plateau in this curve suggests internal resistance drift; recalibrate or replace the sensor. For post-2013 units with DEF systems, the NOx sensor wiring (Pins 97–100) carries a 1V–3.5V signal–shielding is mandatory to prevent RF interference from distorting readings.

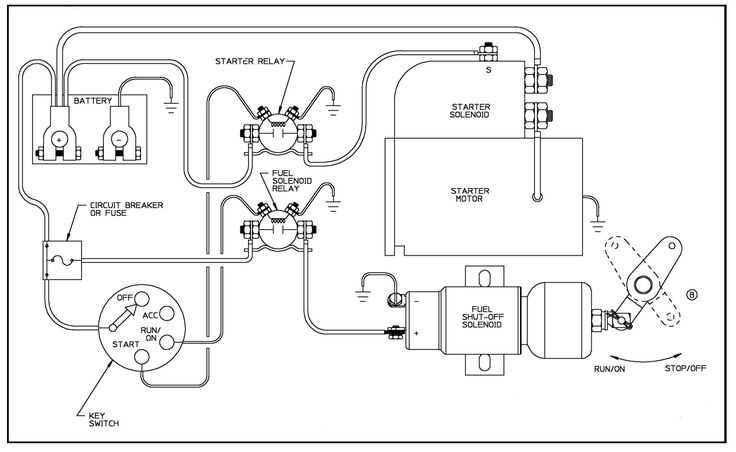

Relay-controlled circuits demand isolation testing. The fuel heater relay (gray, 30A fuse) engages for 120 seconds at startup; if it cycles continuously, inspect the red/black wire for a short to ground in the firewall grommet. The starter relay uses a 12V trigger from the ignition switch–measure at Pin 86 (yellow/black); absence of voltage here points to a failed ignition switch or blown 10A fuse in position #7 of the under-dash panel. For intermittent no-start conditions, swap the starter relay with the horn relay (identical part numbers) to rule out relay failure before condemning the ECM.
Electrical Schematics for Heavy-Duty Powerplants
Trace circuits starting at the battery disconnect switch. On most models, the positive terminal routes directly to the starter solenoid via a 70–90 mm² cable–verify gauge with a micrometer before splicing. The ignition feed splits into dual paths: one powers the ECM through a 20A fused link (labelled “IGN” on harness clips), while the second activates glow plugs via a relay. Check relay part numbers–typical OEM codes include 3947235 (12V) or 4941352 (24V)–against the manufacturer’s revision sheet, as mislabeled units cause intermittent pre-ignition failures. Ground straps should terminate at unpainted chassis points, crimped with M8 ring terminals (not soldered) to prevent corrosion-induced voltage drop.
Critical Connector Pinouts
- ECM 81-pin connector (Deutsch DT04-8P): Pins 1–4 (VREF/ground), 5–8 (sensor inputs–MAP, IAT, CPS), 9–12 (injector drivers). Probe with a 10 kΩ impedance meter; resistance below 8 kΩ indicates moisture ingress.
- Boost solenoid (PWM) uses a 3-wire harness (12V, signal, ground). Signal wire pulses at 300–450 Hz; confirm frequency with an oscilloscope before replacing the controller.
- Oil pressure sender: Analog 0–5V output. Calibrate against a mechanical gauge–factory spec allows ±0.2V deviation at 100 psi.
For auxillary circuits–air compressors, hydraulic pumps–install a 40A breaker between the alternator B+ and the load. Route wires in split-loom sleeves with 15 mm gaps from exhaust components. Label each segment with heat-shrink tubing (color-coded: red/black for power, yellow for sensors, green for grounds). When diagnosing faults, bypass relays first; use a jumper wire on terminals 85–86 to eliminate relay failure. Retain a revision log for each schematic update–factory bulletins (e.g., TSB 12345-67) often supersede older pin assignments.
Locating Critical Elements in Electrical Blueprints for Heavy-Duty Powertrains
Trace the main power distribution lines first–these are typically the thickest conductors on the schematic, branching from the primary battery feed to the ignition switch and alternator terminals. Label each node with its voltage rating (e.g., 12V, 24V) to avoid cross-circuit confusion during diagnostics.
Identify sensor clusters by searching for small, grouped connectors near the ECM (electronic control module). Common sensors include the crankshaft position, camshaft position, and manifold pressure–each will have a dedicated terminal block. Note that oxygen probes often have heated circuits with separate power and signal traces.
Decoding Relay and Actuator Pathways
Relays follow a predictable pattern: coil excitation (often 12V), switch contacts, and load output. Check for diode suppression across relay coils to prevent voltage spikes. Fuel injectors and solenoids usually connect through quad-pack drivers in the ECM; verify continuity between the ECM pinout and the actuator connector.
Shielded wires, indicated by dashed or braided lines, carry low-level signals such as CAN bus communications or knock sensor feedback. Isolate these from high-current paths to prevent interference–cross-talk here can trigger false fault codes.
Grounding and Fuse Hierarchy
Start at the battery’s negative post and follow all grounding straps–engine block, chassis, and auxiliary mounts must converge at a single star point for reliable operation. Fuse links (often 30A–50A) protect primary circuits; locate these before the ignition switch or alternator to prevent catastrophic failure.
Pinpoint the electronic control module’s power pins (usually B+ and switched ignition) and confirm they’re protected by dedicated fuses. The ECM’s self-diagnostic lines (e.g., K-line, L-line) often run adjacent to sensor wires but terminate at a separate diagnostic port–label these clearly to avoid miswiring during aftermarket upgrades.
Look for thermal switches and pressure senders–these are usually inline with warning lights or derate functions. A typical oil pressure sender, for example, will interrupt the gauge circuit if pressure drops below 5 psi, triggering a warning indicator.
Terminal block diagrams often use alphanumeric codes (e.g., A01, B12) to denote connector pins. Match these codes with the OEM’s pinout documentation to avoid misinterpreting jumper wires or splice points, which are critical for sensor calibration adjustments.
Step-by-Step Guide to Mapping Electrical Paths in a Heavy-Duty Powerplant Schematic
Start by securing a color-coded reference sheet for the specific model series–OEM documentation labels conductors by function, not just hue. Verify the legend against the board’s printed values; aftermarket overlays often invert orange (fuel system) and purple (sensor feed). Disconnect the primary battery before probing to prevent feedback through logic modules. Use a multimeter in continuity mode, not voltage, to avoid triggering transient storage in capacitors. Trace each branch from the main harness splitter, noting terminal numbering on the ECU pinout–terminal 32 usually grounds injector solenoids, while terminal 58 delivers switched ignition. Label every splice with heat-shrink tubing marked in permanent ink; temporary tags degrade under vibration.
- Locate the diagnostic port under the dash; probe port B pin 7 to confirm ECM power (12V nominal).
- Isolate ground loops by measuring resistance between chassis and negative bus–values above 0.2 ohms indicate corrosion at mounting points.
- Cross-reference twisted pairs; the alternator’s voltage regulator signal (white/blue stripe) runs parallel to the charging field lead (brown).
- Inspect fusible links in-line with the starter relay–these melt at 125% of rated amperage but show no visible damage.
- Record deviations from factory schematics in a revision table; third-party harness modifications rarely update the master index.
Identifying and Resolving Frequent Electrical Issues in Heavy-Duty Powertrains
Start by isolating the 5-volt reference circuit if sensors report erratic readings. Check the ECM’s pinout for bent or corroded terminals at A3, A52, and A54–these pins feed critical signal returns. Use a digital multimeter set to 200mV scale to measure voltage drop between the sensor ground and chassis ground; values exceeding 50mV indicate a high-resistance fault likely caused by insufficient crimping at splice S-112. Replace the harness segment if insulation resistance tests below 10 MΩ at connector C-15, especially near fuel injectors where vibration accelerates wire fatigue.
For intermittent no-start conditions, focus on the starter relay control path: verify continuity between K-5 and the ignition switch’s yellow/red stripe wire. If voltage at pin K-5 drops below 9 volts during cranking, inspect the battery’s negative cable connections–corrosion at the chassis ground point (G-202) often mimics weak batteries. Check for excessive voltage drop across the alternator’s B+ post to the starter solenoid; a reading above 0.5V suggests a faulty diode trio or internal short in the rectifier bridge.
When diagnosing CAN communication errors, probe the twisted pair at C-4 (CAN-H) and C-8 (CAN-L) with an oscilloscope. Signal levels should oscillate between 2.5V and 3.5V; flattened waveforms indicate a short to ground–commonly traced to chafed wires near the transmission bell housing. Reset learned values in the control module after repairs by disconnecting battery for 90 seconds, then cycle ignition five times to force reinitialization of adaptive fuel trims.
