Construct a basic radio detector using just four core components: a tuned coil, a semiconductor junction, an earpiece, and an aerial wire. Wind 50 turns of enameled copper wire (0.3–0.5 mm diameter) around a 5 cm PVC tube to form the inductor, then connect one end to a germanium diode–1N34A or equivalent–ensuring the anode faces the coil. Attach the diode’s cathode to the earpiece’s positive terminal, grounding the negative side through a 1–5 nF capacitor to stabilize the signal.
Position the aerial wire at least 10 meters long, ideally outdoors, elevated and routed away from mains wiring to reduce interference. Fine-tune reception by adjusting the coil’s tap point–start with 10 turns from the ground end and incrementally move upward. For distant stations, increase the coil’s inductance by adding 10–20 more turns or inserting a ferrite rod core into the tube.
Verify the detector’s functionality by touching the diode’s leads with a fingertip; a loud hum confirms proper conductivity. If no signal is detected, reverse the diode’s orientation or test with a multimeter for continuity. Keep connections soldered and insulated–oxidized joints introduce resistance, degrading sensitivity. For clearer audio, replace the single diode with a full-wave bridge using four 1N34A diodes, grounding the center tap of the coil.
The circuit operates entirely on ambient radio waves, requiring no external power. Peak performance occurs at dusk or dawn when ionospheric conditions favor AM band propagation. For extended range, consider a regenerative configuration by adding a 10 pF variable capacitor in parallel with the coil and a feedback coil (5 turns) wound over the main inductor, coupled to the diode’s output.

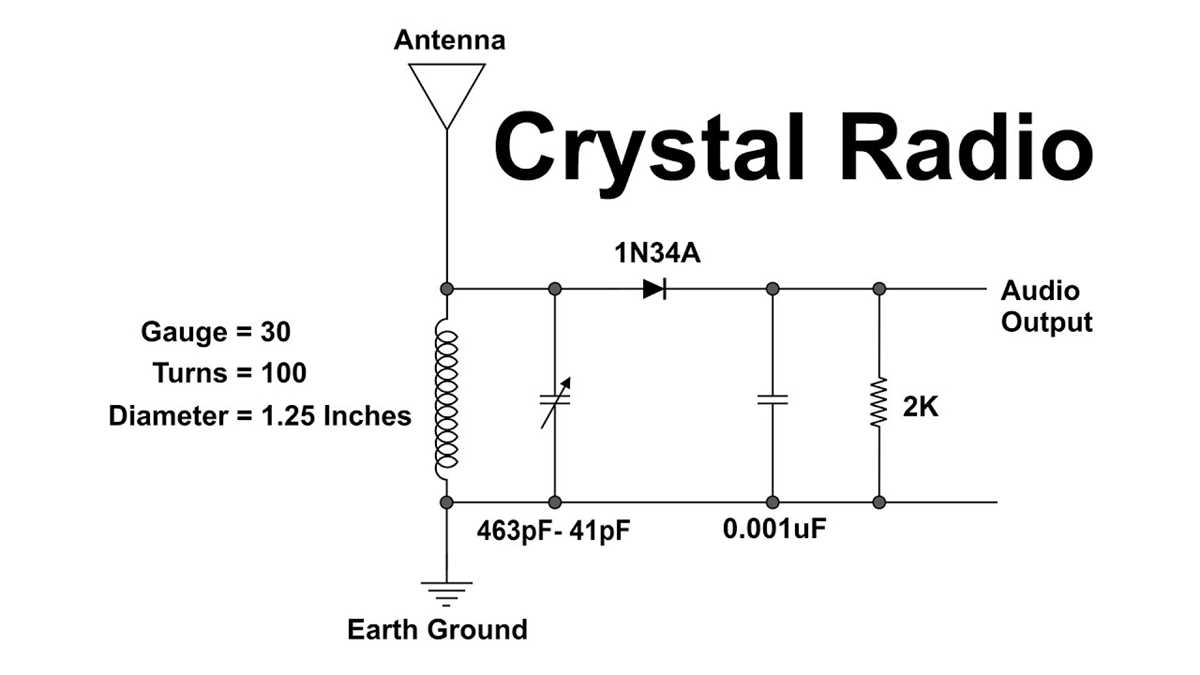

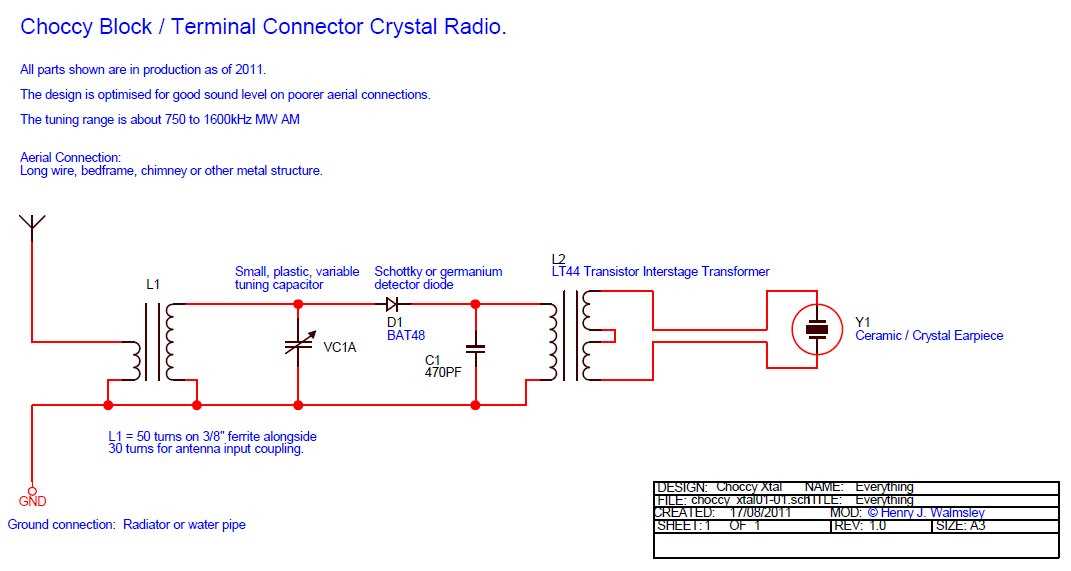

Building a Simple Radio Receiver: Key Schematics
Start with a germanium diode–its low forward voltage drop (0.2–0.3V) outperforms silicon variants for weak signal detection in passive designs. Pair it with a high-impedance earpiece (2kΩ or greater) to avoid loading the tuned stage; ceramic or crystal earpieces yield superior results over magnetic types due to minimal power loss.
For tuning, a variable capacitor (200–500pF) coupled with a coil wound on a ferrite rod (100–300 turns of 0.2mm enamelled wire) covers medium-wave bands effectively. Air-core coils work but require precise spacing (1mm between turns) to avoid parasitic capacitance. Calibrate using a known station; a 455kHz spacing ensures amateur bands fit within the tuning range.
Critical Component Placement
Mount the diode directly across the tuning capacitor’s terminals–any wire length introduces stray inductance, degrading selectivity. Ground the antenna through a 10pF–100pF coupling capacitor to block DC while preserving RF signals. For longer antennas (30m+), add a 10kΩ resistor in parallel to the diode to prevent static buildup.
Avoid soldering the coil leads; friction contacts (e.g., alligator clips) allow rapid turns-count adjustments. Test with a signal generator first: inject 1mV at 1MHz, adjust coil taps until peaks align. Real-world performance drops below 600kHz due to skin effect; compensate by increasing wire gauge or using Litz wire for surface area.
Power-free designs demand minimal resistance paths–use thick copper traces (2oz/ft²) for ground planes. For directional reception, rotate the ferrite rod within 5° increments; null points reveal optimal orientation. Log impedance mismatches; a 50Ω dummy load helps isolate antenna vs. circuit issues.
Core Parts Required for a Simple AM Receiver Build
Start with a tuned coil wound on a ferrite rod or air core former. For standard AM broadcast reception (520–1710 kHz), aim for 70–120 turns of 24–28 AWG enameled copper wire, spaced evenly. A ferrite rod measuring 10–20 cm long × 8–12 mm diameter provides sufficient sensitivity while keeping the build compact. Air-core coils require larger diameters (30–50 mm) and finer wire spacing to prevent excessive capacitance; experiment with tap points at every 10–15 turns to optimize selectivity.
The detector element must handle weak signals without distortion. Germanium diodes like the 1N34A or OA90 are preferred for their low forward voltage drop (0.2–0.3 V), ensuring minimal signal loss. Silicon diodes such as the 1N4148 work but demand stronger input levels due to their higher threshold (0.6–0.7 V). For ultra-low signal environments, consider a tunnel diode or a point-contact device like the historic cat’s whisker setup–a sharpened phosphor-bronze wire paired with a pyrite or galena crystal offers adjustable sensitivity.
A variable capacitor fine-tunes the resonant frequency. For AM coverage, a 15–365 pF air-dielectric type delivers smooth adjustment with minimal losses. Smaller values (e.g., 10–100 pF) suffice if targeting a narrow band or single station. Avoid ceramic or mica capacitors here–their temperature coefficients and dielectric absorption introduce drift. If salvaging parts, inspect for bent plates or debris; even minor contamination degrades performance.
Headphones must present a high impedance (2–4 kΩ) to avoid loading the detector. Dynamic earpieces from old telephone receivers or crystal earbuds work well, but modern 32 Ω stereo headphones require a transformer to match impedances. A small audio transformer with a 1:50 turns ratio steps up the voltage while isolating DC–a 600 Ω primary to 10–20 kΩ secondary is ideal. Forbidden to use low-impedance loads (≤1 kΩ); they flatten weak signals into inaudibility.
| Component | Recommended Specifications | Notes |
|---|---|---|
| Tuned coil | 70–120 turns, 24–28 AWG, ferrite/air core | Tap points for multi-band tuning |
| Detector diode | 1N34A (Ge), OA90, or point-contact | Silicon diodes need strong signals |
| Variable capacitor | 15–365 pF air dielectric | Smaller values for narrowband use |
| High-Z headphones | 2–4 kΩ impedance | Transformers needed for low-Z loads |
An antenna length directly influences signal strength. For indoor reception, a 1–2 meter wire dangled near a window suffices, but outdoor setups benefit from 10–30 meters of insulated wire elevated 5–10 meters above ground. Keep it away from power lines; their harmonic noise overwhelms AM stations. For portable builds, a telescoping whips works but requires a preamplifier or a longer coil to compensate for reduced surface area.
Grounding completes the RF path. Connect a wire to a cold-water pipe, metal fence, or dedicated grounding rod driven 1 meter into damp soil. Poor grounding introduces hum and weakens sensitivity. Avoid electrical grounds (e.g., AC outlets)–they inject interference. For urban environments, a counterpoise (a second wire suspended parallel to the antenna) substitutes where physical grounding is impractical.
Step-by-Step Assembly Guide for a Basic Radio Detector
Begin by securing a tuning coil with 50 to 100 turns of enameled copper wire (0.3–0.5mm diameter) on a cylindrical form, such as a toilet paper roll or PVC pipe (3–5cm diameter). Wind tightly, leaving 10cm leads at both ends–one connected to the antenna terminal, the other to ground. Avoid overlapping turns to minimize signal loss.
Attach a germanium diode (1N34A or similar) between the coil’s antenna lead and the earphone jack. The diode’s polarity determines detection: the anode (banded end) faces the coil, the cathode toward the audio output. Use solder for permanence; clip excess leads to prevent shorts.
Connect a high-impedance earphone (800–2,000 ohms) to the diode’s cathode and ground. If using a modern piezoelectric earphone, add a 10k-ohm resistor in parallel to match impedance. Secure all joints with electrical tape or a terminal strip; loose connections introduce noise.
Extend a 10–20 meter antenna wire (bare copper or insulated) from the coil’s antenna lead to an elevated point–avoid trees or metal structures. Ground the system via a copper rod driven 50cm into damp soil or to a cold water pipe. Poor grounding reduces sensitivity by 60%.
Test by tuning the coil’s tap (move a slider or alligator clip along turns) while listening for faint AM broadcasts. Fine-tune by adjusting antenna length in 1-meter increments–longer pulls in stronger signals but increases interference. Replace the diode if no signal is detected; check for shorts with a multimeter.
How to Select the Right Detector for Your Simple Radio Receiver
Start with a germanium diode like the 1N34A–its lower forward voltage drop (0.2–0.3V) ensures better sensitivity to weak signals compared to silicon detectors (0.6–0.7V). Avoid Schottky diodes unless experimenting with FM; their fast recovery time won’t compensate for reduced audio output in amplitude-modulated reception. Check the peak inverse voltage (PIV) rating: 50V is sufficient for basic shortwave use, but 100V or higher prevents breakdown during local station surges.
For vintage designs, point-contact diodes such as the OA81 or OA91 remain viable for strong broadcast bands, but their fragility demands static precautions–discharge yourself before handling. If targeting medium-wave frequencies (520–1620 kHz), prioritize devices with minimal junction capacitance; the 1N60’s 1pF rating outperforms generic diodes where selectivity matters. Substitute with modern alternatives only after testing insertion loss; some low-cost “signal” diodes introduce 20dB attenuation at 1MHz.
Matching Diode Characteristics to Bandwidth
Narrowband applications (e.g., 455 kHz IF stages) benefit from high-conductance diodes like the BAT85, where 4ns recovery time reduces signal distortion. For longwave (150–300 kHz), slow-switching diodes such as the AA119 maintain envelope fidelity but require impedance matching–use a 2kΩ load resistor for optimal demodulation. Test under actual load conditions; datasheet parameters often assume idealized circuits.
Replace standard diodes with tunnel diodes (e.g., 1N3716) for specialized experiments only–while offering negative resistance for amplification, their 10µA peak current limits practical use to pre-selected signals. Always verify reverse leakage current at operating temperatures; a 0.1µA increase per 10°C shift can degrade weak-signal performance by 6dB in unregulated environments. For outdoor use, seal the diode in epoxy after soldering to prevent moisture-induced parameter drift.
