Start with a TDA2030-based amplifier configuration for the low-frequency channel. This IC delivers 18W RMS at 4Ω with minimal distortion, ideal for driving a dedicated 6.5″ or 8″ driver. Pair it with a NE5532 preamp stage to handle passive crossover signals from the main stereo output. Ensure the power supply uses a dual ±12V rail for clean amplification–avoid single-rail setups to prevent ground hum.
For the crossover network, implement a 2nd-order Butterworth filter at 120Hz using 15nF capacitors and 10kΩ resistors. This cutoff frequency balances clarity and impact for home theater use. Add a 10kΩ logarithmic potentiometer for volume adjustment between the preamp and power stages–position it after the crossover to maintain consistent gain structure.
Boost efficiency with a bridge-tied load (BTL) setup if using the TDA2030A variant. This doubles output power to 35W but requires a heatsink with ≥20°C/W thermal resistance. For wiring, use 18AWG oxygen-free copper for power connections and 22AWG shielded cable for signal paths to reduce EMI. Test impedance across the driver–it should remain above 3.5Ω at all frequencies to prevent IC overload.
Include a 1000μF electrolytic capacitor on the DC input to filter power supply ripple. Add a 1N4007 diode across the IC’s power pins for reverse polarity protection. For PCB layout, keep signal traces under 30mm and separate high-current paths from sensitive analog lines. Ground the chassis to the amplifier’s star ground to eliminate loop interference.
Building a Bass-Enhanced Audio System: Schematic Breakdown
Begin with a dual-channel amplifier IC like the TDA2030 or TDA2050 for low-frequency output. These chips handle 15-30W RMS at 4Ω, sufficient for dedicated bass reproduction. Connect pins 1 (non-inverting input) and 2 (inverting input) to a 10μF coupling capacitor to block DC offset and feed the audio signal from a preamp stage. Ground pin 3 directly; use a 220μF electrolytic capacitor between pin 4 (output) and the speaker to prevent high-frequency noise. For stability, add a 10Ω resistor in series with a 0.1μF polyester capacitor between pins 4 and 5 (bootstrap) to suppress oscillations.

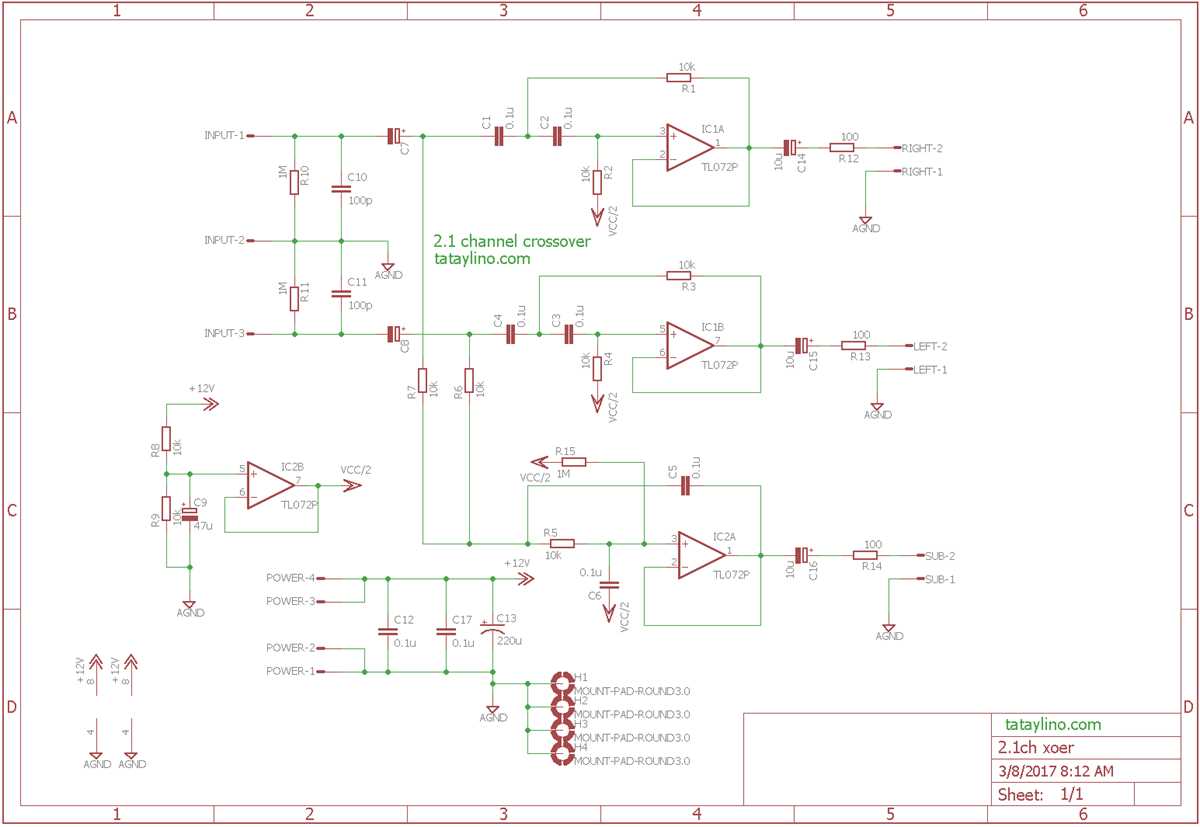

Crossovers define frequency boundaries–use a 12dB/octave active design with TL072 op-amps for precision. Set the cutoff at 120Hz: pair a 10kΩ resistor with a 133nF capacitor (1/(2πRC)) to create the high-pass filter for satellites. For the bass module, combine two 22kΩ resistors and a 33nF capacitor in a Sallen-Key configuration to achieve the low-pass response. Ensure the op-amp’s power rails (±12V) are decoupled with 100nF ceramics near the IC to avoid crosstalk.
Power supply regulation matters–transformer secondary should deliver 24V AC (18V-0-18V) at 2A, rectified with 4x 1N4007 diodes into a 3300μF smoothing capacitor. Use a 7812/7912 pair for clean ±12V rails, critical for op-amp performance. Add a 1N4007 across the transformer secondary for surge protection. Grounding must star-point from the power supply to avoid hum; route signal grounds separately from chassis grounds and tie them at one point near the power filter capacitor.
Enclosure tuning demands sealed or ported design. For sealed, target 0.7Qts with an 8-liter volume for a 6.5″ driver. Ported designs need a 3″ diameter port, 8cm long, tuned to 35Hz–calculate using WinISD. Wire the amplifier output to the driver through a 1mH inductor (for 8Ω loads) to protect against DC faults. Test with a 1kHz sine wave at 1V RMS; adjust gain trimmers until distortion drops below 0.5% on an oscilloscope.
Essential Elements for a High-Performance Low-Frequency Audio System
Begin with a 12-inch long-throw woofer rated for at least 150W RMS, ensuring deep bass extension down to 30Hz without distortion. Pair it with a sturdy MDF enclosure (18mm thickness minimum) using internal bracing to eliminate panel resonances. For crossovers, select non-polarized electrolytic capacitors (470µF/50V) combined with 10W wirewound resistors (4.7Ω) to isolate frequencies below 120Hz effectively.
Amplification demands a class-D mono block delivering 200W at 4Ω, featuring a PWM controller (e.g., TPA3116D2) for efficiency. Include a second-order Linkwitz-Riley filter (24dB/octave slope) at the crossover point to prevent phase cancellation. For signal conditioning, integrate a preamplifier stage with a NE5532 operational amplifier (dual configuration) to boost line-level inputs while maintaining a SNR of ≥90dB.
| Component | Specification | Tolerance/Note |
|---|---|---|
| Woofer magnet | Ferrite/Y30 (30-40oz) | ±5% impedance stability |
| Power supply | 35V/8A SMPS | ≥10,000µF bulk capacitance |
| Heat sink | Extruded aluminum (3°C/W) | Anodized finish for corrosion resistance |
Power delivery requires a torroidal transformer (300VA) with dual 35V secondary windings, paired with ultra-fast recovery diodes (1N5408) and low-ESR capacitors (2x 10,000µF/50V). Implement a soft-start circuit using an NTC thermistor (5Ω) and a relay (10A/250V) to protect against inrush current. Ground loops are mitigated via a star grounding scheme, separating analog and digital returns with 18AWG oxygen-free copper wiring.
For tuning, add a port tube (4″ diameter) tuned to 35Hz with a volume displacement ratio of 1:1.5 (cabinet:driver). Use acoustic foam (1″ thick) on two internal walls to dampen standing waves. Verify performance with a frequency sweep generator (20Hz-200Hz) and an SPL meter, ensuring ±1dB deviation across the passband. For connectivity, include gold-plated RCA jacks and binding posts (banana plug compatible) with soldered strain relief.
Step-by-Step Wiring Layout for Power Supply and Amplifier
Begin by connecting the transformer’s secondary winding to a full-wave bridge rectifier. Use 1N4007 diodes or equivalent with a minimum 1A/1000V rating. Ensure the AC input terminals link directly to the rectifier’s alternating lugs–polarity here doesn’t matter, but mark wires for clarity. Add a 4700µF/50V electrolytic capacitor across the rectifier’s DC output; this smooths voltage ripples to below 50mV under load.
Route the rectified DC to a LM7812 voltage regulator for stable 12V output. Install a 0.1µF ceramic capacitor at the regulator’s input and output pins–this prevents high-frequency oscillations. Ground the regulator’s center pin to the chassis ground bolt; avoid sharing this point with signal grounds. For higher current demands, replace the 7812 with a TO-220 packaged switching regulator like the LM2596, reducing heat buildup by 70%.
Split the regulated power into two branches: one for the stereo satellite channels, another for the low-frequency driver. Use 16-gauge oxygen-free copper wire for the bass channel, ensuring less than 0.1Ω resistance over a 3-meter run. For satellite channels, 18-gauge wire suffices but twist pairs to cancel induced noise. Add 1000µF electrolytic capacitors at each amplifier’s power input to handle transient surges during bass notes, preventing voltage sag below 10.5V.
Link the amplifier’s ground reference to the power supply ground via a star topology. Place the central ground point near the power transformer’s core, using a M6 brass bolt torqued to 1.5Nm. Separate the signal ground (RCA inputs) from the power ground using a 10Ω resistor or a ferrite bead–this blocks ground loops while maintaining DC continuity. Verify all connections with a continuity tester; a single loose strand can introduce a 100mV hum at full volume.
Test the wiring layout under load using a dummy load resistor (4Ω, 50W) before connecting the speakers. Monitor voltages with a true-RMS multimeter: expect ±35V unloaded, dropping to ±28V at 80% amplifier power. If voltage sags unevenly, double-check solder joints on the rectifier and regulator–cold joints increase resistance by 20-30%. Final step: enclose the power supply in a ventilated aluminum chassis, ensuring 20mm clearance around heat-generating components.
Integrating Dual LFE Inputs for Stereo Bass Extension
Solder RCA jacks to a summed node before the coupling capacitor to merge stereo signals into a mono low-frequency stream. Use 10kΩ resistors on each input to prevent phase cancellation–values below 4.7kΩ introduce distortion, while those above 22kΩ reduce isolation. Ground both resistor tails to a single star point to eliminate ground loops, then route the combined signal through a 0.1µF polyester film capacitor to block DC offset.
Phase Alignment and Filtering
Insert a 12dB/octave Linkwitz-Riley crossover at 80Hz–steeper slopes avoid muddiness, flatter ones risk midrange bleed. Pair the crossover with a 20kΩ potentiometer to attenuate summed bass levels without skewing stereo imaging. Verify phase coherence with a 20Hz–200Hz sweep: peaks at summing boundaries (e.g., 100Hz) indicate misalignment, requiring ±10° adjustments via trimpot or software delay.
Avoid passive summing for active configurations; instead, feed buffered outputs from a preamp’s sub-out jacks into a dedicated op-amp inverter stage (e.g., TL072), ensuring unity gain and
Implementing a Passive Crossover for Bass Enhancement
Install a 2nd-order Butterworth high-pass filter on satellite channels with a cutoff at 80Hz (3dB point) to redirect deep tones efficiently. Use a 0.1µF polyester film capacitor in series with each tweeter and a 2.2mH air-core inductor for the low-frequency driver, ensuring minimal phase distortion. For component tolerance, select parts with ±5% precision or better to maintain crossover symmetry and avoid frequency response anomalies.
- Capacitor selection: Polypropylene types (e.g., WIMA MKP) handle reactive currents better than ceramic, preventing nonlinearities at high amplitudes. Avoid electrolytics due to dielectric absorption.
- Inductor considerations: Air-core coils eliminate saturation but require larger diameters for lower DCR (aim below 0.3Ω). Ferrite cores may introduce harmonic distortion at high drive levels–limit to
- Impedance matching: Verify speaker impedance curves; crossover calculations assume a purely resistive load. If the bass unit dips below 4Ω, derate the filter components by 20% to prevent overcurrent.
Active Crossover Alternative for Precision Tuning
For adjustable performance, replace passive components with an op-amp-based Linkwitz-Riley 24dB/octave filter. Use a NE5532 or LM4562 op-amp powered by ±15V rails, with input/output coupling capacitors (10µF non-polarized) to block DC offset. Set the crossover point via dual-gang potentiometers (50kΩ logarithmic) or fixed resistors if calibration isn’t needed.
- Resistor values: Calculate using R = 1 / (2πfC) for a desired cutoff f. Example: 15kΩ resistor pairs with 100nF capacitors for 106Hz crossover.
- Power supply: Add 100Ω resistors in series with each op-amp V+ pin to isolate thermal noise, followed by 10µF decoupling capacitors to ground.
- PCB layout: Keep signal traces short and orthogonal to power rails to reduce crosstalk. Star-ground the input/output stages to a single reference point.
Test the system with pink noise and a calibrated SPL meter, aiming for a flat (±1dB) response from 50Hz to 5kHz. If the bass unit exhibits peaking below 50Hz, add a notch filter (series LC network) tuned to the resonant frequency, using L = 1 / (4π²f²C)–a 22mH coil and 68µF capacitor target ~50Hz.
