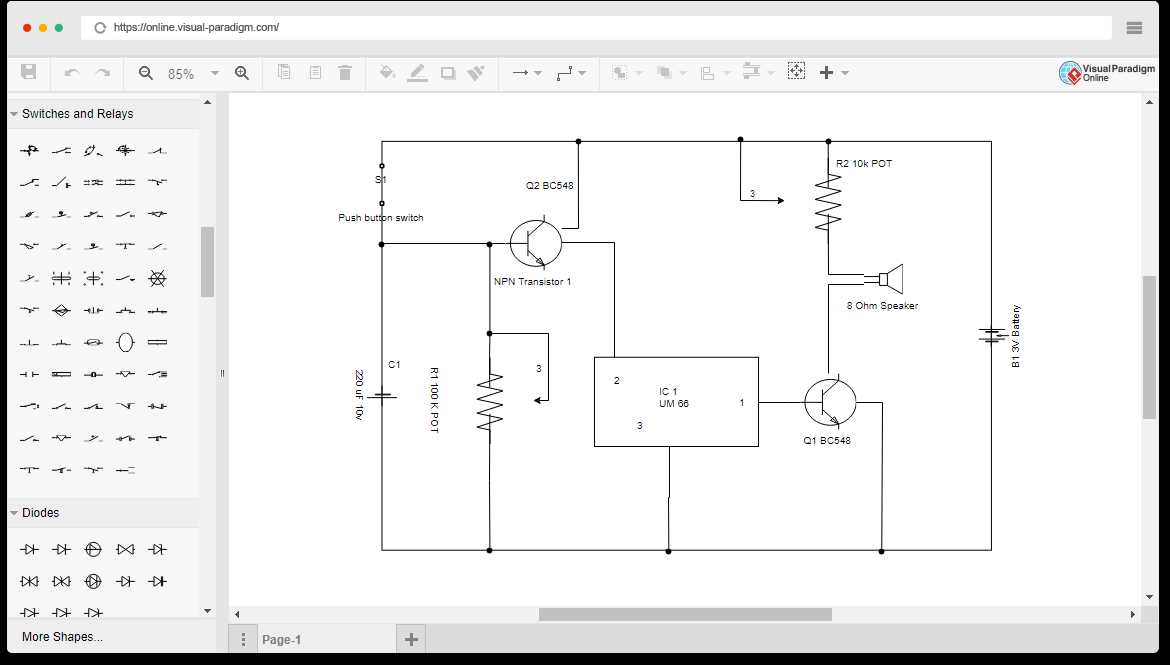

Begin with a clear objective: define whether your electronic layout illustrates functionality, troubleshooting steps, or instructional purposes. Sketch the primary components–resistors, capacitors, ICs–on paper first, noting their relationships before transferring to software. This prevents errors later, saving hours of redesign.
Select tools based on complexity: KiCad excels for open-source projects, EasyEDA simplifies web-based collaboration, while Altium Designer handles multi-layer boards with precision. Avoid overcomplicating–stick to standardized symbols (IEEE/ANSI) to ensure universal readability. Label every part with exact values (e.g., R1 4.7kΩ, C3 100nF) and include a title block with revision history for traceability.
Use grid alignment to maintain consistency–misaligned lines confuse interpretation. For power rails, snap to the top/bottom edges and use thicker lines for high-current paths. Ground symbols should point downward; never cross them with signal lines to prevent ambiguity. Add net labels (e.g., VCC, GND) instead of drawing wires across long distances to declutter the design.
Annotate critical connections: resistors in series/parallel should be grouped logically, while IC pins require clear, non-overlapping labels. Add notes for unconventional components (e.g., D1 Schottky diode, Vf=0.3V). Validate the schematic by simulating basic behavior–tools like LTspice catch errors early by revealing unconnected nodes or incorrect polarities.
Export in scalable vector formats (SVG, PDF) for lossless quality; avoid raster images unless absolutely necessary. Include a Bill of Materials (BOM) with manufacturer part numbers if the diagram targets production. For tutorials, add a simplified “block version” alongside the detailed view to improve comprehension.
Mastering Schematic Designs for Electrical Layouts
Start with standardized symbols–ANSI/IEEE or IEC notation ensures clarity across teams. For resistors, capacitors, and transistors, use concise labeling: R1, C2, Q3 instead of generic names. Place labels adjacent to components, rotated to match orientation, avoiding overlap with lines. Keep symbols proportionate; a 0.25W resistor icon should differ noticeably from a 5W power resistor.
Organize signal flow left-to-right or top-to-bottom. Group related sub-assemblies–power supplies, logic gates, sensor inputs–into distinct clusters separated by consistent spacing. Use hierarchical layers for dense designs: isolate analog, digital, and high-voltage sections onto separate sheets, linking ports with cross-reference tags. Label ports clearly, e.g., “VCC_OUT_A” for module A’s power output.
Select wire styles deliberately. Solid lines denote direct connections; dashed lines represent buses or shielded cables. Use thick traces for high-current paths (≥2A), reserving thin traces for logic signals. Color-code sparingly–red for DC power, blue for ground, yellow for critical signals–but avoid reliance on color alone; identifiers like “PWR” and “GND” must accompany colors.
Critical Tools and Techniques
| Software | Key Features | Drawbacks |
|---|---|---|
| KiCad EDA | Open-source; 10,000+ symbol libraries; SPICE integration | Steep learning curve for BOM generation |
| Altium Designer | Real-time collaboration; 3D visualization | Expensive licensing; limited macOS support |
| Fritzing | Breadboard-to-schematic sync; beginner-friendly | Poor for dense or high-frequency layouts |
Leverage net classes to automate trace width rules. Define a net class “Power” with 1.5mm minimum width and attach all VCC/VEE lines to it; “Signal” nets default to 0.2mm. Use polygon pours for ground planes, but exclude areas with sensitive analog signals to prevent noise coupling. Verify connections with electrical rule checks (ERC)–set tolerances for unconnected pins, shorted nets, and duplicate references.
Annotate tolerances, manufacturers, and part numbers directly on the layout. For resistors, include values like “10kΩ ±1% (Vishay CRCW0402)”. Add notes for test points: “TP4 – Oscilloscope probe here (50Ω termination required).” Use frame templates with title blocks containing project name, revision number, and date. Embed QR codes linking to datasheets or firmware repositories for quick reference.
Simplify debugging by adding invisible “no-connect” flags to unused pins–KiCad uses a cross-hair icon, Altium a gray circle. For microcontrollers, mark boot modes, reset lines, and JTAG headers with distinct shapes (stars for reset, diamonds for debug). Avoid right-angle traces; use 45° miters for corners, reducing electromagnetic interference by up to 30% in high-frequency designs.
Validation and Collaboration
Export netlists in both human-readable (CSV) and machine-readable (EDIF) formats. Cross-reference against bill of materials (BOM) to catch mismatches–flag discrepancies like a “100nF” capacitor in the schematic linked to a “47pF” footprint. Share Gerber files alongside PDFs with layer visibility toggles for reviewers. Use version control (Git with .gitignore for cache files) and enforce branch naming: “feature/
Choosing Tools for Schematic Design
Opt for KiCad if open-source flexibility and multi-platform support matter. It handles PCB layouts alongside schematics, offers 3D visualization, and includes a built-in SPICE simulator. The footprint editor simplifies custom component creation, while its hierarchical sheets manage complex designs efficiently. Compatibility with Gerber files ensures seamless transitions to fabrication. Users typically adapt within hours due to intuitive keyboard shortcuts and a well-documented library.
For rapid prototyping, Fritzing excels with its visual, breadboard-focused interface. It converts hand-drawn concepts into professional outputs with minimal effort, ideal for educators or hobbyists documenting Arduino projects. The tool lacks advanced simulation but compensates with easy export options (SVG, PNG, PDF) and a component marketplace. Note its slower updates, which may lag behind emerging technologies.
Key Factors in Tool Selection
- Native file formats: Proprietary tools like Altium Designer use `.SchDoc`, while open-source options favor `.kicad_sch` or `.json`. Verify compatiblity with collaborators’ workflows–Altium’s format, for example, isn’t natively readable by KiCad without conversion tools.
- Library management: EasyEDA embeds a cloud-based library with 500K+ parts, reducing setup time. KiCad’s libraries require manual updates but offer granular control over component attributes. For specialized needs (e.g., RF designs), check if the tool supports custom templates for impedance-controlled traces.
- Integration: OrCAD integrates with Cadence’s Allegro PCB Editor, streamlining multi-board projects. KiCad’s plugins (e.g.,
ngspicefor simulation) demand manual setup but avoid vendor lock-in. Cloud-based alternatives like upverter sync across devices but may throttle performance with large designs.
Diagram.net (formerly draw.io) suits users needing lightning-fast, no-install diagramming. Its web version renders crisp vectors, supports deep linking to external documentation, and exports to `.drawio`, `.vsdx`, or `.png`. While lacking dedicated electronics symbols, the tool’s extensibility via custom shapes fits niche applications–add microcontroller pinouts or industrial control symbols by importing SVG files. Combine with Inkscape for layered schematics when precision matters.
Compare pricing tiers: KiCad ($0), EasyEDA ($120/year for advanced features), Altium ($3,285/year). Weigh hidden costs–some tools charge extra for library access or simulation modules. For teams, GerberLabs offers collaborative real-time editing but caps undo/redo at 50 actions. Always test drive with a benchmark project (e.g., a 555 timer astable circuit) to assess snapping accuracy, alignment grids, and auto-routing behavior.
For embedded firmware developers, Visual Studio Code with the PlatformIO extension merges code and schematics. The Embedded Tools add-on overlays live GPIO states onto diagrams during debugging, reducing context-switching. Pair with KiCad’s eeschema for a workflow covering both hardware and software–export BOMs directly into PlatformIO’s dependency manager to automate component ordering.
Standard Symbols and Notations in Schematic Drawings
Begin by memorizing these core symbols to ensure consistency across technical drafts:
- Resistors: Zigzag line (ANSI) or rectangle (IEC); label with R + value (e.g., R1 4.7kΩ). Precision values (1%) use color bands; power ratings specify size.
- Capacitors: Two parallel lines for non-polarized; curved line (negative) for electrolytic. Mark tolerance (e.g., ±20%) and voltage (e.g., C1 100µF/16V).
- Diodes: Arrow (anode) + bar (cathode); use D prefix. LED symbols add two small arrows; Zener diodes show a bent bar.
- Transistors: BJTs: vertical line (emitter) + arrow (collector); MOSFETs: three terminals (gate, drain, source) with a broken line for substrate.
- Power sources: Long line (positive) + short line (negative) for batteries; circle with V or I for ideal sources.
- Switches: Open/closed gap; momentary switches add an arc. Label poles/throws (e.g., SPDT).
- Inductors: Coiled line; toroidal cores require a circle around the coil. Ferrite beads use a dotted line.
Regional Variations and Best Practices
Adopt these rules to avoid ambiguity:
- ANSI vs. IEC: ANSI uses a zigzag for resistors; IEC prefers a rectangle. Keep a reference sheet for mixed teams.
- Ground symbols: Chassis (three descending lines); earth (three diagonal lines); signal (single line + GND). Separate analog and digital grounds.
- Connectors: Male/female pins use triangles (pointing in/out). Coaxial connectors show concentric circles.
- ICs: Rectangle with notched corner (pin 1). Label pin numbers clockwise from notch. Group functions (e.g., VCC, GND) near edges.
- Notation: Use uppercase for component IDs (e.g., R12). Decimal points: 4.7kΩ (ANSI) or 4,7kΩ (IEC). Avoid units for passive values (e.g., 100n for 100nF).
- Digital logic: AND: flat D; OR: curved D; NOT: triangle + circle. Add bubble inputs for active-low signals.
- Avoid: Custom symbols unless documented in a legend. Exceptions: custom ICs or modular blocks (e.g., USB_PHY) with clearly marked pins.
