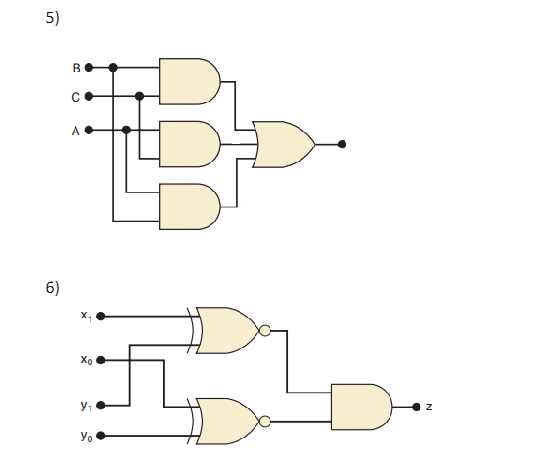

Begin by isolating each output node in the schematic. Trace backward through connected gates, labeling inputs as variables–use uppercase letters for distinct signals (A, B, C) and lowercase for inverted states where applicable. For an AND gate with three inputs, write Y = ABC directly below its output pin. Repeat this for every gate, ensuring no intermediate signal is overlooked.
When encountering an OR gate, apply the same rule but use the + operator: X = A + B + C. For mixed configurations, maintain strict order–parentheses are mandatory around combined operations (e.g., Z = (A + B)C). Use De Morgan’s theorems immediately on NOR or NAND gates to simplify the algebra before proceeding further.
Replace each inverter with a prime symbol (A’) to denote negation. Avoid double primes–resolve nested negations early using (A’)’ = A. If a signal passes through multiple inverters, cancel them in pairs before incorporating into larger formulas.
After listing each gate’s output, collapse intermediate variables into a single expression by substitution. Eliminate redundancy–remove duplicate terms and apply absorption laws (A + AB = A). Test with sample inputs: force 1 and 0 values to confirm simplification matches the schematic’s behavior.
Translating Gate Networks into Algebraic Formulas
The first step is identifying each gate in the schematic and replacing it with its corresponding operator. AND gates map to multiplication (e.g., A⋅B), OR gates to addition (e.g., A + B), and NOT gates to overlines (e.g., A̅). For nested structures, start from the innermost gates and work outward–this prevents misplaced parentheses and ensures the hierarchy matches the original design. For instance, a cascade of two AND gates feeding into an OR gate translates directly to (A⋅B) + (C⋅D).
Complex configurations like XOR or NAND require intermediate simplification. Replace XOR with (A⋅B̅) + (A̅⋅B) and NAND with (A⋅B)̅ immediately. If gates share inputs, factor common terms; this reduces redundancy and simplifies later synthesis. A common pitfall is overlooking shared NOT gates–inserting them only once and reusing their output saves computation and improves clarity.
Label all outputs at each stage with temporary variables (e.g., X = A⋅B, Y = X + C). This modular approach breaks down sprawling networks into manageable chunks, making errors easier to isolate. When gates split into multiple paths, create a distinct branch for each; merging them prematurely risks invalidating conditions in downstream gates.
After translation, apply algebraic identities to condense the result. Distributive laws (A⋅(B + C) = A⋅B + A⋅C), absorption (A + A⋅B = A), and De Morgan’s ((A + B)̅ = A̅⋅B̅) streamline expressions without altering functionality. Verify each step by reconstructing a simplified schematic–mismatches signal errors in the algebraic sequence.
For hierarchies deeper than three levels, annotate each gate subgroup with comments or temporary markers (e.g., /* Intermediate OR layer */). Final expressions should mirror the schematic’s signal flow, not just the gate count. Omit redundant parentheses where operator precedence is unambiguous (AND before OR), but retain them when clarity demands it.
Recognizing Symbolic Components and Their Algebraic Forms
Begin by labeling each schematic element with its standard algebraic notation–AND symbols (flat-headed with curved back) directly translate to multiplication in equations, e.g., A·B. OR elements (concave-curved) become additions, A + B, while NOT gates (triangles with circles) invert inputs as A̅. Verify pin configurations: multi-input AND/OR components retain the same operation, expanding the formula accordingly (e.g., A·B·C). Prioritize singular gates before combined ones to avoid misassignment.
Spot distinctive markers: XOR gates (OR-shaped with an extra curved line) map to exclusive sums, A ⊕ B, while NAND and NOR require an additional inversion over their base equivalents, resulting in (A·B)̅ and (A + B)̅. Identify cascaded inversions–two consecutive NOTs cancel out, simplifying complex chains into linear terms. For grouped gates (e.g., AOI cells), break them into nested sub-expressions: first resolve inner clauses (A·B), then apply outer operations (+(C·D)).
Cross-reference commonly inverted pairs: a NOR followed by a NOT equals an OR, while a NAND-NOT sequence mirrors an AND. Use truth tables for ambiguous combinations–derive intermediate outputs to confirm correct translation. Document polarities: active-low inputs (circles on symbols) mandate inversions in the final formula, altering A·B to A̅·B or A·B̅. Verify by reconstructing the schematic from the derived equation–discrepancies indicate misidentified components.
Apply de Morgan’s theorems to resolve nested operations: (A·B)̅ becomes A̅ + B̅, and vice versa. For sequential blocks, preserve ordering–flip-flops or latches may embed implicit latching conditions (Q = S + R̅·Q). Annotate every transformation step; omitting parentheses for precedence can distort the outcome, such as interpreting A·B + C as A·(B + C) when ungrouped.
Tracing Signal Flow to Build Step-by-Step Boolean Terms
Start at the primary input nodes and label each wire with intermediate variables. Assign symbols like A, B, C for raw inputs, then use derivatives like X1, X2 for junctions. Track every divergence–record where a signal splits into two paths or merges through gates. Example: if input A branches to an AND operation and an OR operation, mark the AND’s output as Y1 and the OR’s output as Y2.
Map each gate’s operation sequentially. For a 3-input NAND with inputs A, B, C, define its output as (A · B · C)' immediately. Avoid skipping steps–write every term even if gates share inputs. Use sub-expressions for multi-stage paths: if an AND feeds an XOR, represent the AND’s output first, then incorporate it into the XOR’s term.
Organize intermediate terms in a table to visualize progression. Structure columns as follows:
| Gate | Input Signals | Intermediate Term | Final Path Contribution |
|---|---|---|---|
| NAND1 | A, B | (A · B)' |
Feeds OR2 |
| OR2 | C, NAND1 output | C + (A · B)' |
System output |
Substitute terms backward once all gates are logged. Replace intermediate symbols with their definitions. For instance, if Y1 = X1 · X2 and X1 = A + B, rewrite Y1 as (A + B) · X2. Repeat until only primary inputs remain.
Simplify nested operations by applying De Morgan’s laws or absorption rules. Example: ((A + B)' · (A + C)) reduces to A + (B · C). Verify each transformation by reconstructing the signal path–check if the simplified term mirrors the original gate behavior. Errors often surface here; re-trace if outputs mismatch.
Handle feedback loops by breaking them at a chosen point. Label the loop’s output as a new variable, then express it in terms of its inputs recursively. For a latch with S and R inputs, define Qnext = (S + Qcurrent') · R'. Iterate until the loop’s behavior stabilizes.
Validate the final formula against truth tables for edge cases. Test inputs where signals toggle rapidly (e.g., A=1, B=0, C=1 → 1 → 0). Compare intermediate outputs at each gate stage–discrepancies indicate missteps in substitution or simplification. Cross-reference with timing diagrams if available; signal propagation delays reveal overlooked gate interactions.
Mastering Branch and Chain Links in Schematic Analysis
Identify parallel branches first–each branch operates independently, so map them as disjunctive terms separated by OR operators. Label input nodes clearly (e.g., A, B, C) to avoid confusion when tracing multiple paths. A two-input OR gate expands to A + B, while three branches introduce A + B + C directly.
Series elements collapse into conjunctive segments linked by AND notation. A chain of switches A → B → C translates to ABC; invert the sequence if directional flow reverses. Verify voltage drops across each link–identical drops confirm series behavior. Misalignment suggests hidden parallel spurs demanding re-evaluation.
Combine chain and branch rules hierarchically. A series trio A–B preceding a parallel pair C/D yields (AB)(C + D); distribute connectors only after resolving nested groupings. Avoid premature simplification–preserve structural clarity until final expression stage.
Substitute literal gates with compact notation when redundancy emerges. Repeated chains–like AND-OR cascades–can abbreviate to ΣΠ (sum-of-products) form once validated. Use Karnaugh maps for chains exceeding four inputs; adjacency clusters reveal optimal reduction paths.
Test edge cases: floating nodes, stuck-at faults, and race conditions. Parallel branches tolerate individual failures without total collapse; series chains trigger domino outages. Mock inputs (0/1) across all permutations validate expression integrity before synthesis.
Document inverse paths–complementary branches invert as products of sums. A parallel pair A + B negates to A’B’, while series chain ABC flips to A’ + B’ + C’. Consistent inversion preserves logical equivalence; discrepancies flag overlooked connections.
Optimize post-translation by eliminating redundant literals. Shared terms in parallel branches (e.g., ABC + ABD) factor to AB(C + D). Verify simplification via truth tables; differences demand revisiting original schematic for concealed forks or loops.
Simplifying Switching Formulas with Algebraic Rules

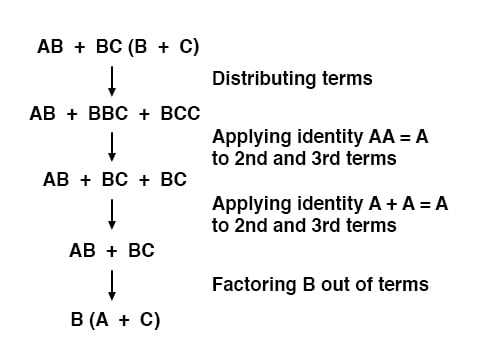

Apply the idempotent law immediately: A + A = A and A · A = A. Remove duplicate variables in sums or products without hesitation–this reduces terms to their minimal form in a single step. For example, (X + Y) + (X + Y) simplifies directly to X + Y, eliminating redundancy.
Use absorption identities to eliminate nested terms: A + (A · B) = A and A · (A + B) = A. These rules target sub-expressions where one variable dominates another. If Z · (Z + W + V) appears, it collapses to Z regardless of W or V.
(A + B) · (A + B̅) = A(consensus theorem)A + (A̅ · B) = A + B(elimination of negation)(A + B) · (A̅ + C) = A · C + A̅ · B(distributive expansion)
Factor common variables where possible: X · Y + X · Z = X · (Y + Z). This reverses the distributive property to group terms. When faced with M · N + M · O + P · N + P · O, refactor into (M + P) · (N + O)–reducing four terms to two. Always check for factorable pairs before finalizing the simplified output.
Handling Negations and Complements
De Morgan’s laws convert negated sums/products into dedicated forms: (A + B)̅ = A̅ · B̅ and (A · B)̅ = A̅ + B̅. Apply these when a negation spans multiple variables–splitting it exposes opportunities for further reduction. Example: (X · Y + Z)̅ becomes (X · Y)̅ · Z̅, then (X̅ + Y̅) · Z̅.
Double negations cancel: A̅̅ = A. Erase stacked negations immediately–no computational benefit remains. When simplifying ((A + B)̅ + C)̅, first resolve the inner negation (A + B), then address the outer one.
- Scan for complement pairs:
A + A̅ = 1,A · A̅ = 0. These eliminate variables entirely. - Replace
1in sums or0in products:Z + 1 = 1,Z · 0 = 0. - Substitute
1or0where possible:A + (B · 0) = A.
