Start by identifying the coil terminals on your electromagnetic switch–typically labeled A1 and A2. Connect a 24V DC or 110-230V AC supply depending on the relay’s voltage rating. Verify compatibility with your control circuit; mismatched voltages risk coil burnout or unreliable activation. For AC coils, ensure the power source matches the frequency (50/60Hz) specified on the device’s datasheet to prevent humming or overheating.
Attach the main power lines to the normally open (NO) or normally closed (NC) contacts, marked L1/L2/L3 for three-phase systems or 1/2 for single-phase. Label each conductor to avoid confusion during troubleshooting–L1 red, L2 black, L3 blue, with a green/yellow stripe for ground. Use crimp terminals or lugs rated for at least 125% of the relay’s current capacity to prevent loose connections under load. For motors above 5HP, add auxiliary blocks to handle inrush currents up to 6-8 times the rated value.
Incorporate overload protection by pairing the relay with a thermal or solid-state overload relay. Place it downstream of the main contacts to interrupt power if current exceeds the motor’s full-load amperage (FLA). Install a manual reset button for the overload relay to prevent automatic restart after a trip, which could damage equipment. For remote operations, wire a push-button station to the coil circuit, using a standard start-stop configuration with a latching contact to maintain operation after releasing the start button.
Test the setup with a multimeter before applying power. Measure continuity across the coil terminals–an open circuit indicates a faulty coil. Check for infinite resistance between power terminals and ground to confirm insulation integrity. Energize the coil and listen for a distinct *click*; absence suggests a mechanical fault or incorrect voltage. If the relay stays engaged after releasing the start button, inspect the latching contact or auxiliary wiring for shorts.
For reversing circuits, use two relays with interlocking contacts to prevent simultaneous engagement. Wire one relay for forward rotation and the other for reverse, ensuring the control switch toggles between them without overlap. Add a timer relay if the application requires staged startup–delay the second relay’s activation by 2-5 seconds to allow the first motor to reach full speed. Document every connection in a schematic using standardized symbols for future reference.
Understanding Electromagnetic Switch Connection Schematics
Start by identifying the main power terminals–typically labeled L1, L2, L3 for three-phase systems or L and N for single-phase. Connect incoming power lines directly to these terminals, ensuring the cross-sectional area of conductors matches the switch’s rated current. For a 25 A unit, use 4 mm² copper wires; for 63 A, upgrade to 16 mm². Tighten terminal screws to 2.5 Nm to prevent overheating.
Locate the auxiliary contacts–usually marked A1/A2 or NO/NC. Apply a separate 24 V DC or 230 V AC control voltage to A1 (coil input) and A2 (coil return). Avoid exceeding the coil’s voltage tolerance by more than 10%, as this reduces lifespan by accelerating insulation breakdown. A snubber circuit (0.1 µF capacitor + 100 Ω resistor in series) across A1/A2 suppresses voltage spikes from inductive loads.
For motor control, wire the normally open (NO) contacts in series with the overload relay. Use a 1.5 mm² wire for control circuits, even if the current draw is minimal–thinner wires risk becoming brittle under vibration. If integrating with a PLC, connect the relay’s NO contact to a digital input module, ensuring the module’s sinking/source configuration matches the switch’s output logic.
Ground the metallic enclosure via a dedicated PE terminal. Use a 6 mm² green-yellow conductor for systems above 32 A, bonded to the main grounding busbar. Verify absence of voltage with a multimeter before touching terminals–residual charges in capacitors can persist for minutes after disconnection.
Test the assembly by energizing the coil: a distinct *click* should confirm proper operation. If the switch fails to engage, measure coil resistance (typically 20–200 Ω depending on voltage rating) and check for open circuits. For delayed activation, pair with a timing relay, adjusting delay settings via onboard potentiometers–never modify factory-calibrated components without recalibration tools.
Key Components in an Electromagnetic Switch Schematic
Locate the coil terminals first–typically labeled A1 and A2–on any control relay layout. These define the energizing circuit that generates the magnetic field needed to pull in the contacts. Verify the voltage rating marked on the coil (e.g., 24 V AC, 110 V AC, or 230 V AC) and cross-check it against the control power source; mismatches cause failure or damage.
Trace the main power poles next, usually designated L1, L2, L3 for the incoming lines and T1, T2, T3 for the outgoing connections. Each pole contains a movable and a fixed contact pair; the movable ones are attached to the armature and snap into position when the coil is powered. Note the current rating (e.g., 9 A, 18 A, 25 A) printed on the housing and ensure it exceeds the load current by at least 20 %.
Examine auxiliary contacts if present–often marked NO (normally open) and NC (normally closed). Auxiliary blocks may be numbered 13-14, 21-22, etc., following IEC 60947 conventions. These contacts switch control signals or interlocks and must have their own separate wiring paths distinct from the main poles.
Look for arc suppression features such as arc chutes or blow-out coils positioned around the main contacts. These components quench sparks generated during switching and extend contact life. If the layout lacks these, expect reduced service life under inductive loads.
| Component Type | Common Designations | Typical Voltage/Current Ratings |
|---|---|---|
| Coil | A1-A2, A-B | 24 V, 110 V, 230 V |
| Main Poles | L1-T1, L2-T2, L3-T3 | 9 A, 18 A, 25 A |
| Auxiliary Contacts | 13-14 (NO), 21-22 (NC) | 5 A max |
Identify overcurrent protection symbols upstream of the device–either fuses or circuit breakers–with ratings aligned to the main pole capacity. A 25 A switch should pair with a 25 A fuse or breaker; undersizing risks overheating, oversizing fails to protect contacts.

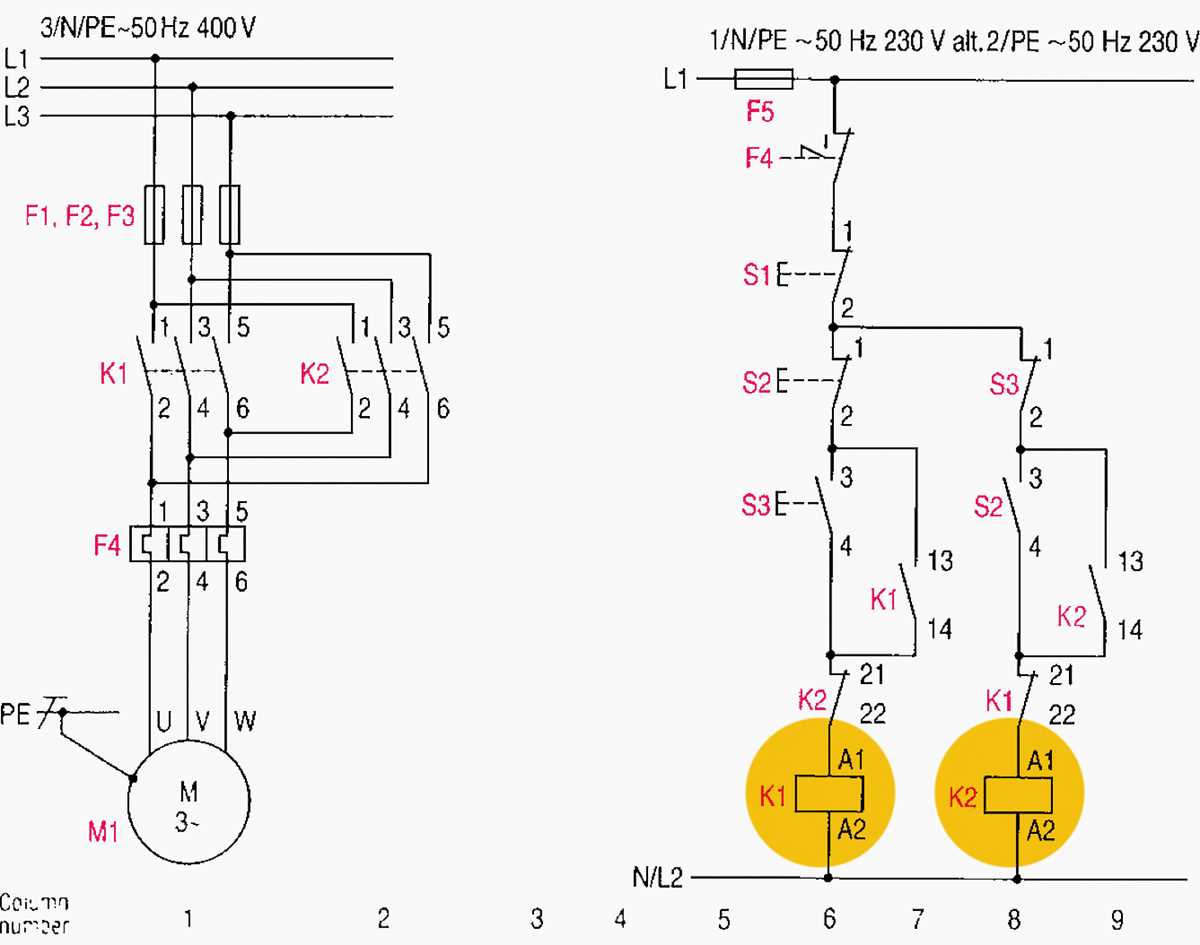

Check for mechanical interlocks if multiple relays are depicted. These prevent simultaneous engagement of conflicting circuits and are commonly used in motor forward-reverse starters. Interlock symbols appear as dashed lines connecting auxiliary contacts of opposing relays.
Confirm the presence of grounding points marked PE or with a ground symbol. Proper grounding dissipates transient voltages and prevents stray currents from energizing metal enclosures or control circuits, reducing shock hazards and interference.
Single-Phase Electromagnetic Switch Installation Walkthrough
Start by disconnecting the power supply at the main circuit breaker to eliminate any risk of electrical shock. Verify the absence of voltage using a multimeter on the input terminals (L1 and L2) of the relay – readings should show zero. Secure the switch unit to a stable, non-flammable surface using mounting screws or DIN rail brackets, ensuring it’s positioned vertically to prevent dust accumulation within the enclosure.
Connecting Load and Control Circuits
- Attach the incoming power cables to the upper terminals: live (hot) wire to L1, neutral to N. Use crimp connectors rated for 1.5x the expected current (minimum 20A for standard residential use).
- Route the load wires from the output terminals (T1 for live, N for neutral) directly to the appliance or motor, matching wire gauge to the switch’s ampacity (e.g., 12 AWG for 20A, 10 AWG for 30A).
- For control, link a momentary push-button or thermostat to the coil terminals (A1 and A2). Use 18-22 AWG stranded wire for low-current paths. Polarize the coil connections: A2 to neutral, A1 to the control device’s output.
- Add overcurrent protection by inserting a fuse or MCB in series with the coil circuit (typical rating: 2-5A). Confirm all connections are torque-tight (refer to manufacturer specs: e.g., 0.8 Nm for 6mm² terminals).
- Reapply power and test operation by pressing the control button. The switch should energize with an audible “click,” and the load should activate. Check for overheating at terminals after 10 minutes of operation.
- Critical note: For inductive loads (motors, compressors), install a flyback diode (1N4007) across the coil terminals to suppress voltage spikes.
- Avoid daisy-chaining multiple switches on the same power feed unless each has dedicated short-circuit protection.
- Label all wires at both ends with heat-shrink tubing or permanent markers to simplify future maintenance.
Frequent Errors in Reading Switching Device Schematics
Misidentifying coil terminals ranks as one of the most costly oversights. Many attempt to energize an auxiliary unit using labels intended for the main power path, often marked A1/A2 or L1/L2. This leads to immediate coil burnout or failure to close the circuit entirely. Always cross-reference terminal numbers with manufacturer datasheets–generic symbols rarely account for brand-specific variations.
Overlooking voltage compatibility across connected components causes cascading failures. A 24V control module paired with a 230V relay coil will either remain dormant or fry instantly. Verify not just the primary input but also auxiliary contacts, signal lights, and protective relays. Measure twice; one mismatch can void protection against overload or short circuits.
Confusing normally open (NO) and normally closed (NC) states results in reverse logic in automated systems. A motor start button wired to an NC contact keeps the circuit perpetually open, while an emergency stop on NO bypasses safety. Label every contact during installation and test continuity with a multimeter before applying power–assumptions here are non-negotiable.
Neglecting current ratings on auxiliary circuits leads to overheating and fire hazards. A 10A main switch paired with 1A-rated control wires will melt insulation under sustained load. Cross-check wire gauge and contact capacity; even low-voltage signals demand respect for thermal limits.
Ignoring phase rotation in three-pole applications introduces violent mechanical stress. Reverse rotation can destroy pumps, compressors, or conveyor belts within seconds. Mark phase sequences on all wiring runs and verify with a phase rotation meter before finalizing connections–corrective swaps after damage incur downtime and repair costs.
