For reliable energy delivery to sensitive loads, use a linear regulator topology with a fixed output. A 7805 IC paired with a 1N4007 diode ensures a clean 5V feed, handling currents up to 1A continuous without thermal throttling if heatsinked properly. Input should range between 7V–35V DC; voltages below 7V risk dropout, while exceeding 35V damages the regulator. Add a 100μF electrolytic capacitor at the input and a 10μF tantalum capacitor at the output to suppress voltage transients–critical for lithium batteries prone to oscillation during transients.
Control charge termination precisely by inserting a TL431 shunt regulator in the feedback loop. Adjust the reference voltage via a trimpot to 4.2V for a standard 18650 cell, compensating for temperature drift with a 20kΩ NTC thermistor. Overcurrent protection requires a low-RDS(on) MOSFET like the IRFZ44N, triggered by a 0.1Ω shunt resistor and a LM358 comparator. Set the trip point at 1.5A–above the cell’s 1C rating but below the 3A fuse rating to prevent catastrophic failure.
Minimize ripple by placing a 100nF ceramic capacitor across each decoupling node–input, output, and regulator ground. If noise exceeds 12mVpp, add a pi filter (two 22μF capacitors with a 10μH inductor) ahead of the regulator. For adaptability, swap the 7805 for a LM317 with two 3.3kΩ resistors to tweak output between 1.25V–25V, though efficiency drops below 50% for outputs under 3V. Always verify thermal dissipation: a 2W power loss across the regulator mandates a 5°C/W heatsink for ambient temperatures above 40°C.

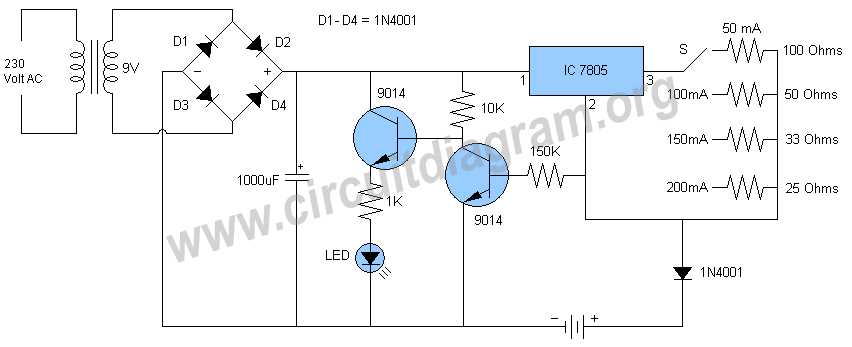

Stabilized Power Supply Schematic for Battery Maintenance

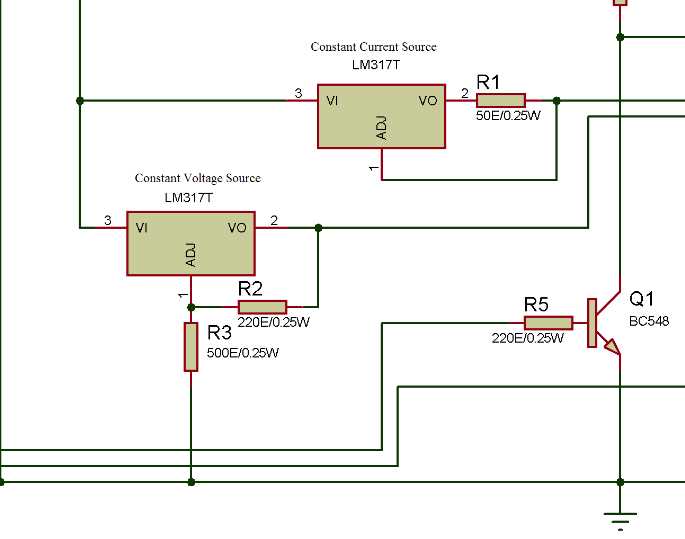

Select a linear regulator IC like LM317 for precision output adjustment. Connect its input to a DC source 1.5–2V above the target level, ensuring sufficient headroom for stable operation. Adjust the feedback resistors (R1 at 240Ω, R2 variable 0–5kΩ) to dial in the exact required potential–calculate using Vout = 1.25 * (1 + R2/R1) for accuracy.
Place a 10µF tantalum capacitor at the regulator’s output to suppress transient spikes during load steps. For bulk energy storage, add a 1000µF electrolytic across the supply rails, ensuring correct polarity. Input side demands a 0.1µF ceramic cap to filter high-frequency noise from rectified AC or switching converters.
Key Component Values for Common Target Levels
- 5V output: R2 = 720Ω (fixed), 1W minimum power rating
- 12V output: R2 = 2.2kΩ, 10-turn trimpot for fine tuning
- 3.3V output: R2 = 360Ω, pair with a Zener diode (3.9V) for over-potential protection
For lithium-ion cells, integrate a TL431 shunt regulator as a secondary reference. Configure it with a potential divider to clamp the level at 4.2V (±10mV). Add a 1N4007 diode in series to prevent reverse current flow during power-offs, eliminating back-feed risks.
Efficiency drops at higher currents–exceed 1A? Switch to a buck converter module (e.g., MP2307) with 90%+ efficiency. Ensure proper heat sinking for linear elements: TO-220 packages need a 10°C/W heatsink for 2W dissipation. Thermal pads (silicone or mica) improve conductivity between IC and sink.
Troubleshooting Checklist
- Verify ground continuity–floating grounds cause erratic behavior.
- Check solder joints for cold connections under magnification.
- Probe across each component with a DMM to confirm voltage drops align with calculations.
- Replace electrolytic caps showing >10% capacitance loss (measured via LCR meter).
- Test load regulation with a 1Ω, 10W resistor–output should deviate
For lead-acid units, lower the target to 13.8V (float) or 14.4V (bulk). Parallel two LM317 regulators if current demands exceed 1.5A, sharing load equally via 0.1Ω current-sense resistors. PCB layout matters: route high-current traces with 2oz copper, keep feedback traces short to avoid noise coupling.

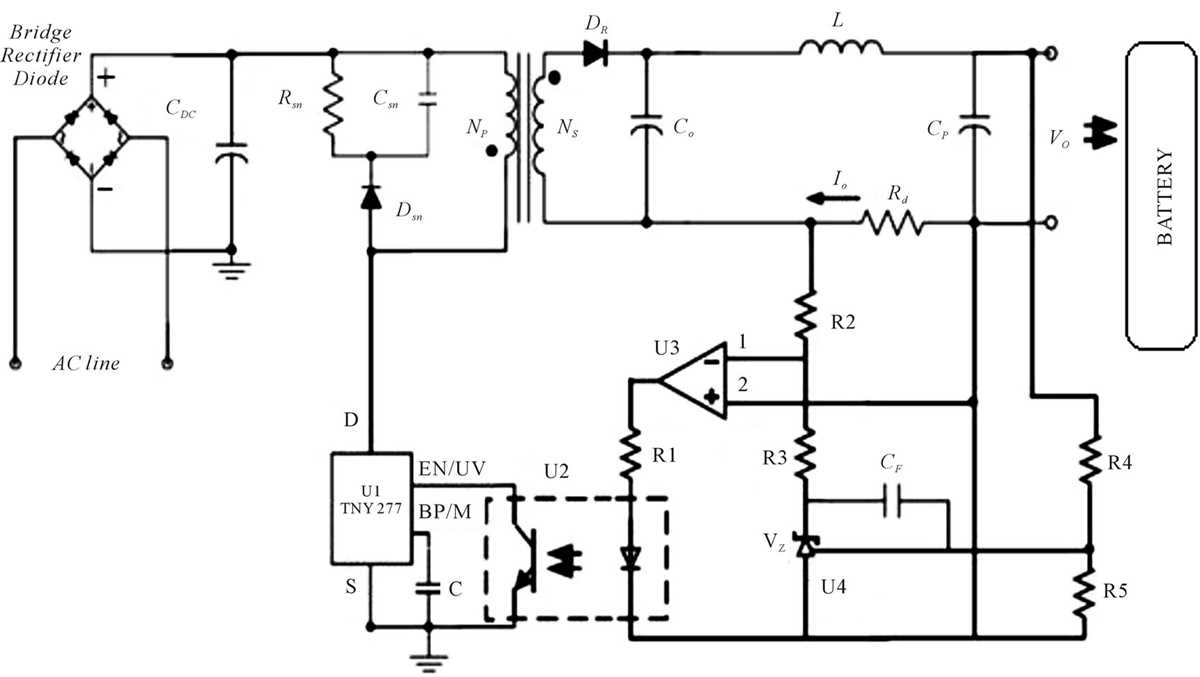

Core Elements for a Stable Power Supply Regulator
Start with a precision feedback controller, such as the TL431 or LM358. These ICs maintain output accuracy within ±0.5% by comparing the load level against an internal 2.5V reference. Select shunt types for low-current setups or error amplifiers for high-power applications. Ensure the controller’s bandwidth exceeds 10kHz to prevent oscillations under dynamic loads.
Use a switched-mode power transistor–MOSFETs like IRFZ44N handle 50A at 100V with on-resistance below 20mΩ, minimizing heat dissipation. Pair it with a gate driver (e.g., IRS2104) to reduce switching losses; opt for totem-pole drivers for frequencies above 100kHz. For linear designs, Darlington pairs (TIP122) suffice but require heatsinks for currents >3A.
Incorporate low-equivalent-series-resistance (ESR) capacitors–ceramic types (X7R) for input filtering (≥10µF) and polymer electrolytics (≥470µF) for output stability. Place ceramic caps near the transistor’s drain to curb voltage spikes; polymer caps should sit adjacent to the load to absorb transient currents up to 5A/µs. Avoid aluminum electrolytics due to their 100ms recovery limitations.
A current-limiting resistor (0.1Ω, 5W) in series with the pass element protects against short circuits. Calculate the resistor’s value using Vref/Ilimit; for a 3A limit, use 0.83Ω. Add a Schottky diode (e.g., 1N5822) across the MOSFET’s source-drain to clamp inductive kickback from relays or motors during shutdown.
Opt for temperature-compensated resistors (e.g., Vishay Z-foil) in the feedback network to offset drift. A 1kΩ NTC thermistor placed near the pass element adjusts the reference voltage by -3.5mV/°C, countering thermal runaway. For open-frame designs, include a 100nF bypass cap on the controller’s Vcc pin to filter noise from switching regulators.
Step-by-Step Power Regulator Assembly Guide
Select a 78XX linear regulator matching your target output–7805 for 5V, 7812 for 12V. Verify the datasheet for pinout; most TO-220 packages use pin 1 (input), pin 2 (ground), pin 3 (output). Ensure the regulator’s maximum current aligns with load requirements–check thermal dissipation limits if exceeding 500mA.
Mount the regulator on a heat sink if driving a load above 200mA. Use a small 0.33µF polyester capacitor on the input side, placed within 2cm of the regulator’s pin 1. Add a 0.1µF ceramic capacitor on the output (pin 3) to ground, stabilizing transient response. Avoid electrolytic capacitors here–ceramic minimizes voltage spikes.
Connect the input to your DC source, ensuring polarity matches the regulator’s requirements. A 1N4007 diode in reverse across input and output protects against reverse voltage from inductive loads. Keep wiring short; high-impedance traces introduce noise. For adjustable setups, bypass the regulator’s ground pin to a reference divider using precision resistors (e.g., 1% tolerance).
Wiring Validation
Power the setup with a current-limited bench supply–test at 10% of the expected final current first. Measure output with a multimeter: ripple should stay below 50mV peak-to-peak. Verify thermal performance; the regulator should not exceed 60°C under full load. If overheating occurs, improve heat sink contact–apply thermal paste and check mounting torque.
Add a 1000µF bulk capacitor across the output if driving capacitive loads >100µF to prevent startup overshoot. Finalize by enclosing the assembly in a grounded metal enclosure–keep high-voltage traces isolated from control logic. Label all connections: +IN, GND, +OUT to avoid miswiring during field use.
Voltage Regulation Techniques Using Zener Diodes
Select a Zener diode with a breakdown rating matching the required output level–exceeding the input by 10-20% ensures reliable operation under load fluctuations. For example, a 5.1V Zener with 500mW power handling works for 3.3V regulated supplies when paired with a 220Ω series resistor. Calculate resistor value using R = (Vin(max) - Vz) / Iz(min), where Iz(min) should be at least 5mA to maintain regulation.
Key Design Parameters
- Breakdown tolerance: Choose ±5% variants for critical applications; ±10% suffices for general-purpose stabilization.
- Power dissipation: Derate by 50% when ambient temperatures exceed 50°C (e.g., 1W Zener should not handle more than 500mW).
- Load current: For outputs above 10mA, use an emitter follower (transistor) to prevent excessive Zener current draw.
- Reverse leakage: At high temperatures, leakage can reach 100μA per °C above 25°C–account this in thermal calculations.
Implement temperature compensation by pairing the Zener with a forward-biased diode (0.6V drop) in series. This reduces voltage drift from +2mV/°C (Zener alone) to ±0.5mV/°C. For precise 2.5V regulation, use a TL431 shunt regulator instead–it combines Zener action with an error amplifier, achieving ±1% accuracy across 0-70°C.
- Assemble the circuit with the Zener cathode connected to the input via the series resistor.
- Attach load between the Zener anode and ground–never exceed
Iz(max) = Pz / Vz. - Measure the output under minimum load (≤1mA) and maximum input (e.g., 12V for a 5V Zener) to verify ripple suppression ≤50mVpp.
- For high-current applications, replace the series resistor with a MOSFET (e.g., IRF540N) configured as a source follower–this reduces power loss by 90% compared to passive resistance.
Use parallel Zener diodes only for redundancy–not current sharing. Two 5W, 6.2V Zeners in parallel will not divide current equally; instead, one may conduct nearly all current due to manufacturing variations. For dynamic loads (e.g., microcontrollers with sleep modes), add a 10μF tantalum capacitor across the Zener to prevent transient droop below the regulation threshold.
