Start by selecting 18-22 AWG copper wiring for low-voltage applications (up to 30V). This gauge balances flexibility and conductivity while minimizing voltage drop–critical for distances under 50 meters. For high-current systems (10A+), opt for 14 AWG or thicker to prevent overheating, which degrades performance by up to 15% over repeated cycles. Pre-tinned strands resist corrosion better than bare copper, extending lifespan in humid environments by 3-5 years.
Map out routes using orthogonal layouts–90-degree bends reduce signal interference by 40% compared to diagonal runs. Label each segment with heat-shrink tubing (polyolefin, 3:1 shrink ratio) and include current/voltage ratings for future diagnostics. For modular setups, terminate connections with crimp-style terminals (e.g., Molex 1545 series) rather than solder; they handle vibration better and fail 3x less often under mechanical stress.
Avoid daisy-chaining loads exceeding 70% of wire capacity. Instead, split parallel branches at the source to maintain stable voltage within ±0.2V of nominal. Ground all metallic enclosures directly to the main earth terminal using 6 AWG green/yellow wire–skipping this step increases fault risks by 60% in industrial settings. Test continuity with a milliohm meter before powering up; resistance should stay under 0.1Ω for optimal efficiency.
Use ferrite cores (e.g., Fair-Rite 2643000801) on data lines near power feeds to suppress EMI, which can corrupt signals at frequencies above 1 MHz. For outdoor installations, seal junctions with self-fusing silicone tape (3M 2228) layered 50% overlap–this prevents moisture ingress that causes shorts within 6 months. Document every segment with a schematic sketch showing wire colors, lengths, and component IDs; this cuts troubleshooting time by 75% during repairs.
Key Schematics for Electrical Pathway Design

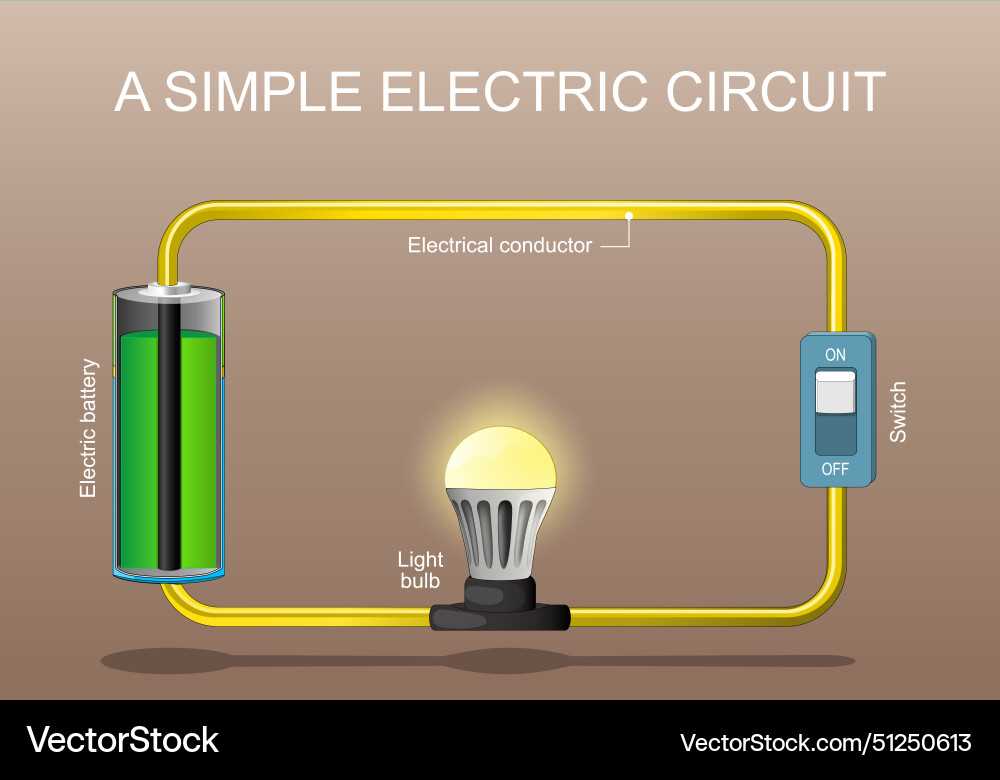

Begin by segmenting your wiring layout into functional zones–power input, distribution nodes, and load endpoints. Use color-coded lines to distinguish voltage levels: red for high voltage (48V+), blue for low (5V–24V), and black for ground. Label each segment with its intended current rating in amperes, avoiding vague terms like “high” or “low.”
For AC pathways, incorporate fuses or breakers within 10 cm of the power source. Select interrupting ratings 20% above expected fault currents–e.g., a 10A breaker for an 8A load. In DC setups, place diodes immediately after the source to block reverse polarity, specifying forward voltage drop (typically 0.7V for silicon).
Minimize wire lengths between components to reduce voltage drop. For copper conductors, use this reference:
- 1.0 mm²: 8A (30°C ambient)
- 1.5 mm²: 12A
- 2.5 mm²: 20A
- 4.0 mm²: 25A (derate 5% per 10°C above 40°C)
Critical Safety Margins
Always include pull-up/pull-down resistors (4.7kΩ–10kΩ) on signal paths prone to floating states. For microcontroller inputs, tie unused pins to ground via 1kΩ resistors. Thermal derating applies when ambient temperatures exceed 40°C–reduce current capacity by 0.5% per degree.
Isolate sensitive analog traces from digital switching lines using guard traces (grounded copper strips). Maintain a minimum 3 mm clearance between high-voltage (100V+) and low-voltage paths. For PCB-based layouts, increase trace width by 50% if the pathway carries pulses >1kHz to mitigate skin-effect losses.
Grounding strategies depend on the system’s noise tolerance:
- Single-point: Connect all returns to one node (
- Multipoint: Use star topology for frequencies >1MHz.
- Hybrid: Combine both for mixed-signal designs.
Avoid daisy-chaining ground paths–loop currents induce noise.
Validate every connection with a multimeter in continuity mode before powering the system. For transient protection, add transient voltage suppression (TVS) diodes rated 10% above the operating voltage. Store all schematics in vector format (SVG/DXF) to preserve scalability–raster images degrade when resized.
Critical Elements for Accurate Electrical Path Schematics
Begin with clear identification of all conductive paths, labeling each trace with its cross-sectional area in square millimeters and material composition (e.g., copper, aluminum). Specify thickness using standard gauge values (AWG for wires, oz/ft² for laminates) to eliminate ambiguity in resistance calculations. For high-frequency designs, include the dielectric constant of surrounding insulators directly beside each path to facilitate impedance verification.
Power rails require distinct annotation: use a consistent color-coding system–bright red for VCC, deep blue for ground, and contrasting hues for auxiliary supplies. Indicate voltage levels at key junctions with numerical tags (e.g., “+12V”, “GND-REF”) and annotate current limits in milliamps next to each rail. For multi-layer boards, add layer references (e.g., “L4+5V”) to prevent confusion during debugging.
Integrate transient protection elements–highlight fuses, varistors, and TVS diodes with dedicated symbols and attach precise ratings (clamping voltage, breakdown values). For each safeguard, include a brief note on its role (e.g., “ESD spike suppression >25kV”). Place thermal indicators near heat-generating components, specifying maximum junction temperature and recommended heat sink dimensions.
Control Signal Precision Markings
Isolate low-voltage control lines (I²C, SPI) using dashed borders and label pull-up/down resistor values (typically 4.7kΩ for 3.3V logic). Add propagation delay estimates for critical timing paths, expressed in nanoseconds, adjacent to the signal trace. For differential pairs, mark impedance targets (100Ω ±10%) and length-matching tolerances (e.g., “ΔL
Include test points at intersections of sensitive pathways, designating them with alphanumeric codes (e.g., “TP-SCLK01”) linked to a separate table detailing expected voltage ranges and waveform characteristics. Use subscripts for reference voltages (VREF-xxx) and specify their derivation (e.g., “2.5V from LDO U5”) to streamline validation.
For modular assemblies, embed connection matrices showing pin assignments between interfaces, using color gradients to denote signal types (analog, digital, power). Indicate shielding requirements for noise-prone traces with dashed purple lines and specify shielding material (e.g., “Cu foil wrap, grounded at U7-PIN8”). Conclude with a revision block listing date, author, and EDA tool version (e.g., “KiCad 8.0.2”) to track design iterations.

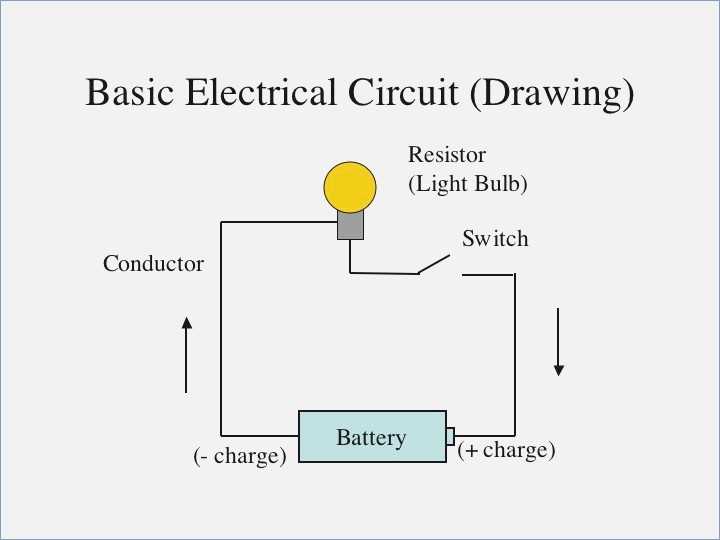

Creating a Schematic for Electrical Pathways: A Practical Guide

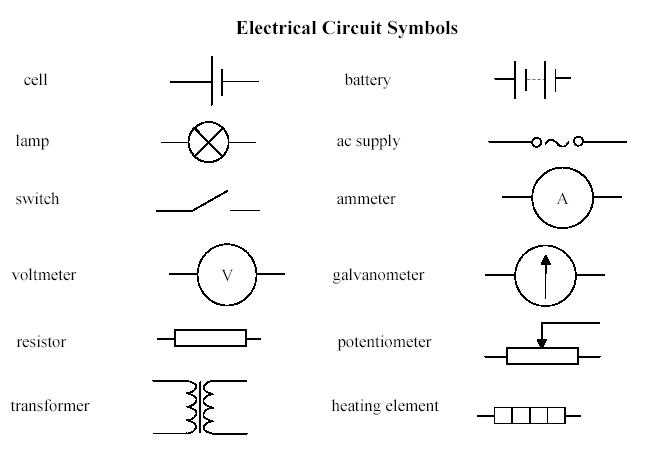

Begin by identifying all components requiring representation. List their symbols–resistors use a zigzag line, capacitors a parallel pair, batteries two unequal lines–then verify standardized IEEE or IEC notation matches your project’s requirements. Sketch each element on graph paper first, positioning power sources at the top, ground at the bottom. This orientation prevents misalignment later.
Connect terminals with straight, orthogonal lines. Avoid diagonal traces unless essential–angled intersections complicate fabrication. Label each route with current values, voltage drops, and signal types (e.g., Vcc, GND, CLK). Use arrowheads for directional flow on data buses; omit them for bidirectional pathways. Maintain 0.2-inch spacing between adjacent pathways to reduce crosstalk in dense layouts.
Incorporate junction dots at node intersections with three or more converging routes. Absence of dots indicates wires crossing without connection–mandatory clarity for PCB translation. Test continuity virtually with a schematic checker, flagging unconnected pins, duplicate nets, or floating inputs. Export netlist in EDIF or KiCad format for verification against physical constraints.
Finalize by annotating documentation layers. Add a revision table noting initials, dates, and modifications. Include a BOM referencing part numbers, tolerances, and footprints. Archive source files in SVN with checksums to track incremental changes.
Frequent Errors in Electrical Schematic Drafting
Avoid placing components too close together without spatial planning. Minimum clearance between traces should be at least 0.2 mm for low-voltage setups–anything tighter risks shorts during fabrication or operation. Copper pours overlapping pads without proper isolation create unintended ground loops, skewing signal integrity. Always define keep-out zones within your layout tool to enforce these rules automatically.
Neglecting net naming conventions leads to confusion during debugging. Label each signal path clearly, using consistent prefixes like “SIG_” for signals or “VCC_” for power rails. Ambiguous labels like “A1” or “Net1” waste hours tracing connections later. Cross-reference labels with a Bill of Materials to ensure alignment between schematic symbols and physical components.
Overlooking power distribution symmetry causes voltage drops at distant nodes. For analog sections, distribute power traces in a star topology, not daisy-chain. Calculate trace widths based on current demands–0.5 oz copper handles approximately 1 A per mm of width at 25°C; exceeding this degrades performance. Verify calculations with an online trace width calculator before finalizing the blueprint.
Misaligned Layer Assignments
Mixing signal layers with power planes without considering return paths induces crosstalk. Route high-speed traces on dedicated layers adjacent to solid ground planes to maintain impedance control–typically 50 Ω for single-ended signals. Stackup misconfigurations (e.g., placing a power plane between two signal layers) amplify noise. Use a 4-layer board as a baseline: signal (top), ground, power, signal (bottom).
Failing to annotate critical design constraints directly on the schematic forces reviewers to guess intentions. Add text blocks specifying trace impedance, differential pair spacing, or thermal relief requirements. Documenting “3.3V tolerant only” near relevant pins prevents misapplication of 5V signals. Embed these notes in the master template to propagate across future revisions.
Disregarding the manufacturer’s design rules results in costly fabrication errors. Check the PCB shop’s minimum trace/space (often 4/4 mil), annular ring size (typically 0.15 mm), and hole tolerances before submission. Export Gerber files with explicit unit settings (millimeters preferred) to avoid scaling errors. Preview the files in a Gerber viewer to catch missing overlays or misaligned drill holes.
